Toyota Supra
2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe
Supported model
Data version 2022-08
Brake Tube & Clamp
26 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

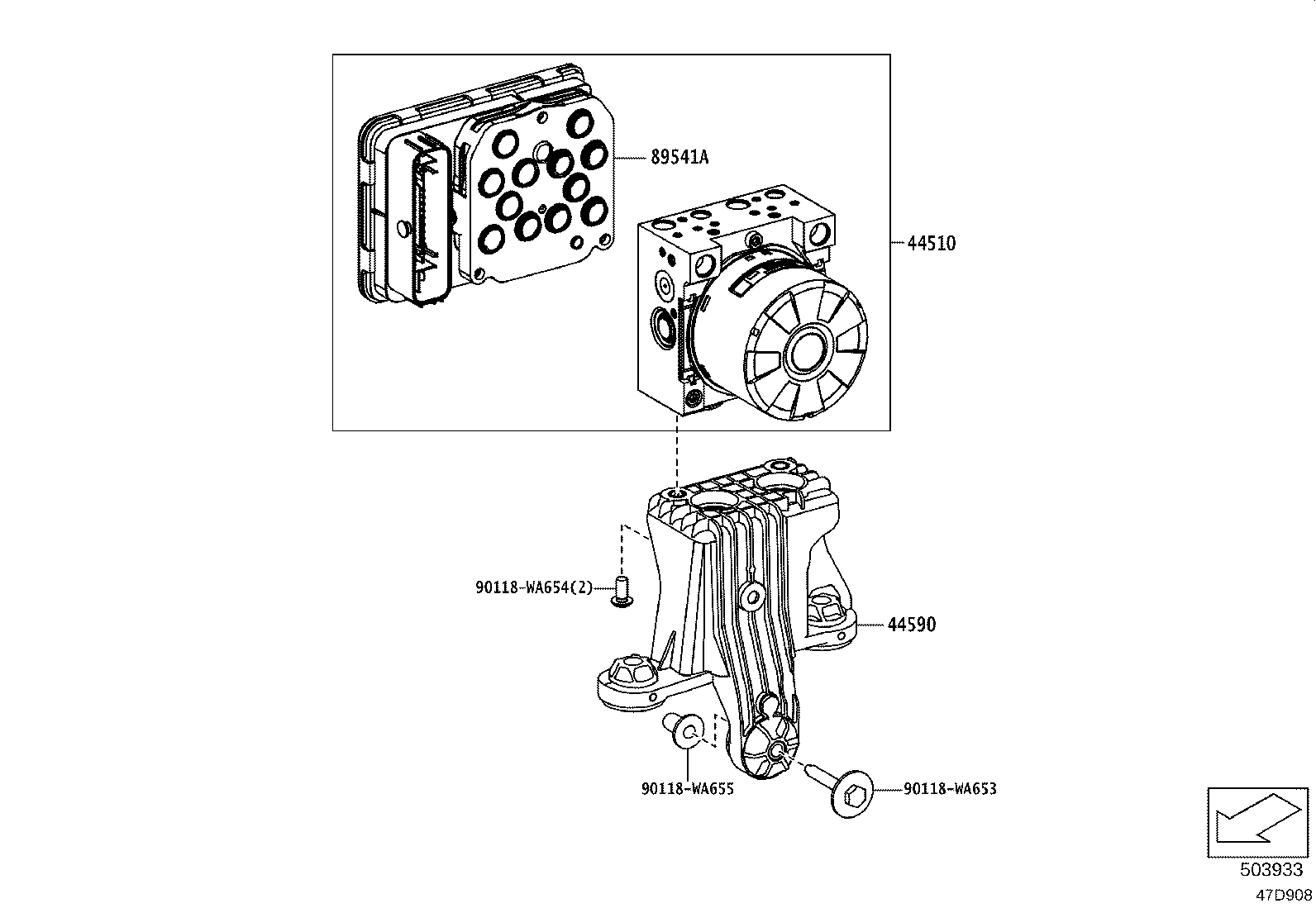

| 44510 | Actuator Assy, Brake |
| 44590 | Bracket Assy, Brake Actuator |

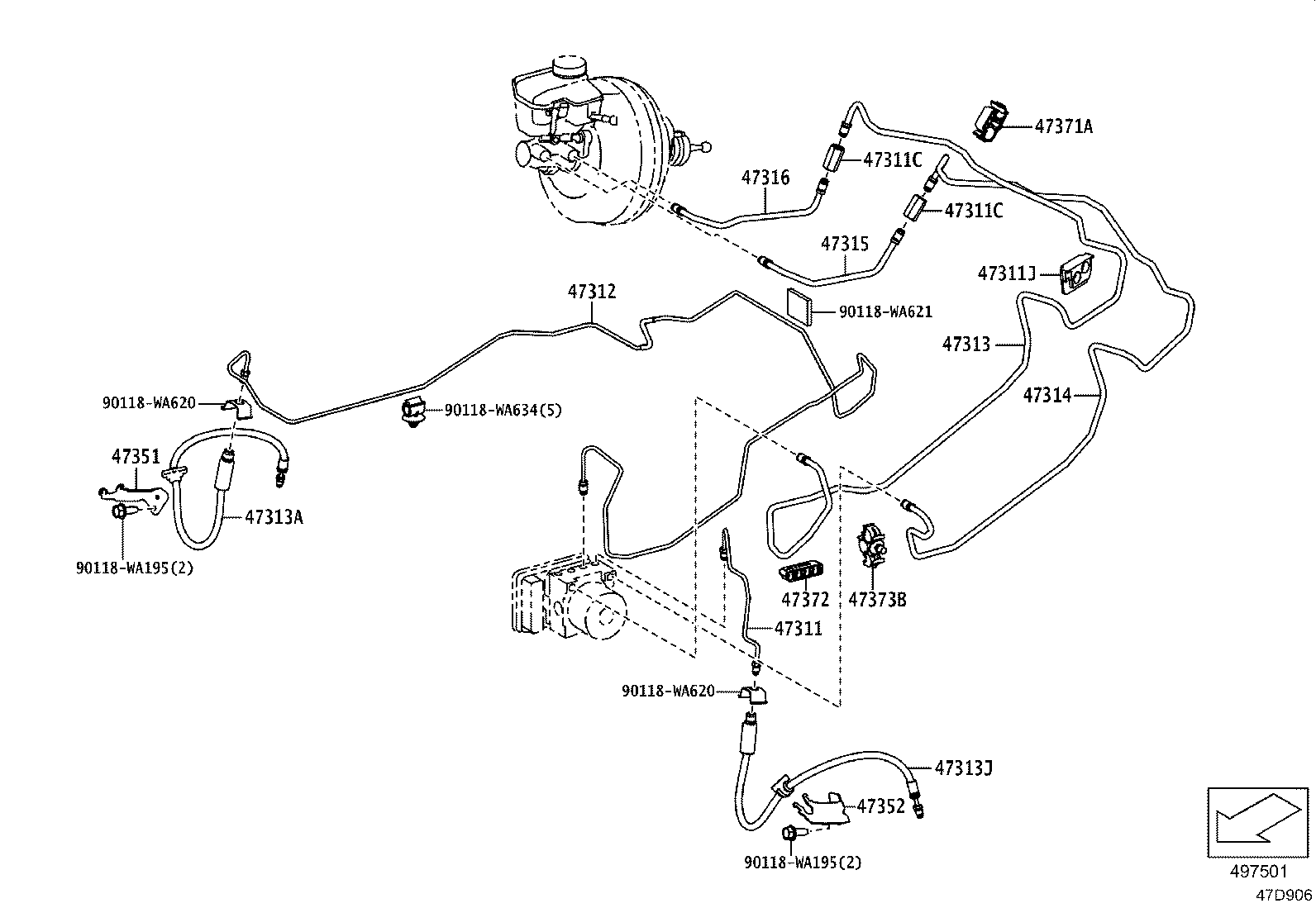

| 47311 | Tube, Front Brake, NO.1 |
| 47311C | Union(FOR FRONT BRAKE TUBE) |
| 47311J | Grommet, NO.1(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313J | Hose, Flexible, NO.2(FOR FRONT) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |

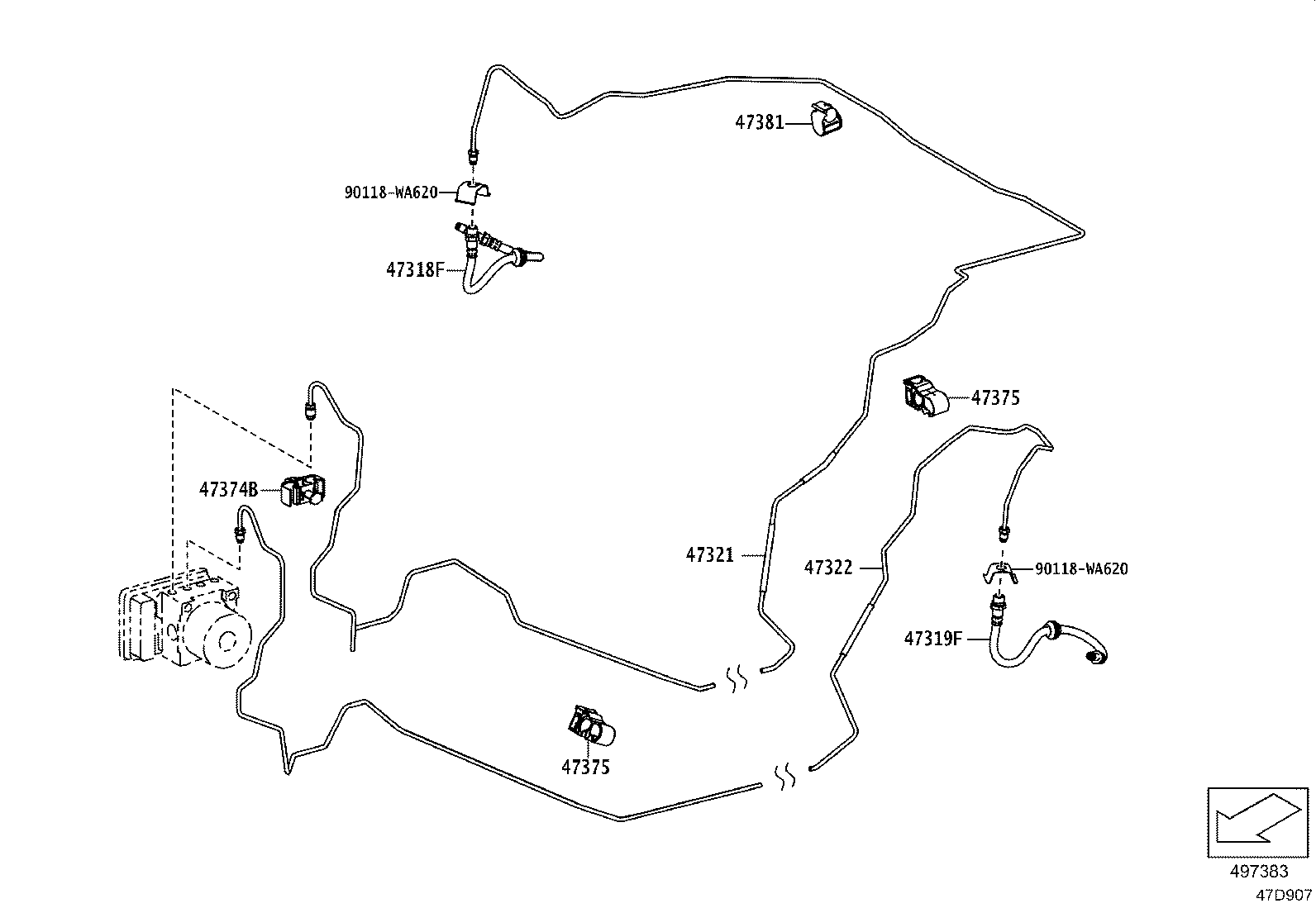

| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47322 | Tube, Rear Brake, NO.2 |

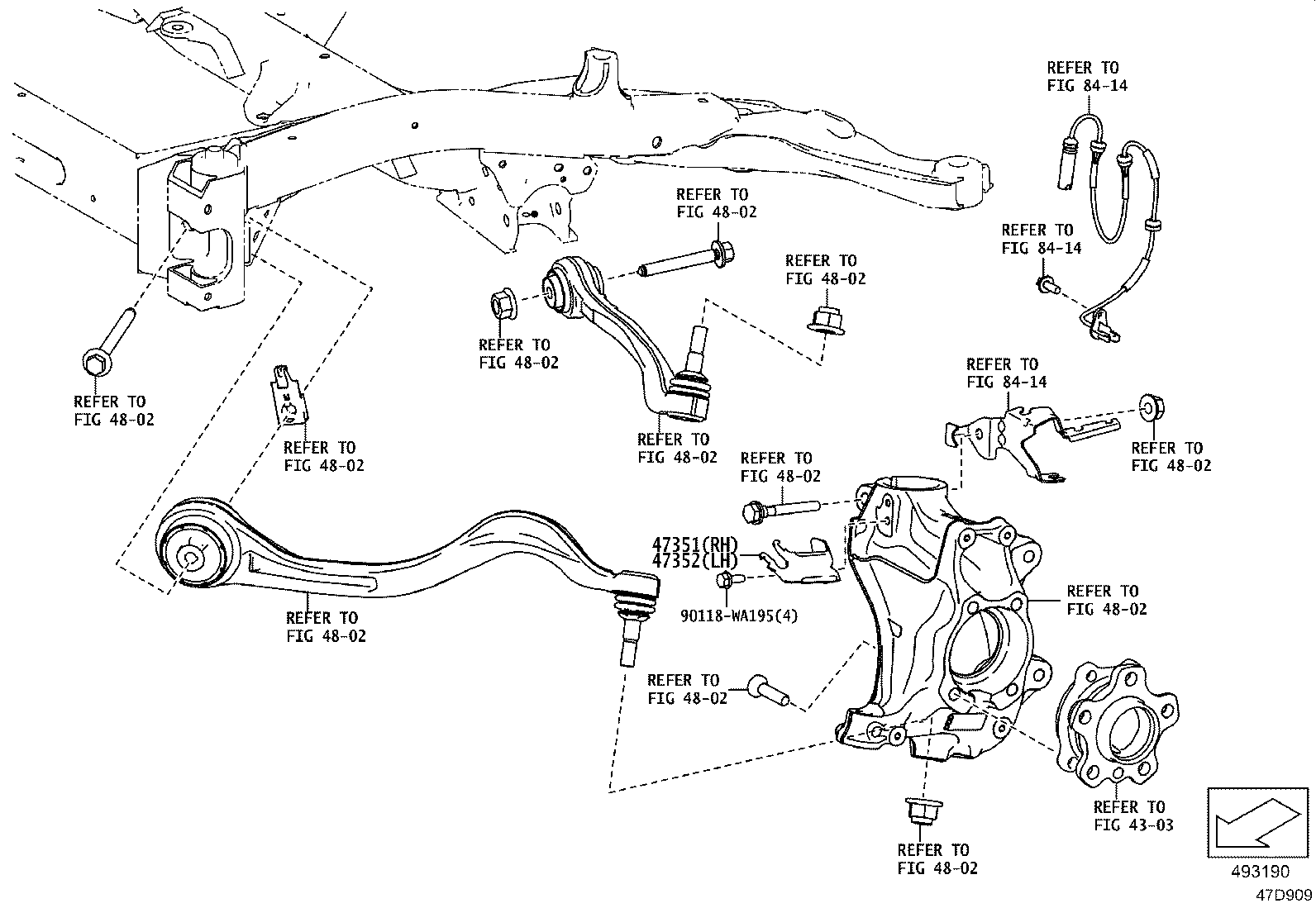

| 47351 | Bracket, Flexible Hose(FOR FRONT RH) |
| 47352 | Bracket, Flexible Hose(FOR FRONT LH) |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373A | Bracket, Tube Clamp |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47375 | Clamp, Brake Tube, NO.5 |
| 47381 | Bracket, Brake Tube Clamp NO.1 |
| 89541A | Computer, Skid Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
