Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

12 part groups · 2 illustrations

Illustrations

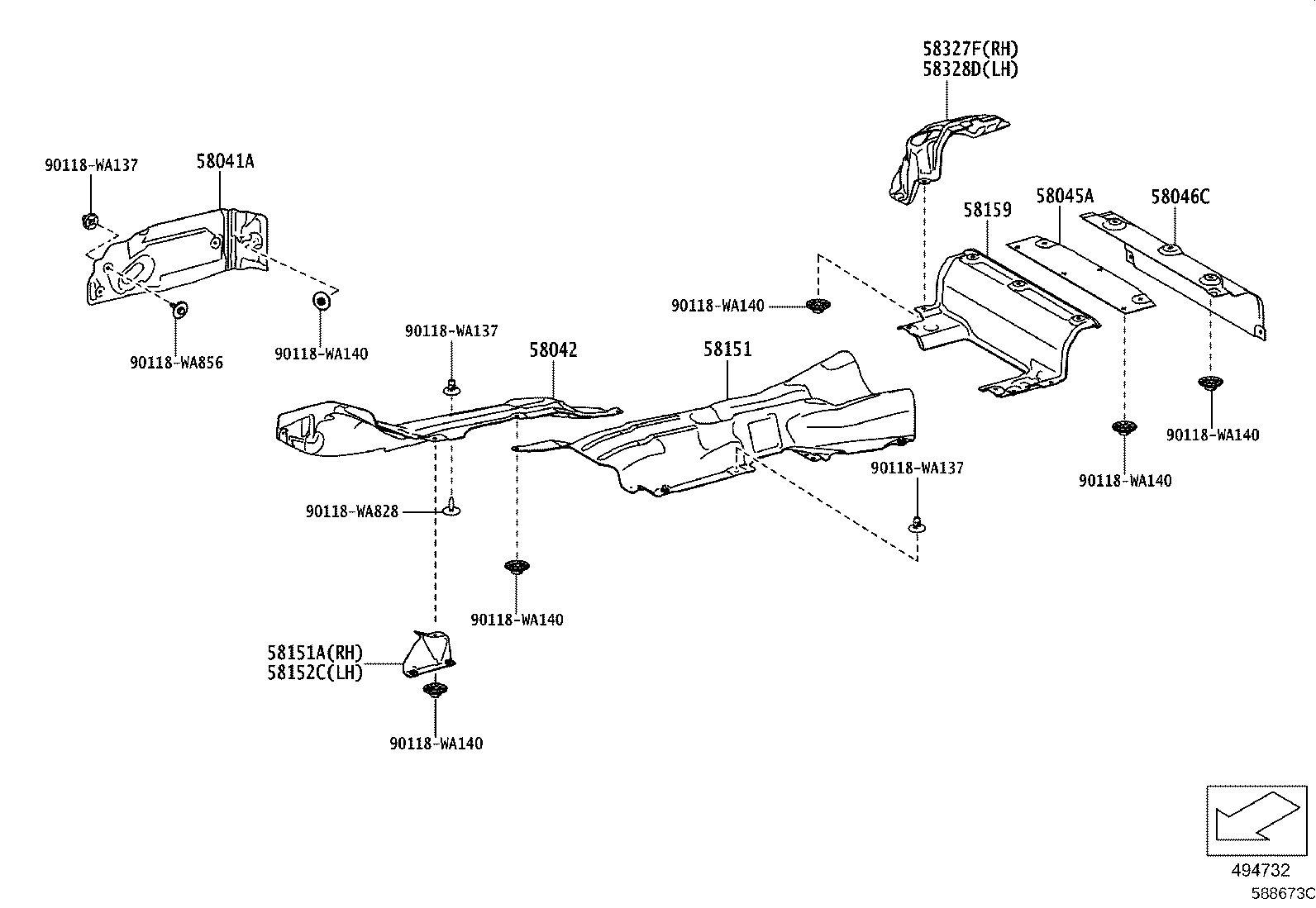

Figure 588672 588672 2022-07 → — Figure 588673C 588673C 2022-07 → —

Part groups

PNCDescription
58041A Insulator Sub-assy, Front Floor Heat, NO.1
58042 Insulator Sub-assy, Front Floor Heat, NO.2
58045A Insulator Sub-assy, Rear Floor Heat
58046C Insulator Sub-assy, Rear Floor Heat, NO.2
58151 Insulator, Front Floor Heat, NO.1
58151A Insulator, Floor Heat, NO.1
58152C Insulator, Floor Heat, NO.2
58153 Insulator, Front Floor Heat, NO.2
58155 Insulator, Front Floor Heat, NO.3
58159 Insulator, Main Mafflar Heat
58327F Insulator, Main Muffler Heat, RH
58328D Insulator, Main Muffler Heat, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
