Toyota Supra
2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe
Supported model
Data version 2022-08

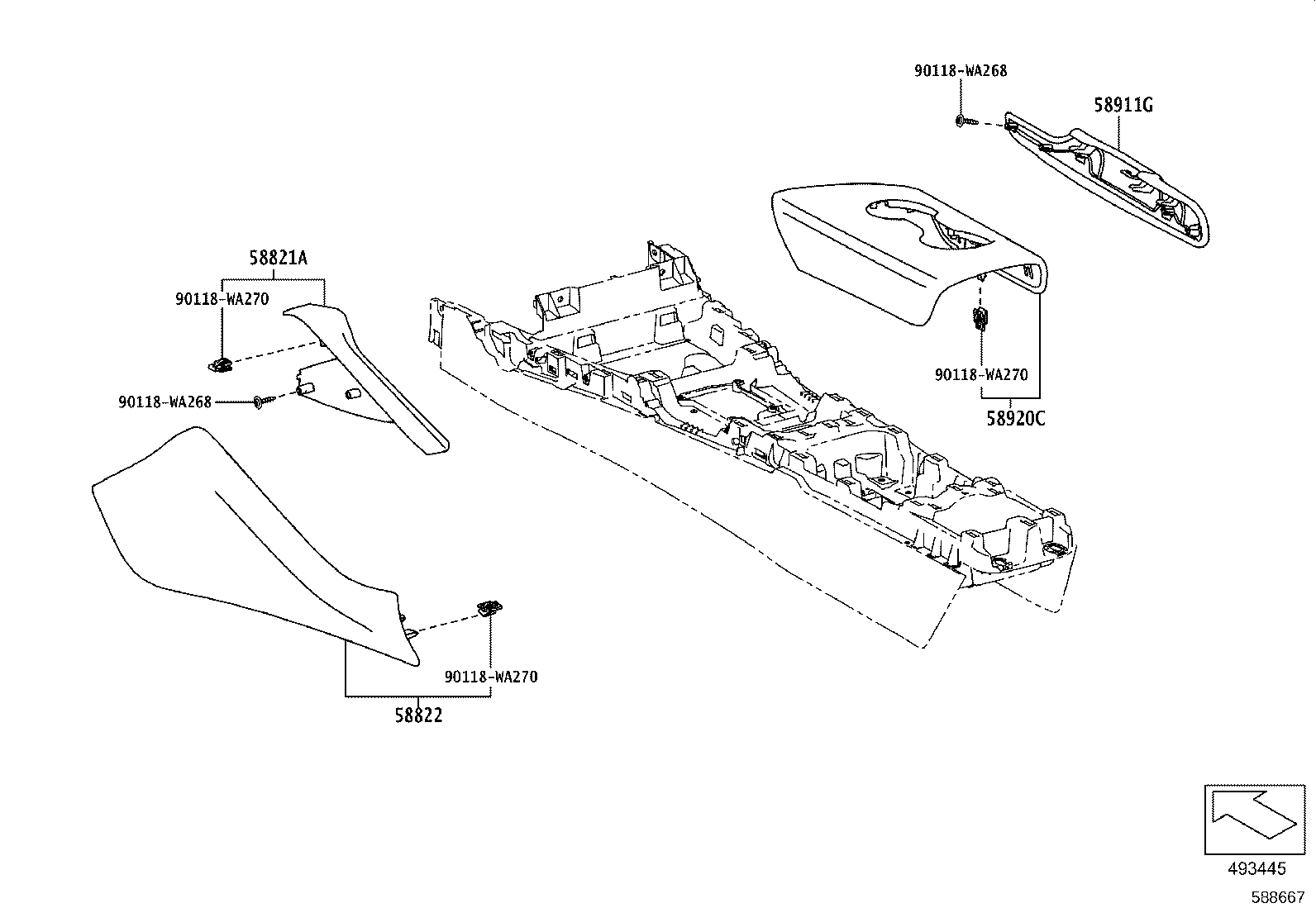

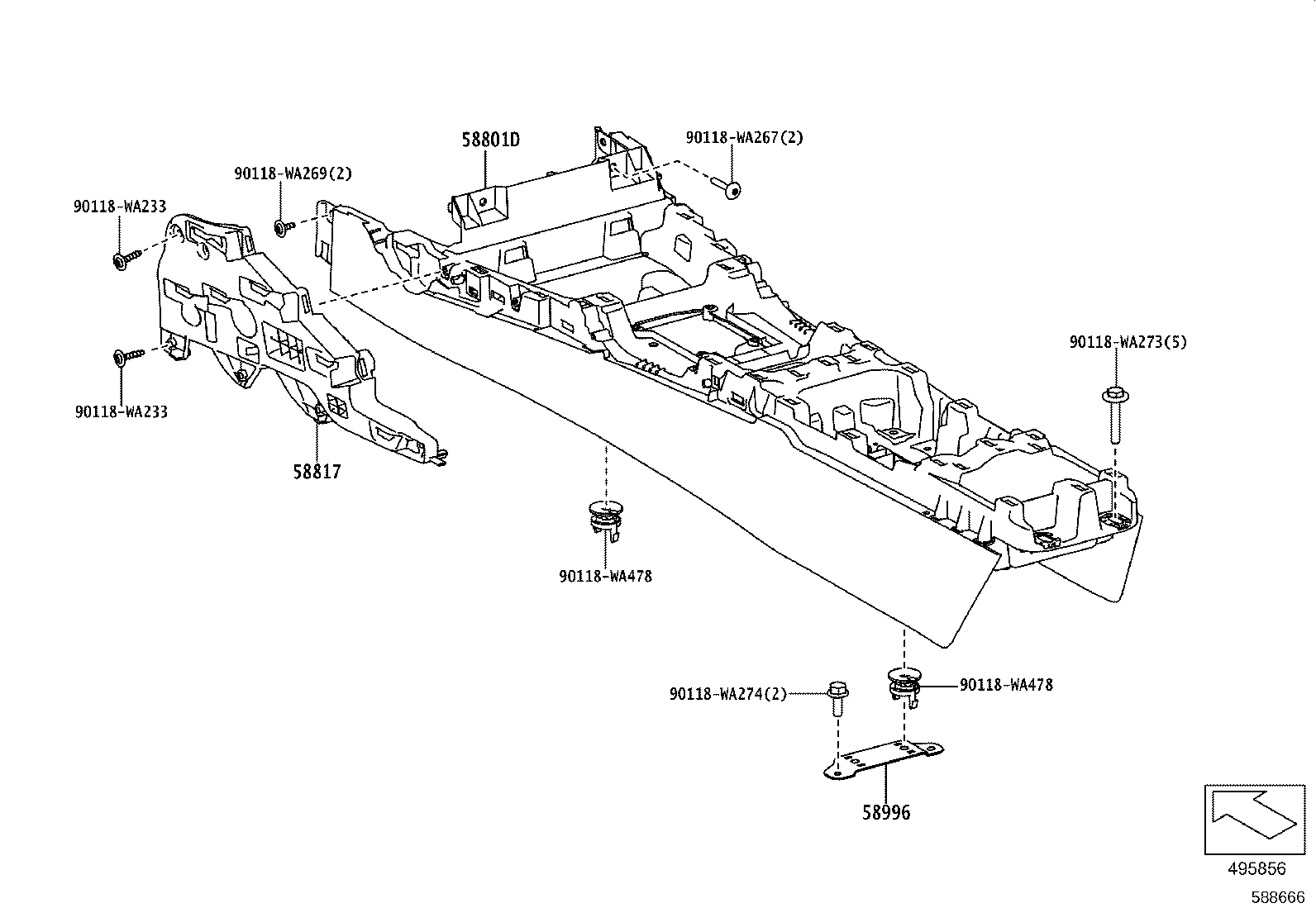

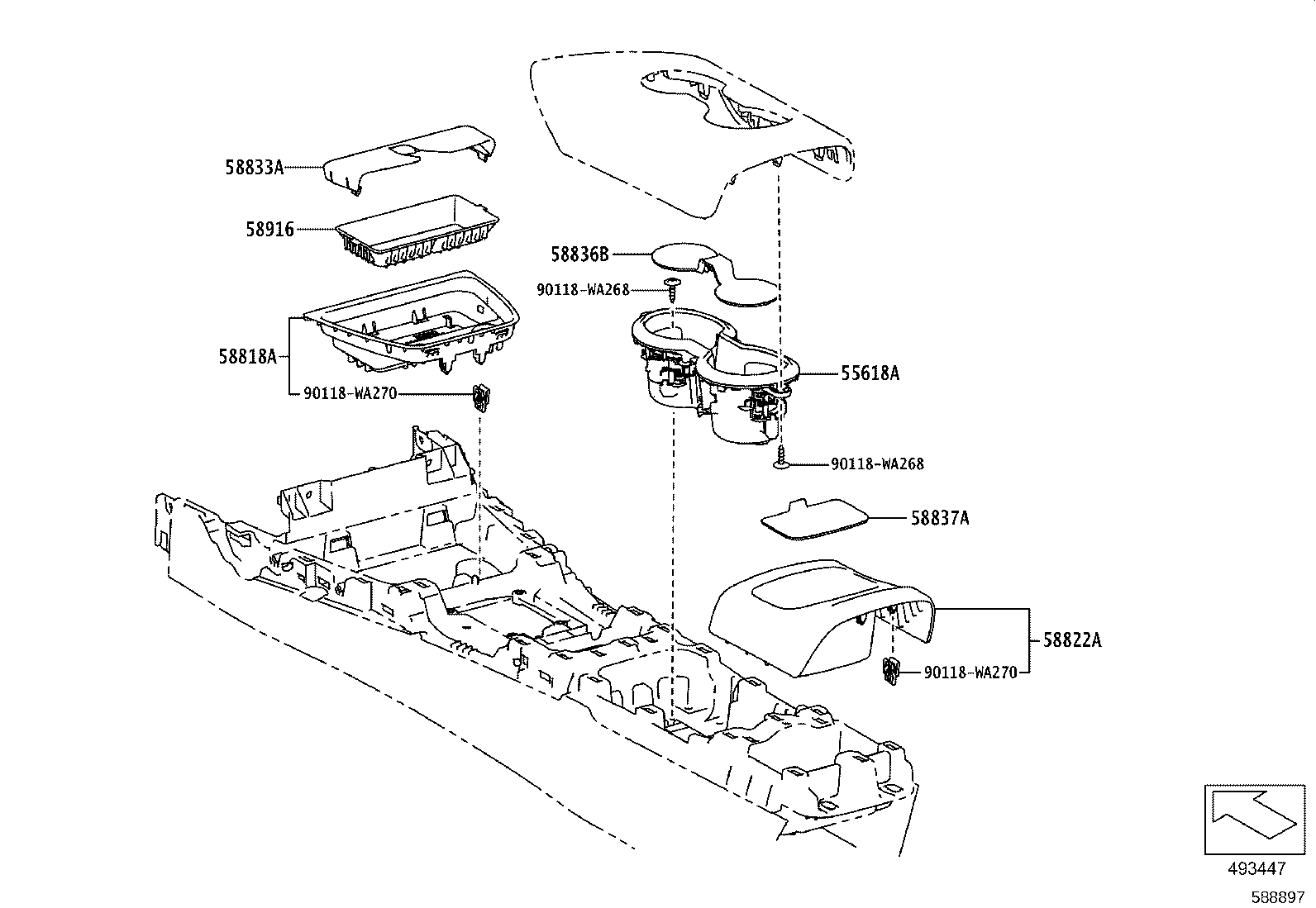

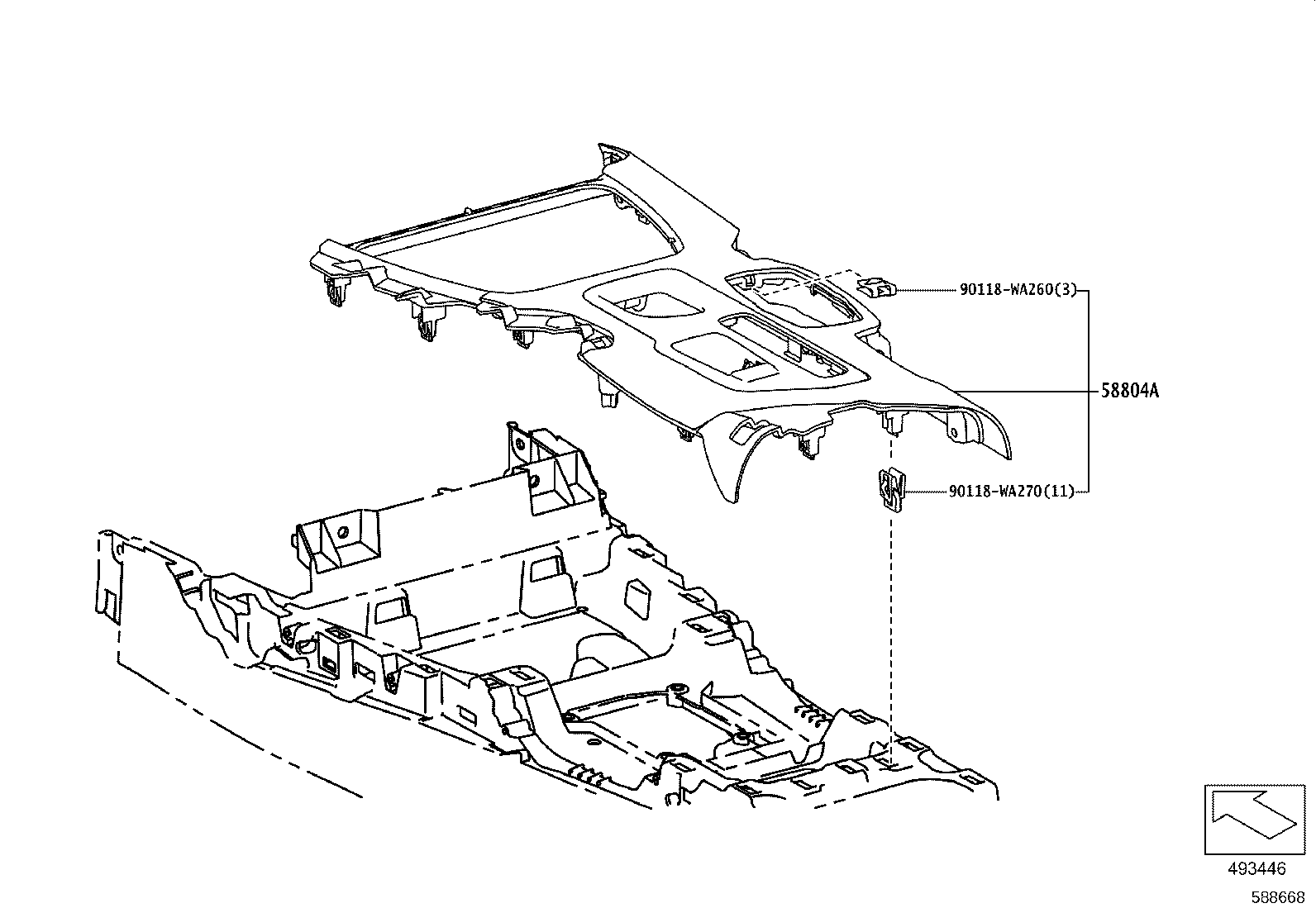

Console Box & Bracket
16 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55618A | Holder, Console Box Cup |
| 58801D | Box Assy, Console |
| 58804A | Panel Sub-assy, Console, Upper |
| 58817 | Retainer, Console Panel |
| 58818A | Cover, Console Box, FR |
| 58821A | Panel, Console |
| 58822 | Panel, Console, Side |
| 58822A | Panel, Console, Upper Rear |
| 58833A | Cover, Console, Upper |
| 58836B | Pad, Console Box Silencer, NO.1 |
| 58837A | Pad, Console Box Silencer, NO.2 |
| 58911G | Panel, Box, NO.1 |
| 58916 | Mat, Box Bottom |
| 58918A | Bracket, Box Support |
| 58920C | Armrest Assy, Front Console |
| 58996 | Bracket, Console Box Mounting, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
