Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

7 part groups · 3 illustrations

Illustrations

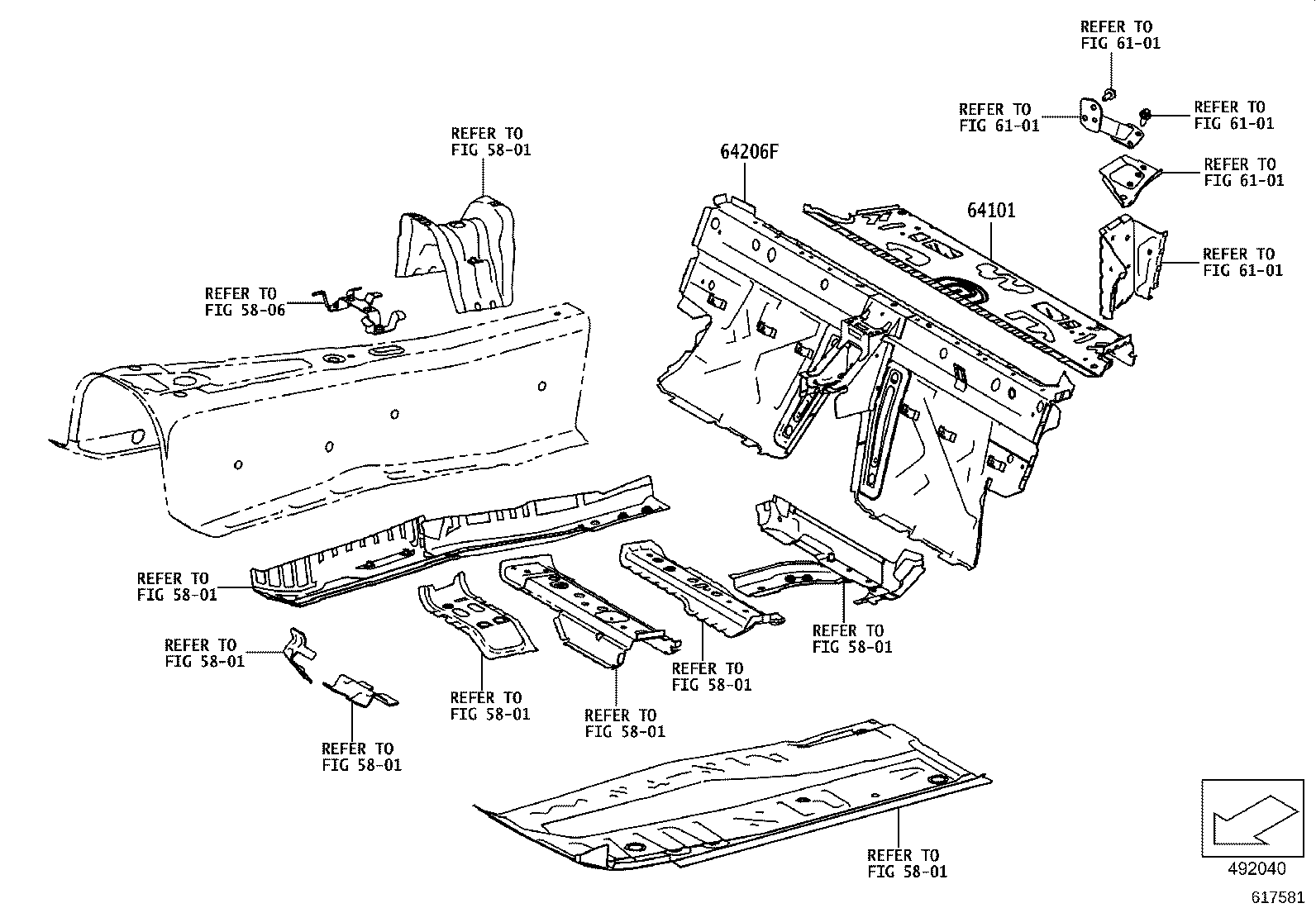

Figure 617580 617580 2022-07 → — Figure 617581 617581 2022-07 → — Figure 617582A 617582A 2022-07 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63105 Reinforcement Sub-assy, Roof Panel, Rear
63111 Panel, Roof
63112 Gusset, Roof Panel Side, RH
63113 Gusset, Roof Panel Side, LH
64101 Panel Sub-assy, Upper Back
64206F Panel Sub-assy, Room Partition
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
