Toyota Supra
2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe
Supported model
Data version 2022-08
Inside Trim Board & Door Opening Trim Moulding
28 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111C | Board, Cowl Side Trim, RH |
| 62112A | Trim Sub-assy, Cowl Side, LH |

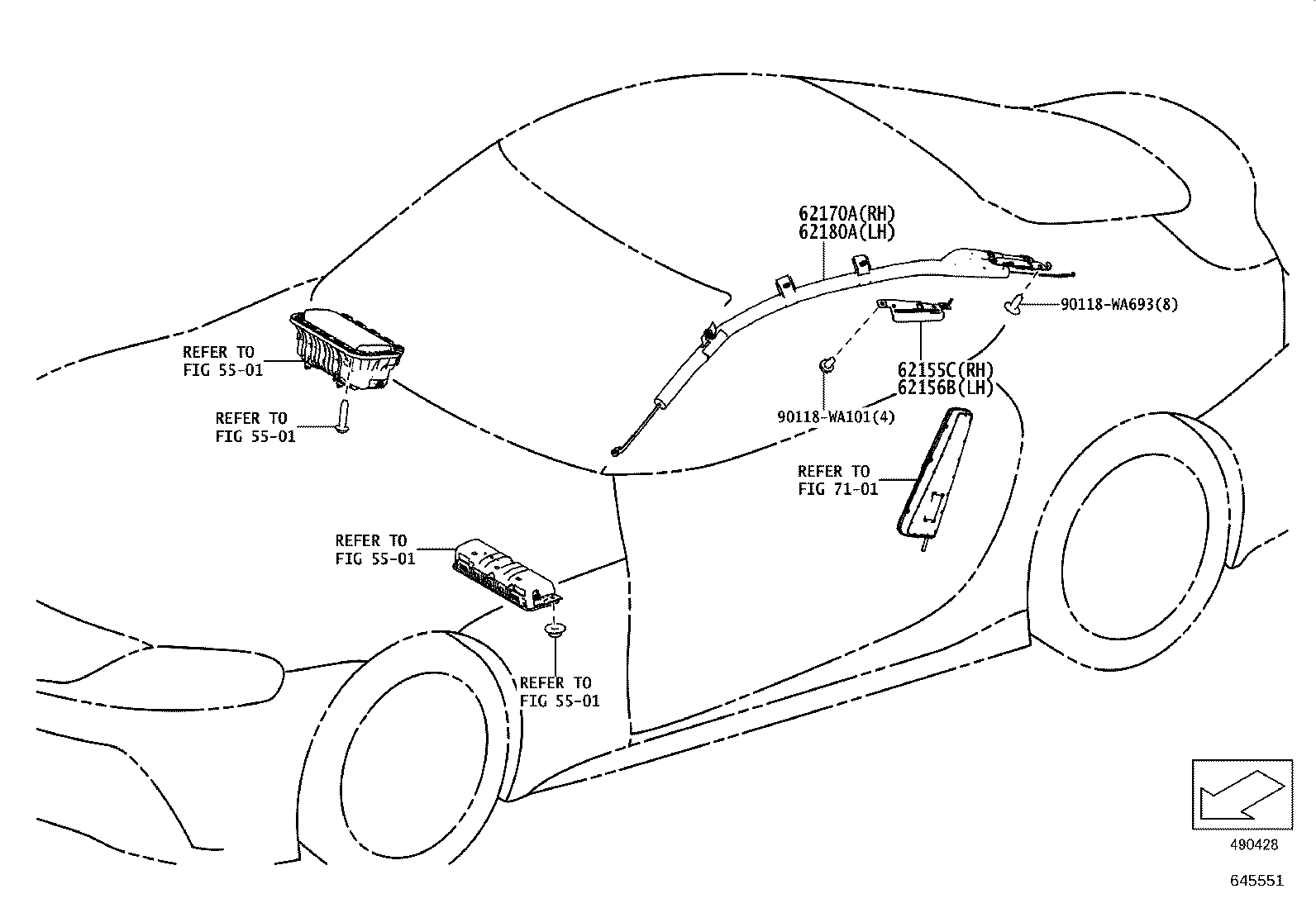

| 62155C | Bracket, Curtain Shield Airbag, RH |
| 62156B | Bracket, Curtain Shield Airbag, LH |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62199A | Holder, Fusee |

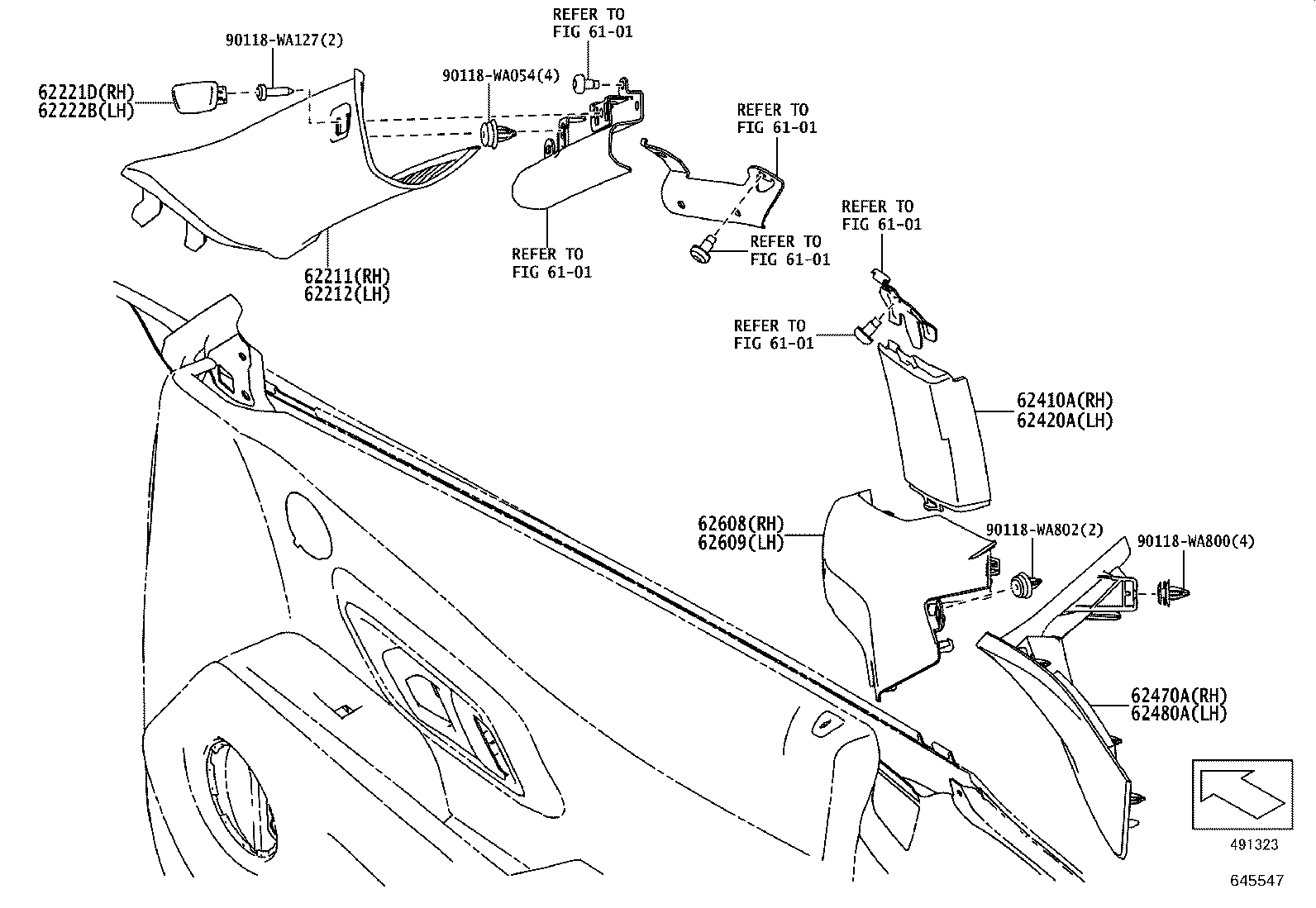

| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62221D | Cover, Front Pillar Garnish, RH |
| 62222B | Cover, Front Pillar Garnish, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62410A | Garnish Assy, Center Pillar, RH |
| 62420A | Garnish Assy, Center Piller, LH |
| 62480A | Garnish Assy, Roof Side, Inner LH |

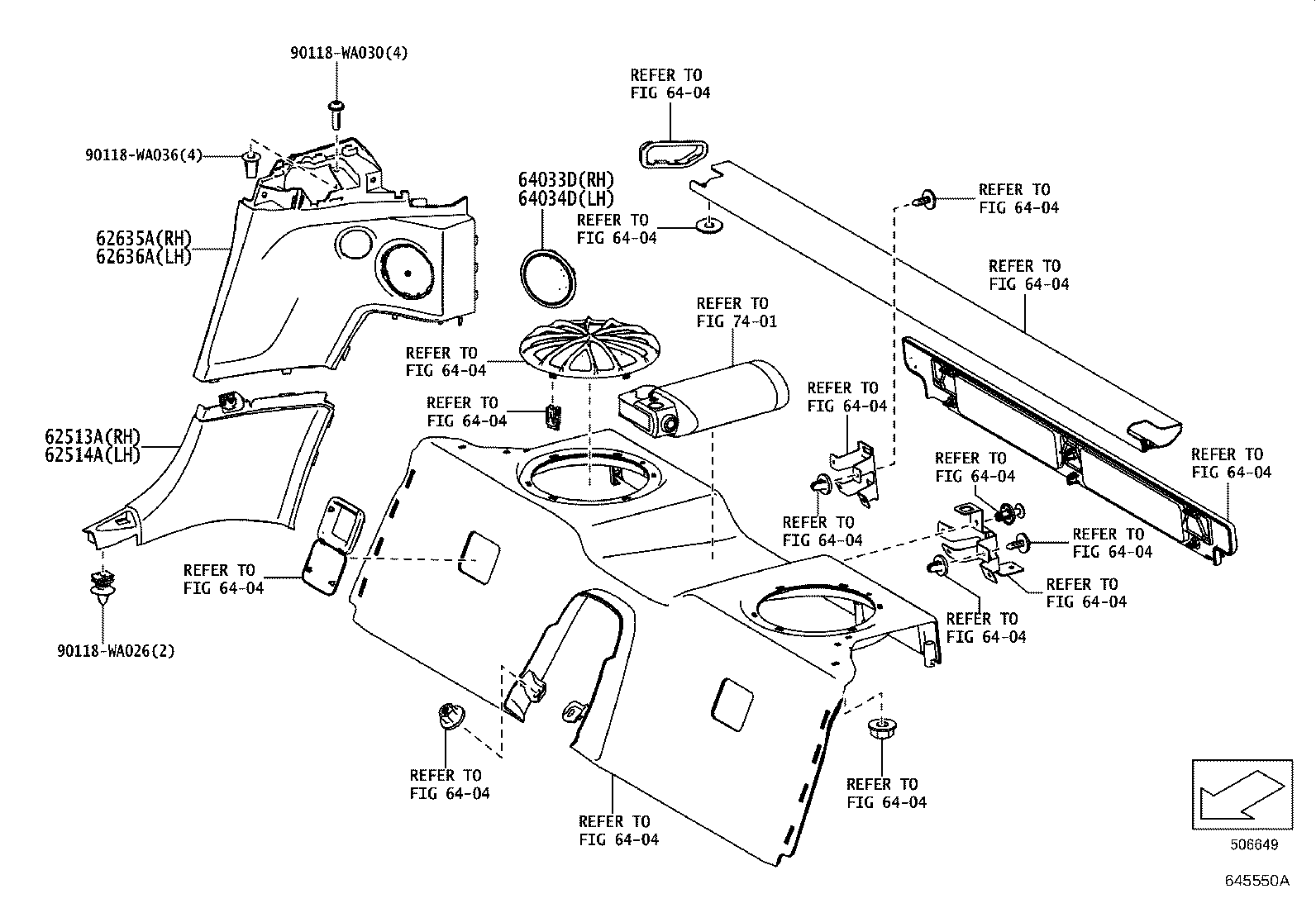

| 62513A | Panel, Quarter Trim, Lower RH |
| 62514A | Panel, Quarter Trim, Lower LH |
| 62608 | Cover Sub-assy, Seat Belt Hole, RH |
| 62609 | Cover Sub-assy, Seat Belt Hole, LH |
| 62635A | Panel, Quarter Trim, Upper RH |
| 62636A | Panel, Quarter Trim, Upper LH |
| 64033D | Grille Sub-assy, Rear Speaker, RH |
| 64034D | Grille Sub-assy, Rear Speaker, LH |

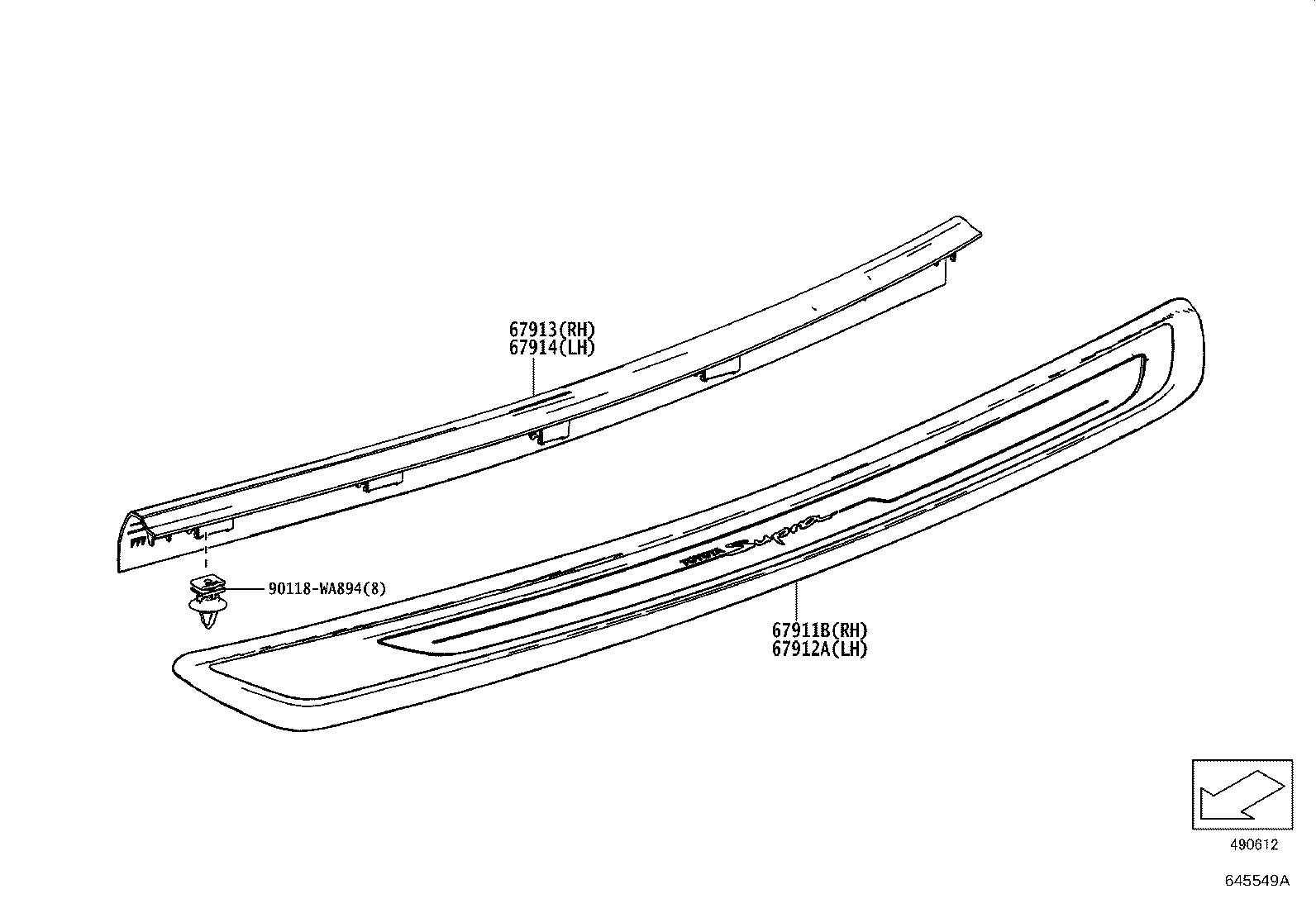

| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
