Toyota Supra
2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe
Supported model
Data version 2022-08
Deck Board & Deck Trim Cover
31 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 58416C | Bracket, Deck Board, NO.1 RH |
| 58417C | Bracket, Deck Board, NO.1 LH |

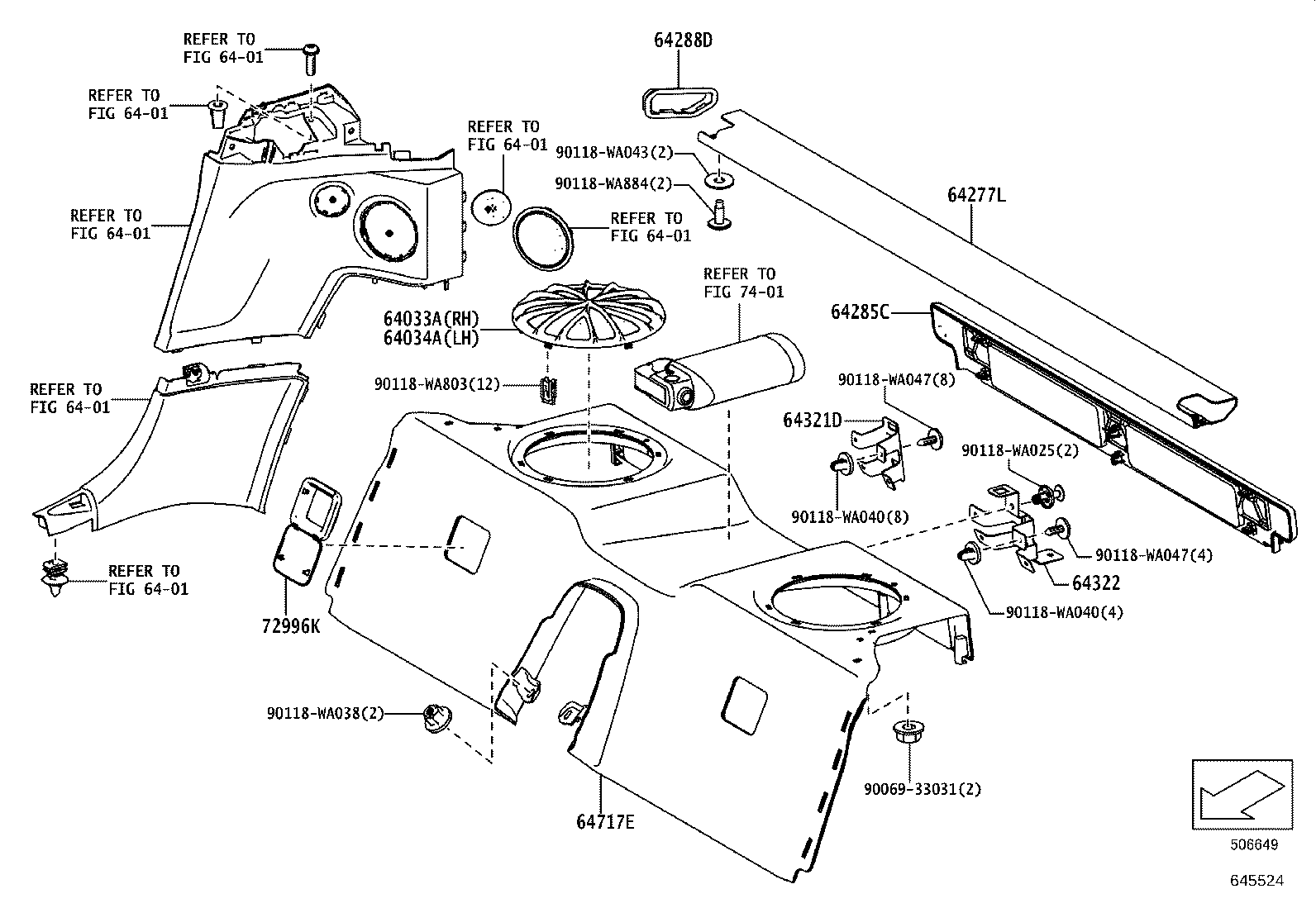

| 64033A | Grille Sub-assy, Rear Speaker, RH |
| 64034A | Grille Sub-assy, Rear Speaker, LH |
| 64230A | Net Assy, Room Partition |
| 64277L | Pipe, Transverse |
| 64285C | Cover, Luggage Compartment Trim, Rear |
| 64288D | Trim, Transverse Pipe |
| 64321D | Bracket, Package Tray Trim, RH |
| 64322 | Bracket, Package Tray Trim, LH |

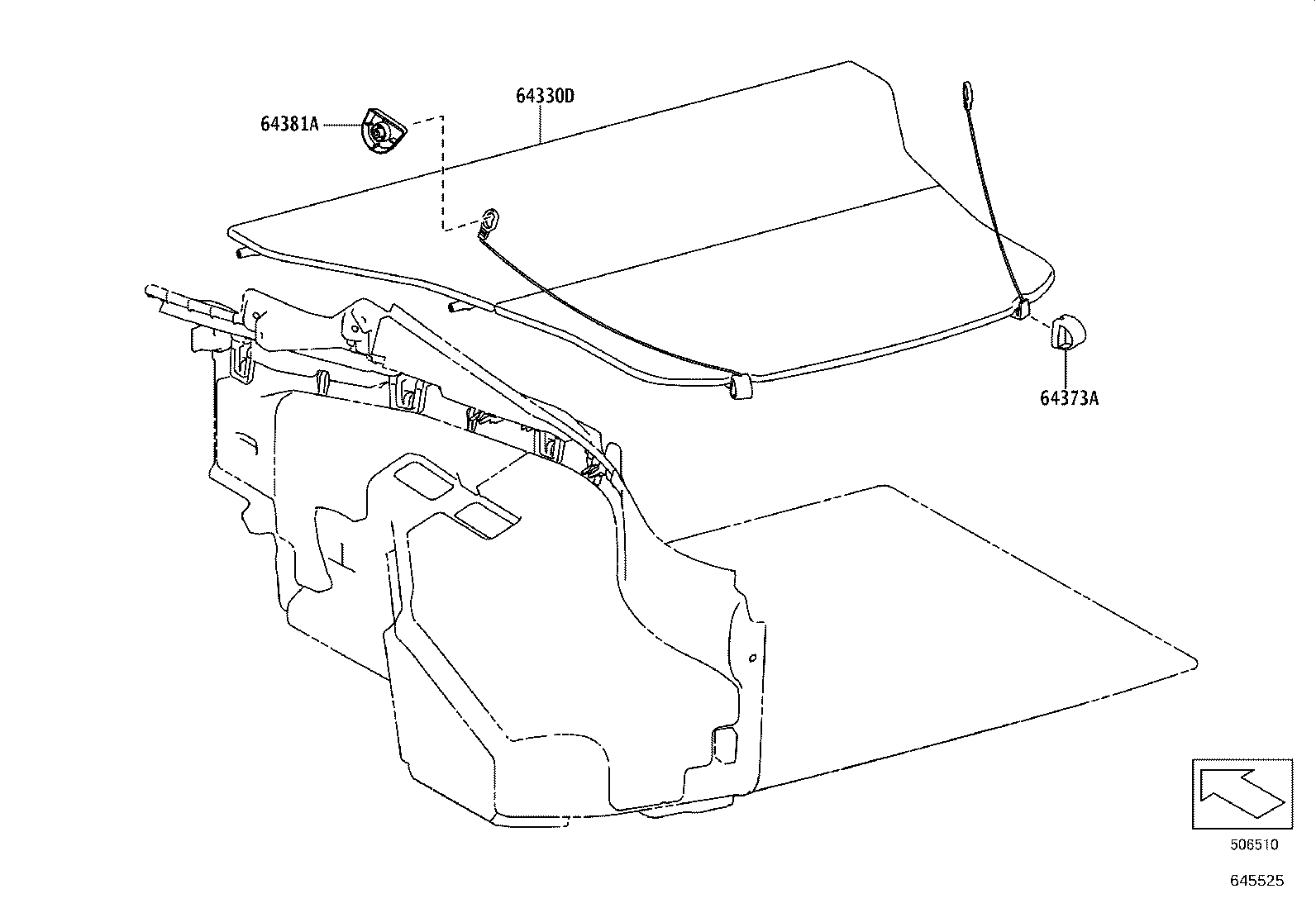

| 64330D | Panel Assy, Package Tray Trim |
| 64342A | Clip |
| 64373A | Stopper, Package Tray Trim |
| 64381A | Hanger, Package Tray Trim |

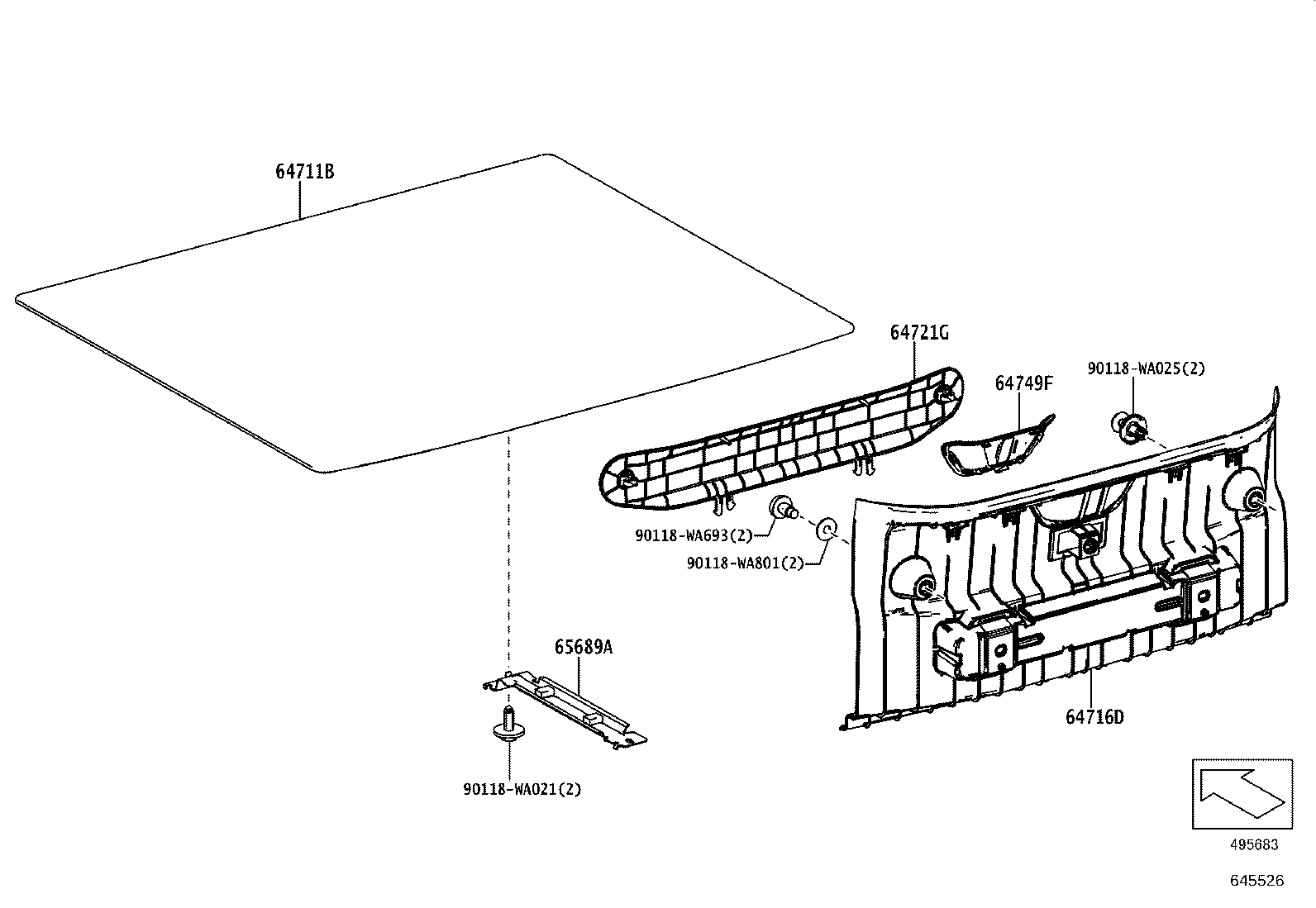

| 64711B | Board Assy, Deck |
| 64714C | Cover, Deck Side Trim, RH |
| 64715C | Cover, Deck Side Trim, LH |
| 64716D | Cover, Deck Trim, Rear |
| 64717E | Cover, Luggage Compartment Trim, Front |
| 64718A | Cover, Deck Trim Service Hole |
| 64721G | Cover, Deck Trim, NO.1 |
| 64730C | Board, Deck Trim Side, RH |
| 64740B | Board, Deck Trim Side, LH |
| 64749F | Cover, Back Door Striker |

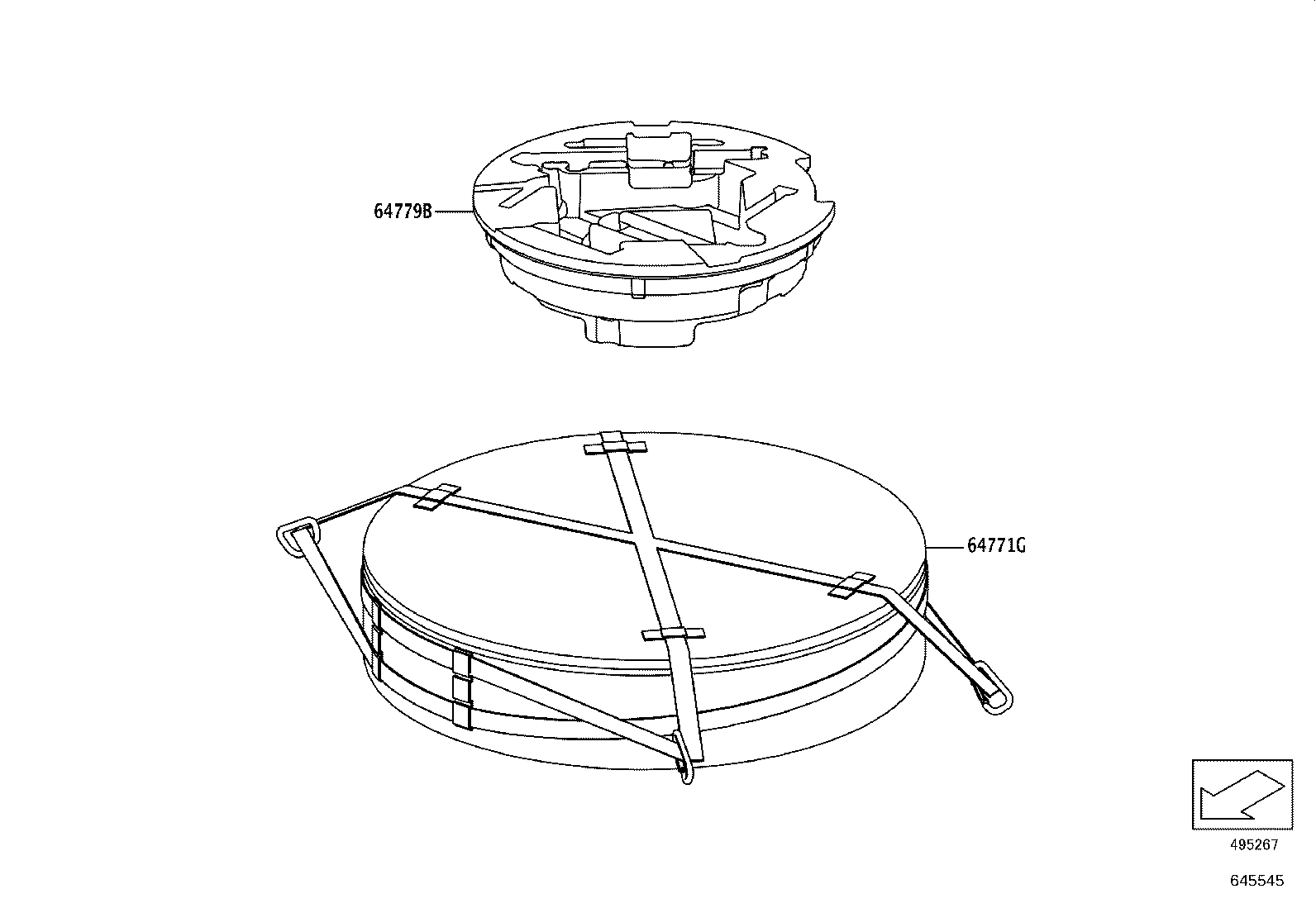

| 64771G | Cover, Spare Wheel |
| 64779B | Stopper, Spare Wheel Cover |
| 65689A | Bracket |
| 66311 | Hook, Rope |
| 72996K | Cover, Child Restraint Seat |
| 73708A | Bracket Set, Tether Anchor |

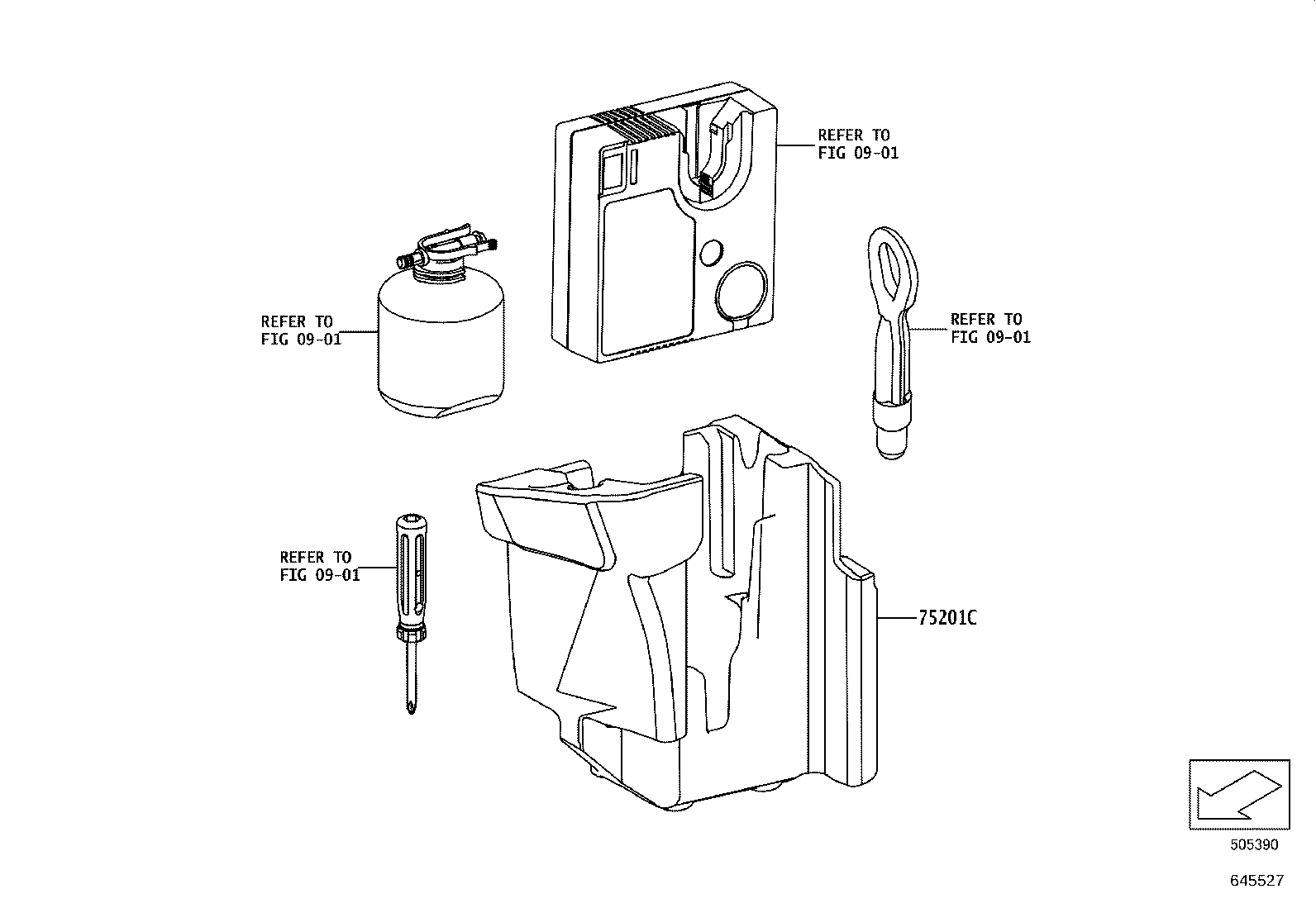

| 75201C | Box Sub-assy, Tool, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
