Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

28 part groups · 2 illustrations

Illustrations

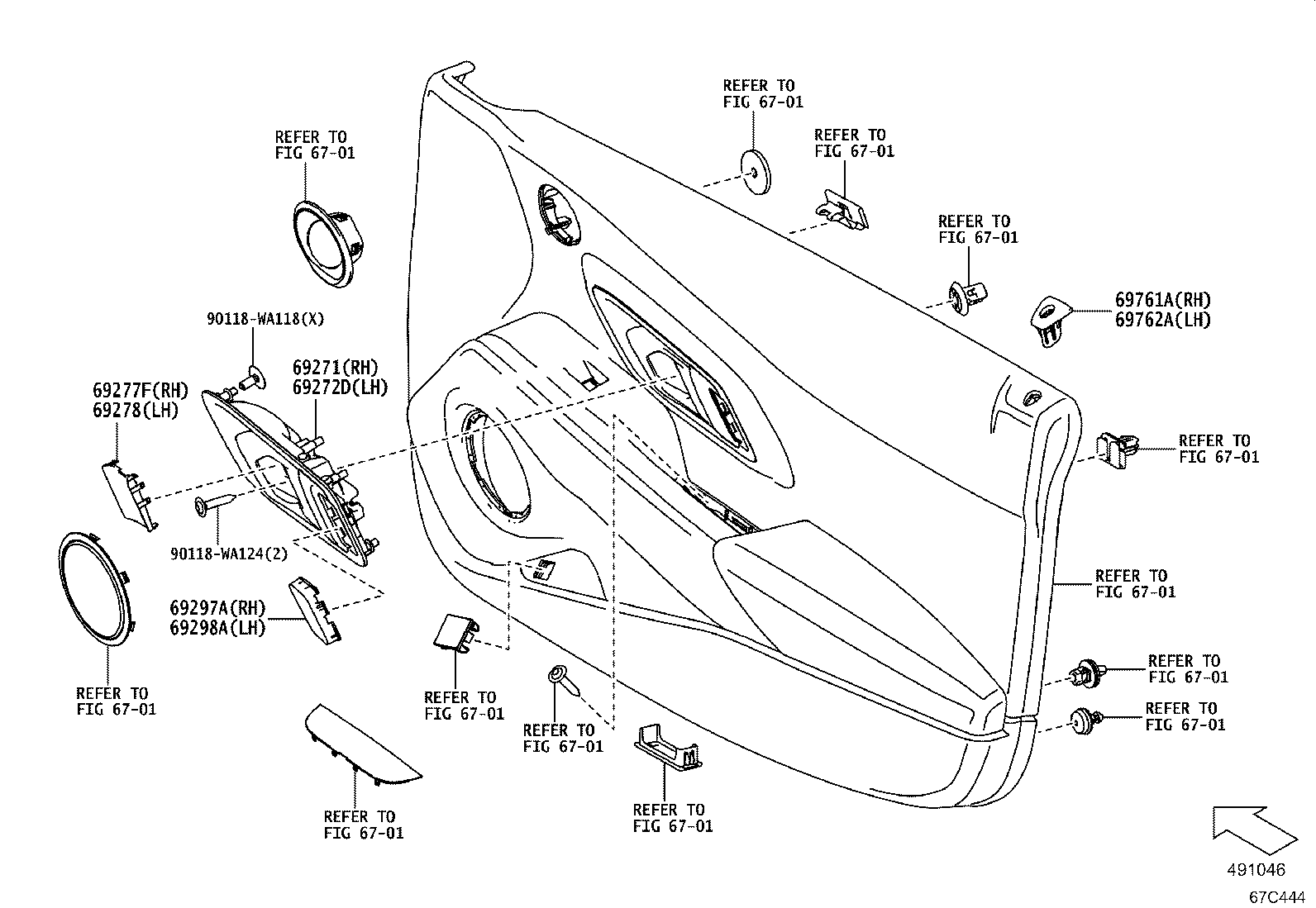

Figure 67C443 67C443 2022-07 → — Figure 67C444 67C444 2022-07 → —

Part groups

PNCDescription
69030A Lock Assy, Front Door W/Motor, RH
69040A Lock Assy, Front Door W/Motor, LH
69201A Frame Sub-assy, Front Door Outside Handle, RH
69202A Frame Sub-assy, Front Door Outside Handle, LH
69210 Handle Assy, Front Door, Outside RH
69217D Cover, Front Door Outside Handle
69217E Cover, Front Door Outside Handle, RH
69217F Cover, Front Door Outside Handle, LH
69220 Handle Assy, Front Door Outside, LH
69242E Pad, Front Door Outside Handle, Rear
69271 Handle, Front Door Inside, RH
69272D Handle, Front Door Inside, LH
69277F Bezel, Door Inside Handle, NO.1 RH
69278 Bezel, Door Inside Handle, NO.1 LH
69297A Bezel, Door Inside Handle, NO.2 RH
69298A Bezel, Door Inside Handle, NO.2 LH
69311A Rod, Front Door Lock Open, RH
69312 Rod, Front Door Lock Open, LH
69317A Spacer, Door Lock
69410 Plate Assy, Front Door Lock Striker
69701C Link Sub-assy, Front Door Lock Control, RH
69702C Link Sub-assy, Front Door Lock Control, LH
69710D Cable, Front Door Lock Remote Control, RH(FOR OPEN LEVER)
69720D Cable, Front Door Lock Remote Control, LH(FOR OPEN LEVER)
69750E Cable, Front Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB)
69760B Cable, Front Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB)
69761A Bezel, Door Lock Control Knob, RH
69762A Bezel, Door Lock Control Knob, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
