Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

13 part groups · 5 illustrations

Illustrations

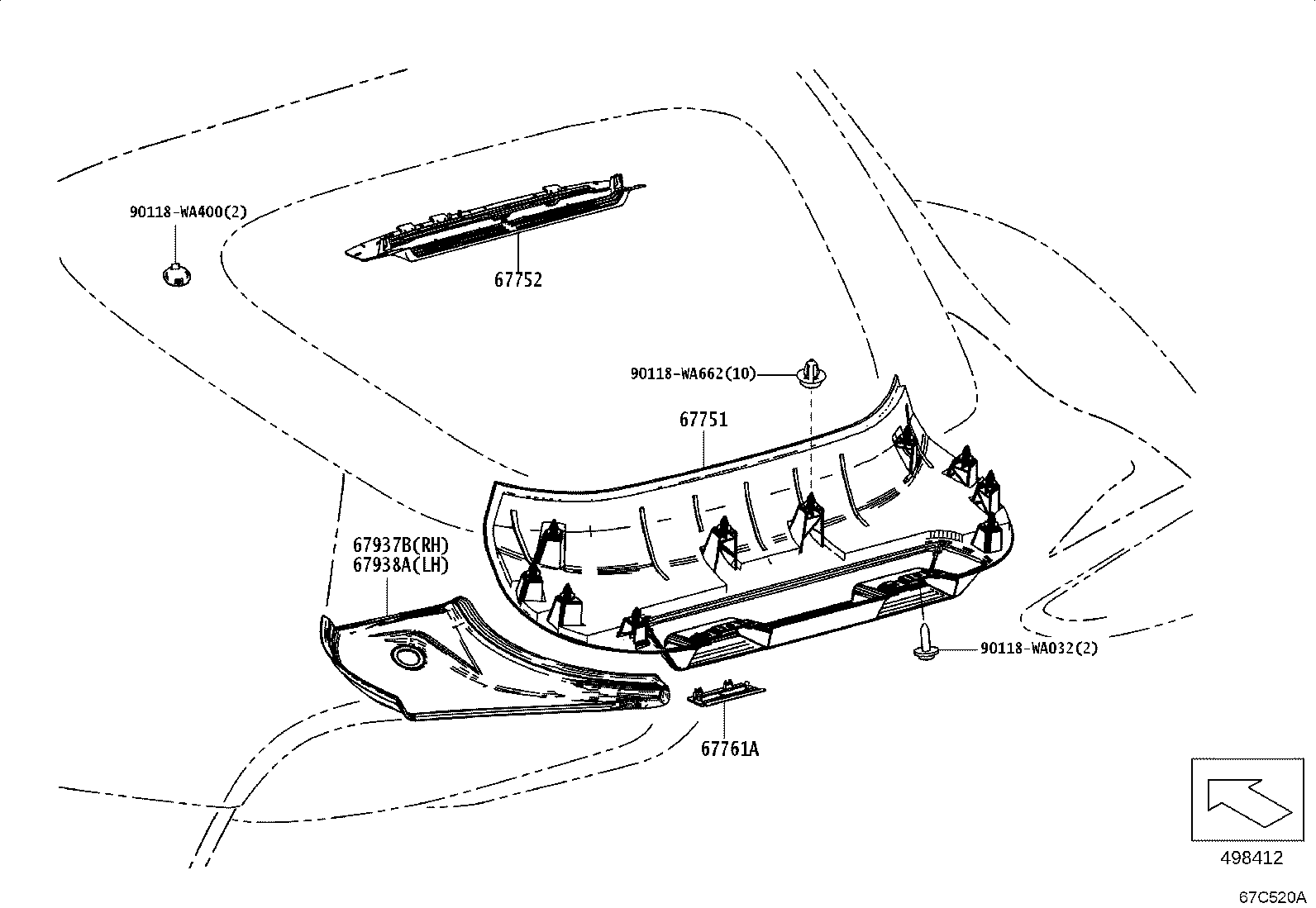

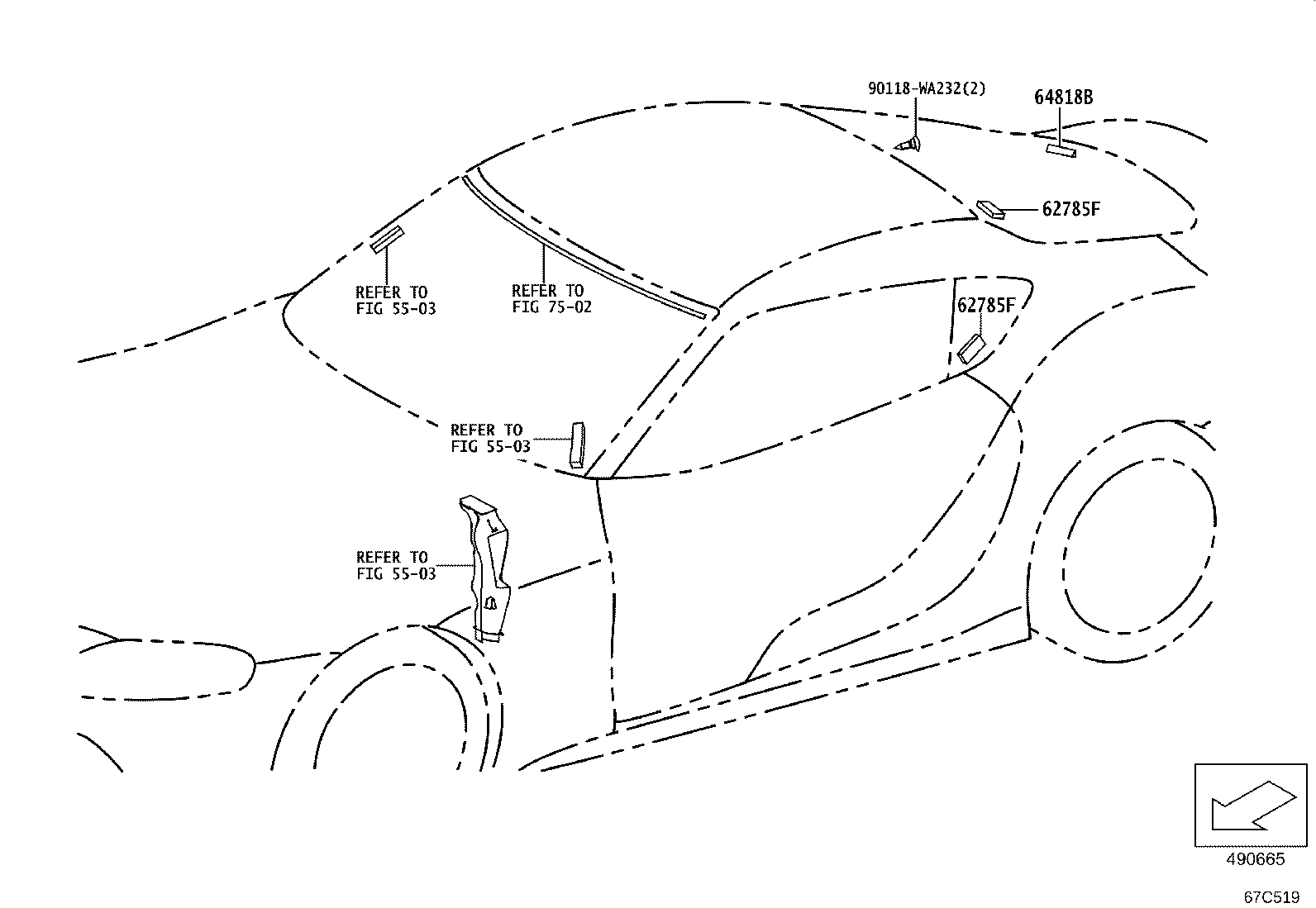

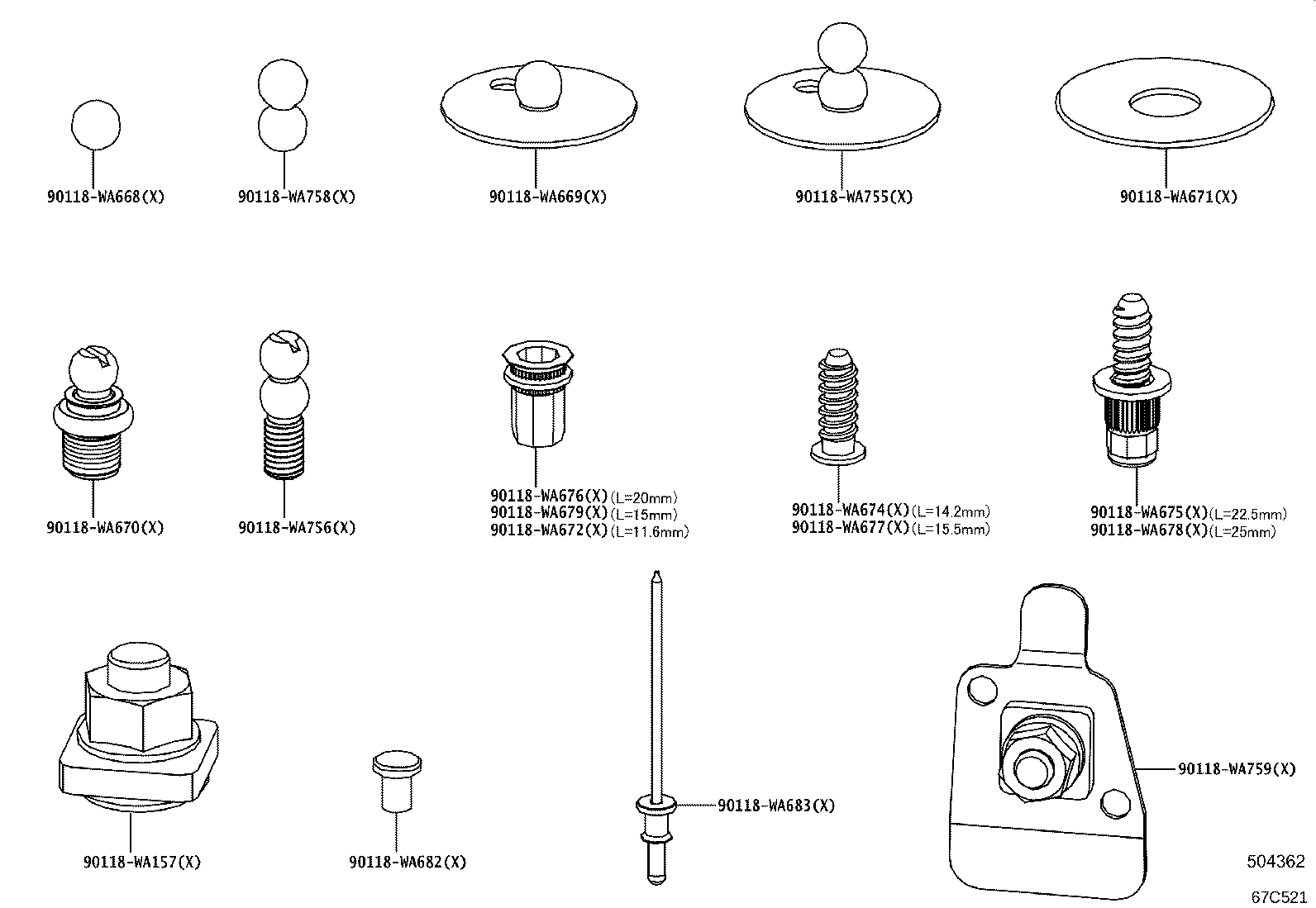

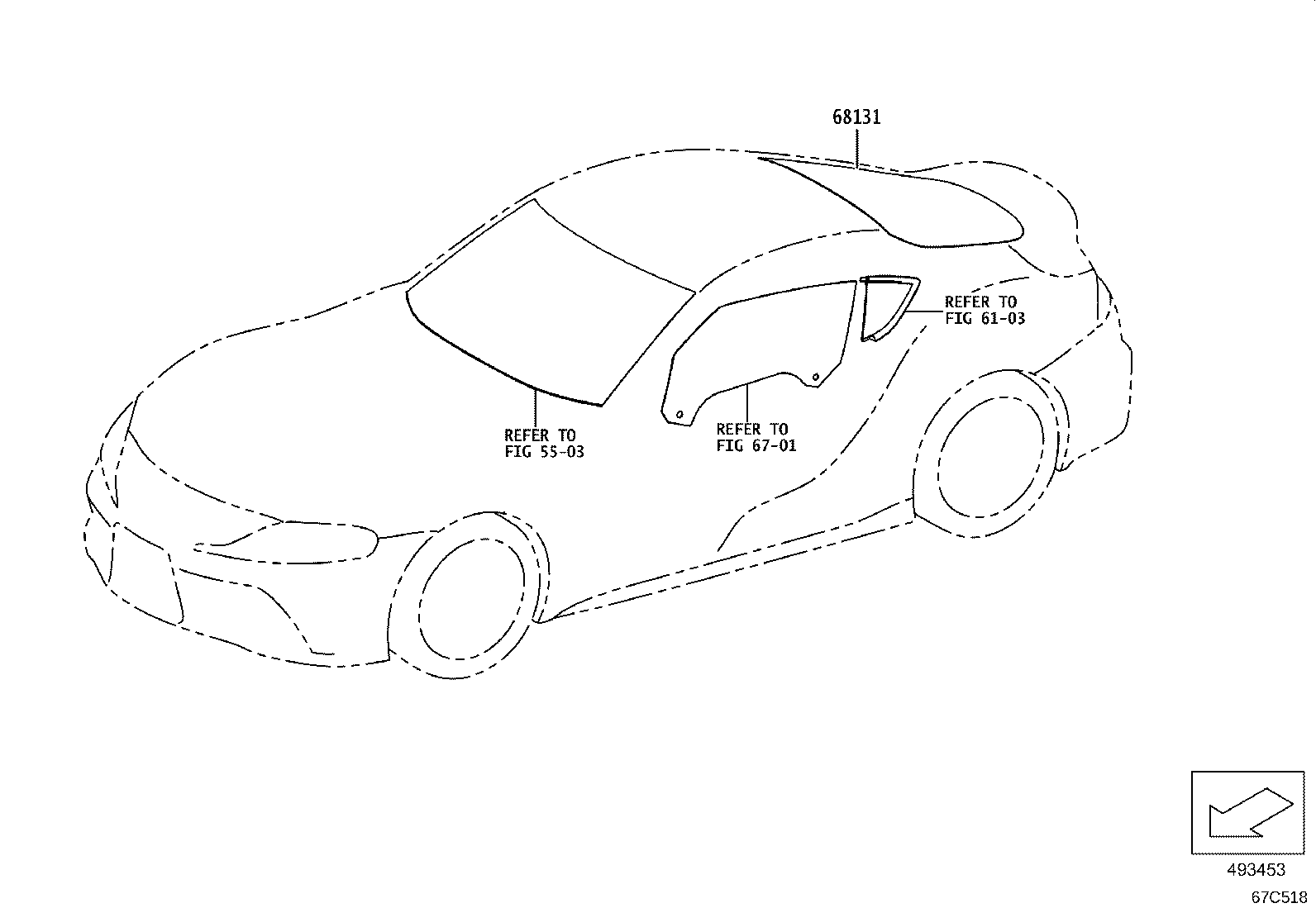

Figure 67C517 67C517 2022-07 → — Figure 67C518 67C518 2022-07 → — Figure 67C519 67C519 2022-07 → — Figure 67C520A 67C520A 2022-07 → — Figure 67C521 67C521 2022-07 → —

Part groups

PNCDescription
62785F Spacer, Back Door Glass
64818B Spacer, Back Door Glass, NO.1
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67751 Board, Back Door Trim
67752 Trim, Back Door, Upper
67761A Cover, Back Door Trim
67881A Weatherstrip, Back Door
67891A Seal, Back Door
67891C Seal, Back Door
67937B Garnish, Back Door Side, RH
67938A Garnish, Back Door Side, LH
68131 Glass, Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
