Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

15 part groups · 2 illustrations

Illustrations

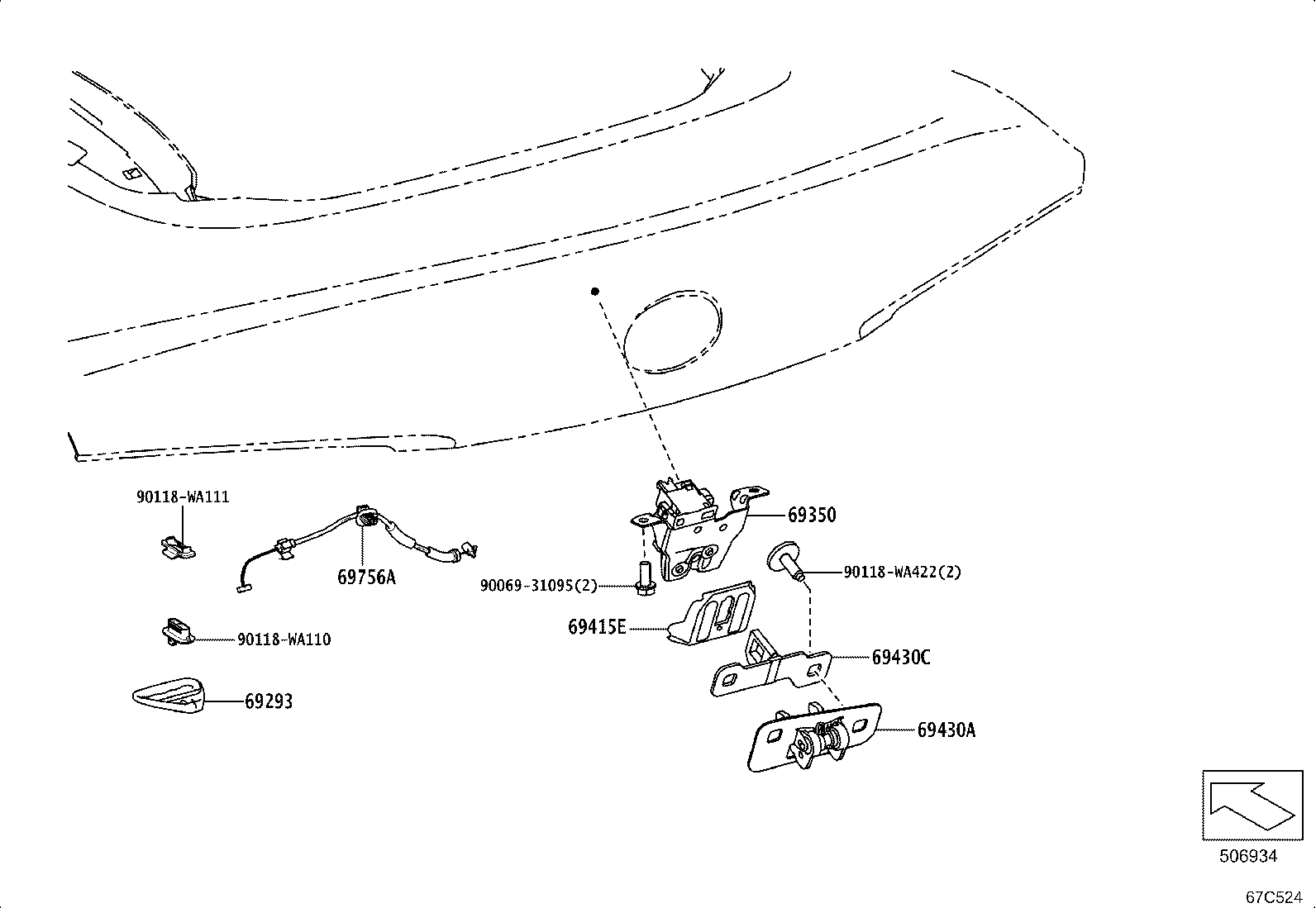

Figure 67C523 67C523 2022-07 → — Figure 67C524 67C524 2022-07 → —

Part groups

PNCDescription
65896 Cap, Set Bolt
65896H Cap, Cover Top Set Bolt, B
68810C Hinge Assy, Back Door, RH
68820C Hinge Assy, Back Door, LH
68830A Cover, Back Door Hinge, RH
68840A Cover, Back Door Hinge, LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
68961 Bolt, Back Door Stay
69293 Handle, Back Door
69350 Lock Assy, Back Door
69415E Cover, Back Door Lock Striker
69430A Striker Assy, Back Door Lower Lock
69430C Striker Assy, Back Door Lock
69756A Cable, Back Door Locking Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
