Toyota Supra
2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe
Supported model
Data version 2022-08
Lock Cylinder Set
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 64603 | Lock Set, Door |

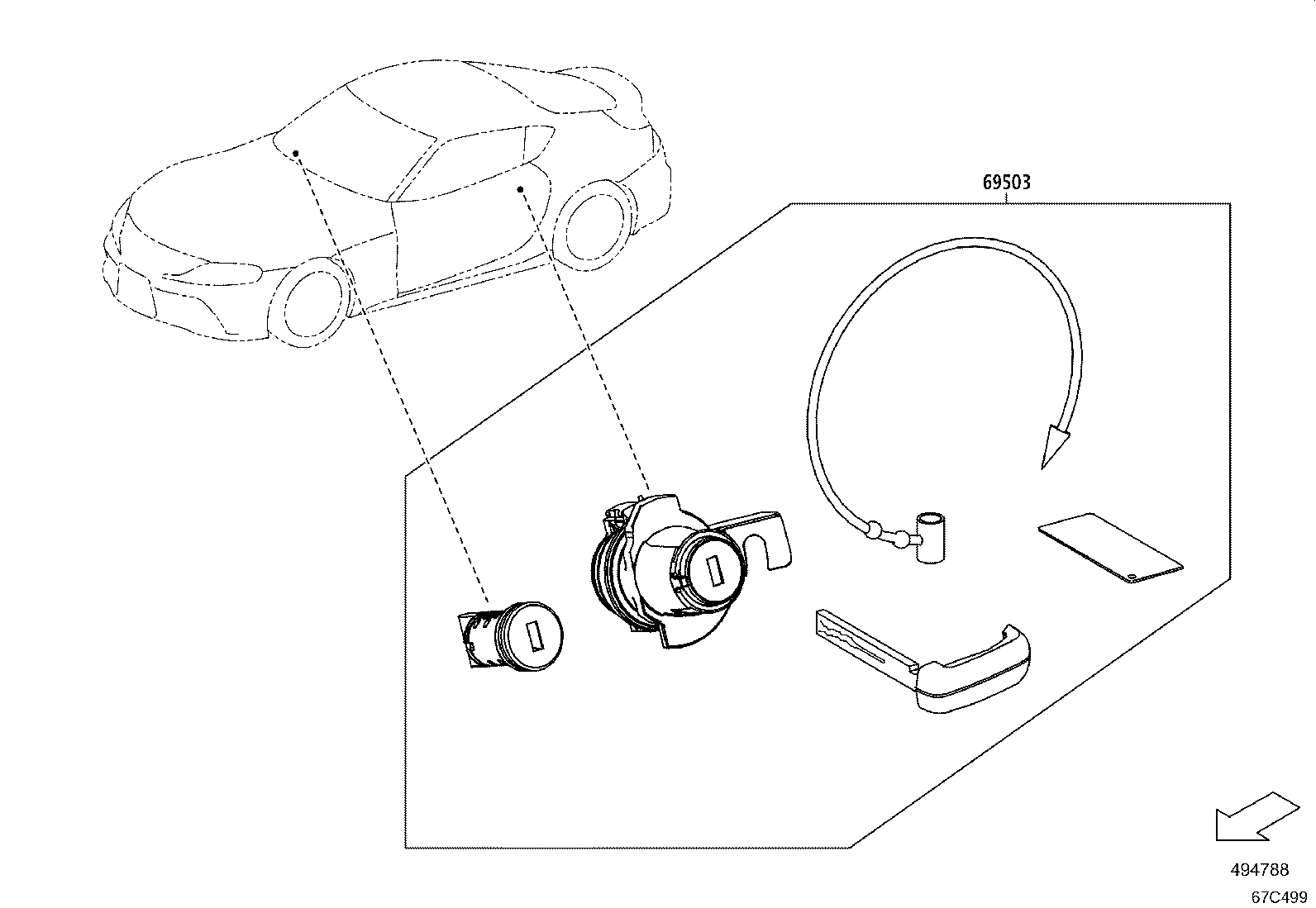

| 69503 | Cylinder Set, Lock |
| 69503B | Key, Cut |

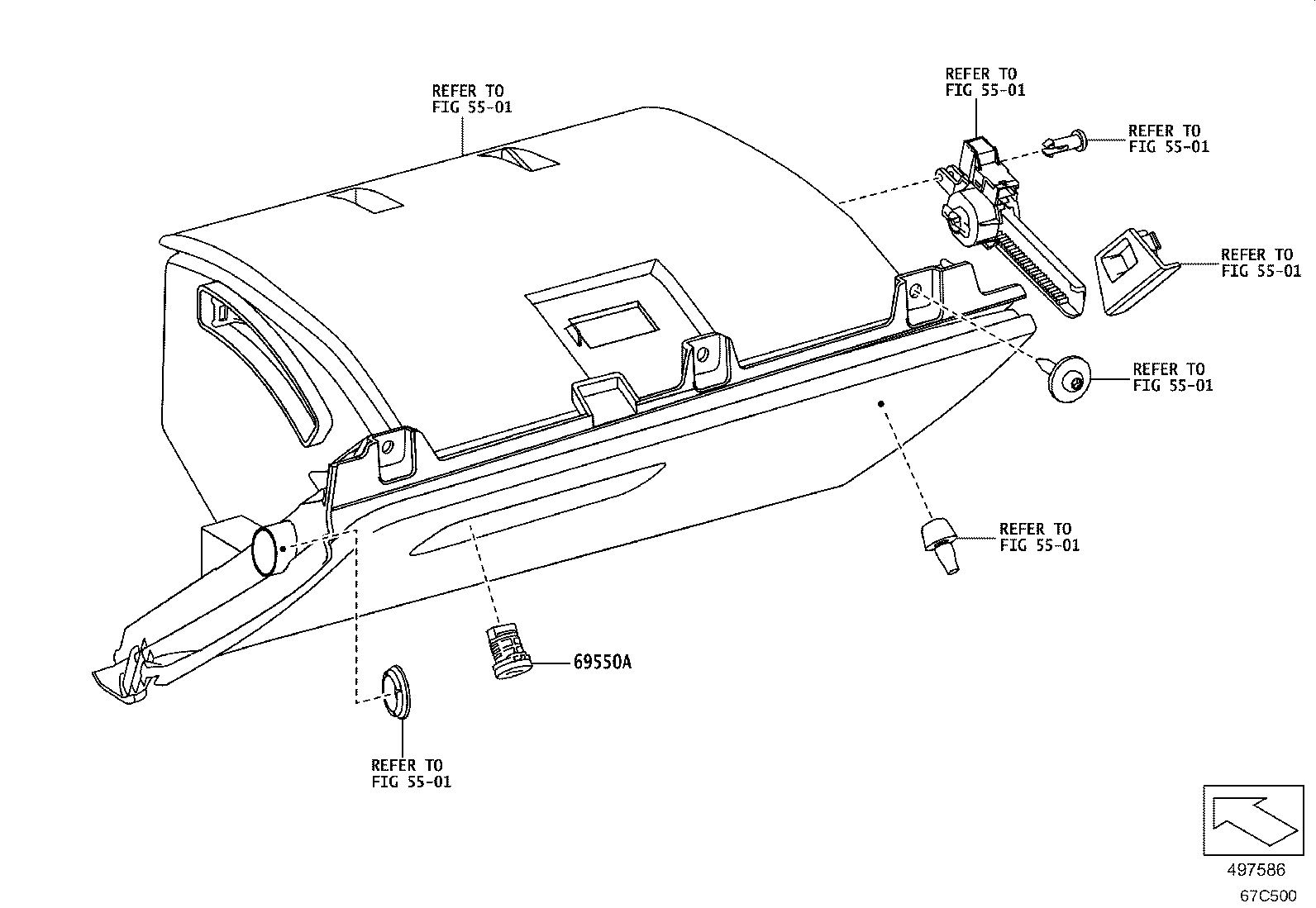

| 69550A | Cylinder Assy, Glove Compartment Door Lock |
| 89745C | Battery, Transmitter |
| 89904B | Transmitter Sub-assy, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
