Toyota Supra
2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe
Supported model
Data version 2022-08
Headlamp
6 part groups · 3 illustrations
Part groups

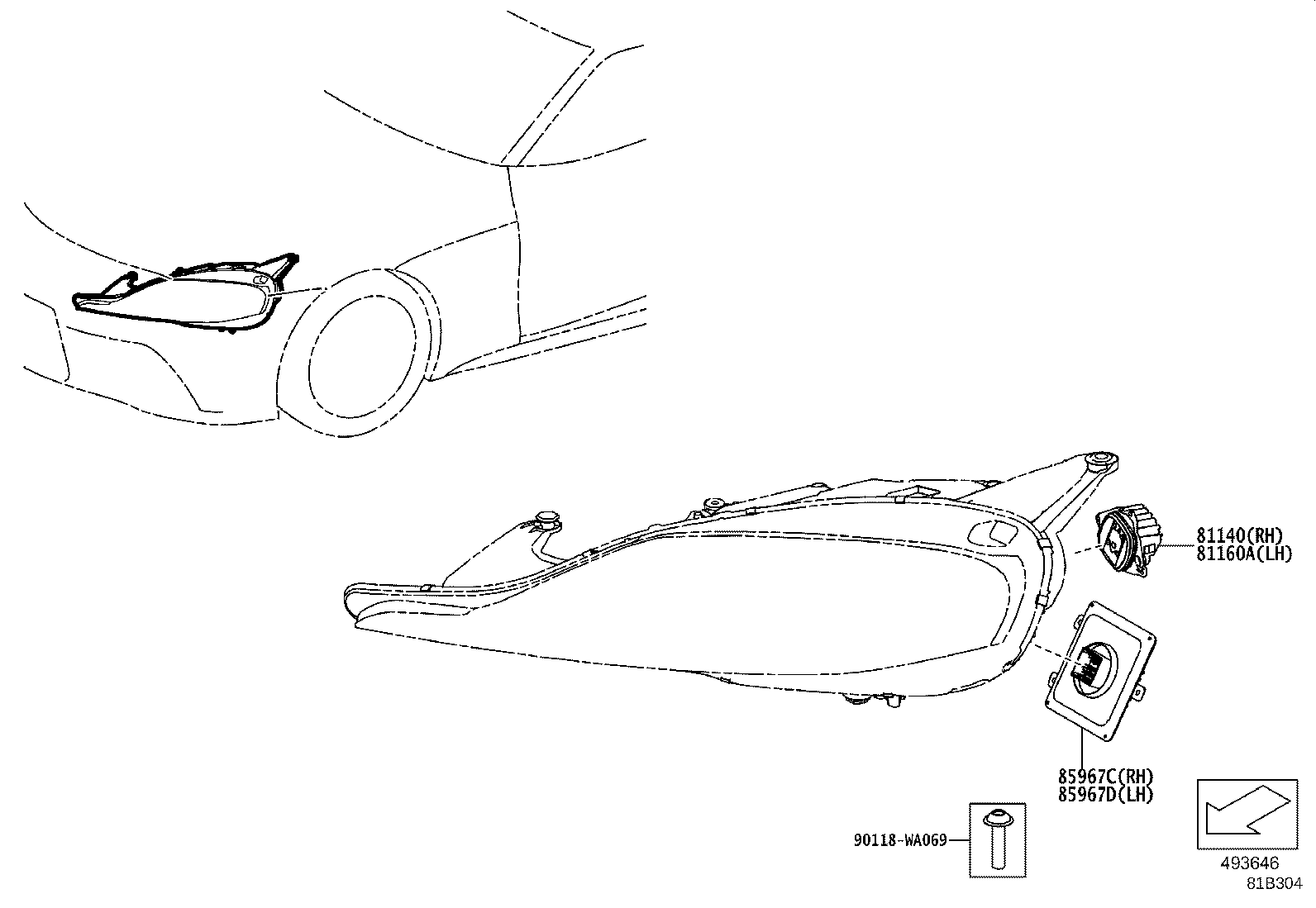

| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81140 | Unit Assy, Headlamp Led, RH |
| 81150 | Headlamp Assy, LH |
| 81160A | Unit Assy, Headlamp Led, LH |
| 85967C | Computer, Light Control Led, RH |
| 85967D | Computer, Light Control Led, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
