Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

6 part groups · 4 illustrations

Illustrations

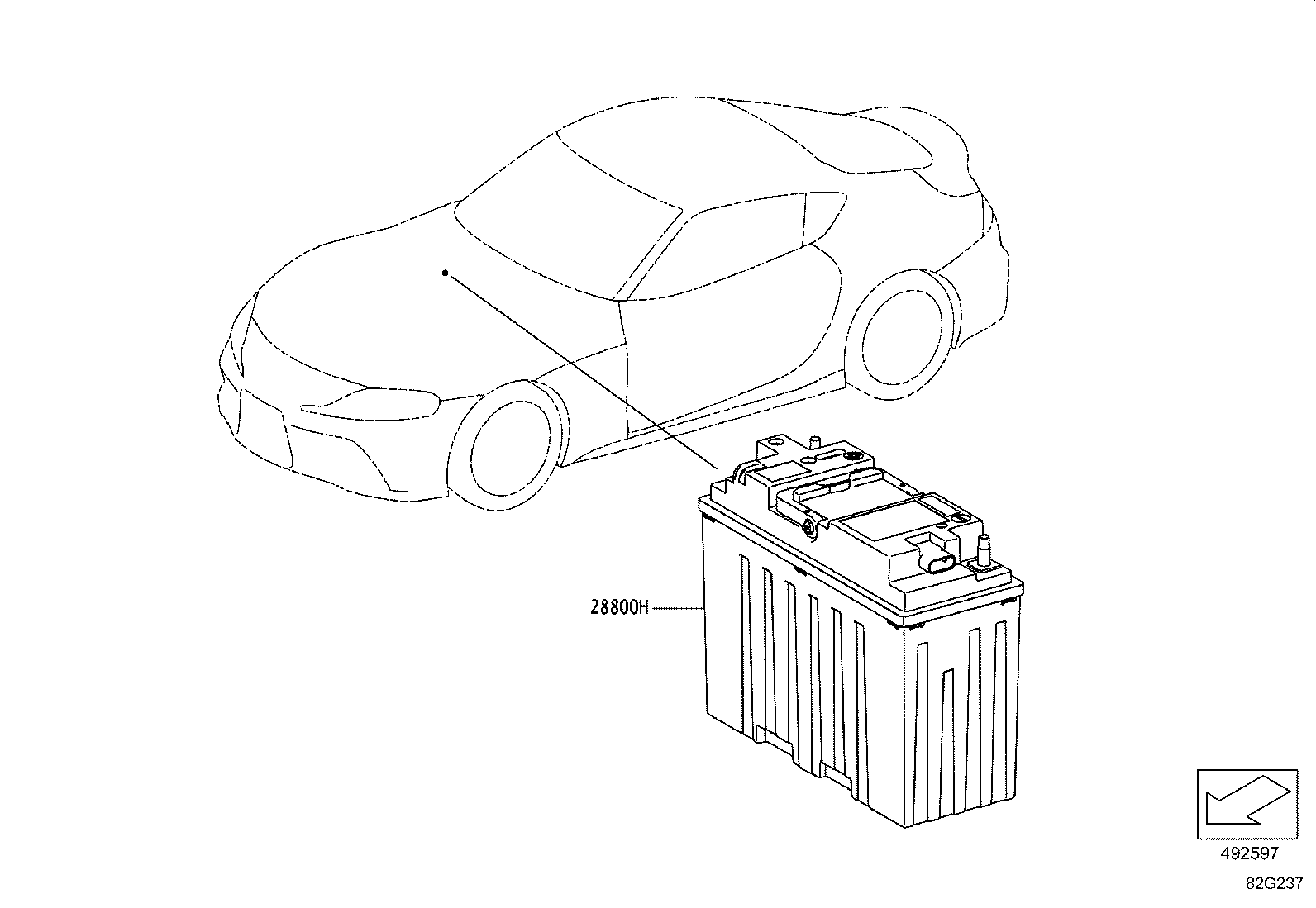

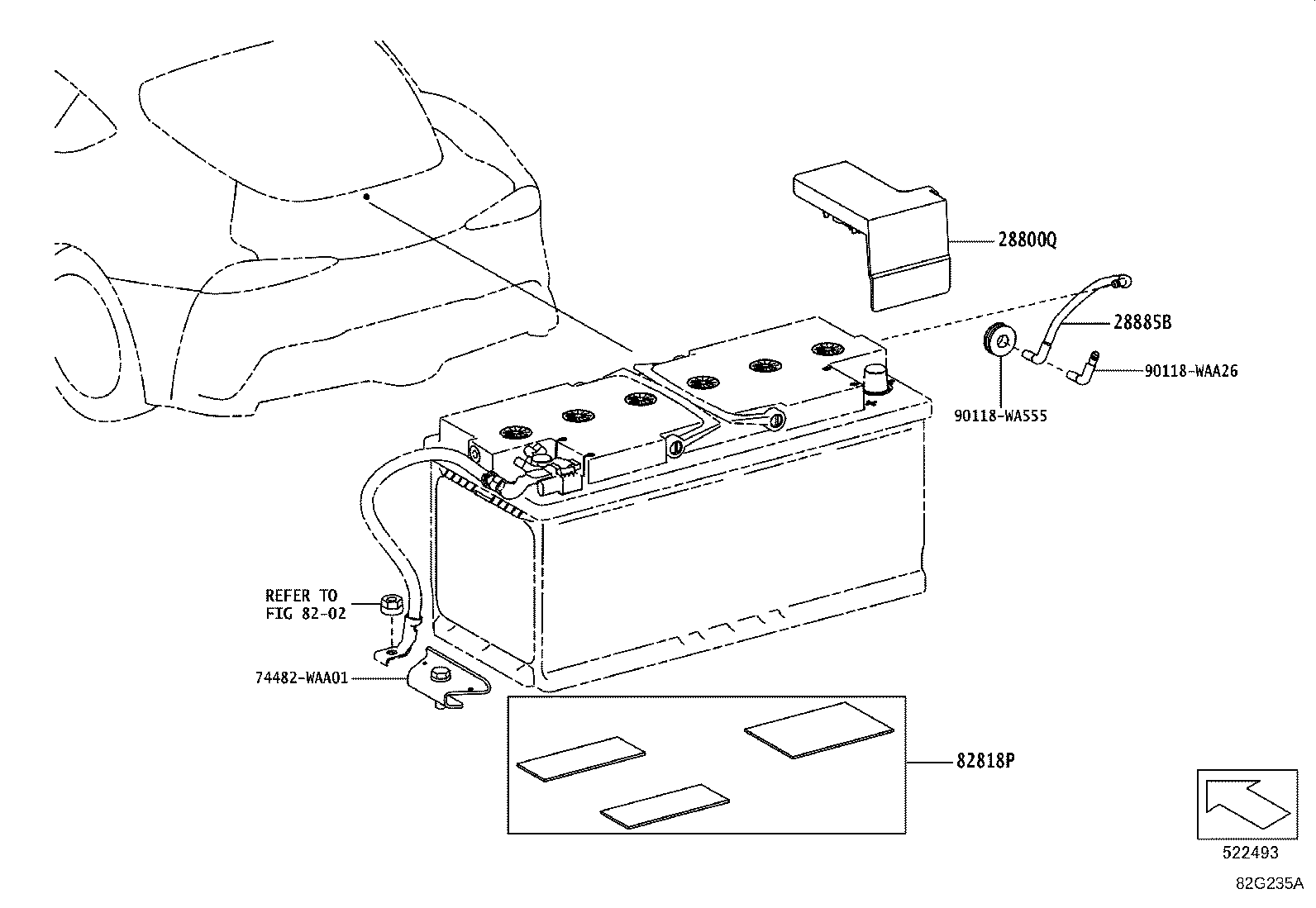

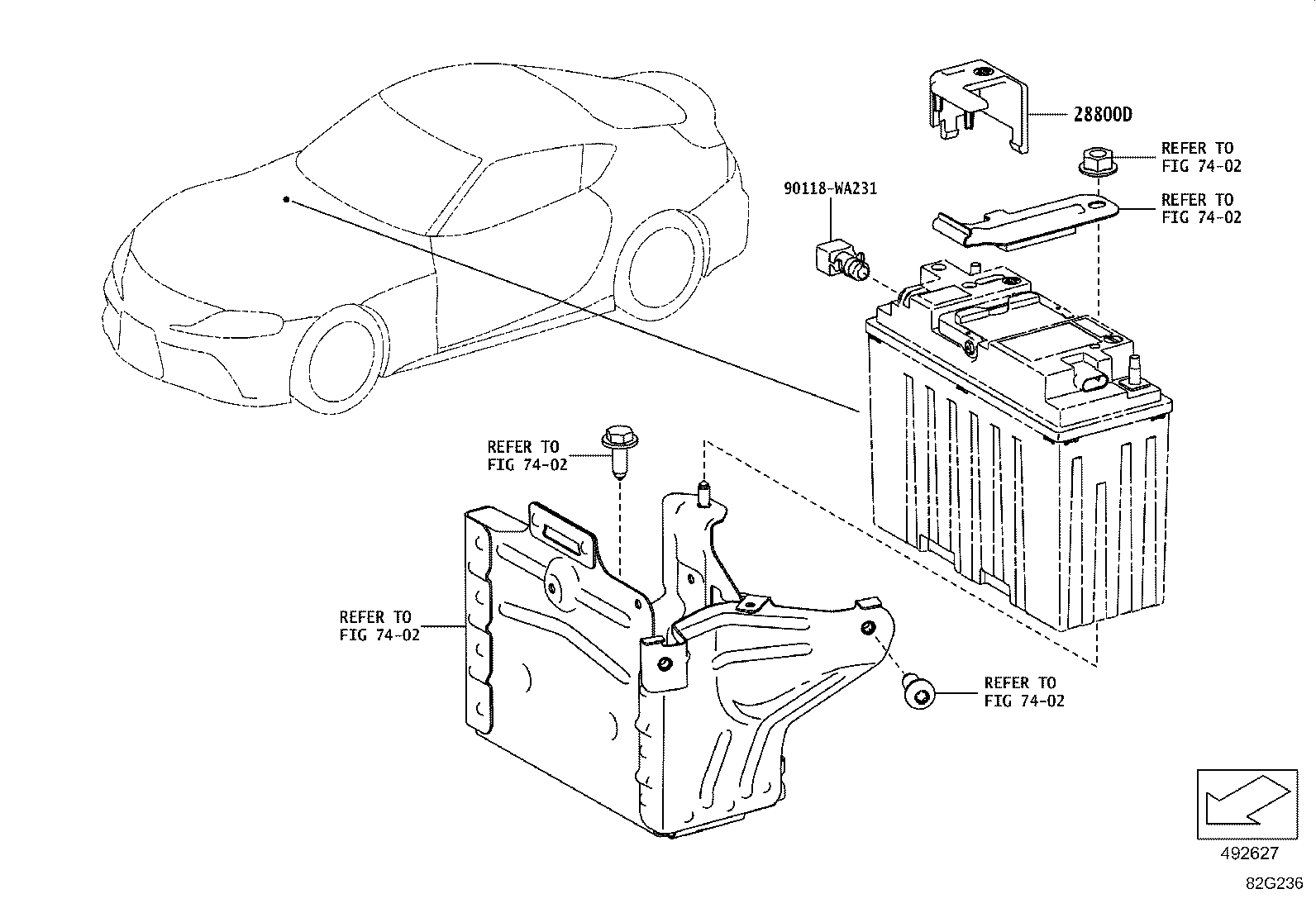

Figure 82G234 82G234 2022-07 → — Figure 82G235A 82G235A 2022-07 → — Figure 82G236 82G236 2022-07 → — Figure 82G237 82G237 2022-07 → —

Part groups

PNCDescription
28800 Battery
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800H Battery, NO.2
28800Q Cover, Connector(FOR BATTERY)
28885B Hose, Battery
82818P Protector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
