Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

88 part groups · 33 illustrations

Illustrations

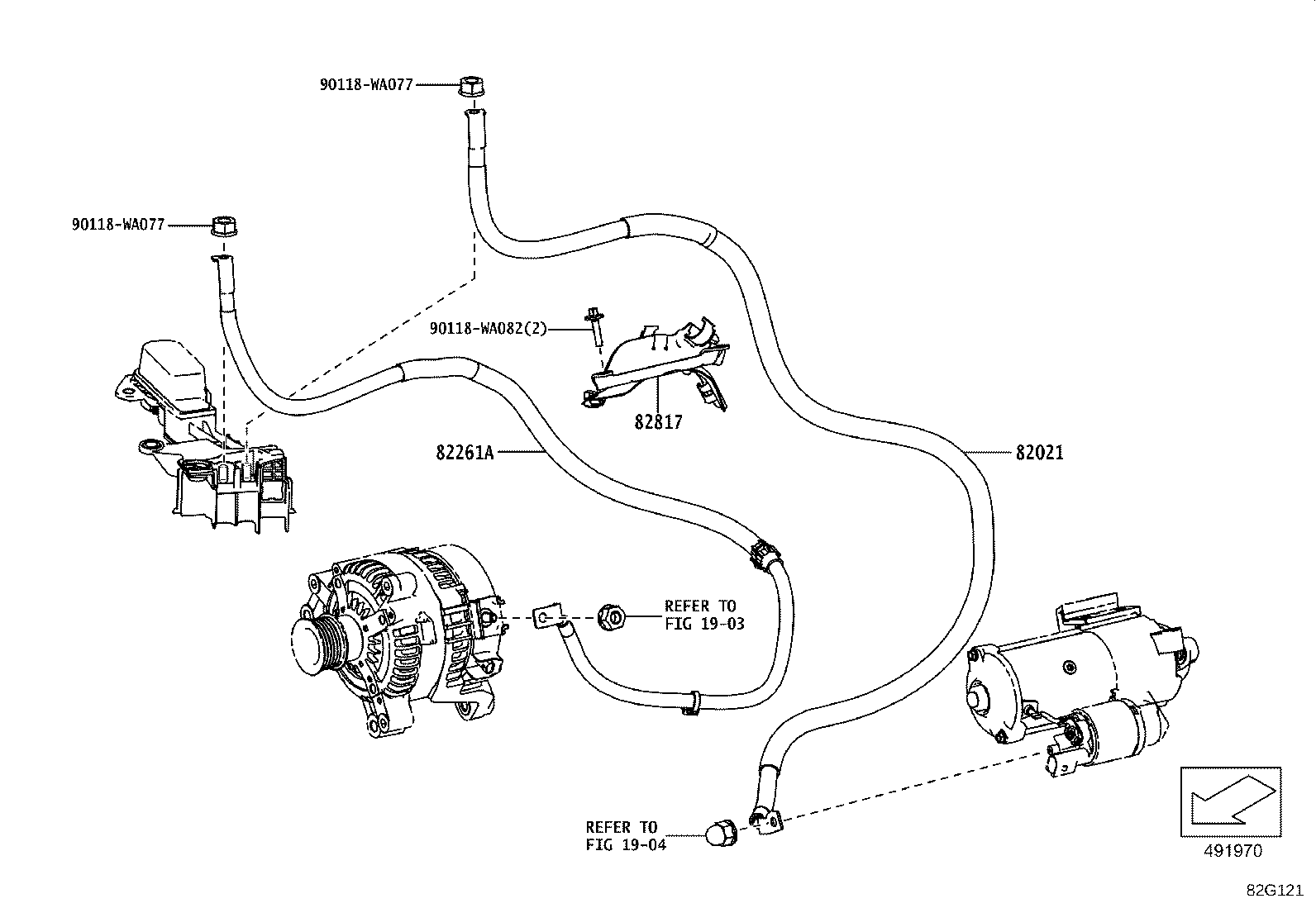

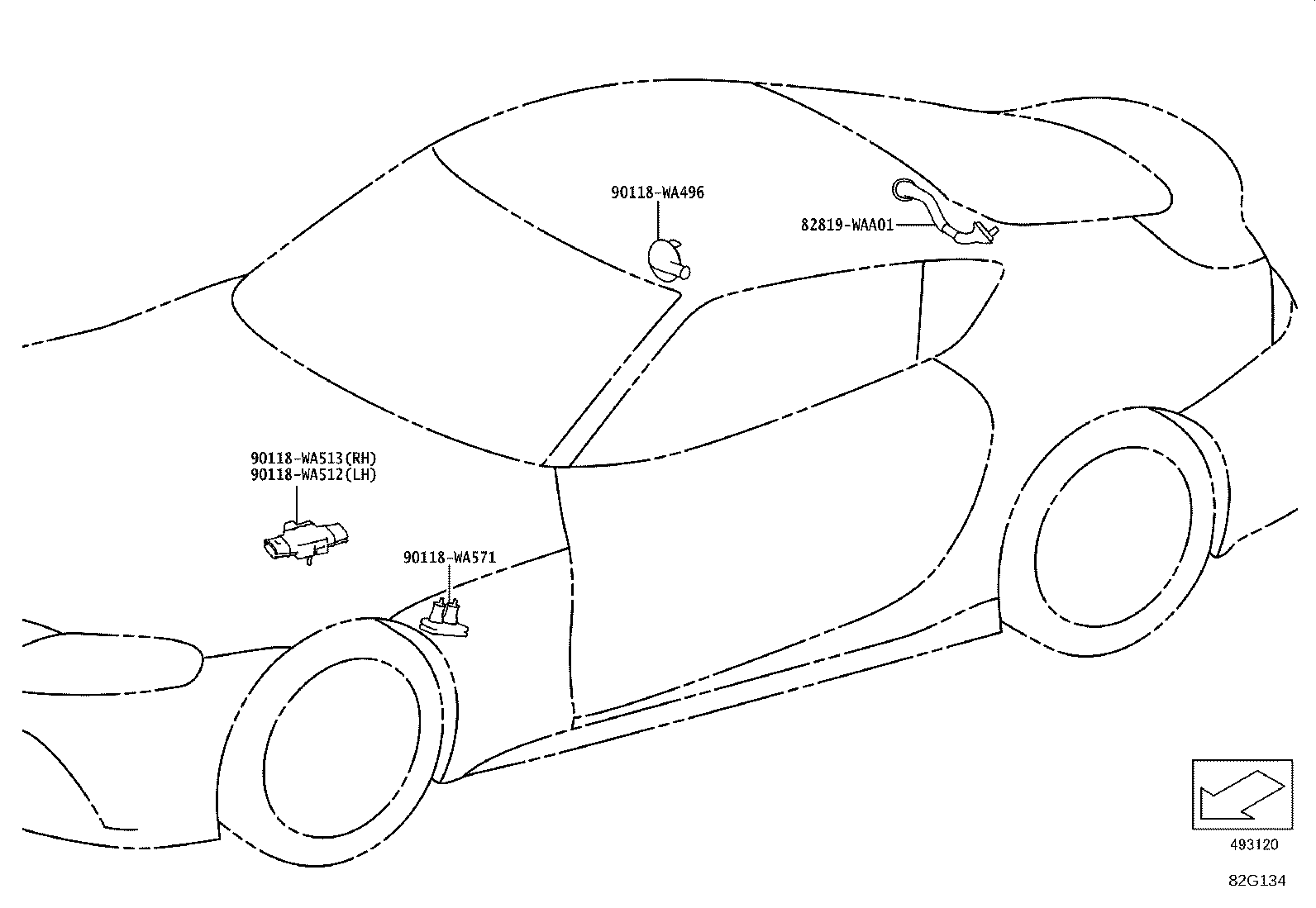

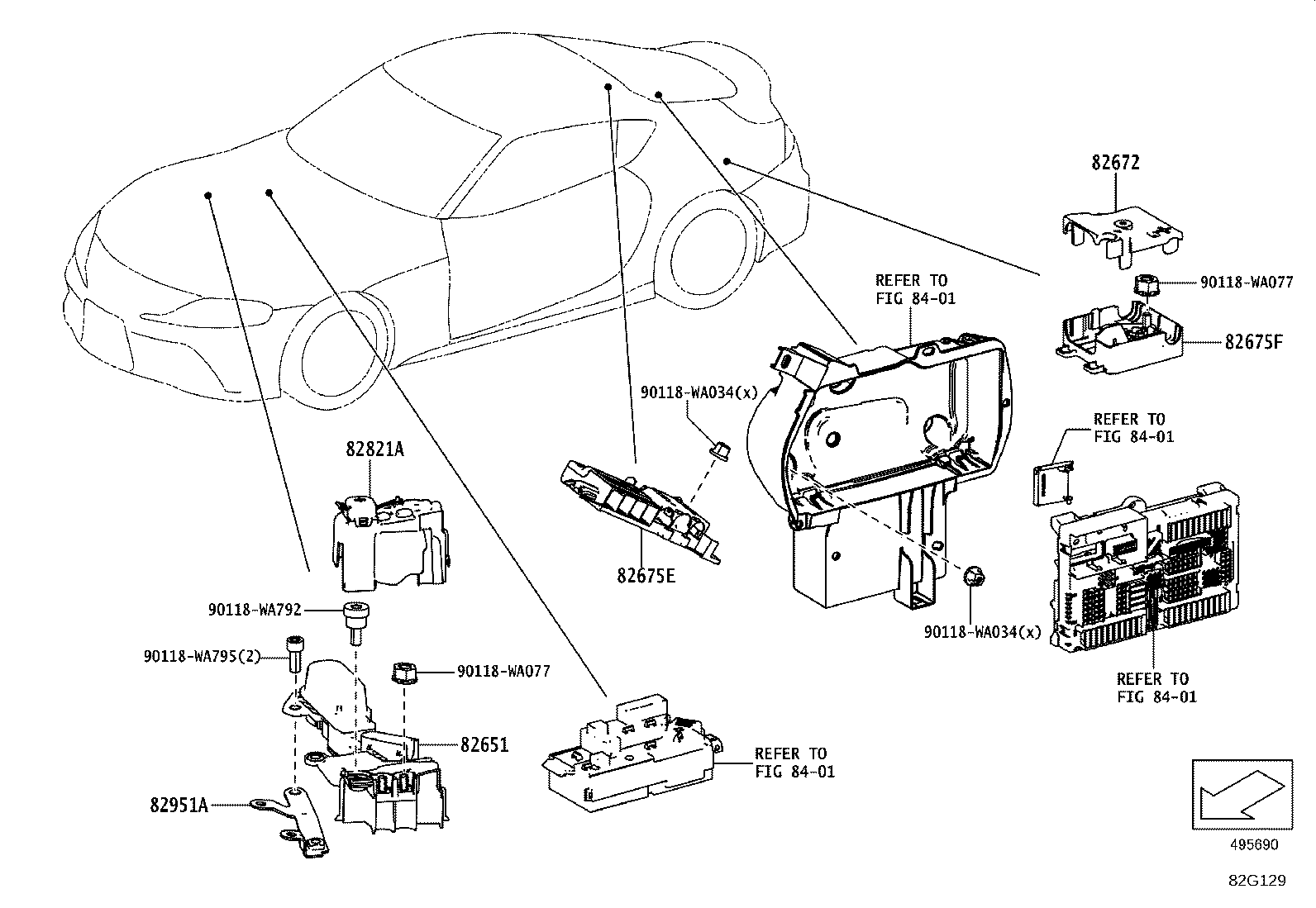

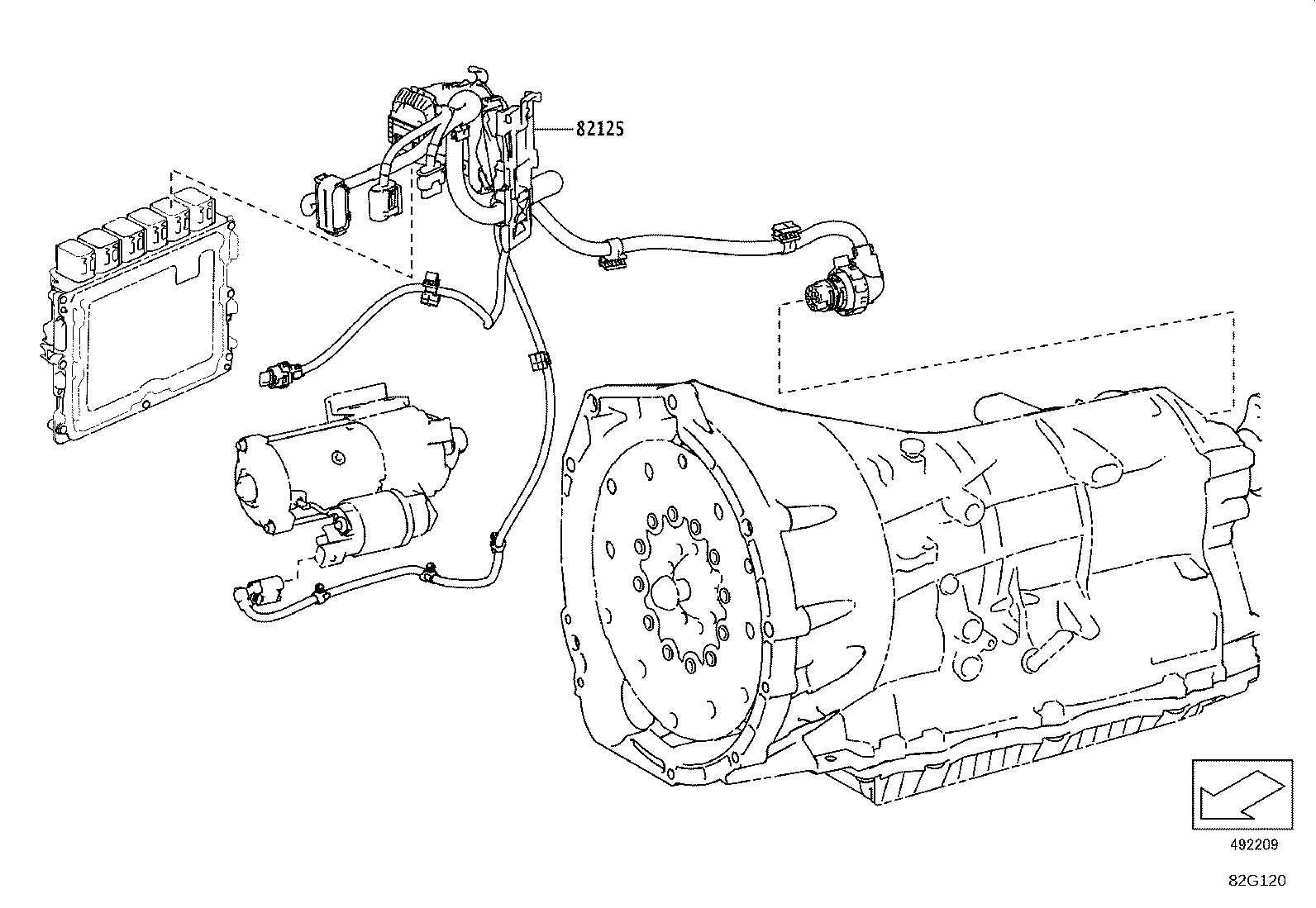

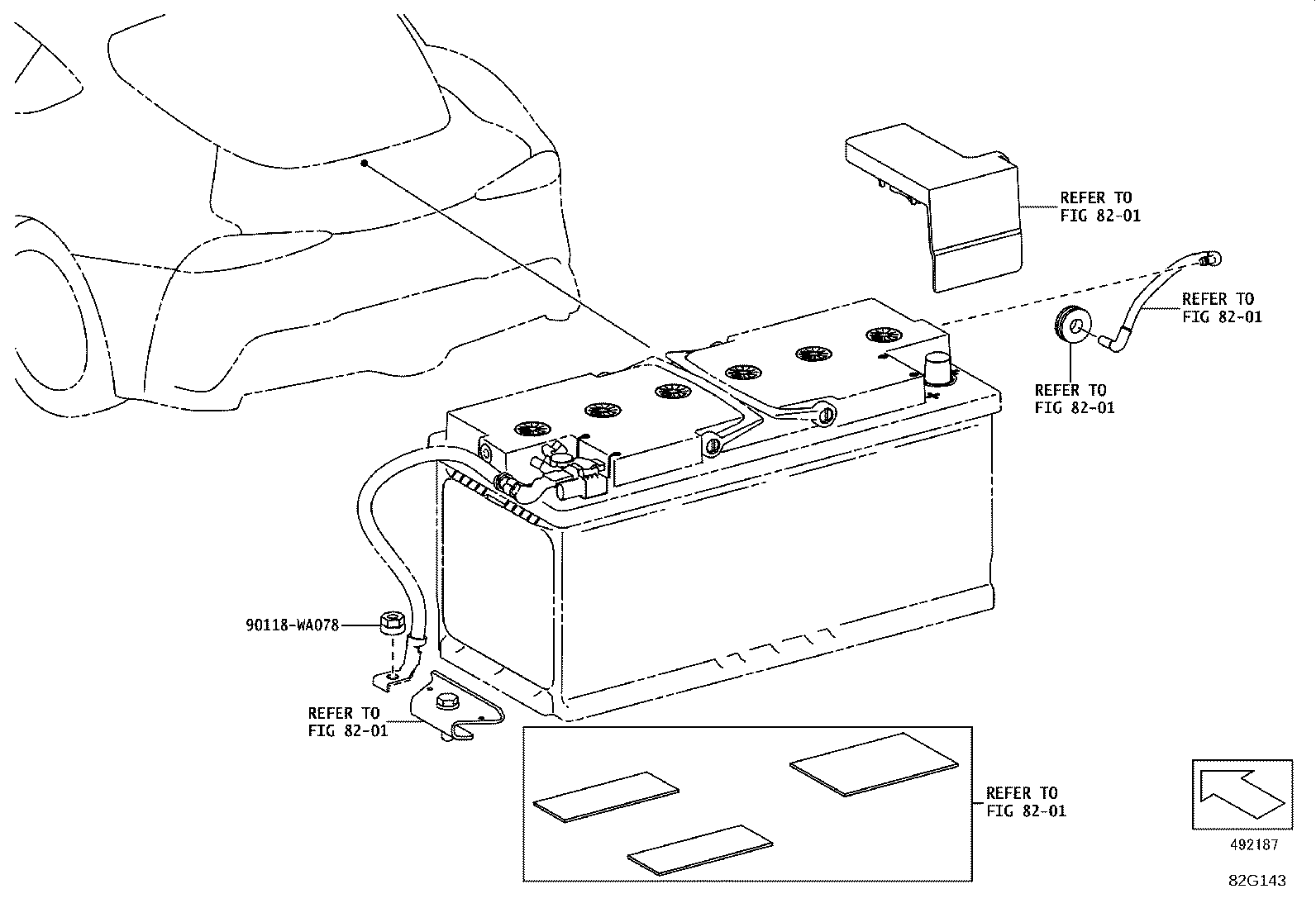

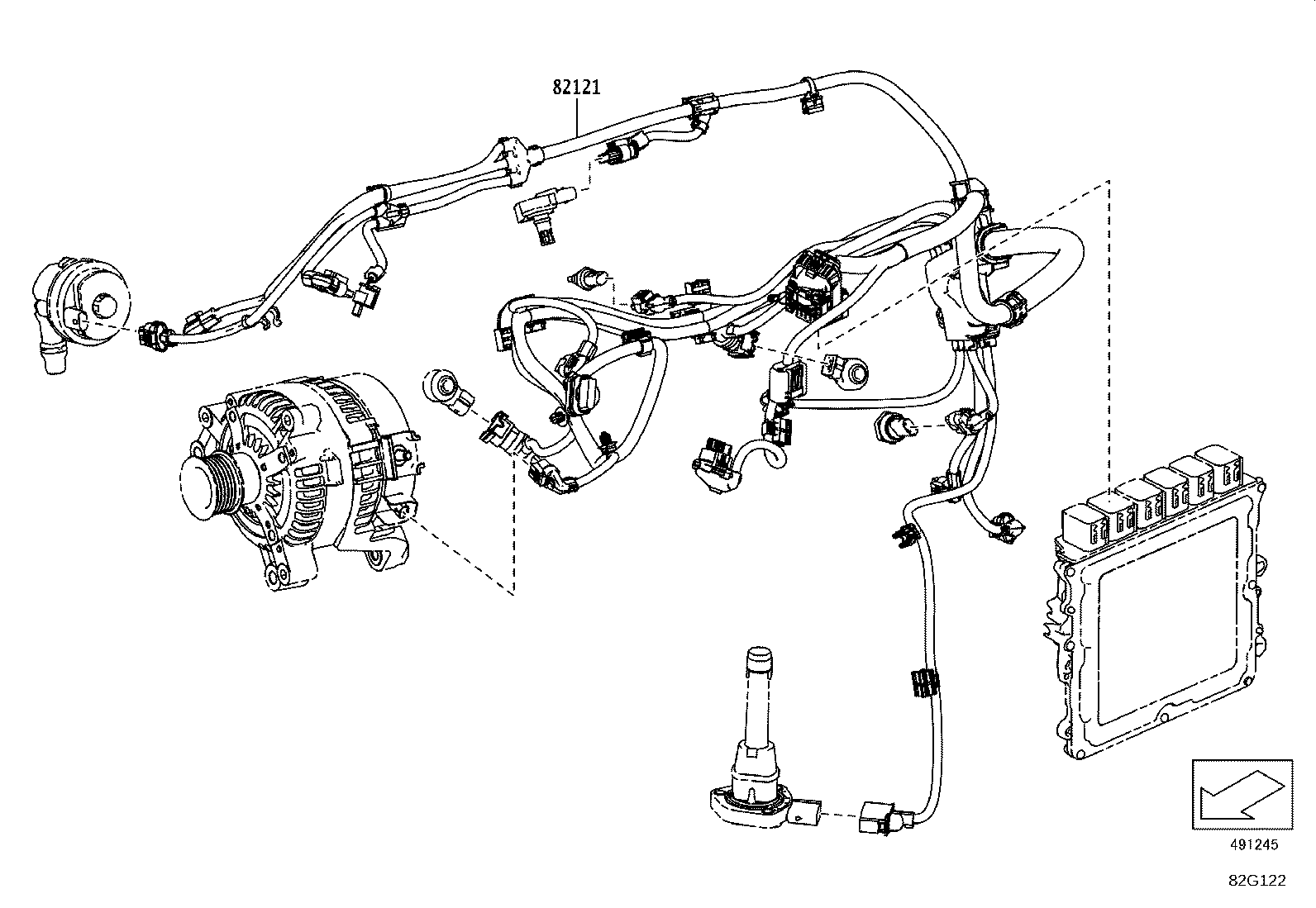

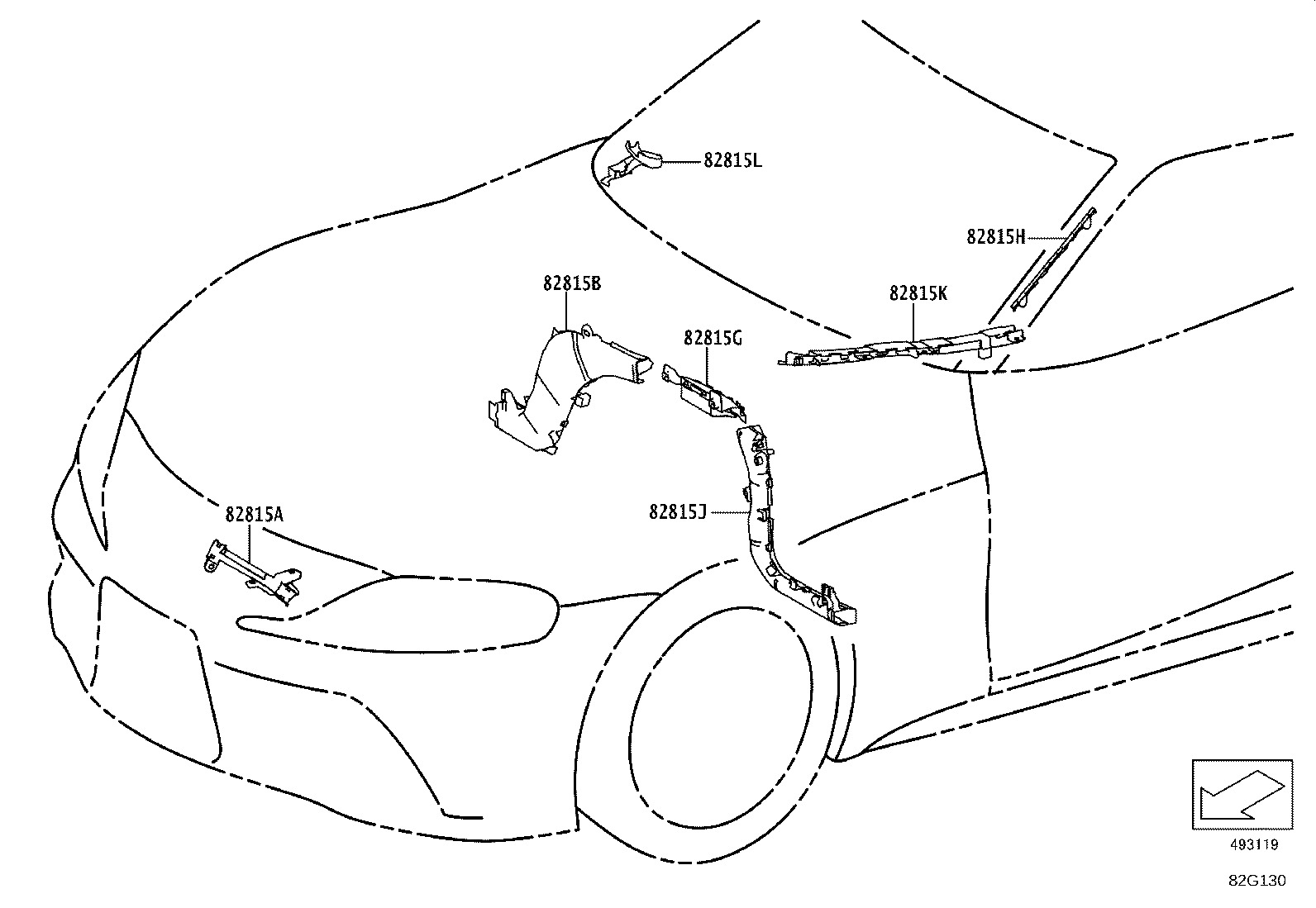

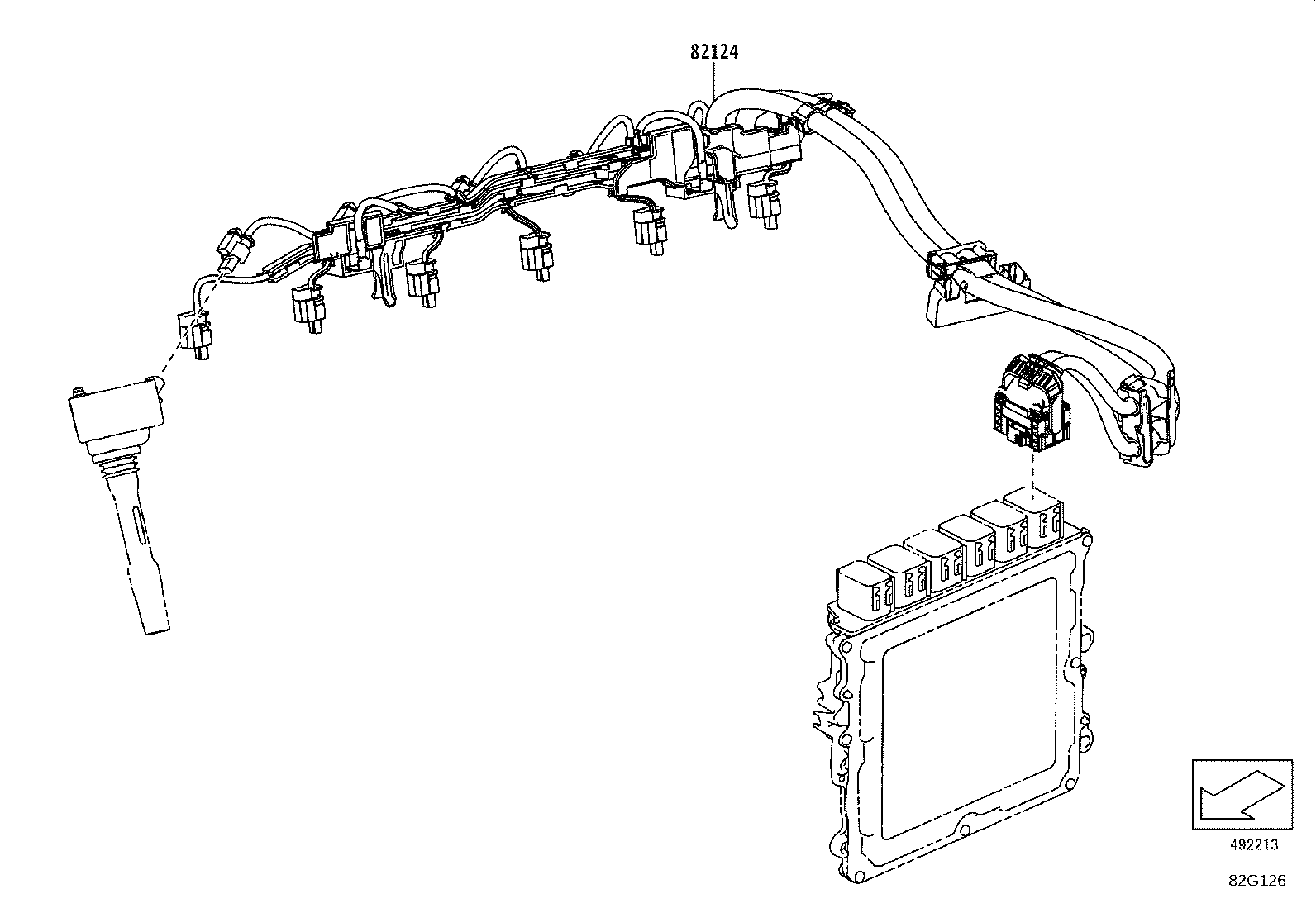

Figure 82G118 82G118 2022-07 → — Figure 82G119 82G119 2022-07 → — Figure 82G120 82G120 2022-07 → — Figure 82G121 82G121 2022-07 → — Figure 82G122 82G122 2022-07 → — Figure 82G123 82G123 2022-07 → — Figure 82G124 82G124 2022-07 → — Figure 82G125 82G125 2022-07 → — Figure 82G126 82G126 2022-07 → — Figure 82G127 82G127 2022-07 → — Figure 82G128 82G128 2022-07 → — Figure 82G129 82G129 2022-07 → — Figure 82G130 82G130 2022-07 → — Figure 82G131 82G131 2022-07 → — Figure 82G132 82G132 2022-07 → — Figure 82G133 82G133 2022-07 → — Figure 82G134 82G134 2022-07 → — Figure 82G135 82G135 2022-07 → — Figure 82G136 82G136 2022-07 → — Figure 82G137 82G137 2022-07 → — Figure 82G138 82G138 2022-07 → — Figure 82G139 82G139 2022-07 → — Figure 82G140 82G140 2022-07 → — Figure 82G141 82G141 2022-07 → — Figure 82G142 82G142 2022-07 → — Figure 82G143 82G143 2022-07 → — Figure 82G144A 82G144A 2022-07 → — Figure 82G145 82G145 2022-07 → — Figure 82G146 82G146 2022-07 → — Figure 82G147 82G147 2022-07 → — Figure 82G148 82G148 2022-07 → — Figure 82G149 82G149 2022-07 → — Figure 82H349 82H349 2022-07 → —

Part groups

PNCDescription
82021 Wiring Assy, Starter
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4

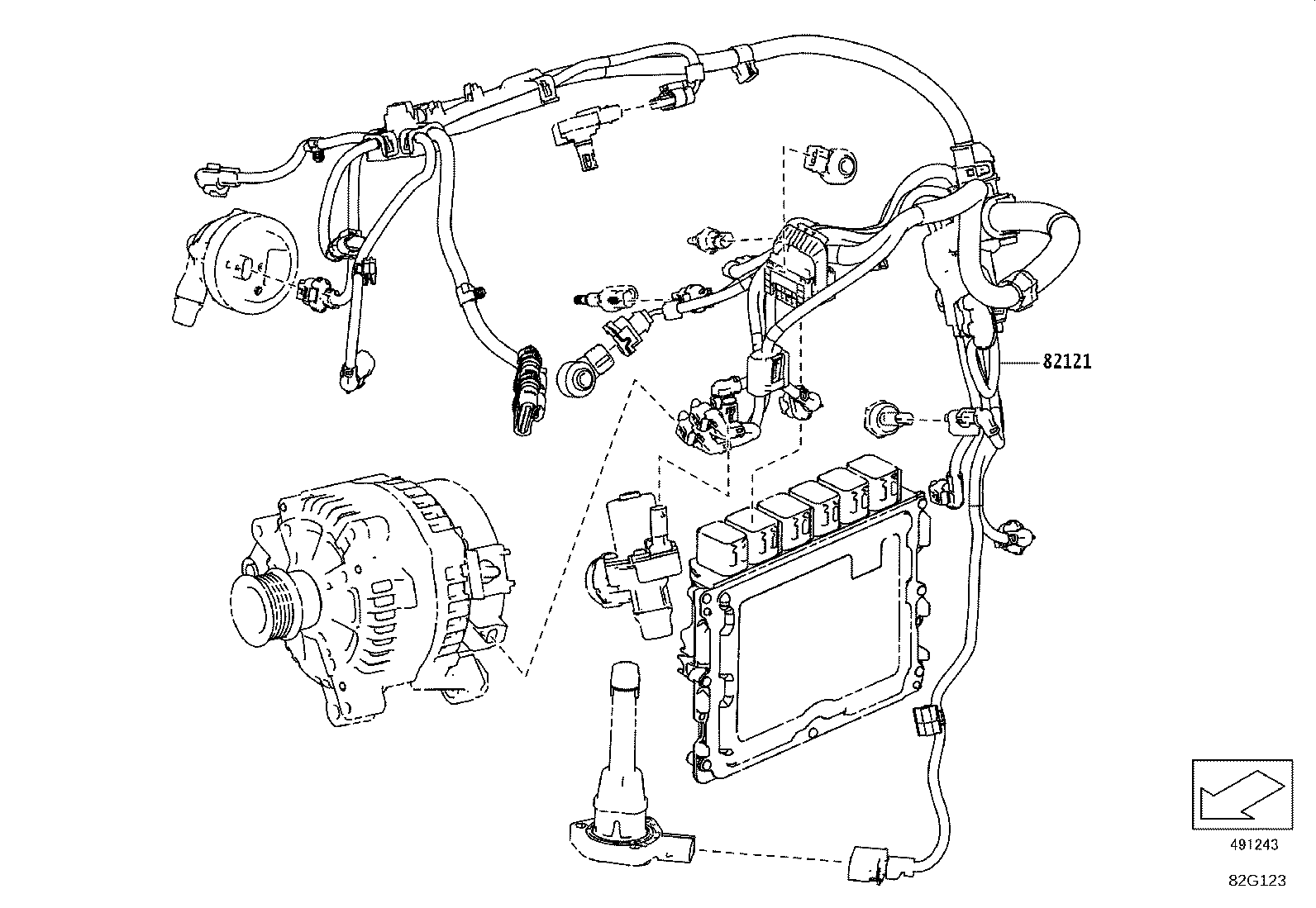

82121 Wire, Engine

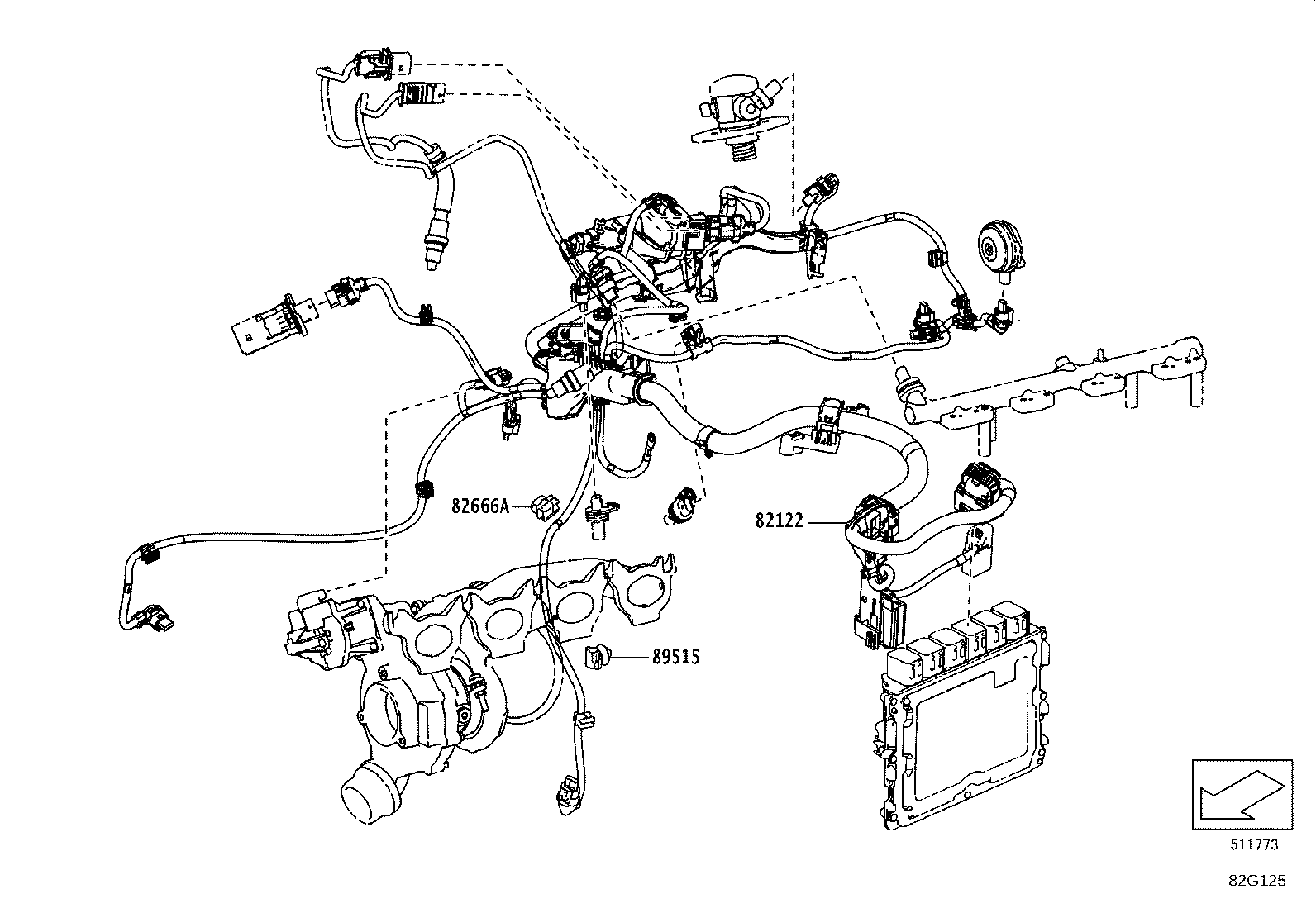

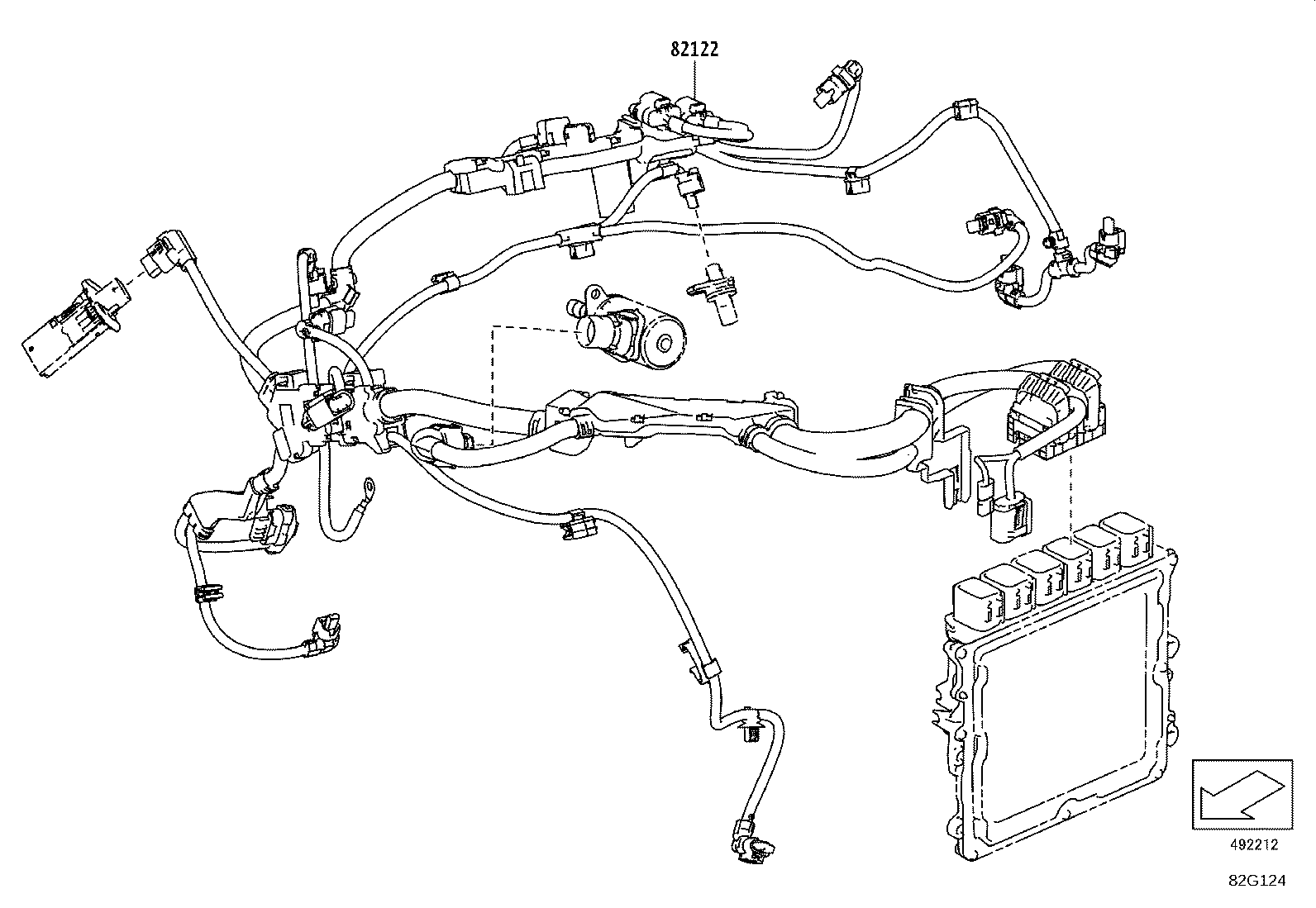

82122 Wire, Engine, NO.2

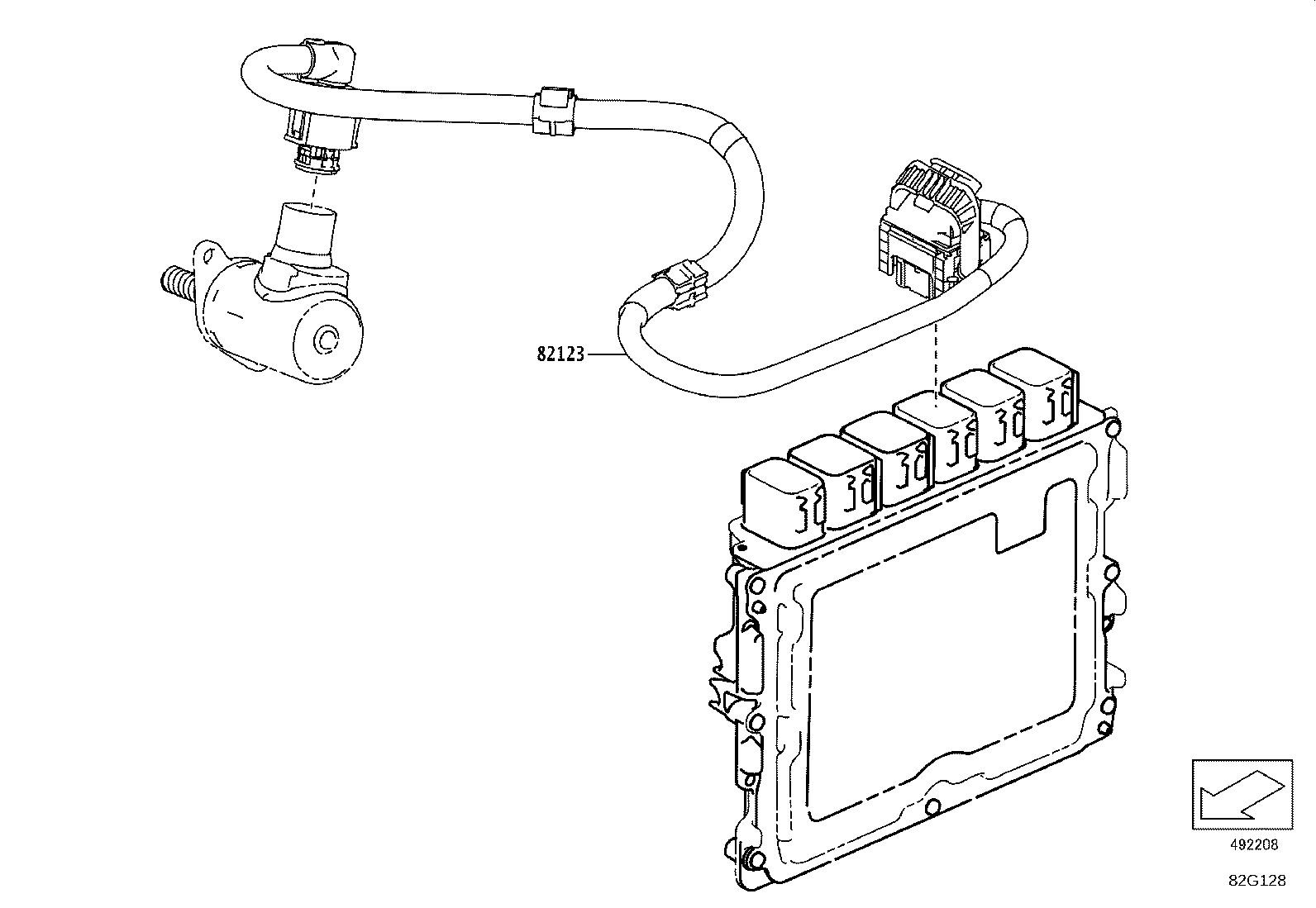

82123 Wire, Engine, NO.3

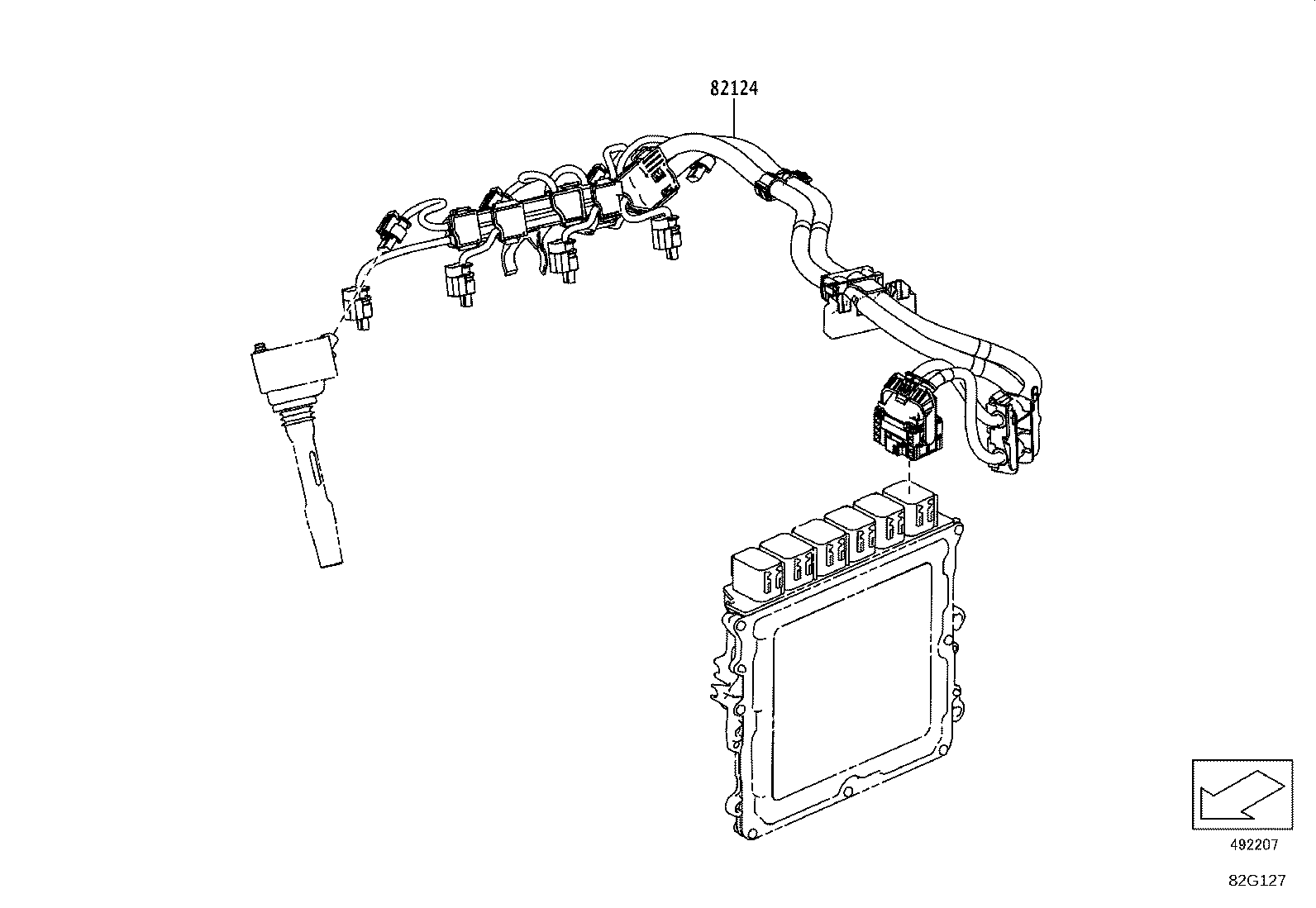

82124 Wire, Engine, NO.4

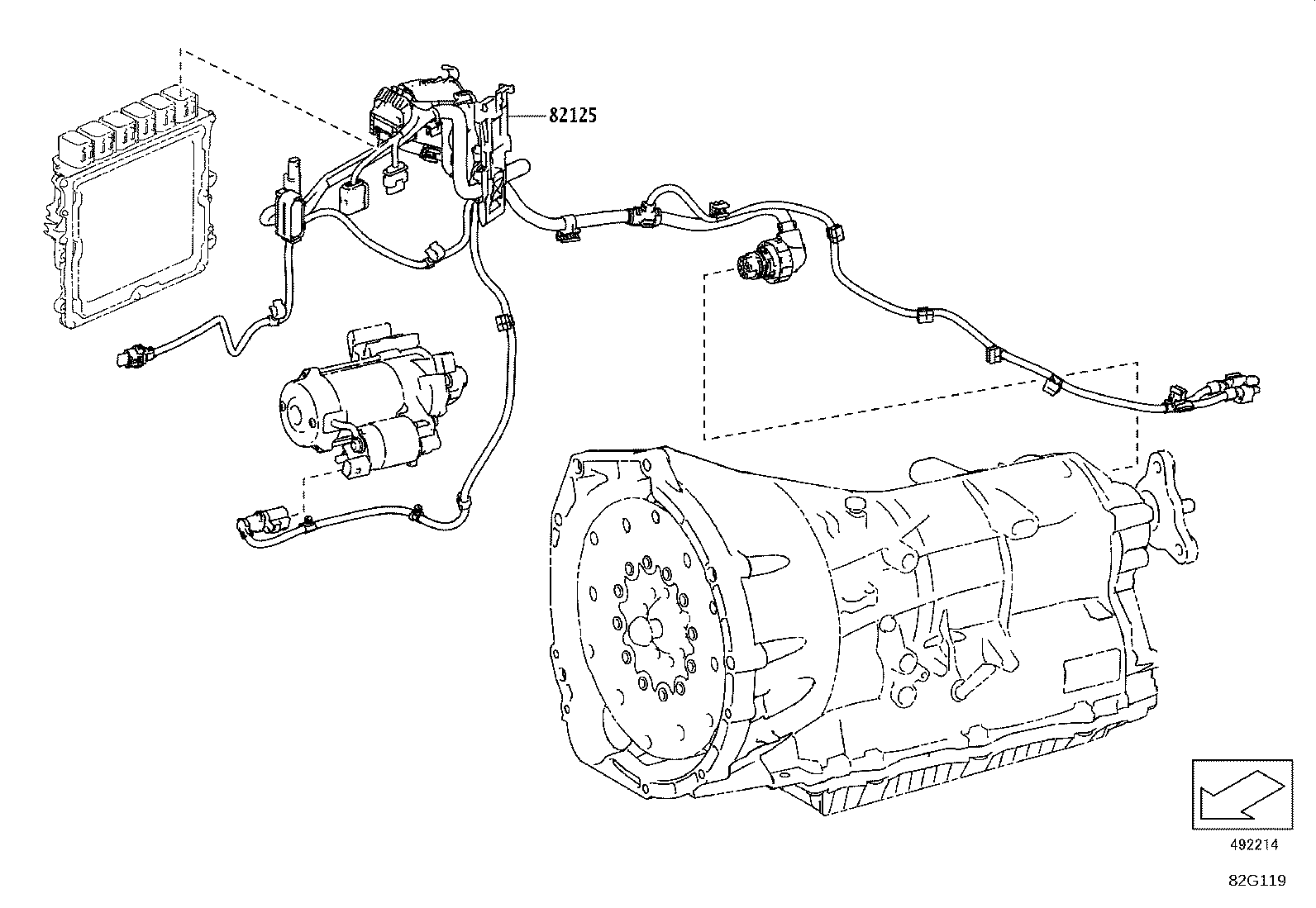

82125 Wire, Transmission
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7

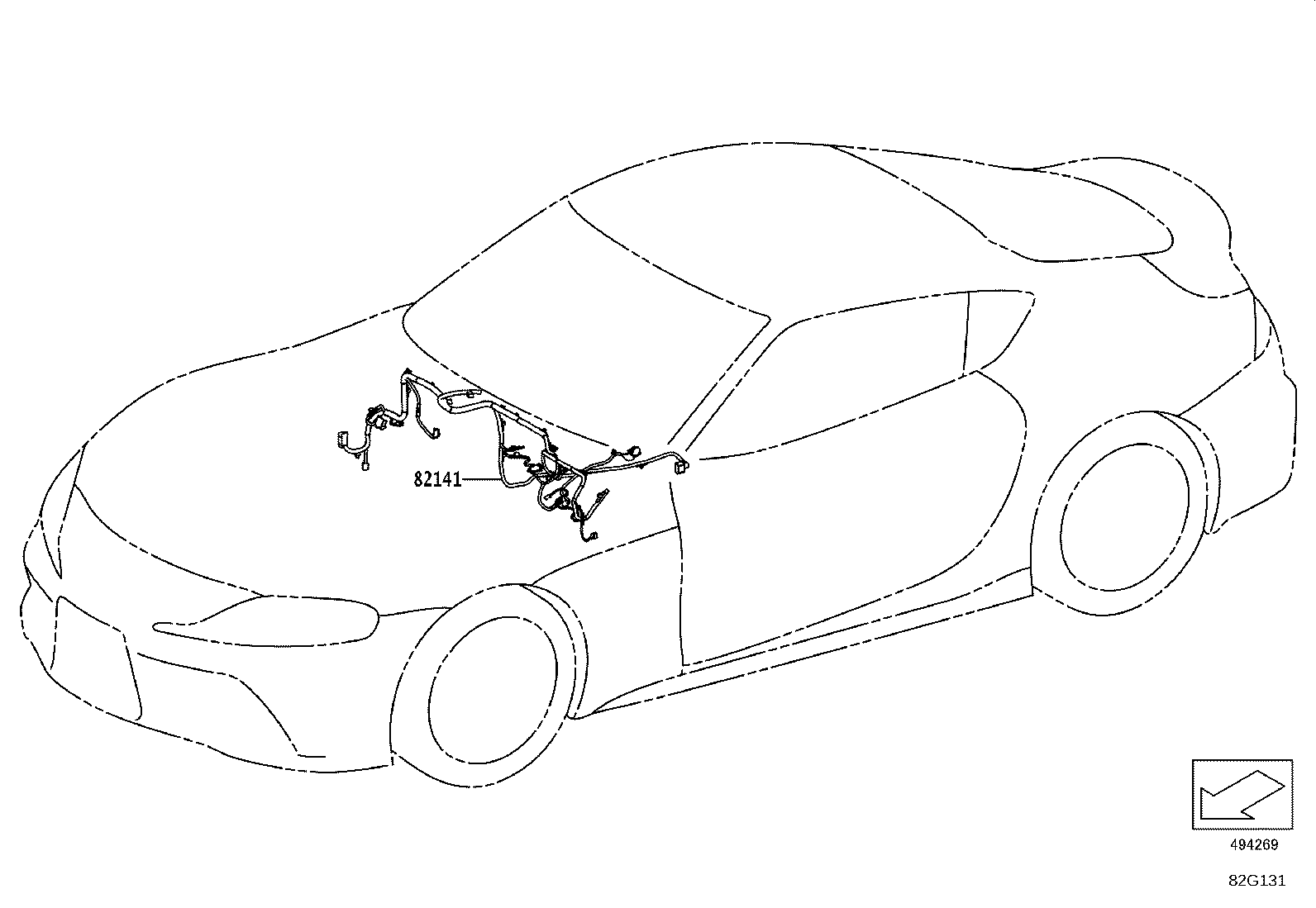

82141 Wire, Instrument Panel

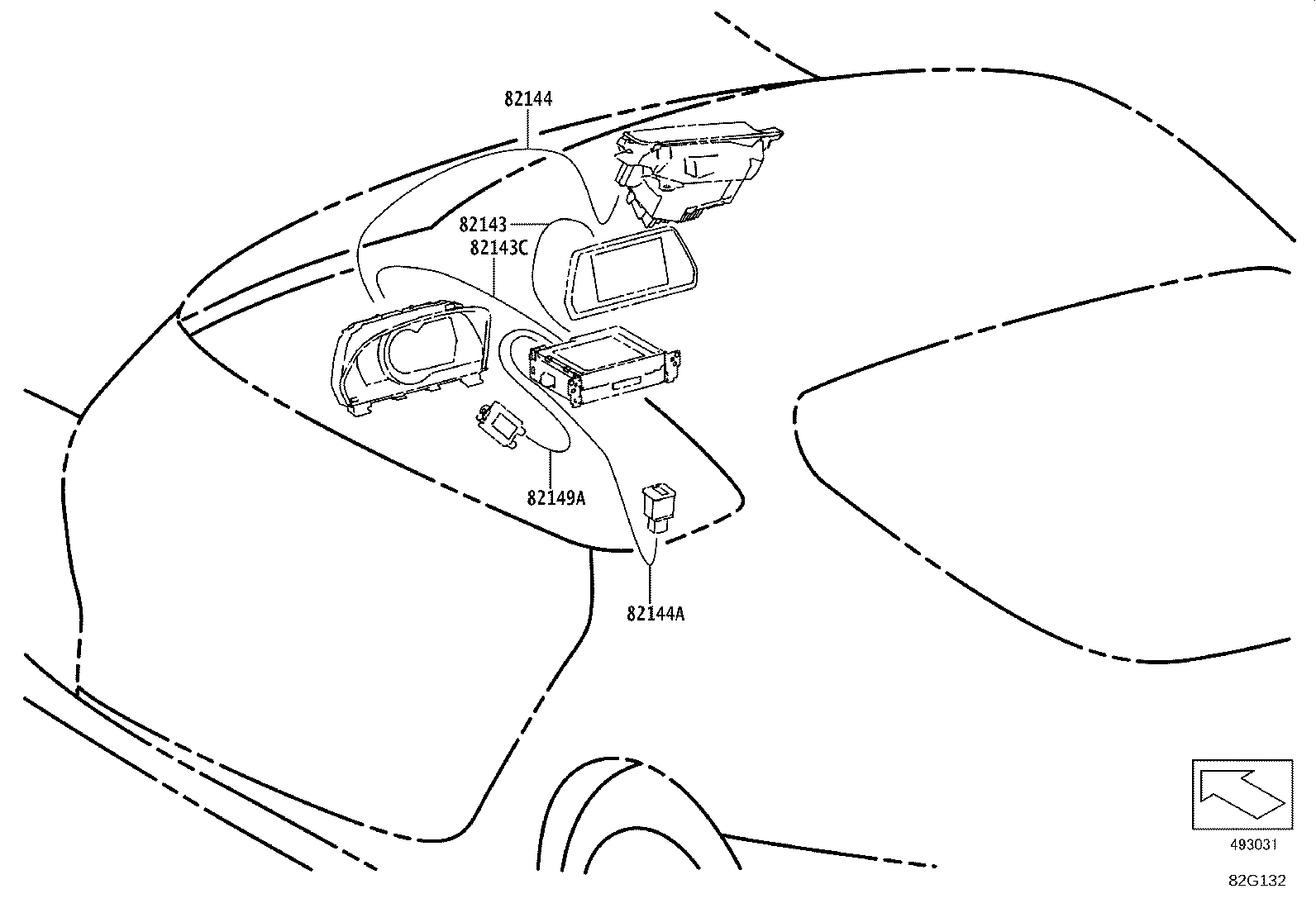

82143 Wire, Instrument Panel, NO.3
82143C Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82144A Wire, Instrument Panel, NO.4
82149A Wire, Instrument Panel, NO.5

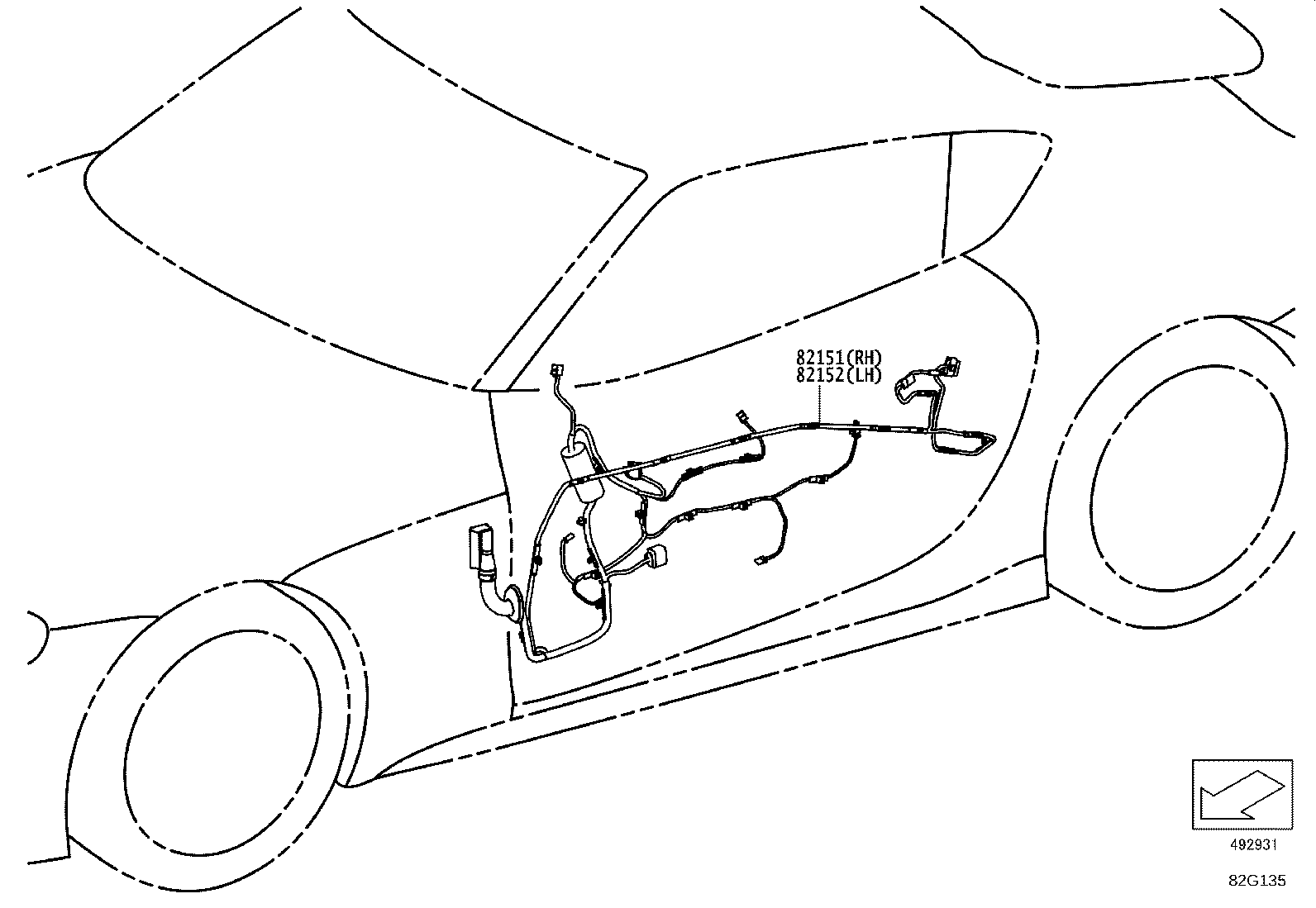

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

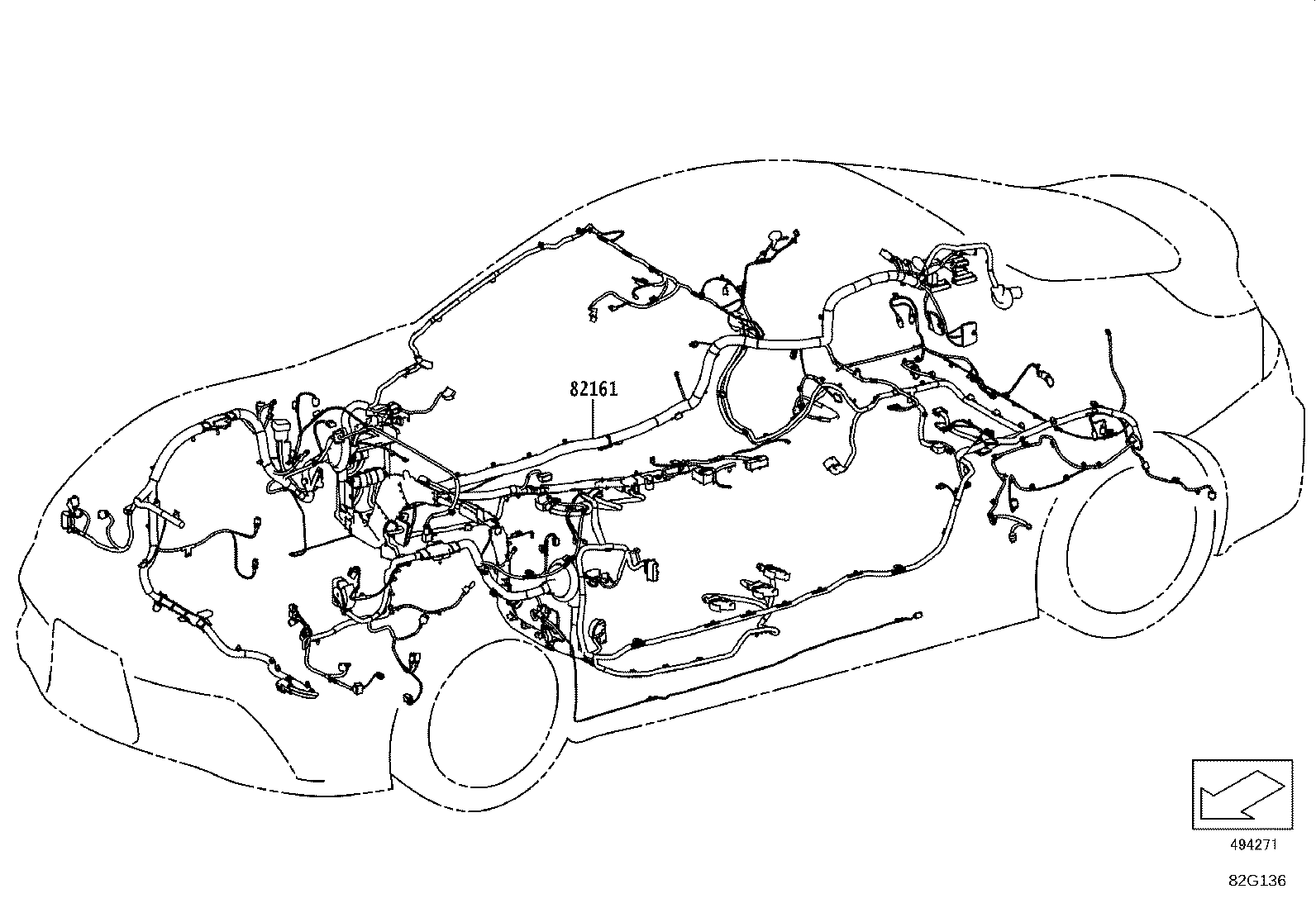

82161 Wire, Floor

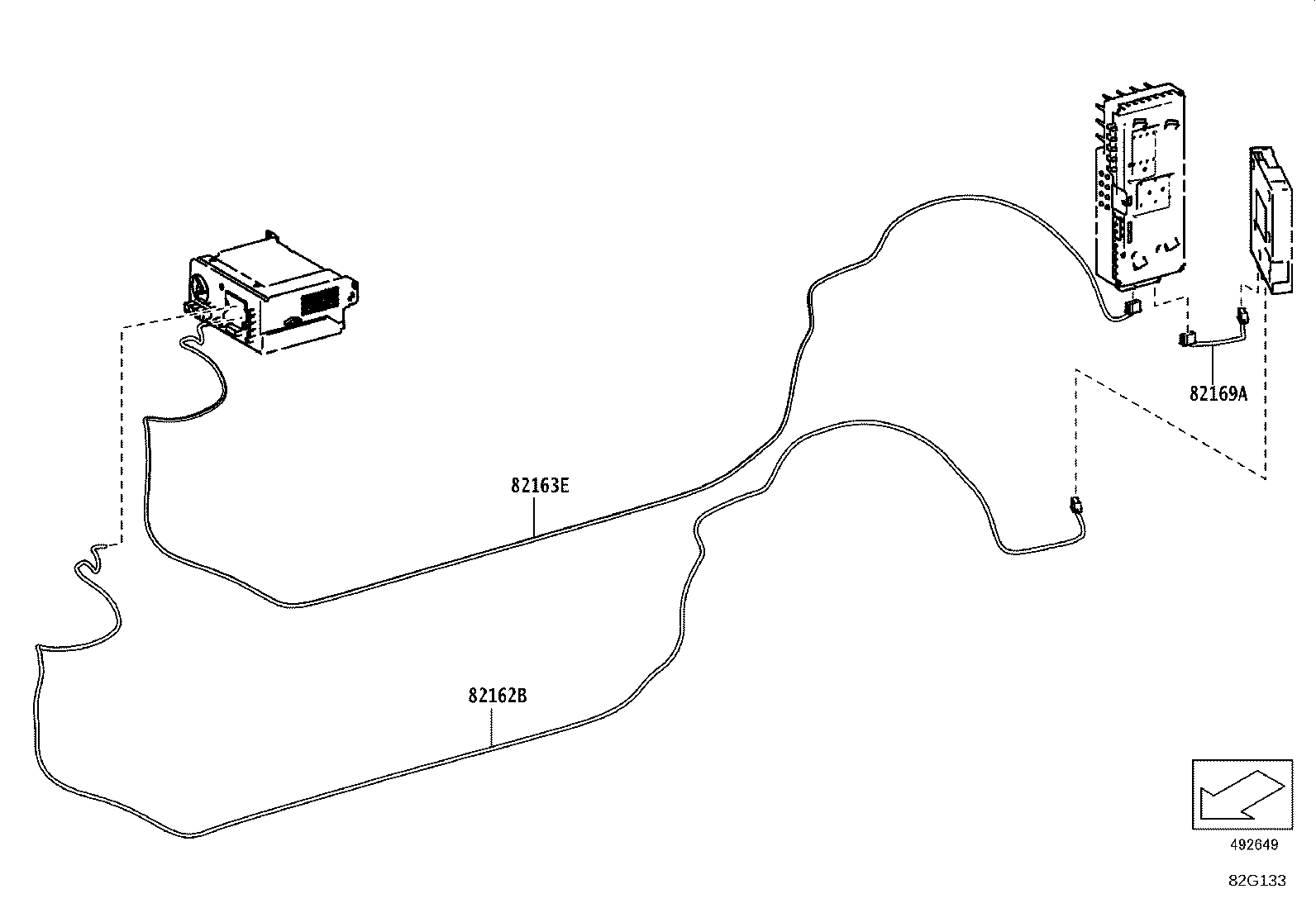

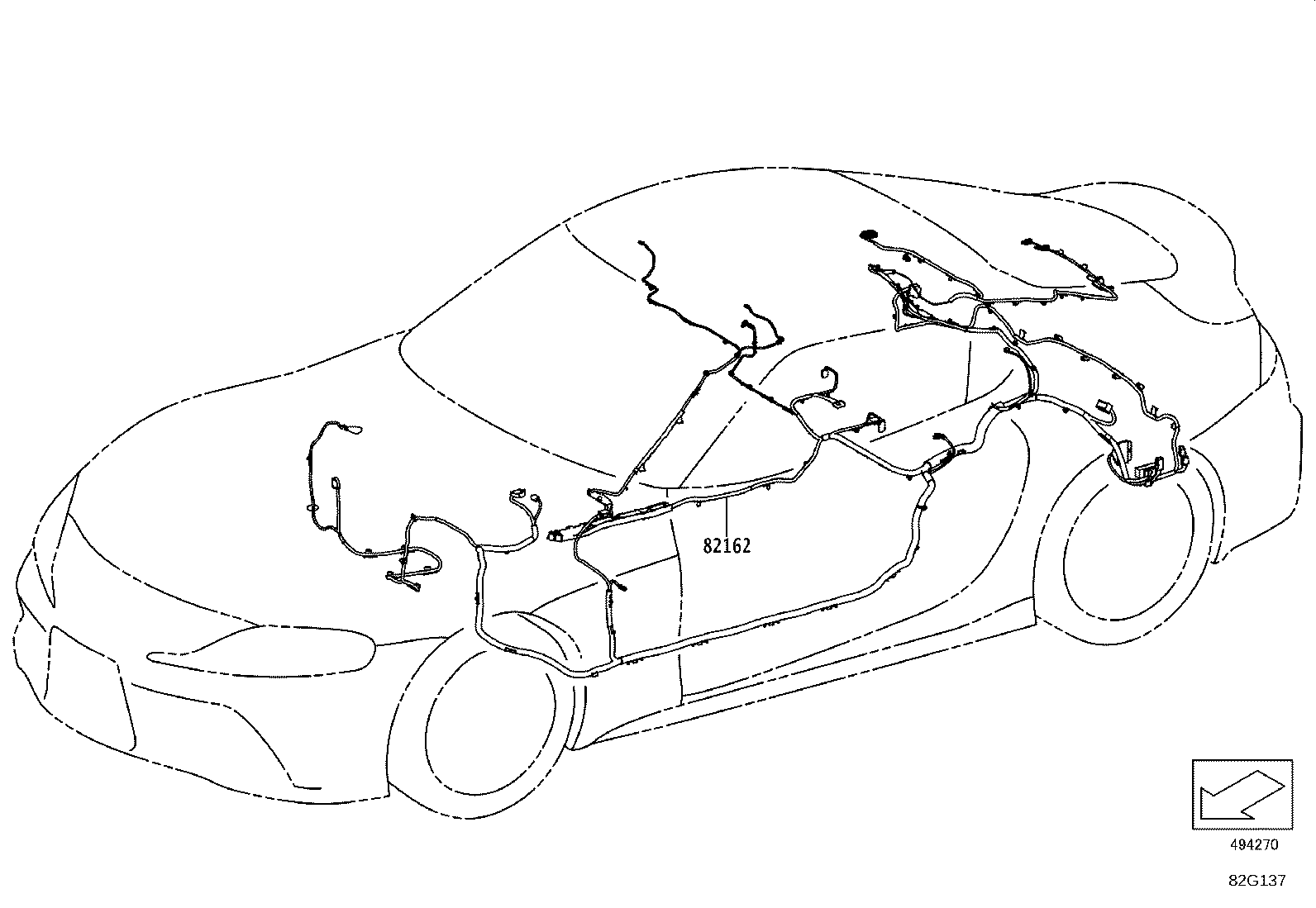

82162 Wire, Floor, NO.2
82162B Wire, Floor, NO.3

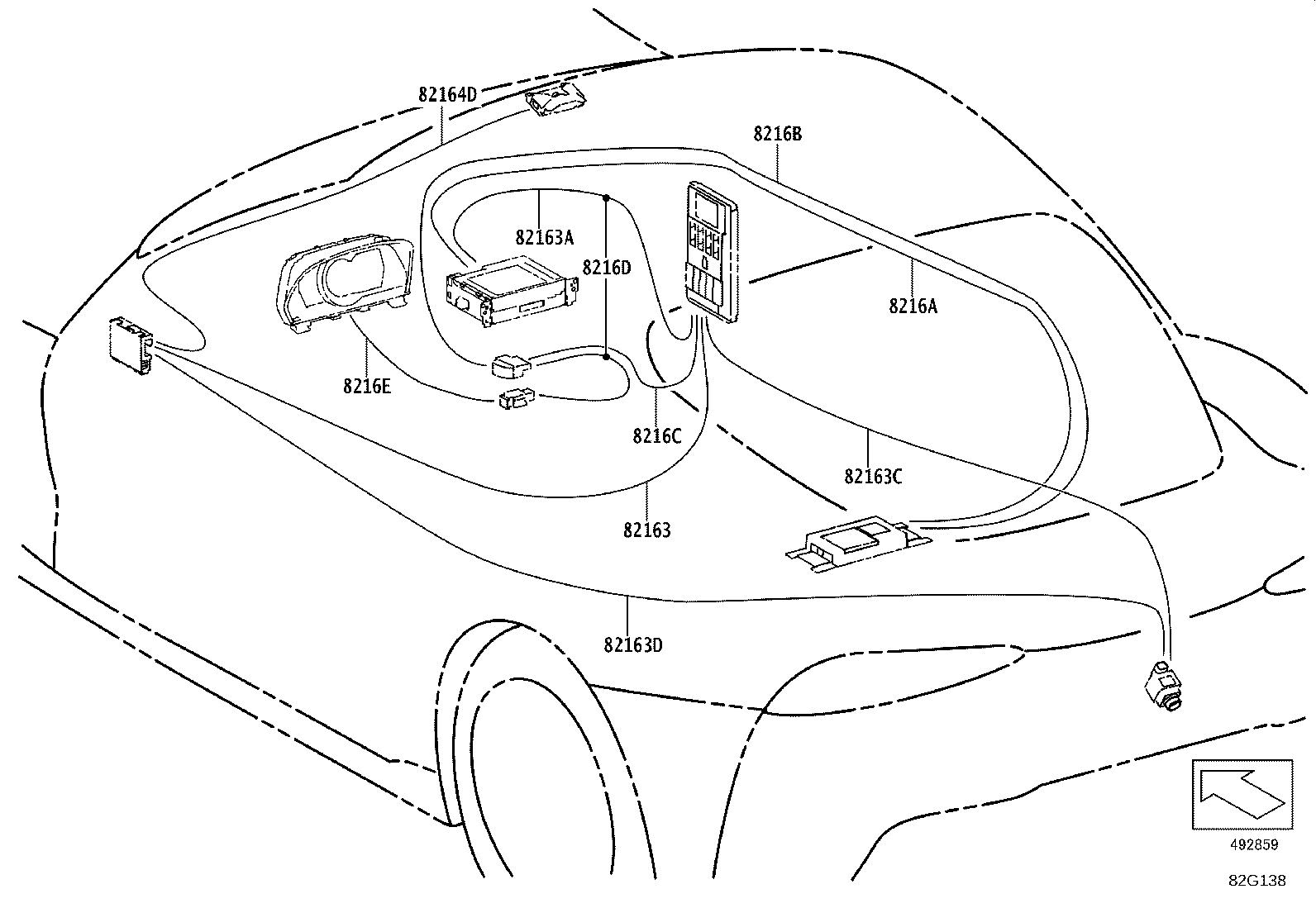

82163 Wire, Floor, NO.3
82163A Wire, Floor, NO.4
82163B Wire, Floor NO.5
82163C Wire, Floor NO.3 RH
82163D Wire, Floor NO.3 LH
82163E Wire, Floor, NO.4
82164C Wire, Floor, NO.4
82164D Wire, Floor, NO.5
82169A Wire, Floor, NO.6
82169B Wire, Floor, NO.7
82169C Wire, Floor, NO.31
8216A Wire, Floor NO.7
8216B Wire, Floor NO.8
8216C Wire, Floor, NO.9
8216D Wire, Floor, NO.10
8216E Wire, Floor, NO.11

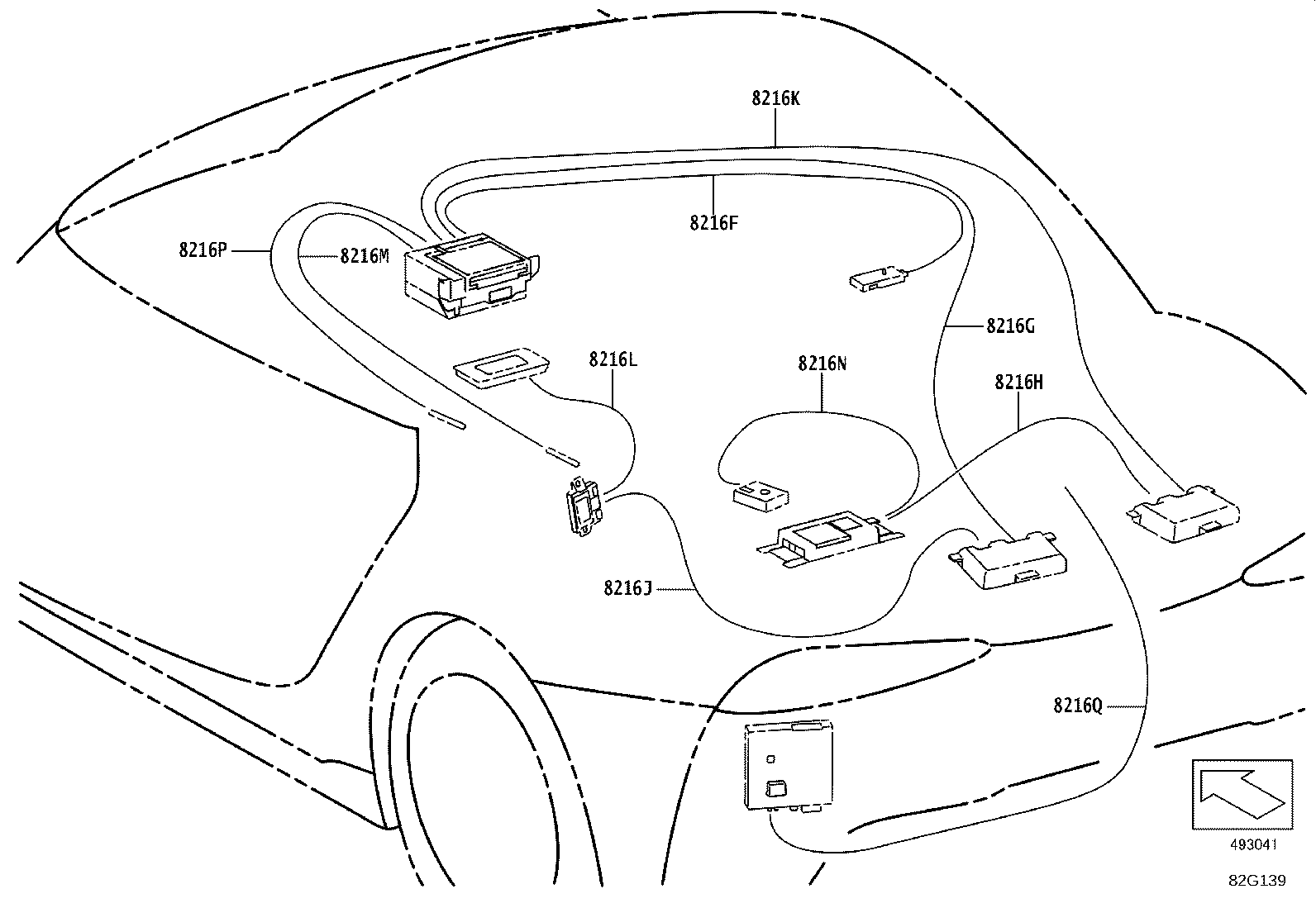

8216F Wire, Floor, NO.12
8216G Wire, Floor, NO.13
8216H Wire, Floor, NO.14
8216J Wire, Floor, NO.15
8216K Wire, Floor, NO.16
8216L Wire, Floor, NO.17
8216M Wire, Floor, NO.18
8216N Wire, Floor, NO.19
8216P Wire, Floor, NO.20
8216Q Wire, Floor, NO.21
8216R Wire, Floor, NO.22

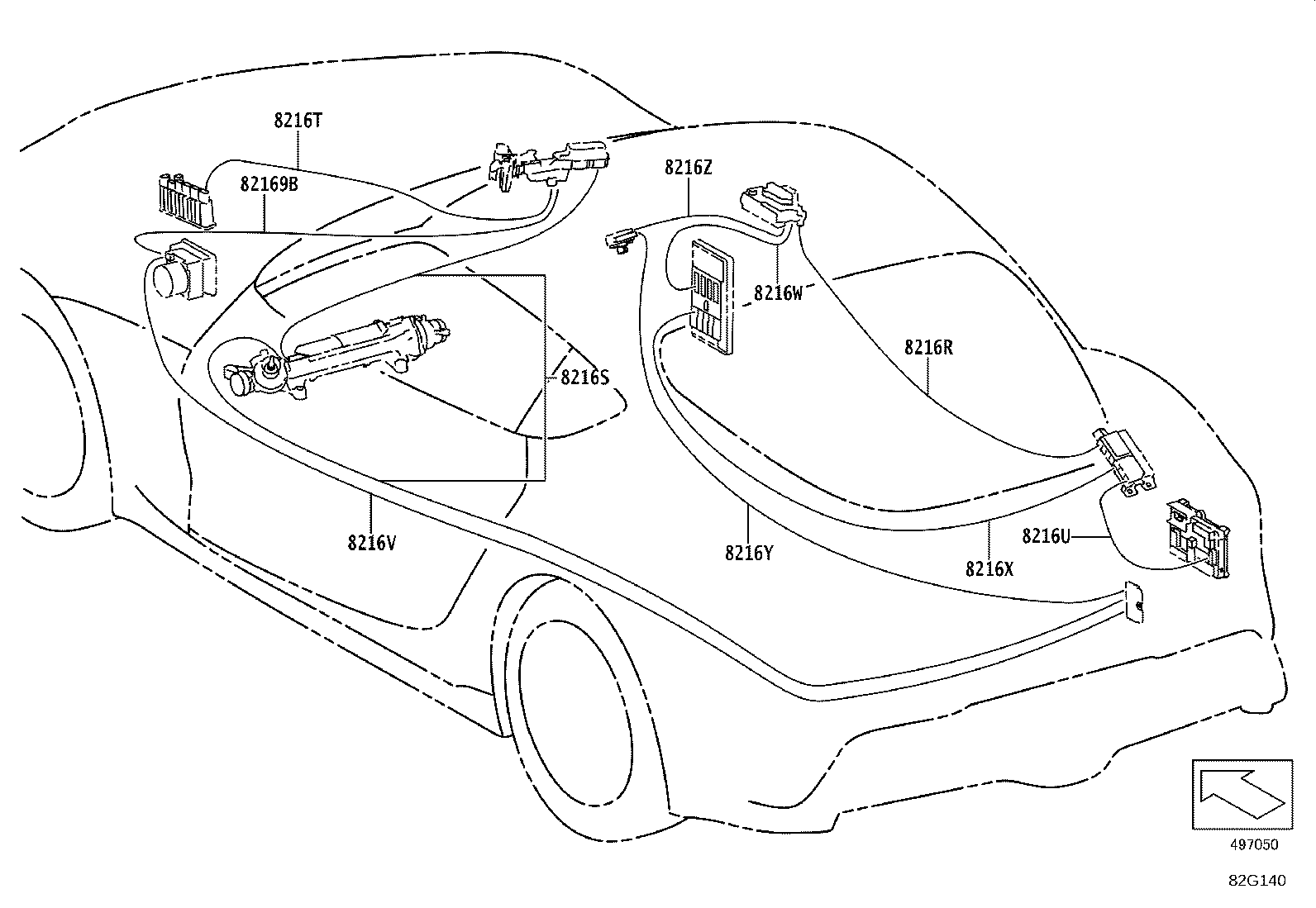

8216S Wire, Floor, NO.23
8216T Wire, Floor, NO.24
8216U Wire, Floor, NO.25
8216V Wire, Floor, NO.26
8216W Wire, Floor, NO.27
8216X Wire, Floor, NO.28
8216Y Wire, Floor, NO.29
8216Z Wire, Floor, NO.30

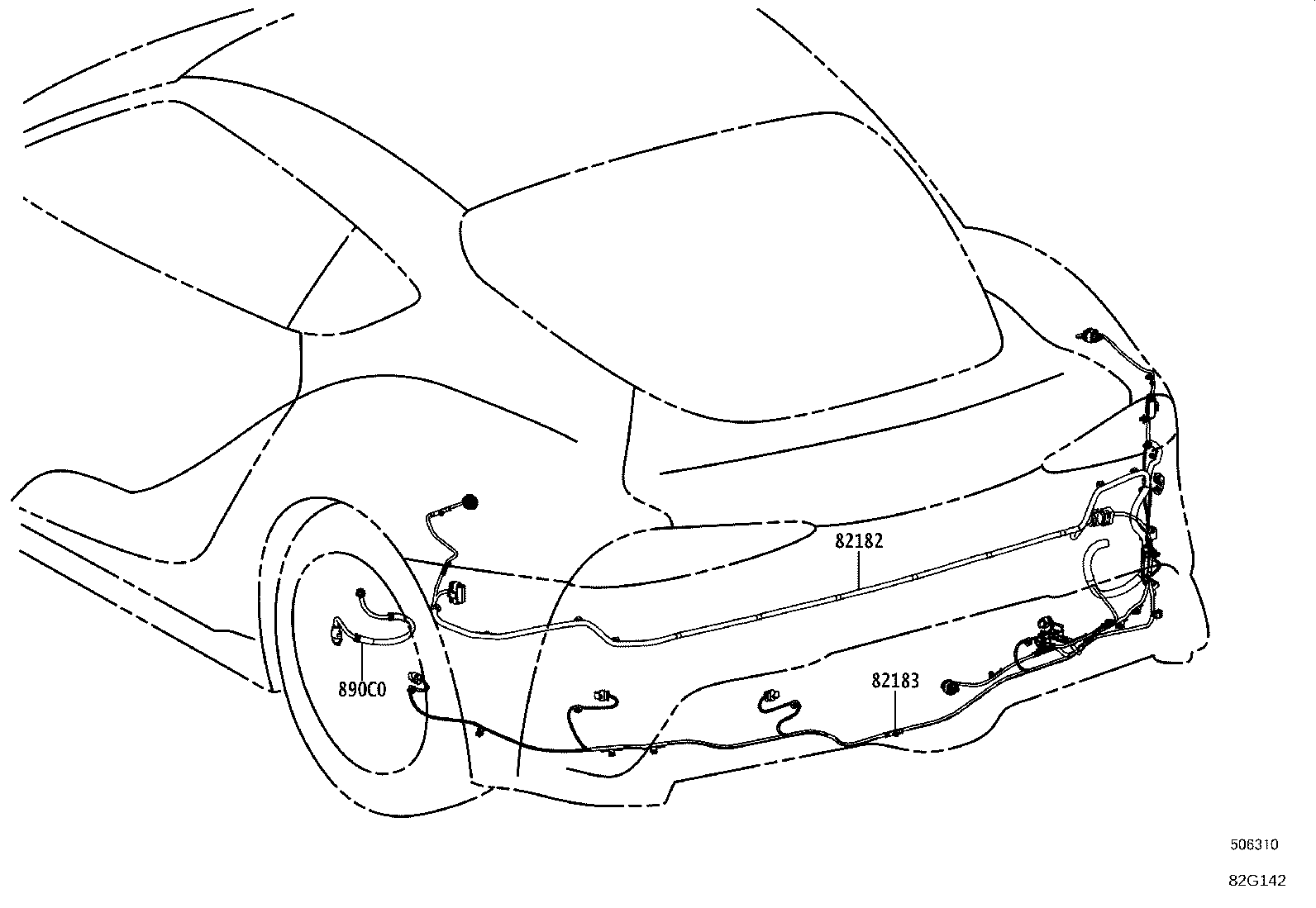

82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3

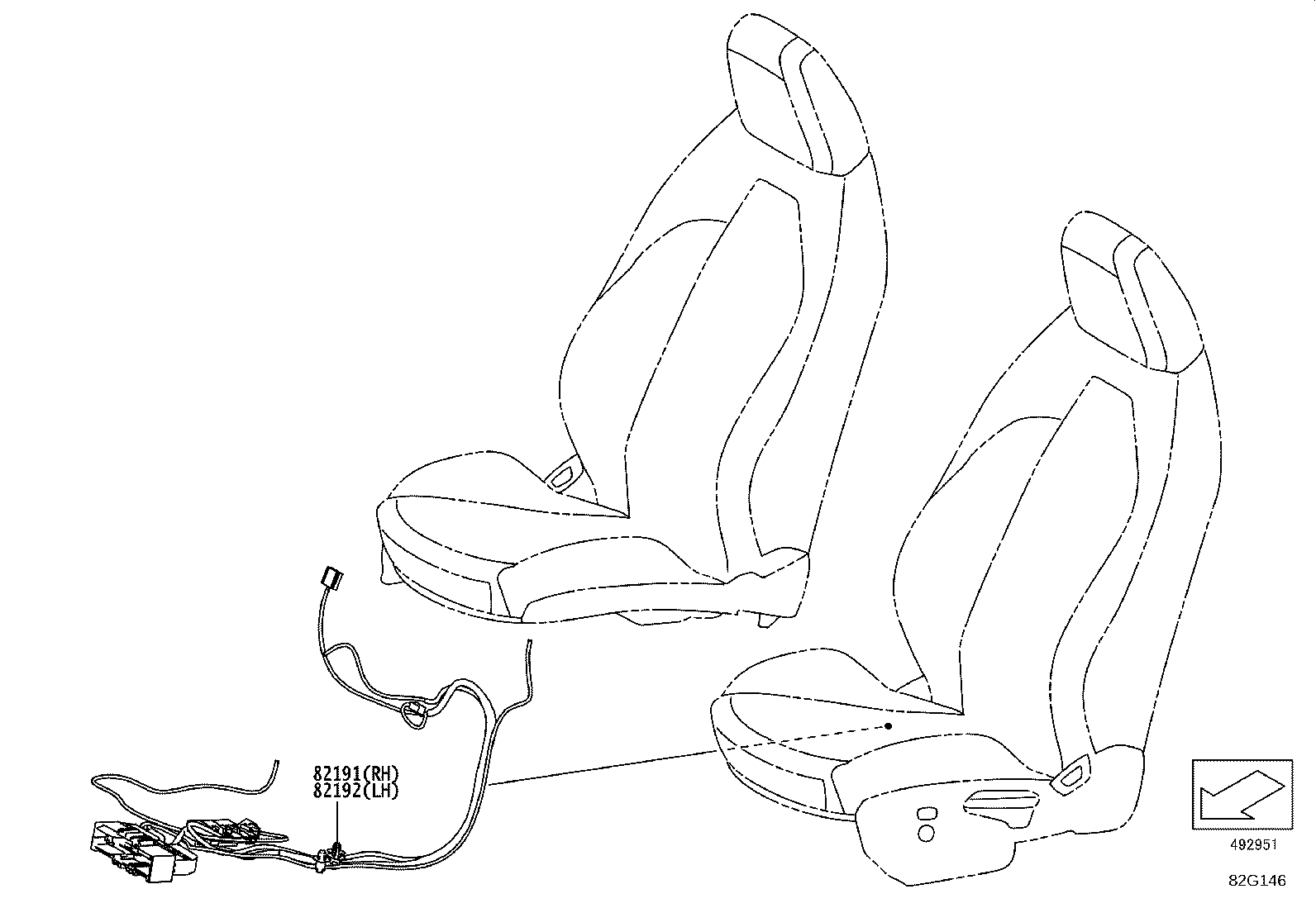

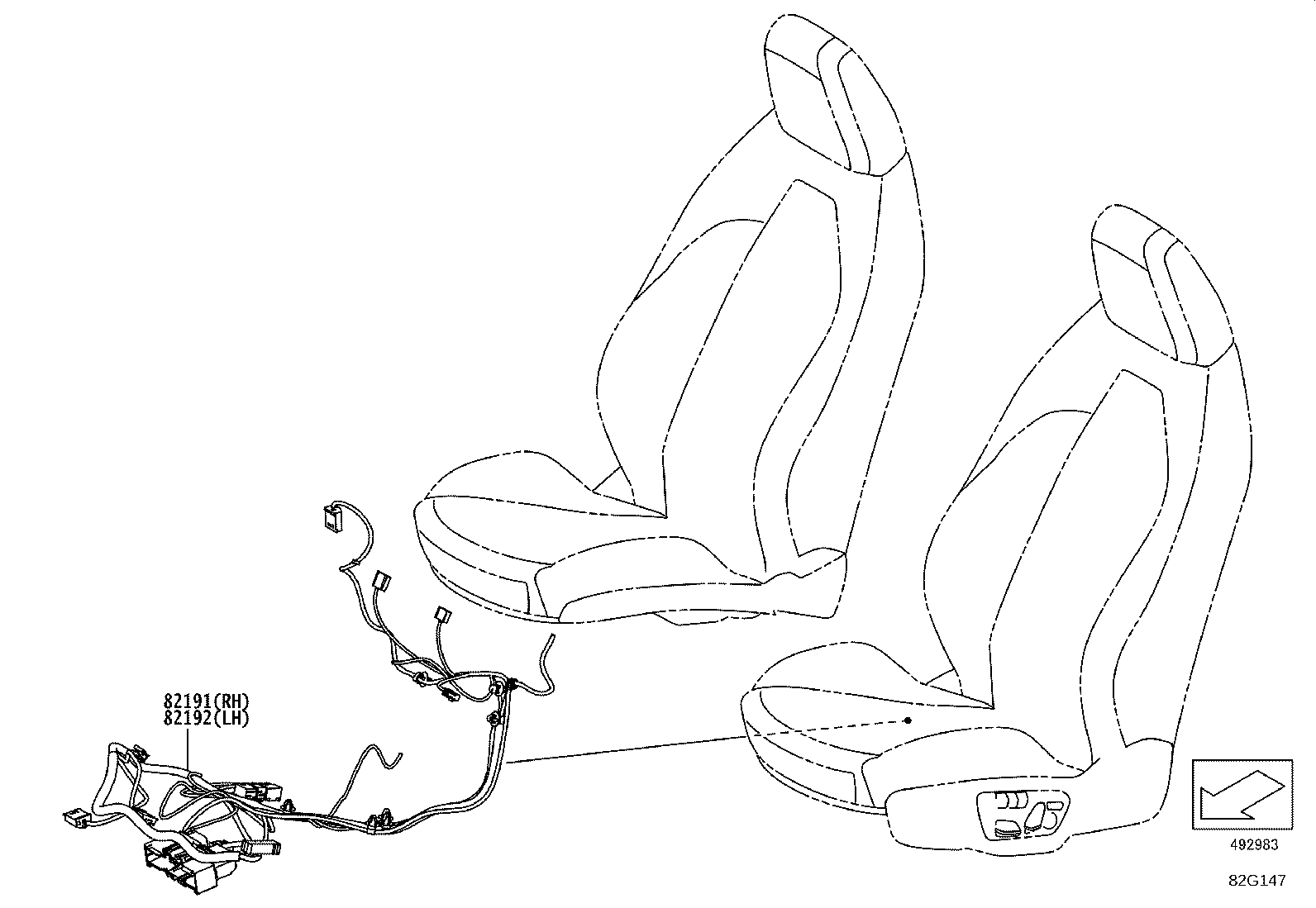

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH

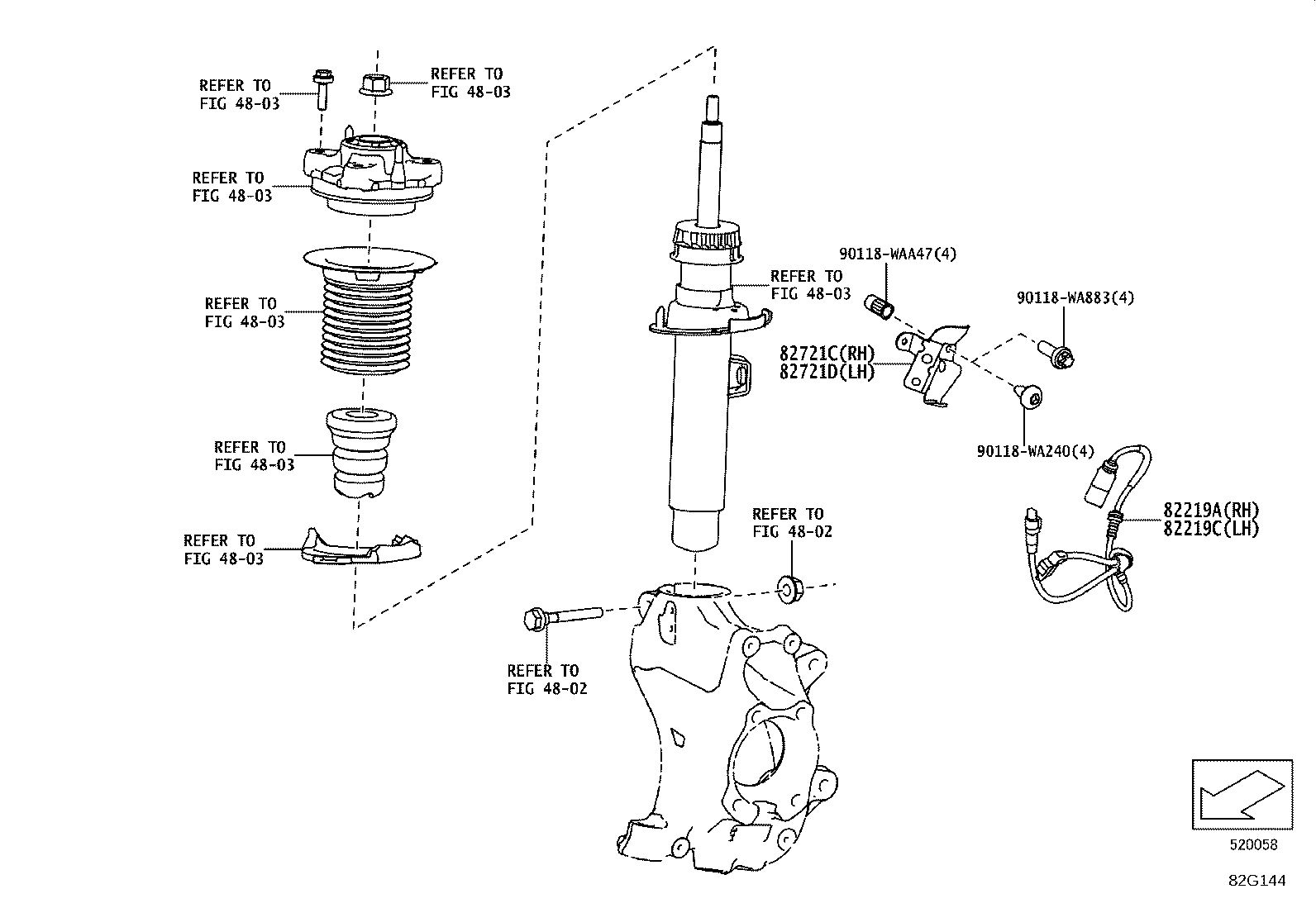

82219A Wire, Sensor
82219C Wire, Sensor
82261A Wire, Alternator

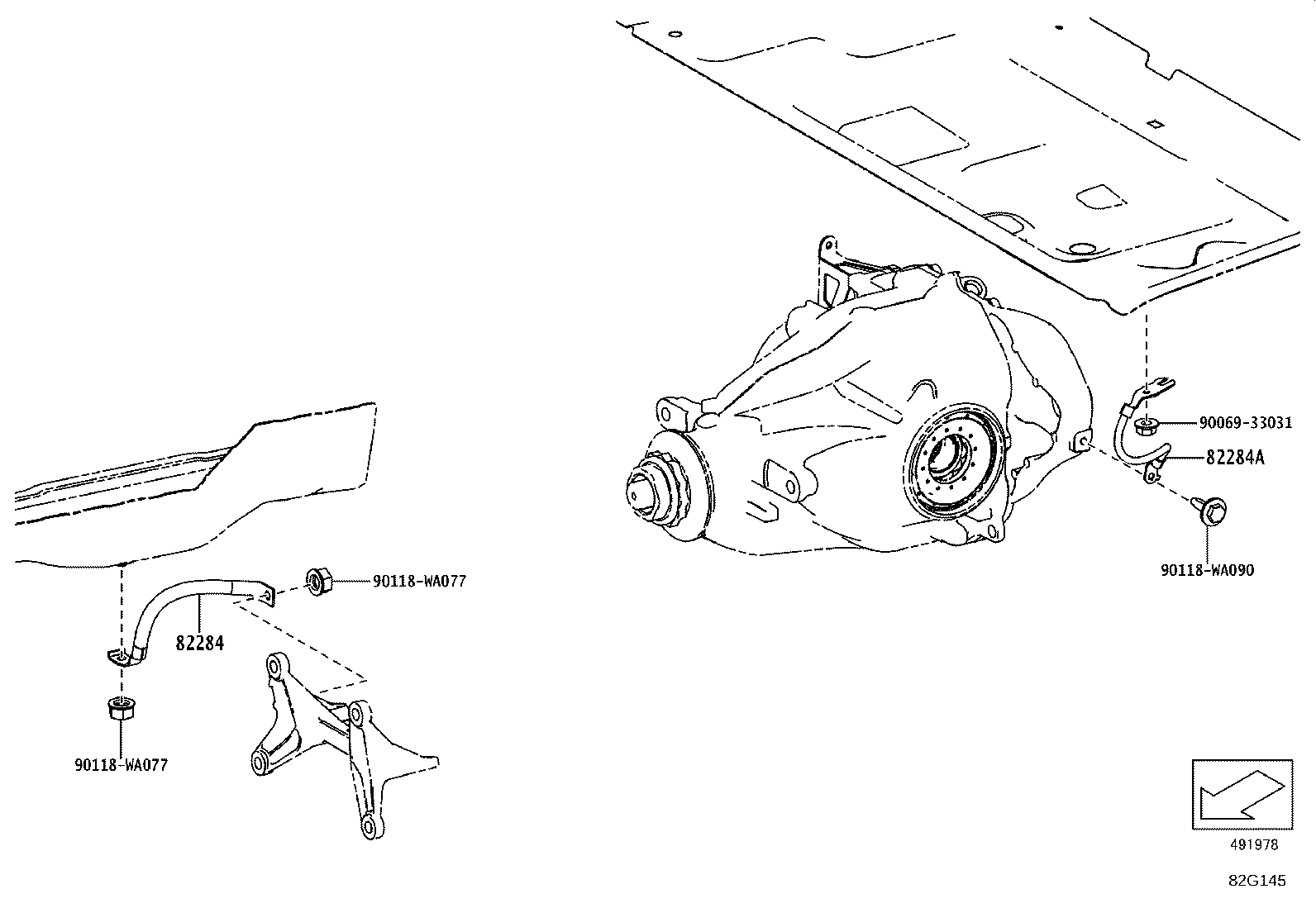

82284 Wire, Earth
82284A Wire, Earth NO.2
82287 Wire, Earth, NO.3
82376A Wire, Auto Fan
82651 Block, Terminal
82666A Holder, Connector NO.2
82672 Cover, Junktion Block
82675E Terminal, Junction, NO.1
82675F Terminal, Junction, NO.2
82721C Bracket, Wiring Harness, RH
82721D Bracket, Wiring Harness, LH

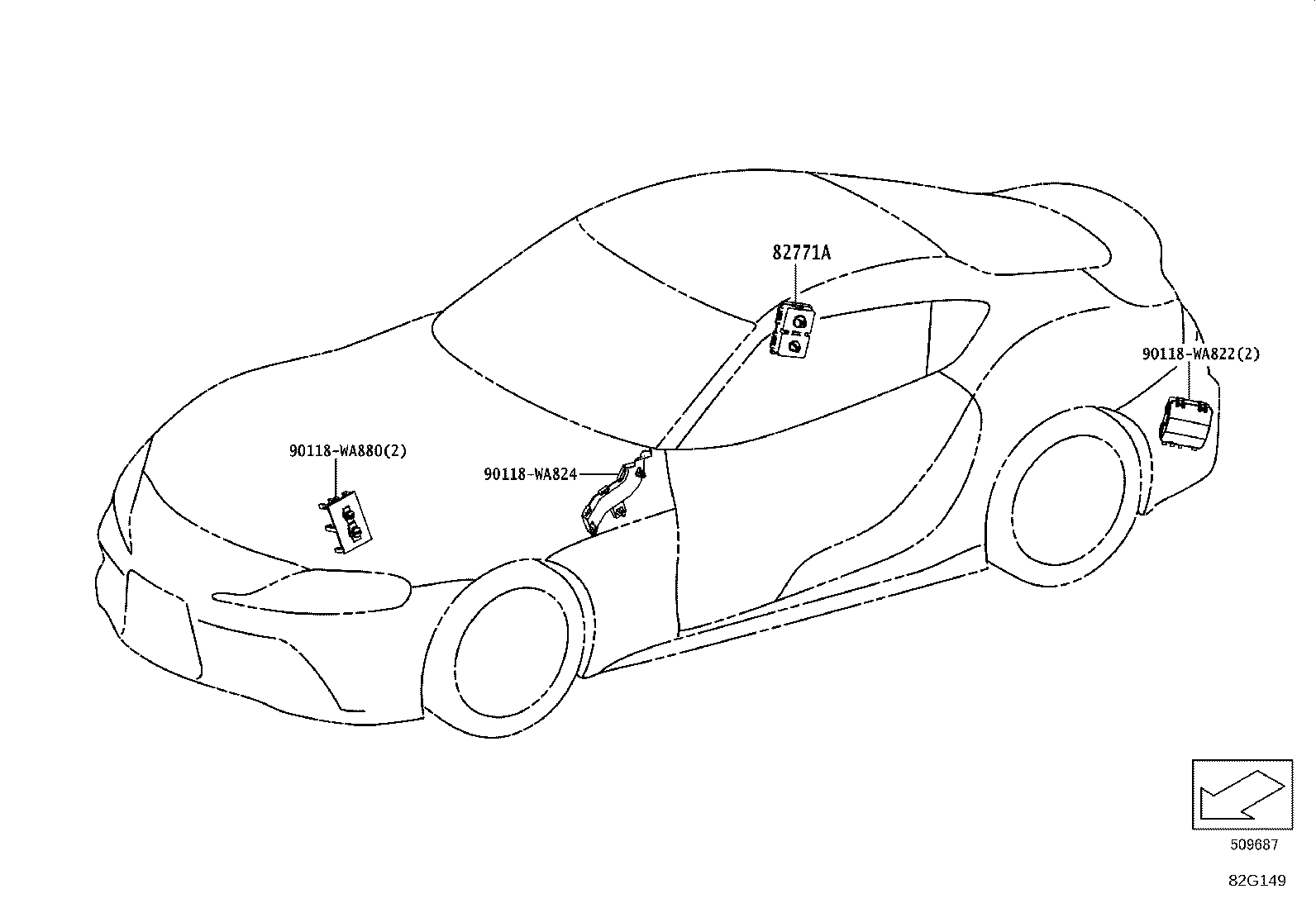

82771A Box, Connection
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82817 Protector, Wiring Harness, NO.1
82821A Cover, Connector
82951A Bracket, Terminal
82989 Wire, Connecting Repair
890C0 Wire Assy, Parking Brake, NO.1

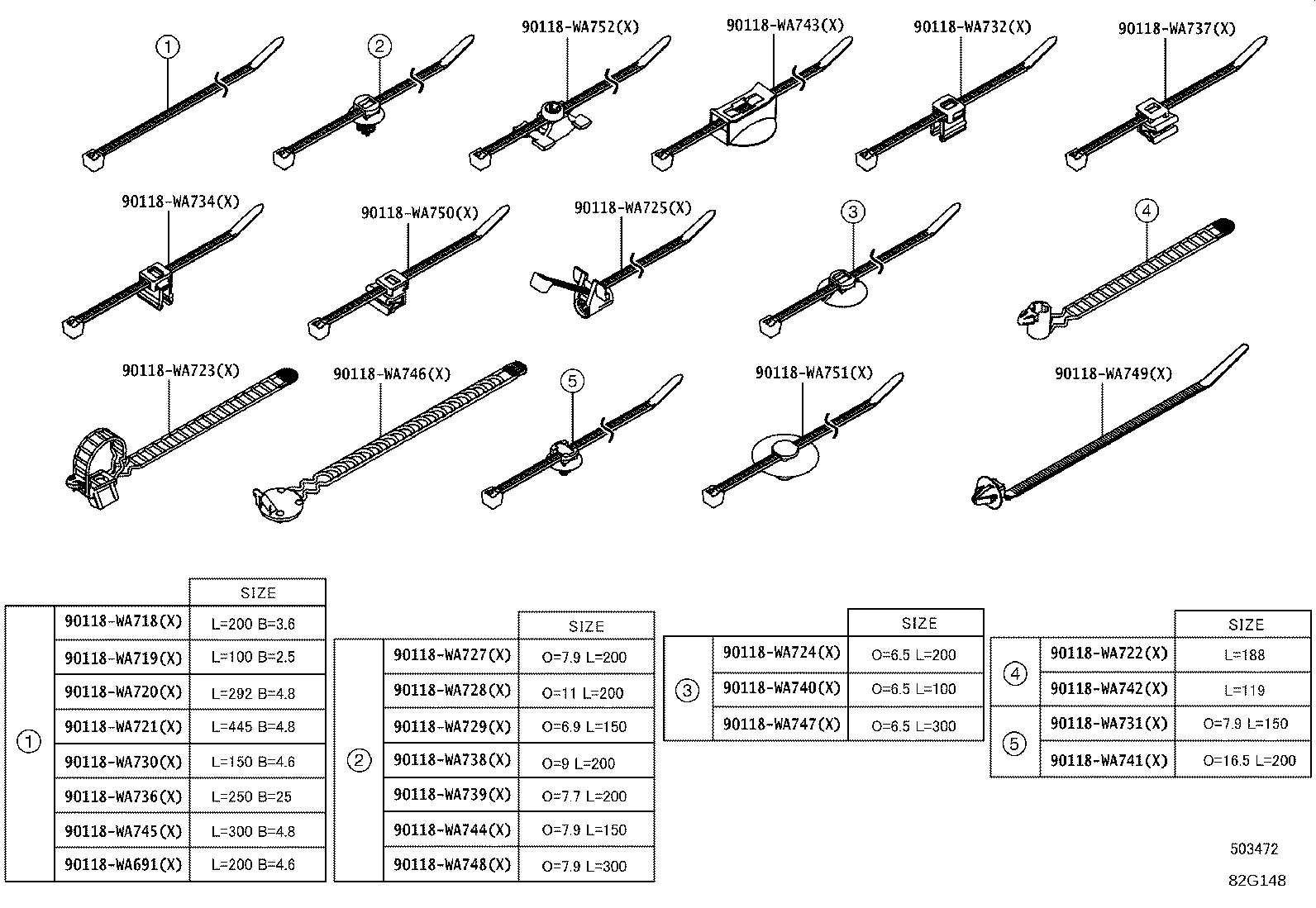

89515 Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
