Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

8 part groups · 2 illustrations

Illustrations

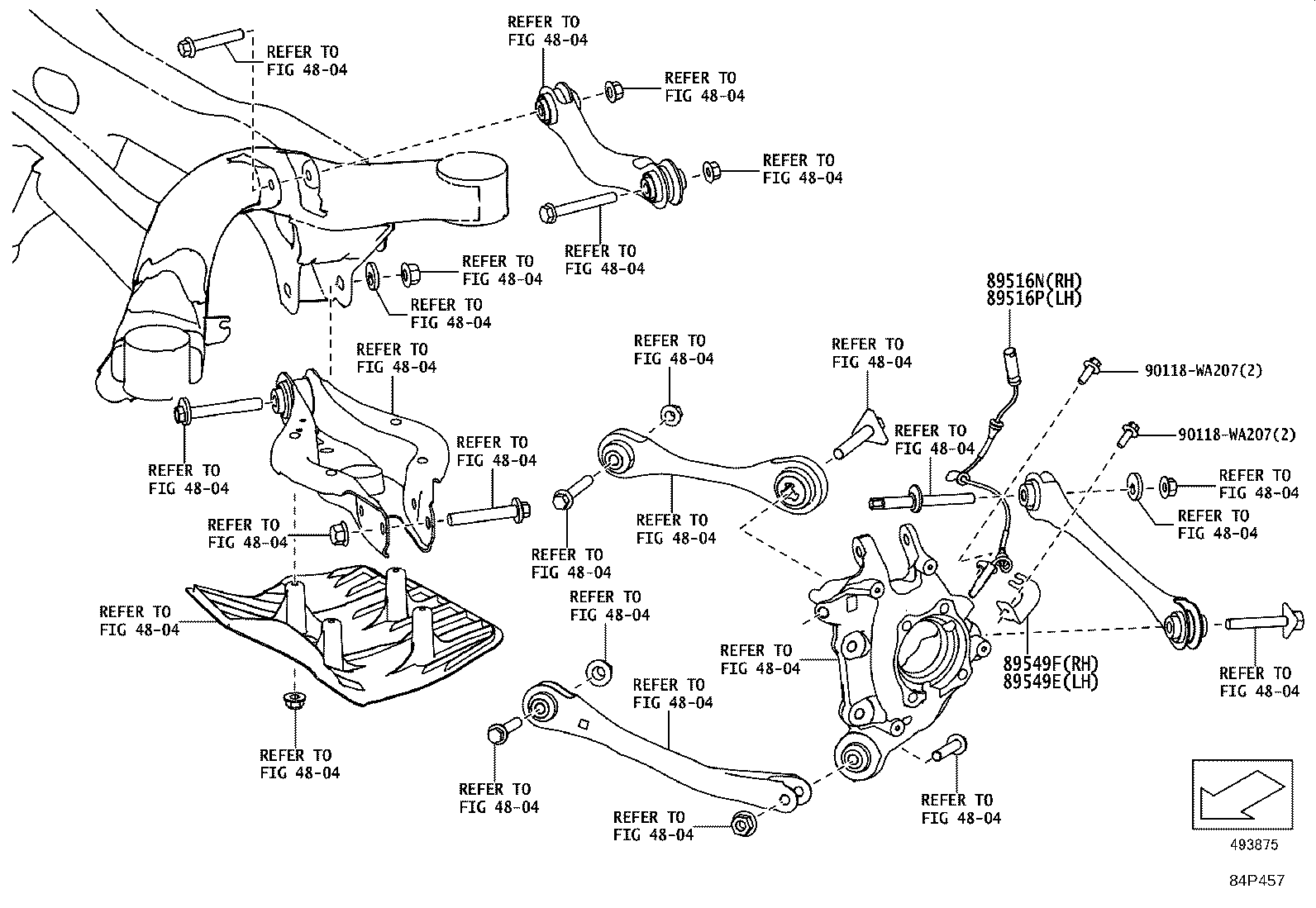

Figure 84P456 84P456 2022-07 → — Figure 84P457 84P457 2022-07 → —

Part groups

PNCDescription
89439B Bracket, Sensor
89439E Bracket, Sensor, NO.2
89516E Wire, Skid Control Sensor, Front RH
89516F Wire, Skid Control Sensor, Front LH
89516N Wire, Skid Control Sensor, Rear RH
89516P Wire, Skid Control Sensor, Rear LH
89549E Bracket, Speed Sensor
89549F Bracket, Speed Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
