Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

8 part groups · 3 illustrations

Illustrations

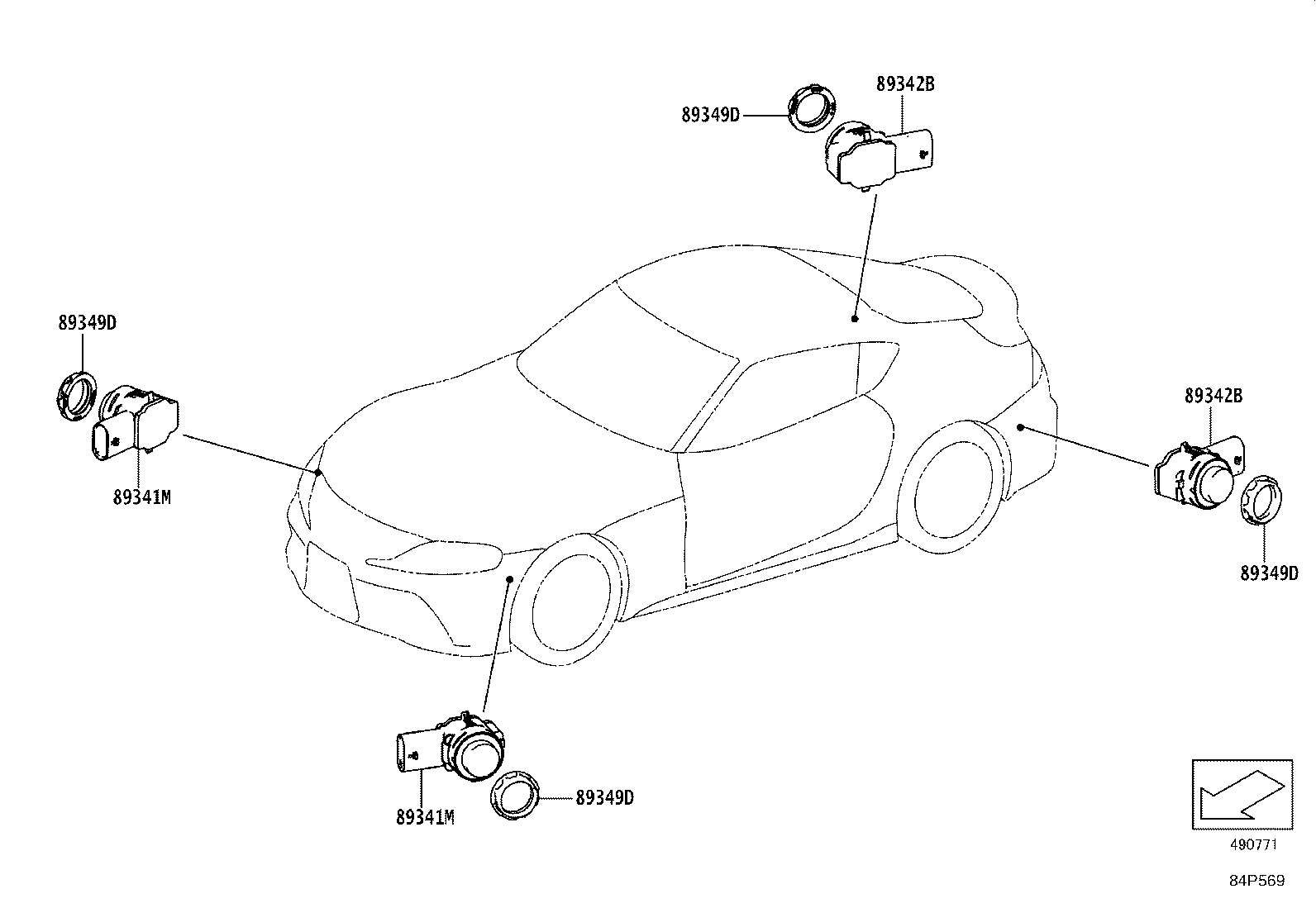

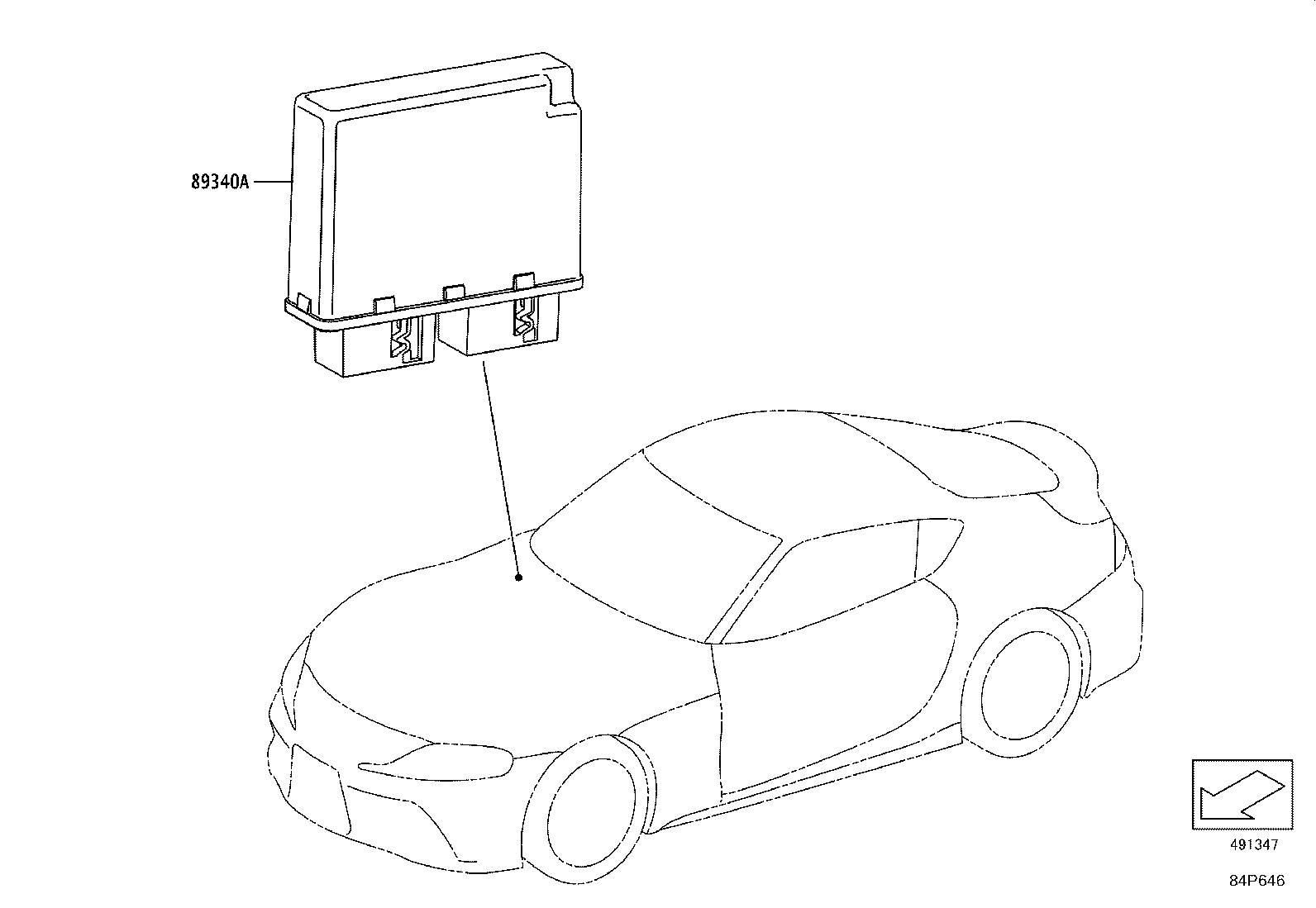

Figure 84P568 84P568 2022-07 → — Figure 84P569 84P569 2022-07 → — Figure 84P646 84P646 2022-07 → —

Part groups

PNCDescription
89340A Computer Assy, Clearance Warning
89341K Sensor, Ultrasonic, Front Corner
89341L Sensor, Ultrasonic, Front Center
89341M Sensor, Ultrasonic, Front Side
89342 Sensor, Ultrasonic, Rear Corner
89342A Sensor, Ultrasonic, Rear Center
89342B Sensor, Ultrasonic, Rear Side
89349D Ring, O (FOR ULTRASONIC SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
