Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 7 illustrations

Illustrations

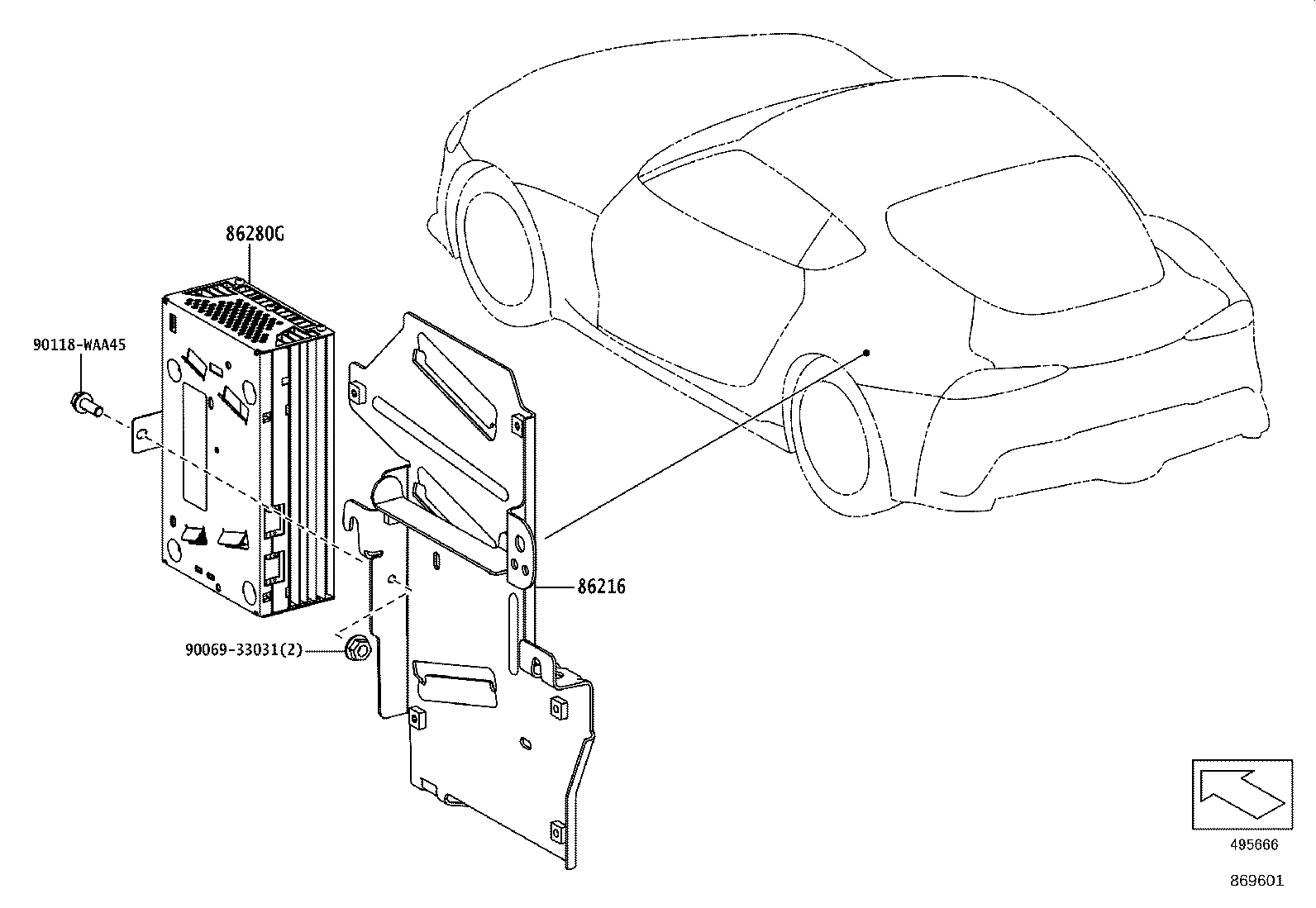

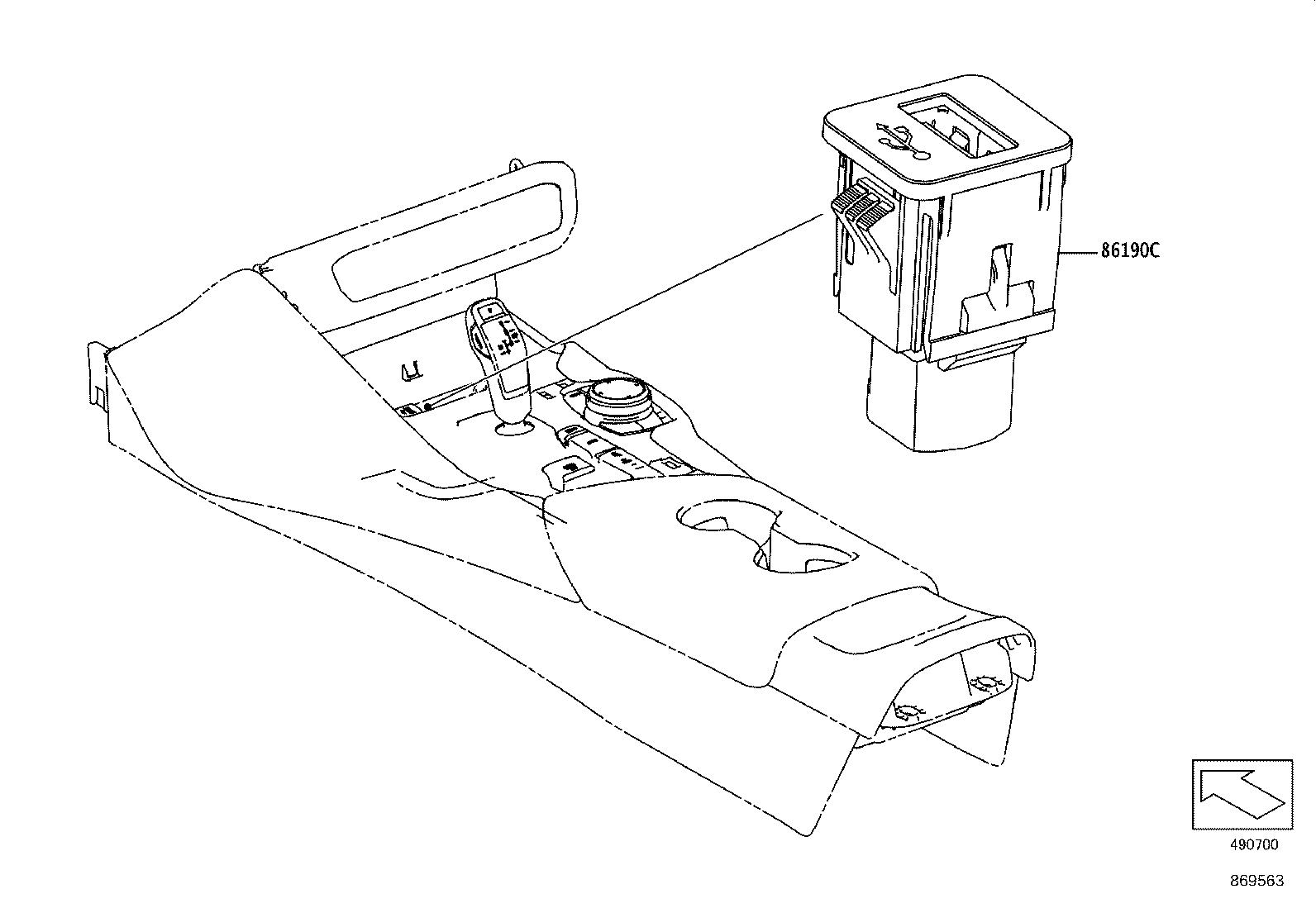

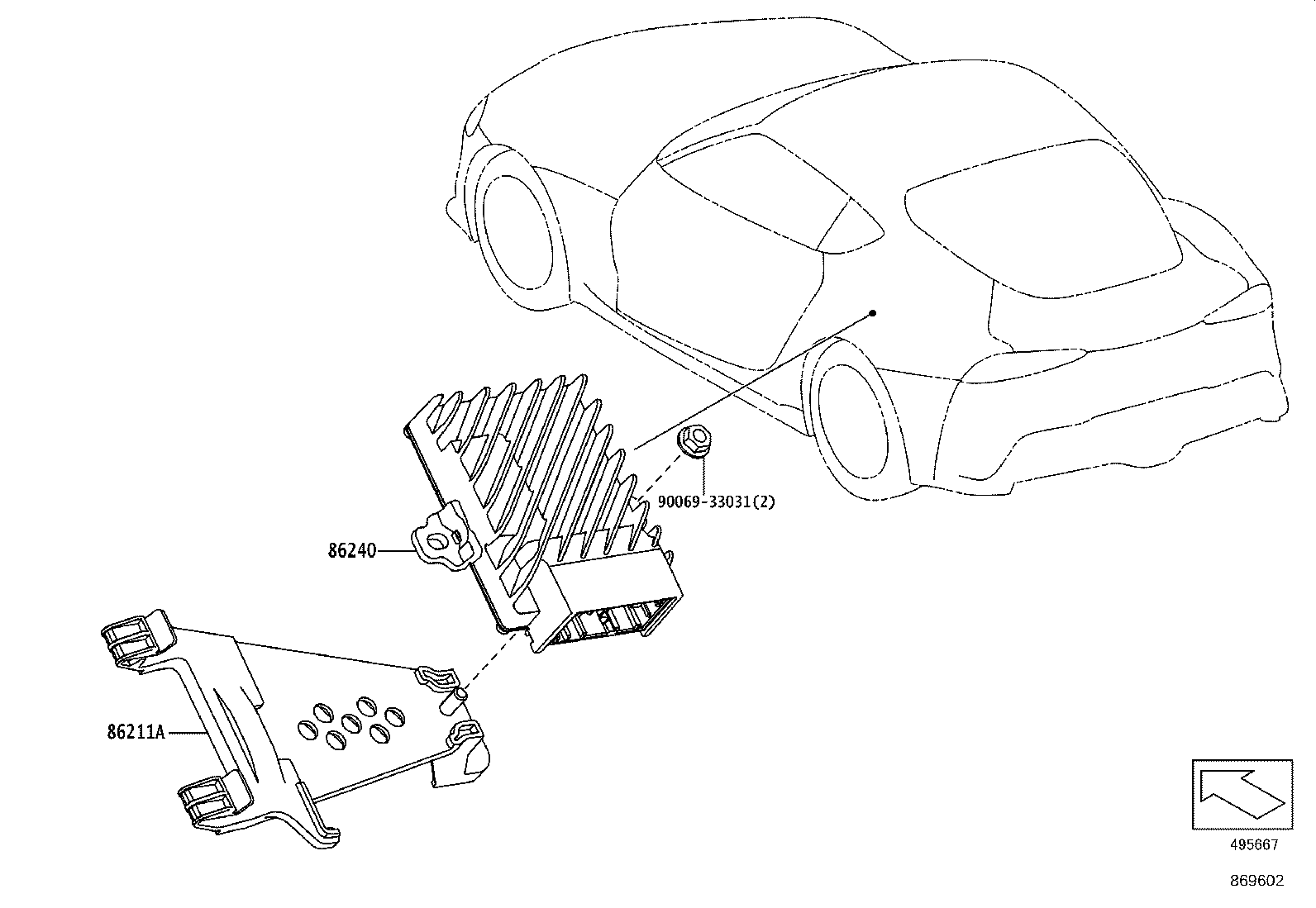

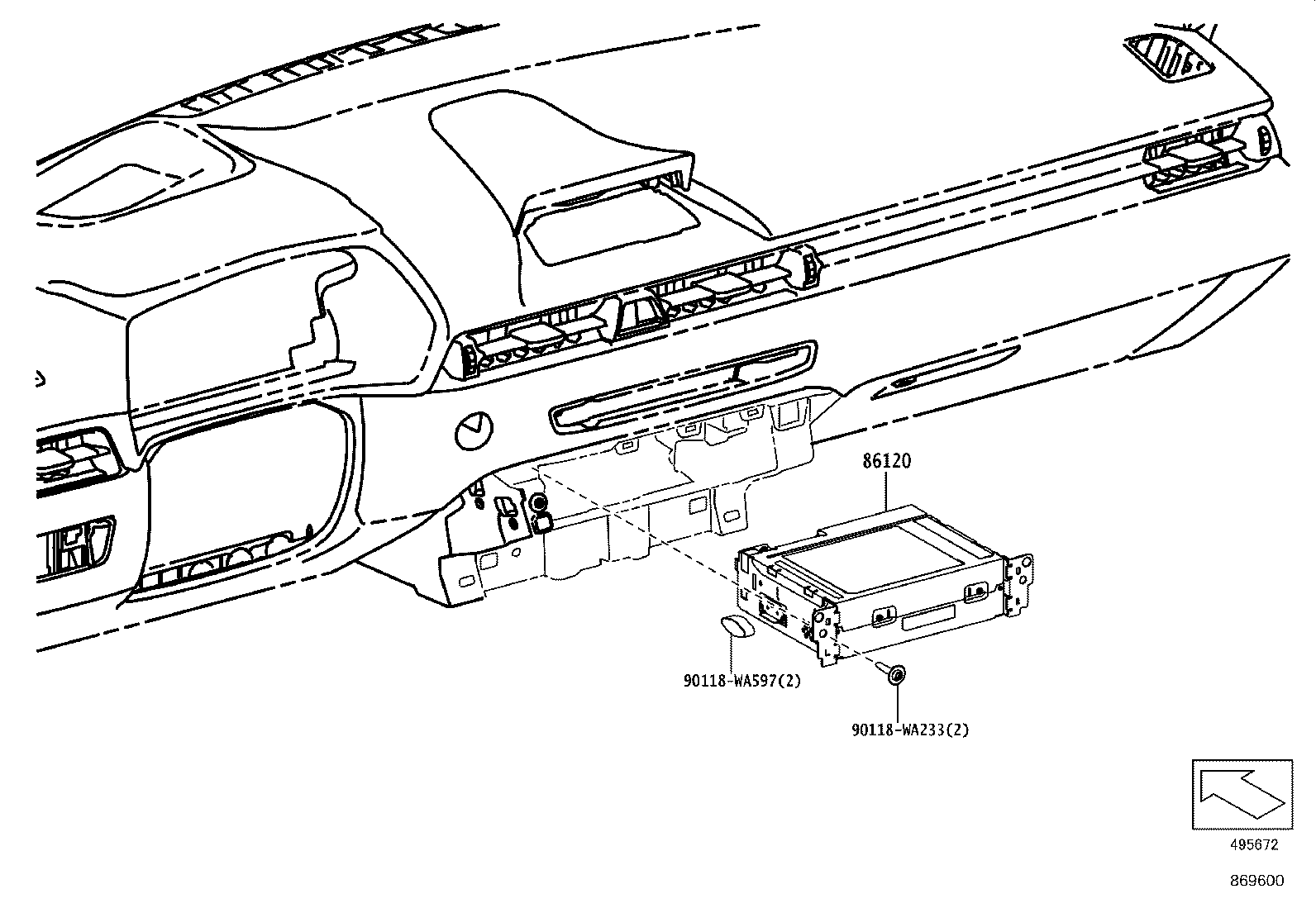

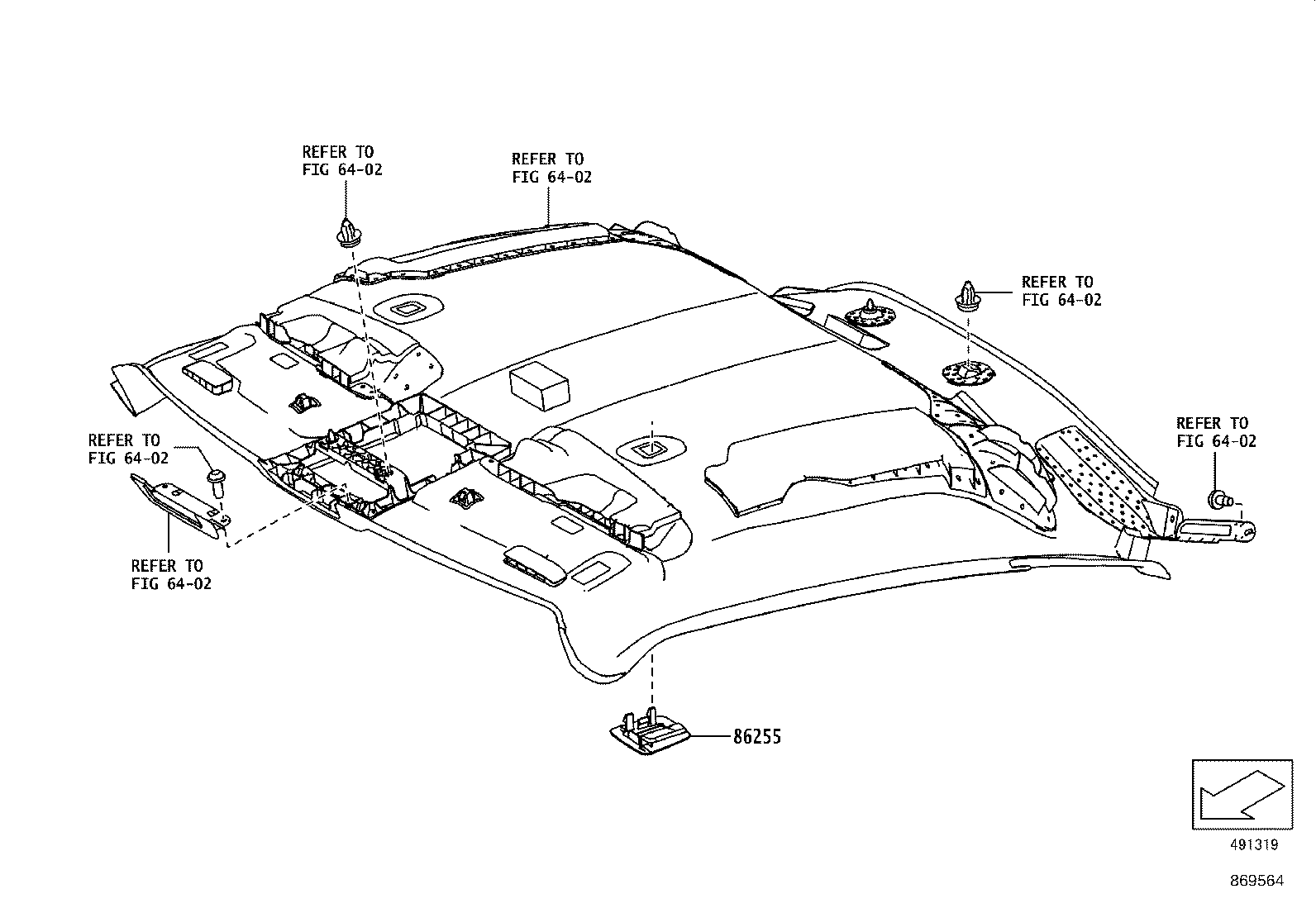

Figure 869561 869561 2022-07 → — Figure 869600 869600 2022-07 → — Figure 869563 869563 2022-07 → — Figure 869601 869601 2022-07 → — Figure 869602 869602 2022-07 → — Figure 869564 869564 2022-07 → — Figure 869603 869603 2022-07 → —

Part groups

PNCDescription
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86190C Adapter Assy, Stereo Jack, NO.1
86211A Bracket, Stereo Component, NO.1
86216 Bracket, Stereo Component, NO.2
86240 Equalizer Assy,Stereo Component
86255 Case, Microphone
86271M Disc, Disc Player
86280G Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
