Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

5 part groups · 5 illustrations

Illustrations

Figure 869565 869565 2022-07 → — Figure 869604 869604 2022-07 → — Figure 869605 869605 2022-07 → — Figure 869566 869566 2022-07 → — Figure 869567 869567 2022-07 → —

Part groups

PNCDescription

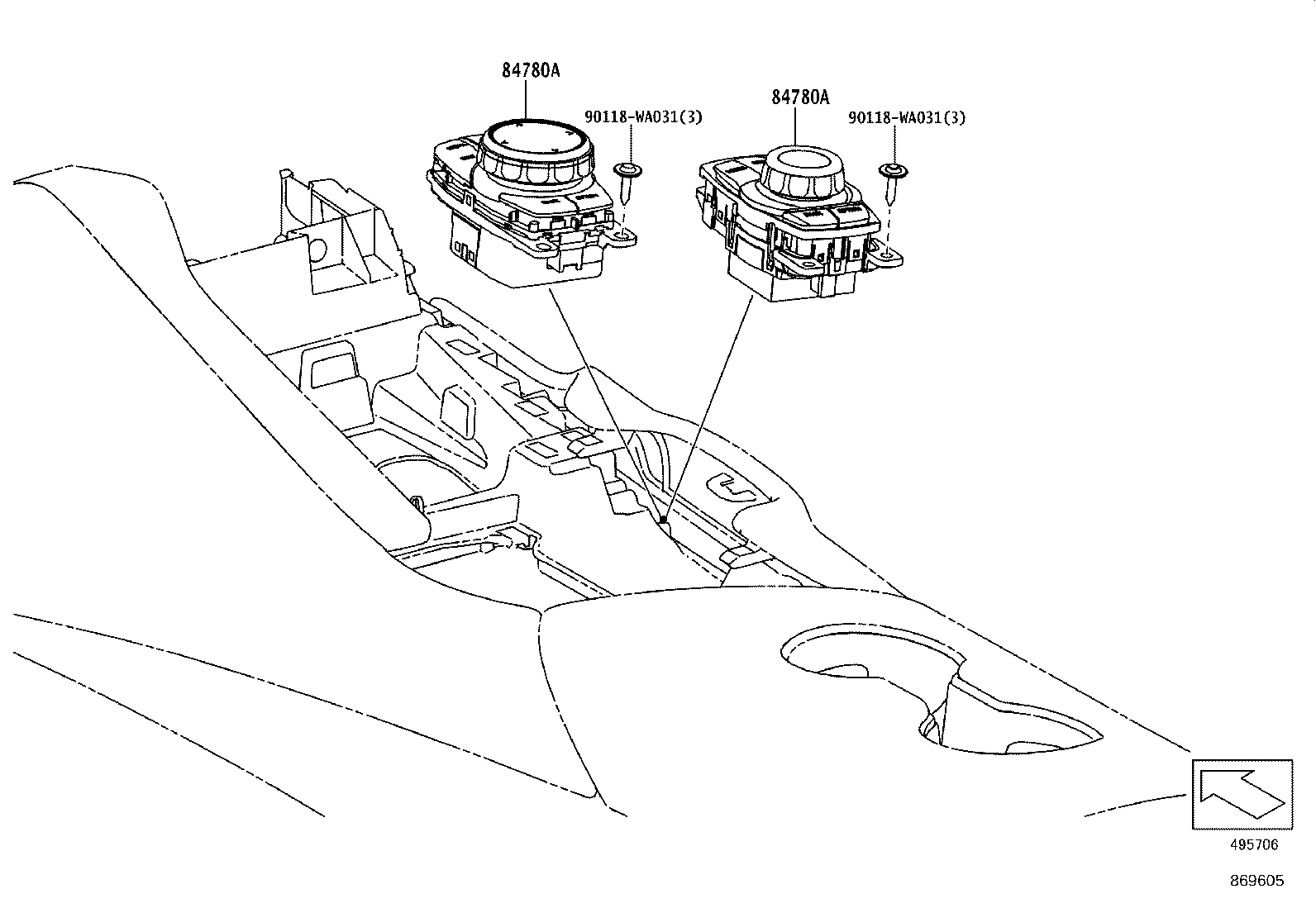

84780A Controller Assy, Remote Operation
86110B Multi-display Assy

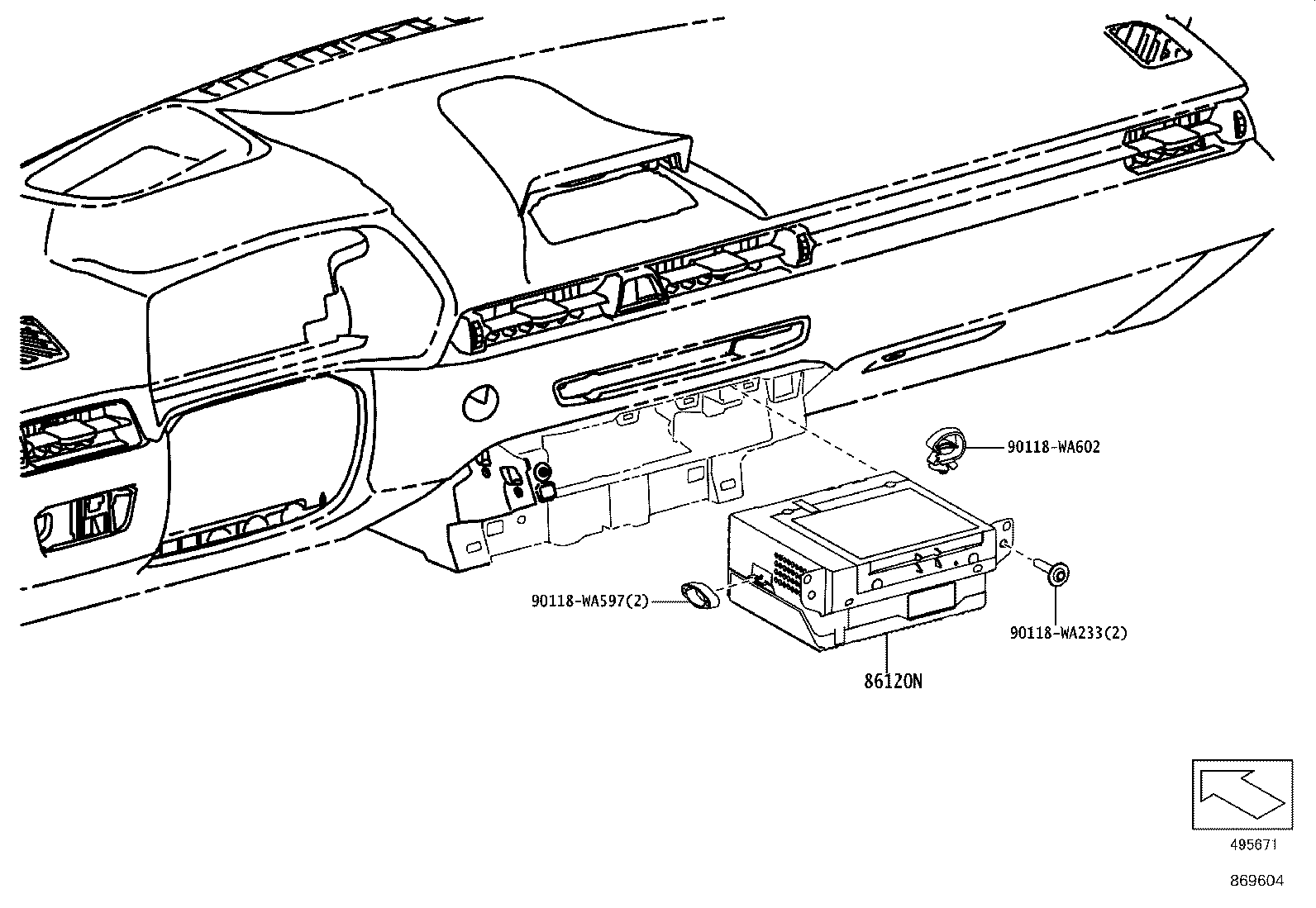

86120N Receiver Assy, Radio

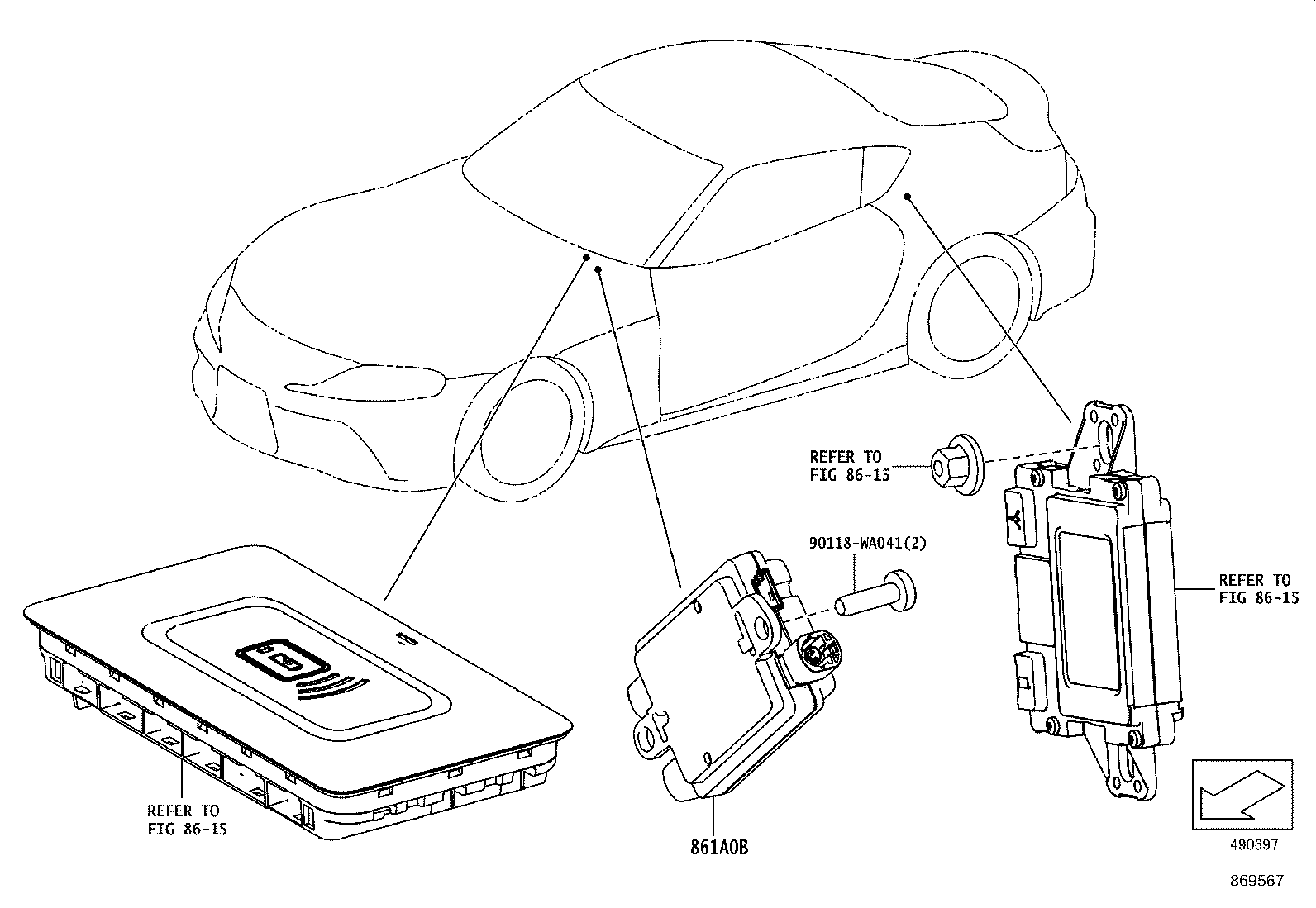

861A0B Usb Hub

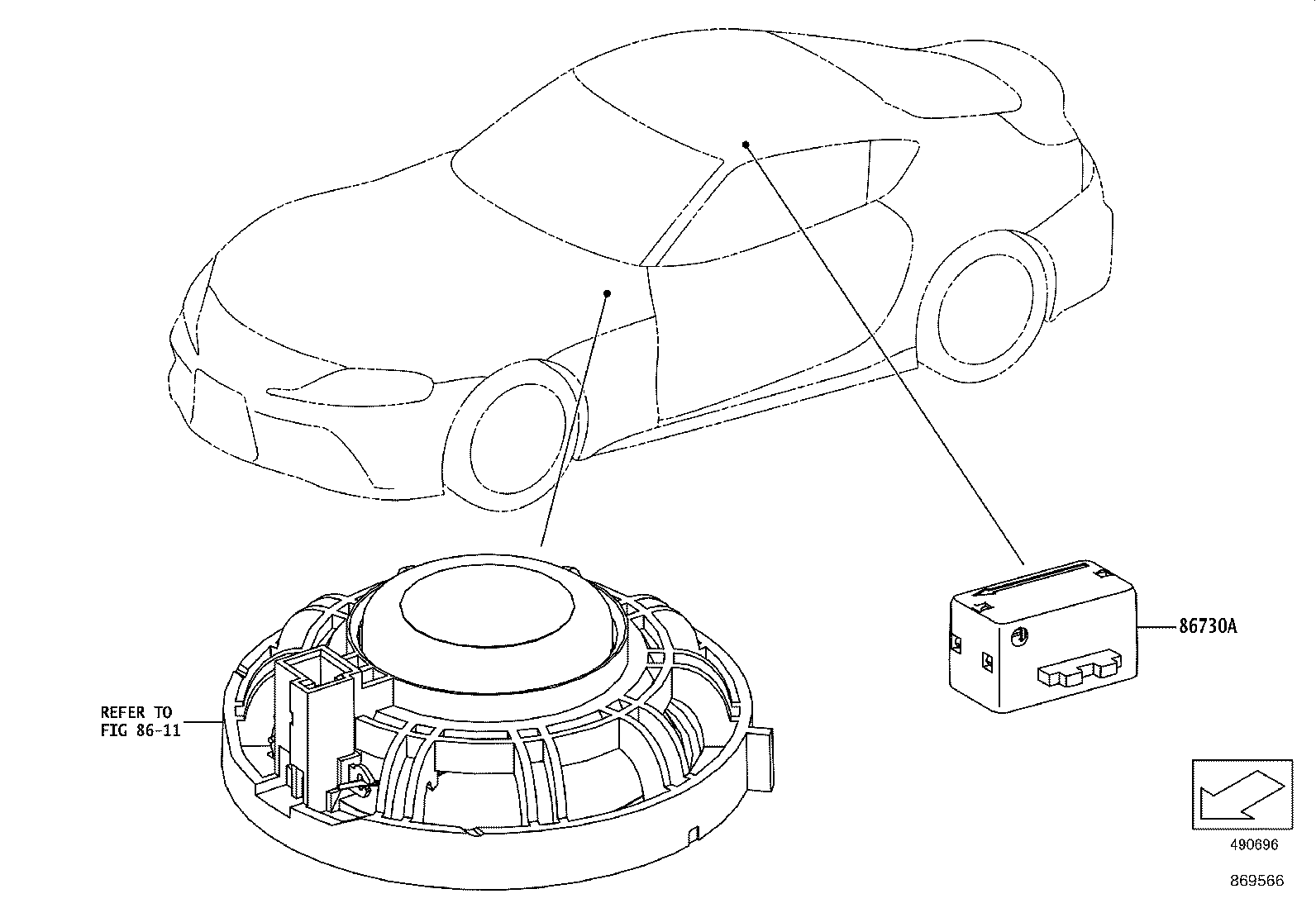

86730A Microphone Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
