Toyota Supra
2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe
Supported model
Data version 2022-08
Mirror
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

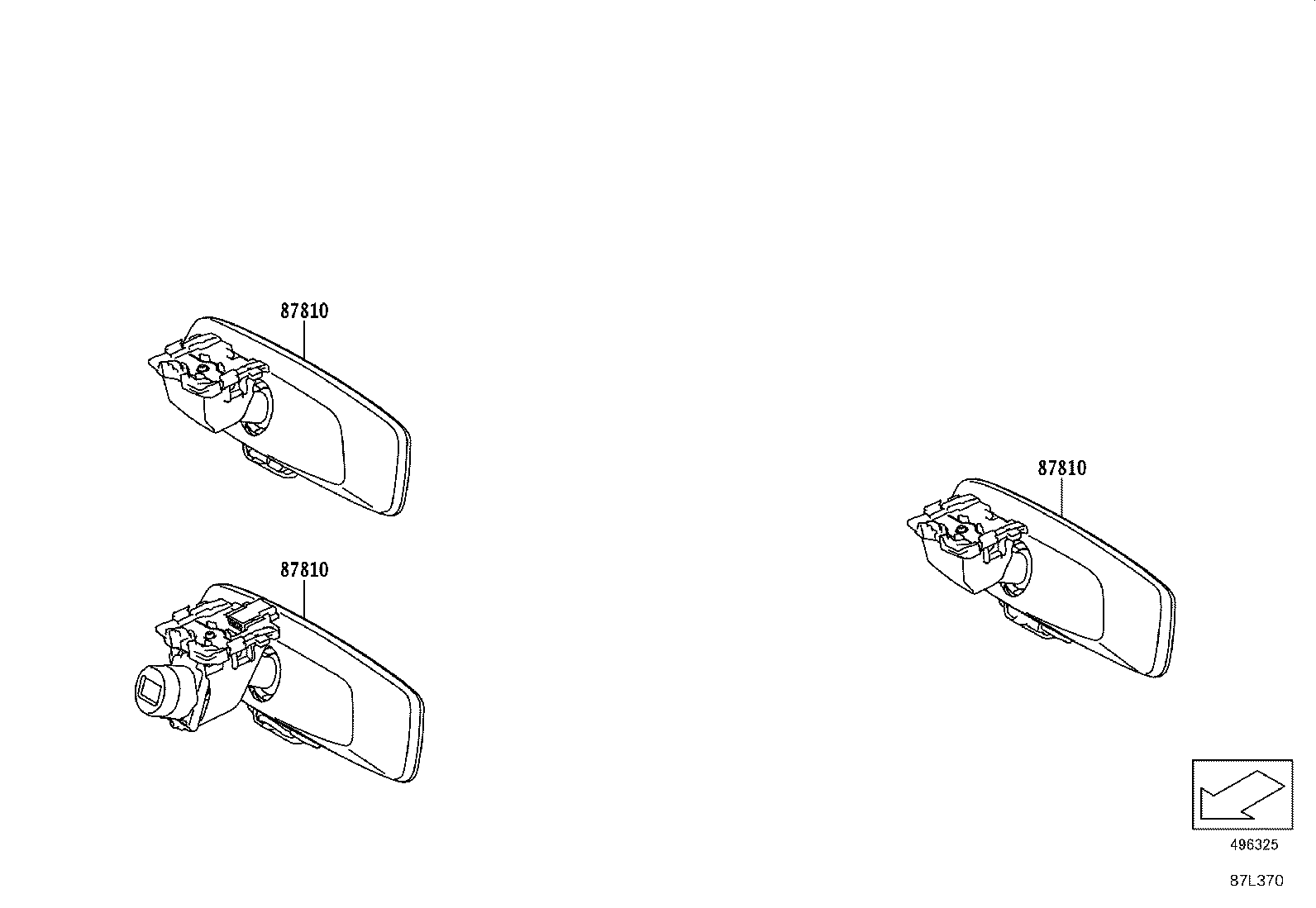

| 87810 | Mirror Assy, Inner Rear View |

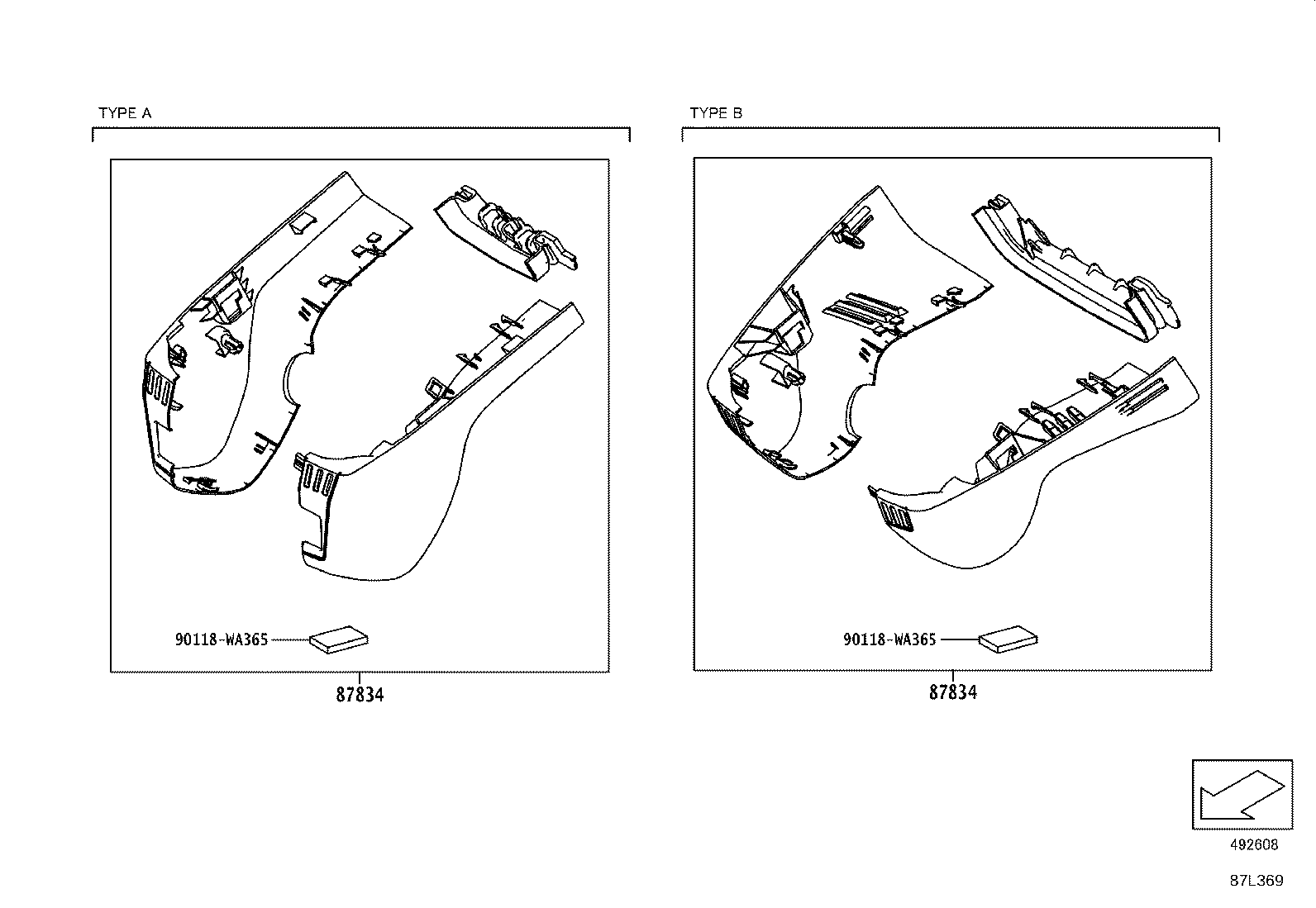

| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87908 | Actuator Assy, Outer Mirror, RH |
| 87909 | Actuator Assy, Outer Mirror, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87911A | Visor, Outer Mirror, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87915B | Cover, Outer Mirror, Lower RH |
| 8791A | Cover, Outer Mirror, RH NO.2 |

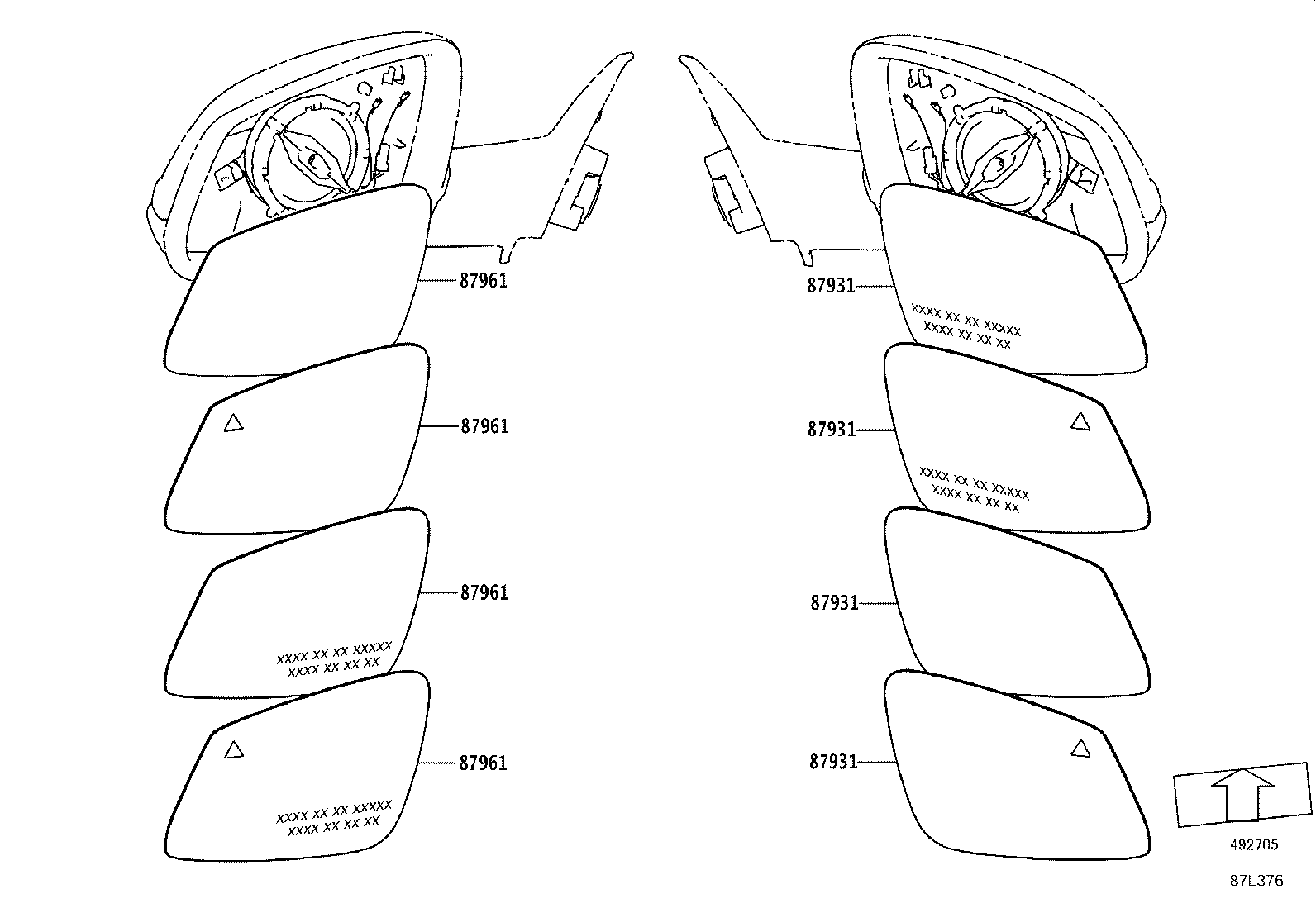

| 87931 | Outer Mirror, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87941A | Visor, Outer Mirror, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87945C | Cover, Outer Mirror, Lower LH |
| 8794A | Cover, Outer Mirror, LH NO.2 |
| 87961 | Mirror Outer, LH |
| 89430C | Computer Assy, Outer Mirror Control, LH |
| 89430D | Computer Assy, Outer Mirror Control, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
