Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · Europe

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

9 part groups · 4 illustrations

Illustrations

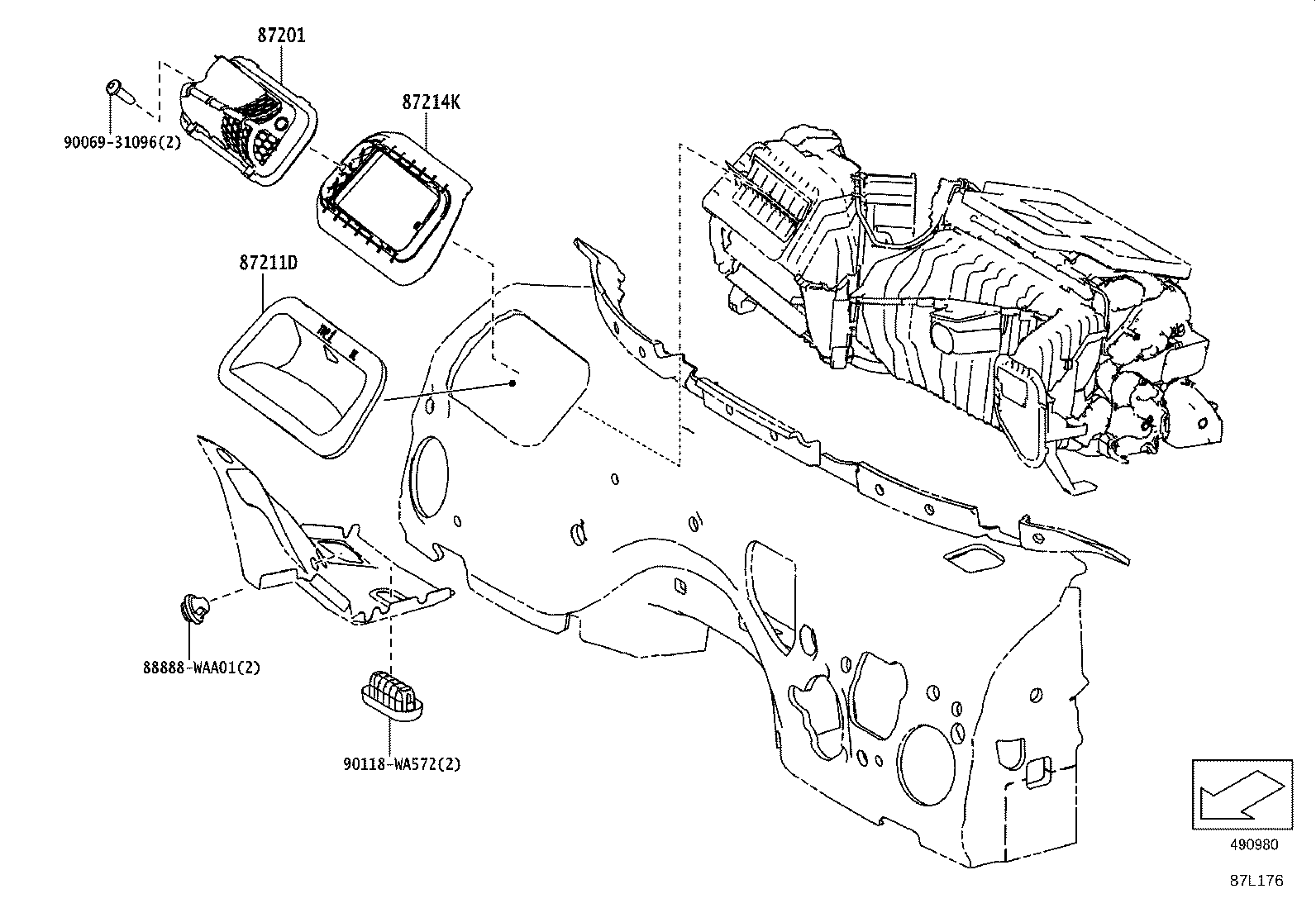

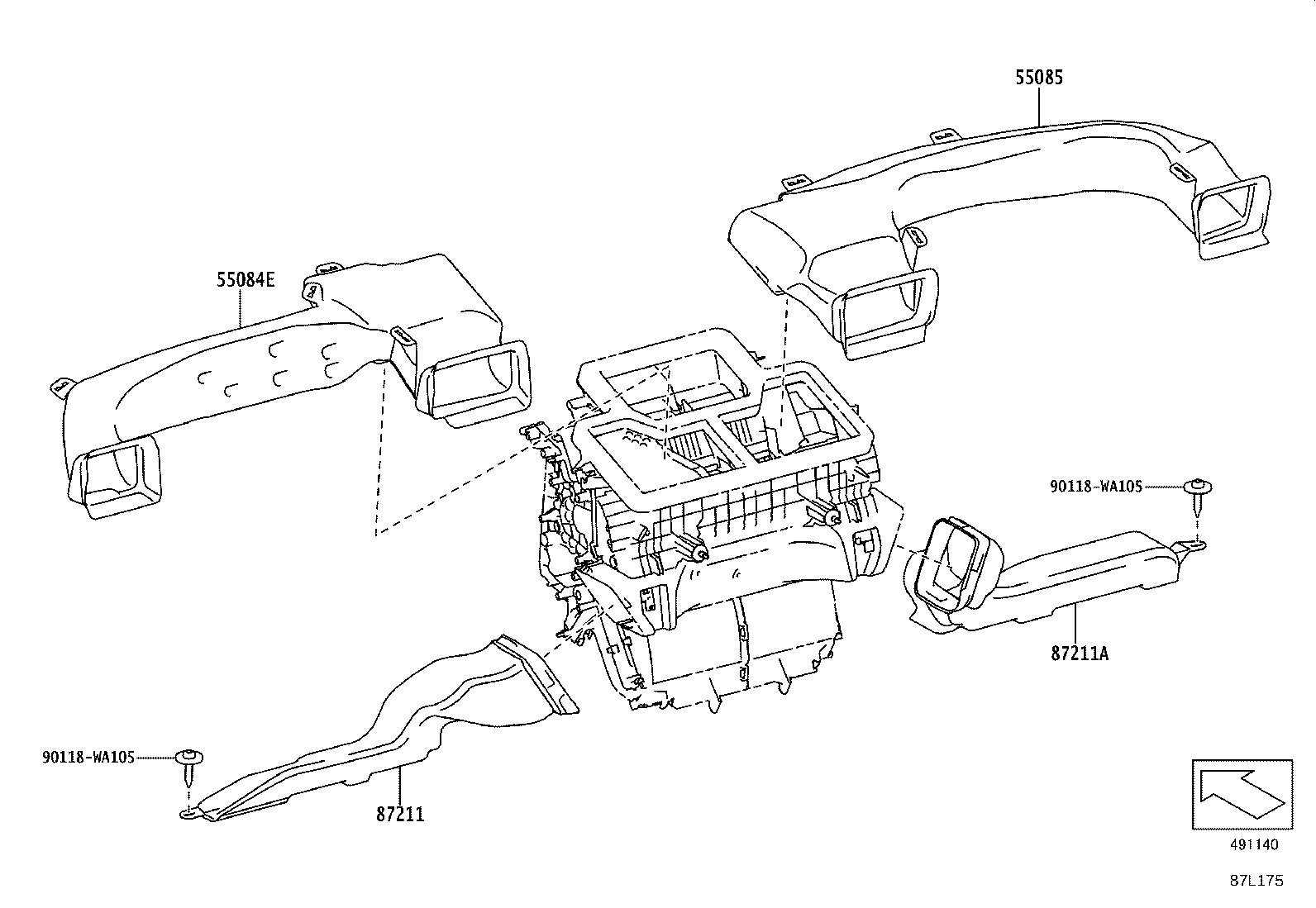

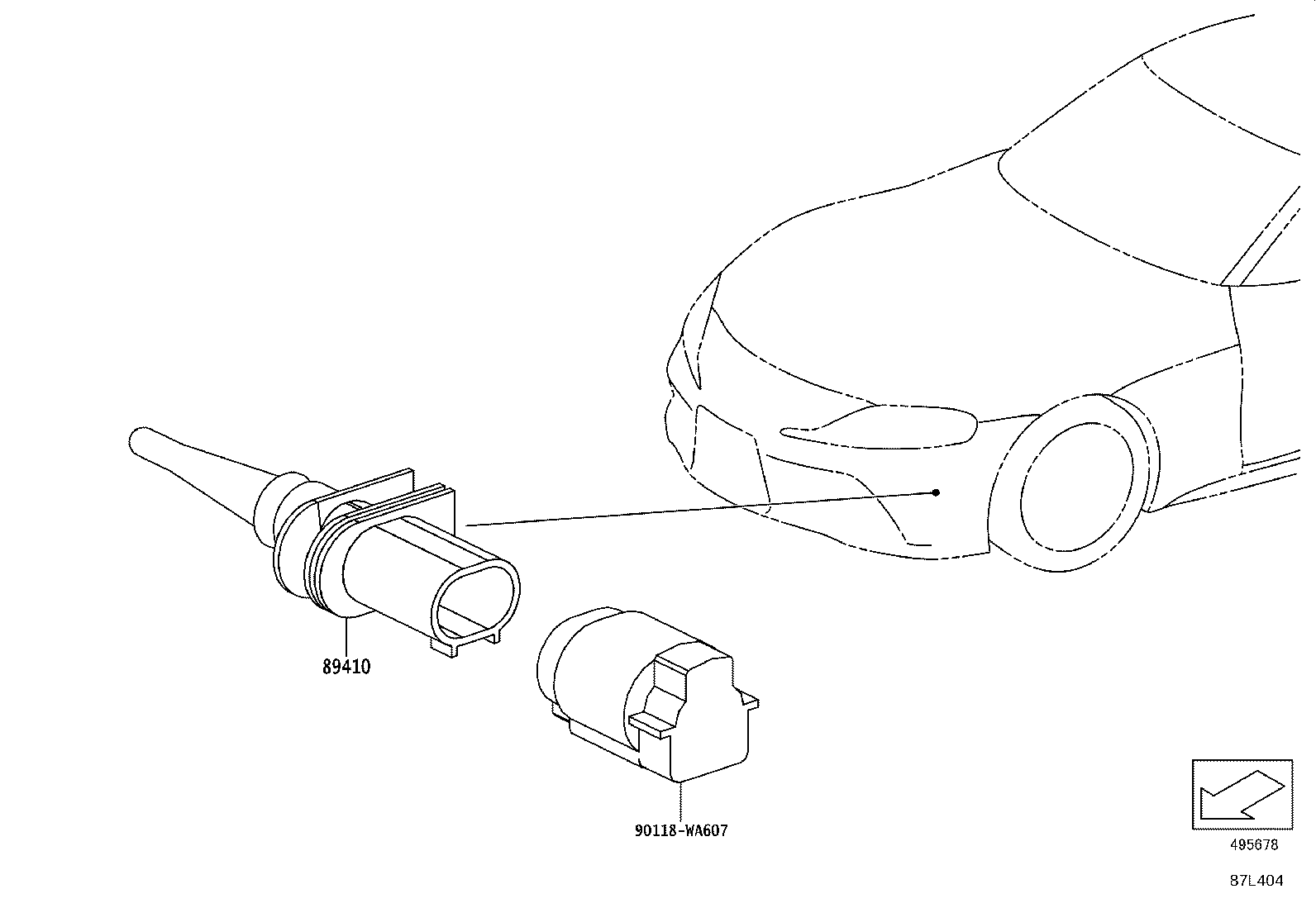

Figure 87L174 87L174 2022-07 → — Figure 87L175 87L175 2022-07 → — Figure 87L176 87L176 2022-07 → — Figure 87L404 87L404 2022-07 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211D Cover, Heater Air Duct Hole
87214K Bracket, Air Duct
89410 Sensor Assy, Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
