Toyota Supra

1986-01 → 1988-08 · chassis MA70 · catalogue 291410 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

25 part groups · 2 illustrations

Illustrations

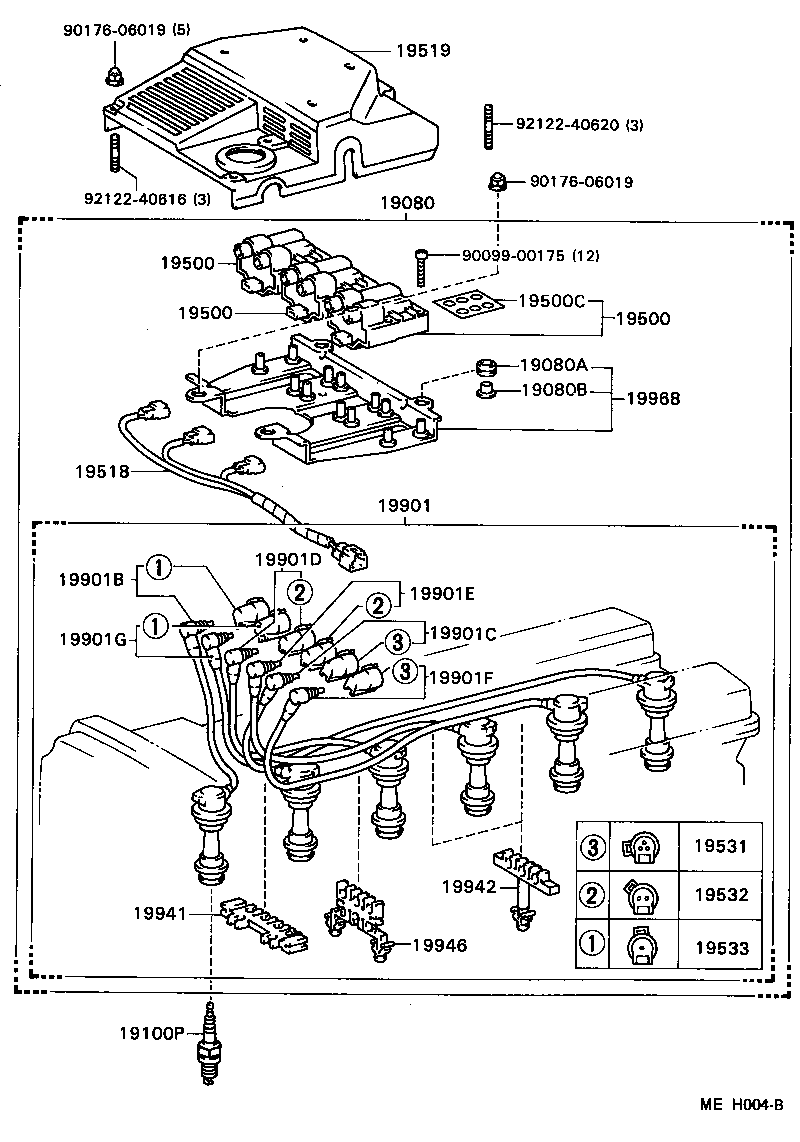

Figure MEH002A MEH002A 1986-01 → — Figure MEH004B MEH004B 1986-08 → —

Part groups

PNCDescription
19080 Coil Assy, W/Bracket & Cord
19080A Bush(FOR IGNITION COIL BRACKET)
19080B Spacer(FOR IGNITION COIL BRACKET)
19100P Plug, Spark
19500 Coil Assy, Ignition
19500C Plate(FOR IGNITION COIL)
19518 Wire, Ignition Coil
19519 Cover, Ignition Coil
19531 Holder, Resistive Cord, NO.1
19532 Holder, Resistive Code, NO.2
19533 Holder, Resistive Cord, NO.3
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901F Cord, Spark Plug Resistive, NO.5
19901G Cord, Spark Plug Resistive, NO.6
19941 Clamp, Resistive Cord, NO.1
19942 Clamp, Resistive Cord, NO.2
19946 Clamp, Resistive Cord, NO.3
19947 Clamp, Resistive Cord, NO.4
19949 Clamp, Resistive Cord, NO.5
19968 Bracket, Ignition Coil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
