Toyota Supra

1986-01 → 1988-08 · chassis MA70 · catalogue 291410 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

16 part groups · 2 illustrations

Illustrations

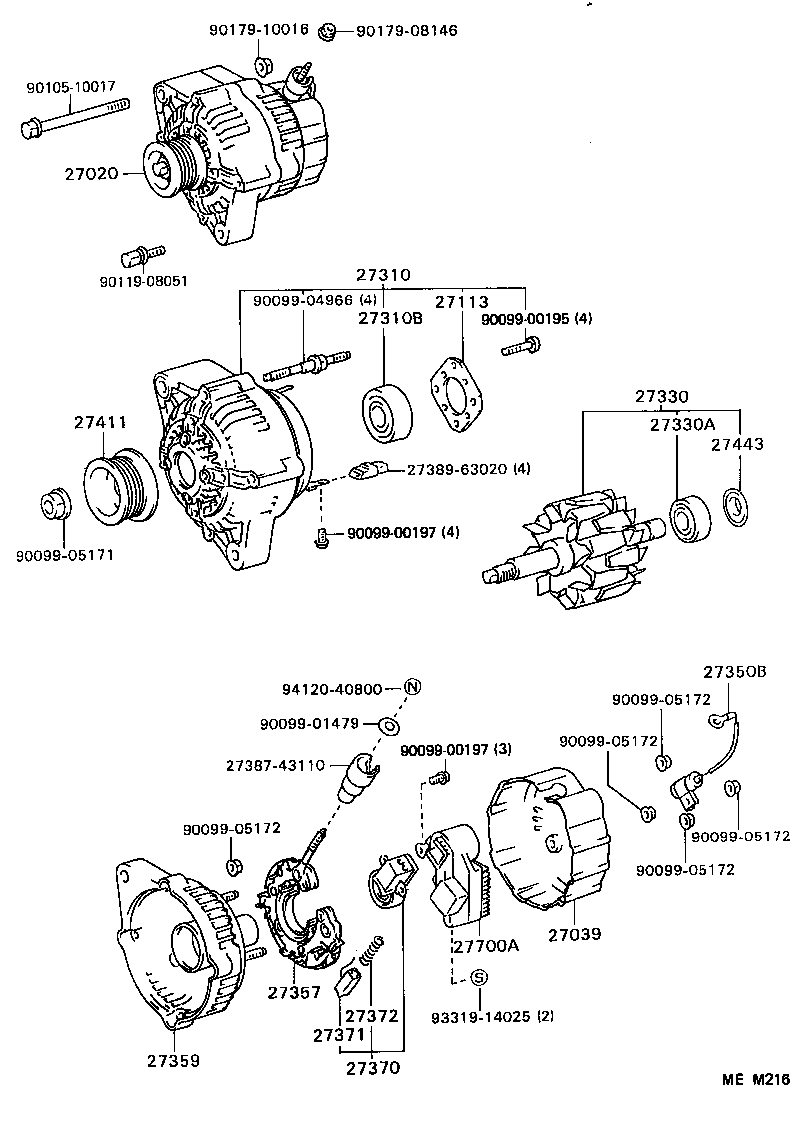

Figure MEG865C MEG865C 1986-01 → 1987-01 Figure MEM216 MEM216 1987-01 → —

Part groups

PNCDescription
27020 Alternator Assy
27039 Cover, Alternator Rear End
27113 Plate, Bearing Retainer, Alternator
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27350B Condenser, Alternator
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27370 Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27411 Pulley, Alternator
27443 Cover, Alternator Bearing
27700A Regulator Assy, Generator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
