Toyota Supra

1986-01 → 1988-08 · chassis MA70 · catalogue 291410 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Gear Shift Fork & Lever Shaft (MTM)

36 part groups · 2 illustrations

Illustrations

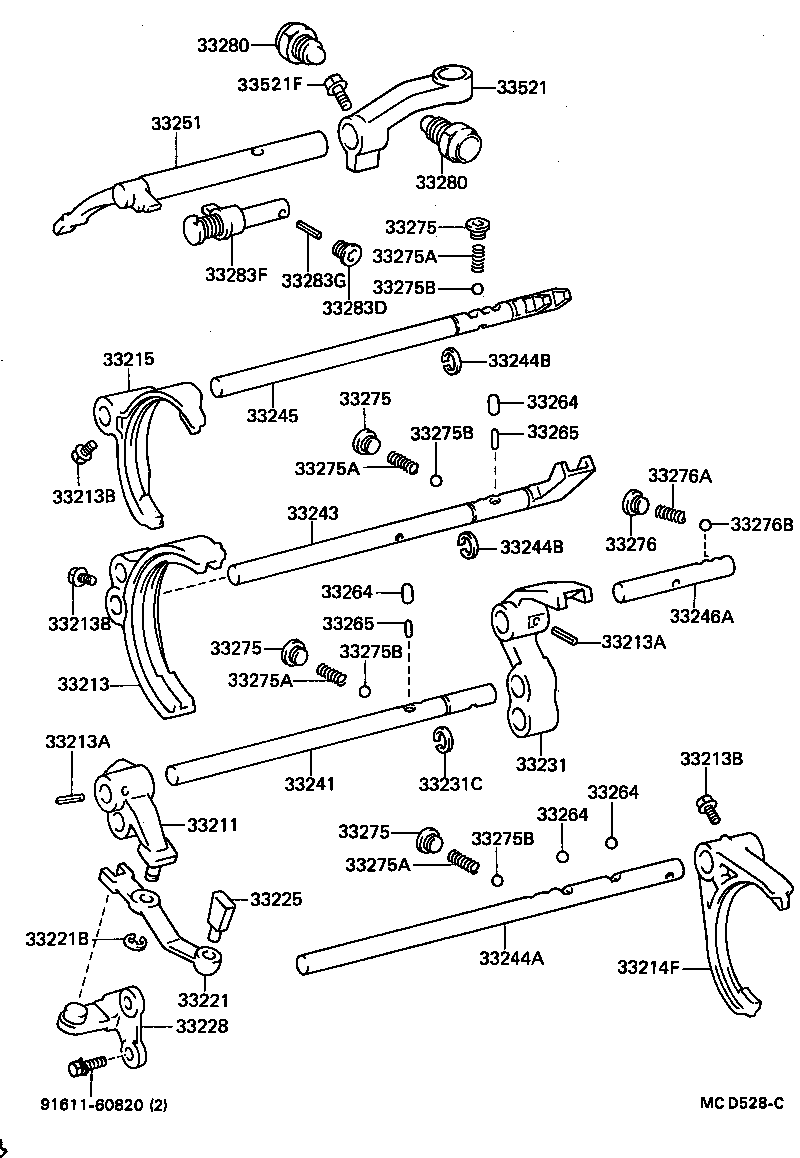

Figure MCD059A MCD059A 1986-01 → — Figure MCD528C MCD528C 1986-08 → —

Part groups

PNCDescription
33211 Fork, Reverse Shift
33213 Fork, 1ST & 2ND Shift
33213A Pin, Slotted Spring(FOR SHIFT FORK SET)
33213B Bolt(FOR SHIFT FORK SET)
33213C Washer, Lock(FOR SHIFT FORK SET)
33214F Fork, 5TH Shift
33215 Fork, 3RD & 4TH Shift
33217 Fork, 5TH & Reverse Shift
33221 Arm, Reverse Shift
33221B Ring, E(FOR REVERSE SHIFT ARM)
33225 Shoe, Shift Arm
33228 Bracket, Reverse Shift Arm
33231 Head, Reverse Shift
33231C Ring(FOR REVERSE SHIFT HEAD)
33241 Shaft, Reverse Shift Fork
33243 Shaft, 1ST & 2ND Shift Fork
33244A Shaft, 5TH Shift Fork
33244B Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
33245 Shaft, 3RD & 4TH Shift Fork
33246A Shaft, Reverse & 5TH Shift Head
33251 Lever, Shift & Select
33264 Pin, OR Ball, Shift Interlock, NO.1
33265 Pin, Shift Interlock, NO.2
33275 Seat, Shift Detent Ball Spring, NO.1
33275A Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
33275B Ball, Shaft Detent
33276 Seat, Shift Detent Ball Spring, NO.2
33276A Spring, Compression, NO.2 (FOR SHIFT DETENT BALL)
33276B Ball, Shift Detent, NO.2
33280 Pin Assy, Reverse Restrict
33280A Gasket, Reverse Restrict Pin
33283D Plug (FOR REVERSE RESTRICT PIN)
33283F Pin, Reverse Restrict
33283G Pin, Slotted Spring (FOR REVERSE RESTRICT PIN)
33521 Housing, Shift Lever
33521F Pin OR Bolt (FOR SHIFT LEVER HOUSING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
