Toyota Supra

1986-01 → 1988-08 · chassis MA70 · catalogue 291410 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

21 part groups · 2 illustrations

Illustrations

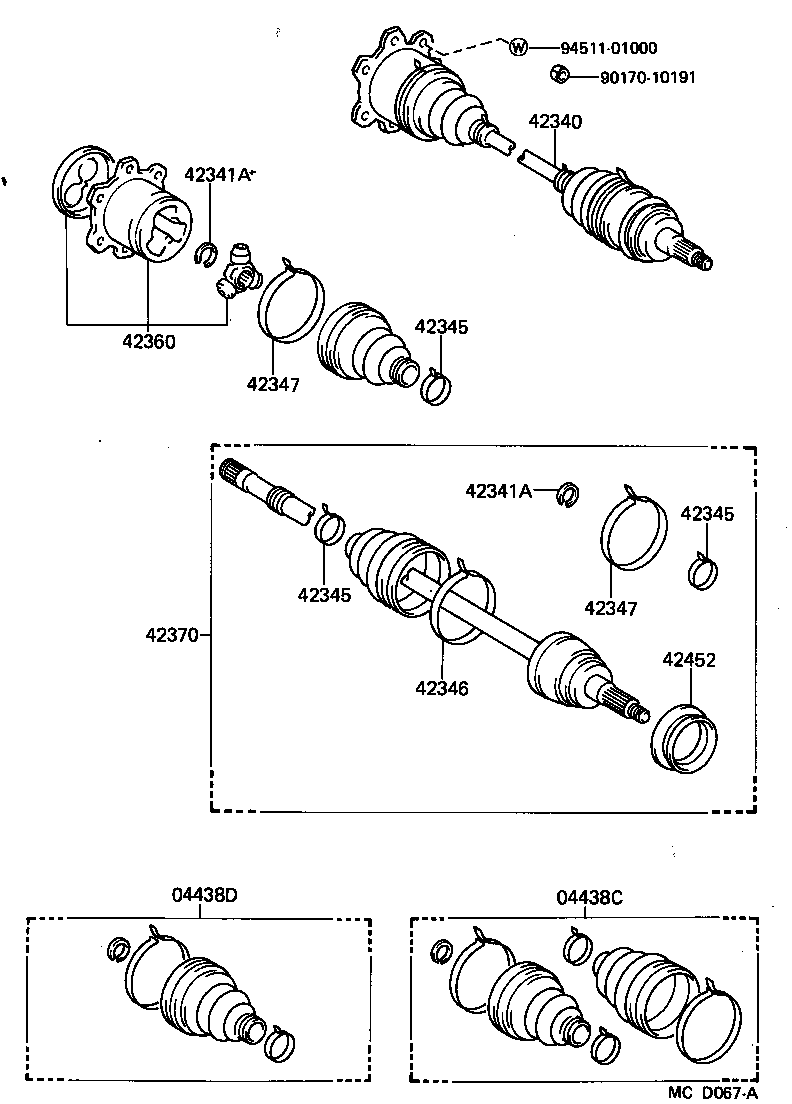

Figure MCD066A MCD066A 1986-01 → — Figure MCD067A MCD067A 1986-01 → —

Part groups

PNCDescription
04438C Boot Kit, Rear Drive Shaft
04438D Boot Kit, Rear Drive Shaft Inboard Joint
42301 Shaft Sub-assy, Rear Axle
42311A Seal, Oil(FOR REAR AXLE SHAFT)
42311C Bearing(FOR REAR AXLE SHAFT)
42311D Ring, Snap(FOR REAR AXLE SHAFT)
42311E Seal, Oil(FOR REAR AXLE SHAFT OUTER)
42311G Nut(FOR REAR AXLE SHAFT)
42340 Shaft Assy, Rear Drive
42341A Ring, Snap (FOR REAR DRIVE SHAFT)
42345 Clamp, Rear Drive Shaft Boot
42346 Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347 Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42360 Joint Assy, Rear Drive Shaft Inboard
42370 Shaft Assy, Rear Drive Outboard Joint
42428 Plate, Rear Axle Lock Nut
42431 Disc, Rear
42451 Deflector, Rear Wheel Bearing Dust, NO.1
42452 Deflector, Rear Wheel Bearing Dust, NO.2
42491 Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
42611E Bolt, Hub (FOR REAR AXLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
