Toyota Supra

1986-01 → 1988-08 · chassis MA70 · catalogue 291410 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

35 part groups · 3 illustrations

Illustrations

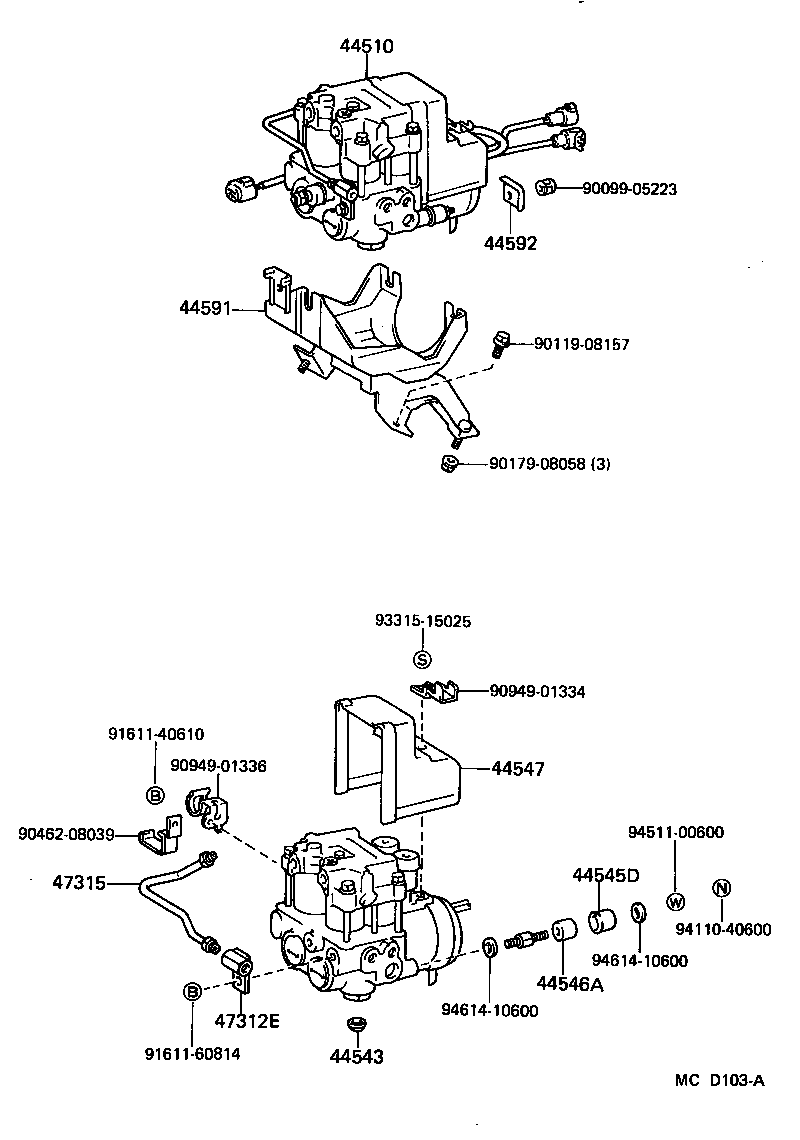

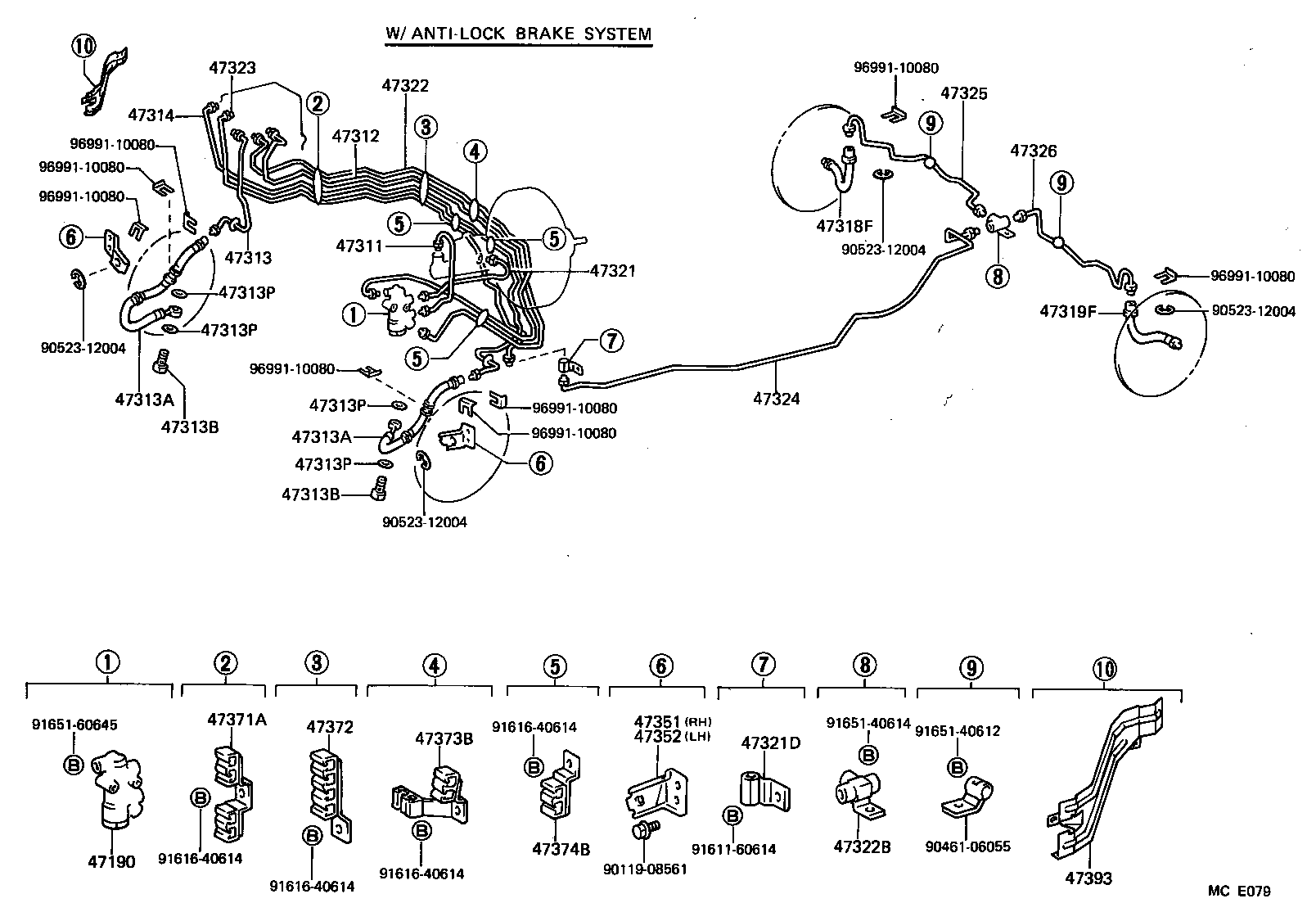

Figure MCE078 MCE078 1986-01 → — Figure MCE079 MCE079 1986-08 → — Figure MCD103A MCD103A 1986-08 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44543 Cap, Rubber
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44547 Case, Relay(FOR BRAKE ACTUATOR)
44591 Bracket, Brake Actuator, NO.1
44592 Bracket, Brake Actuator, NO.2
47190 Valve Assy, Proportioning & By-pass
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47393 Insulator, Brake Tube Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
