Toyota Supra
1986-01 → 1988-08 · chassis MA70 · catalogue 291410 · Europe
Discontinued model
Data version 1988-08

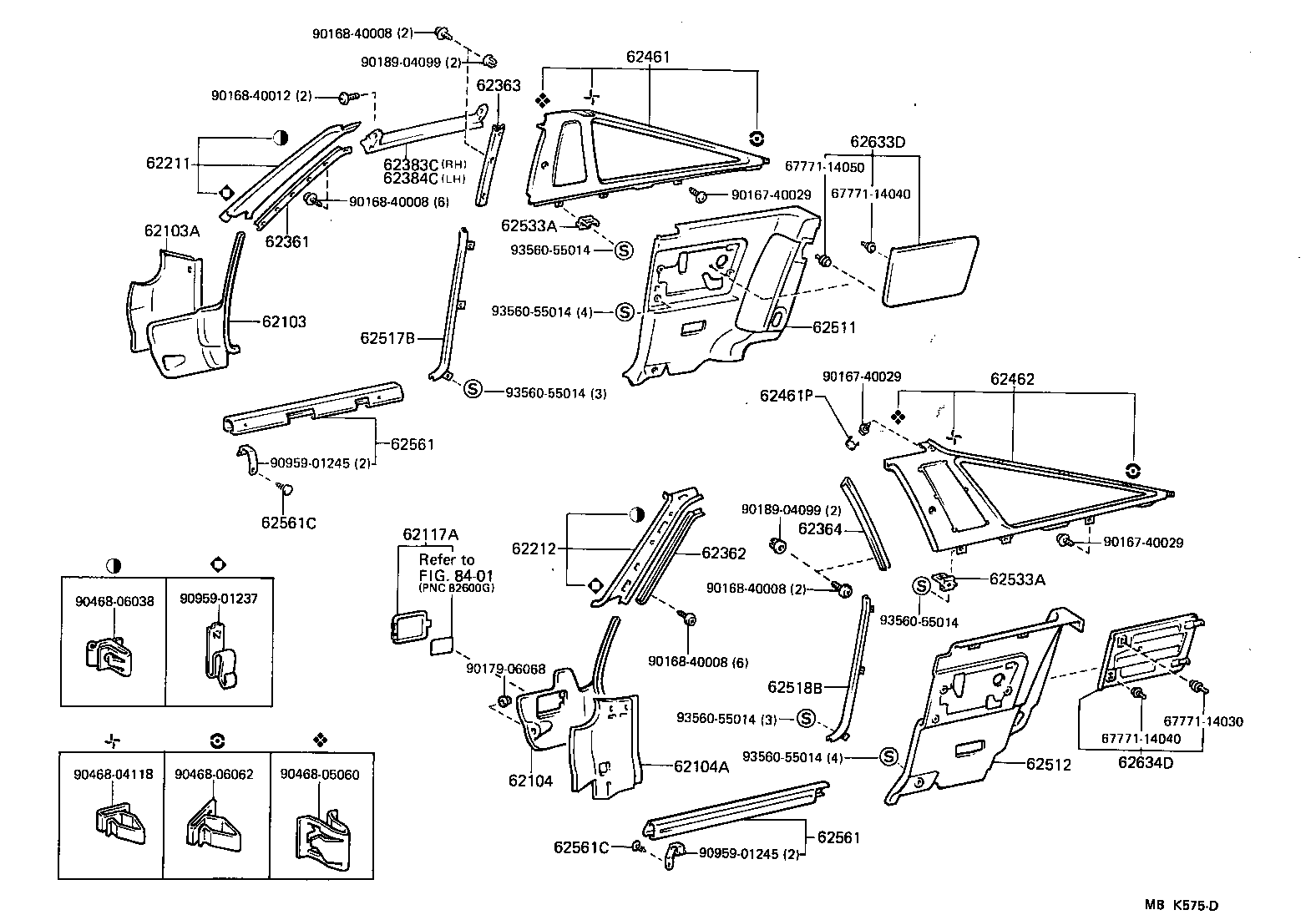

Inside Trim Board & Door Opening Trim Moulding
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62103A | Insulator Sub-assy, Cowl Side, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62104A | Insulator Sub-assy, Cowl Side, LH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62310 | Weatherstrip, Roof Side Rail, RH |
| 62310A | Clip, Roof Side Rail Weatherstrip |
| 62320 | Weatherstrip, Roof Side Rail, LH |
| 62361 | Retainer, Roof Side Rail Weatherstrip, Front RH |
| 62362 | Retainer, Roof Side Rail Weatherstrip, Front LH |
| 62363 | Retainer, Roof Side Rail Weatherstrip, Rear RH |
| 62364 | Retainer, Roof Side Rail Weatherstrip, Rear LH |
| 62383C | Weatherstrip, Roof Side Rail, NO.3 RH |
| 62384C | Weatherstrip, Roof Side Rail, NO.3 LH |
| 62431C | Garnish, Roof Side Rail, Front RH |
| 62432C | Garnish, Roof Side Rail, Front LH |
| 62461 | Garnish, Roof Side Trim, RH |
| 62461P | Plug, Hole (FOR ROOF SIDE INNER GARNISH) |
| 62462 | Garnish, Roof Side Trim, LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62512 | Board, Quarter Inside Trim, LH |
| 62517B | Base, Quarter Trim, Front RH |
| 62518B | Base, Quarter Trim, Front LH |
| 62533A | Bracket, Quarter Trim Clamp |
| 62561 | Protector, Rocker Panel, Inner Front |
| 62561C | Clip (FOR ROCKER PANEL INNER PROTECTOR) |
| 62633D | Cover, Quarter Trim Base, Front RH |
| 62634D | Cover, Quarter Trim Base, Front LH |
| 63218F | Moulding, Removable Roof, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
