Toyota Supra
1986-01 → 1988-08 · chassis MA70 · catalogue 291410 · Europe
Discontinued model
Data version 1988-08
Fuel Tank & Tube

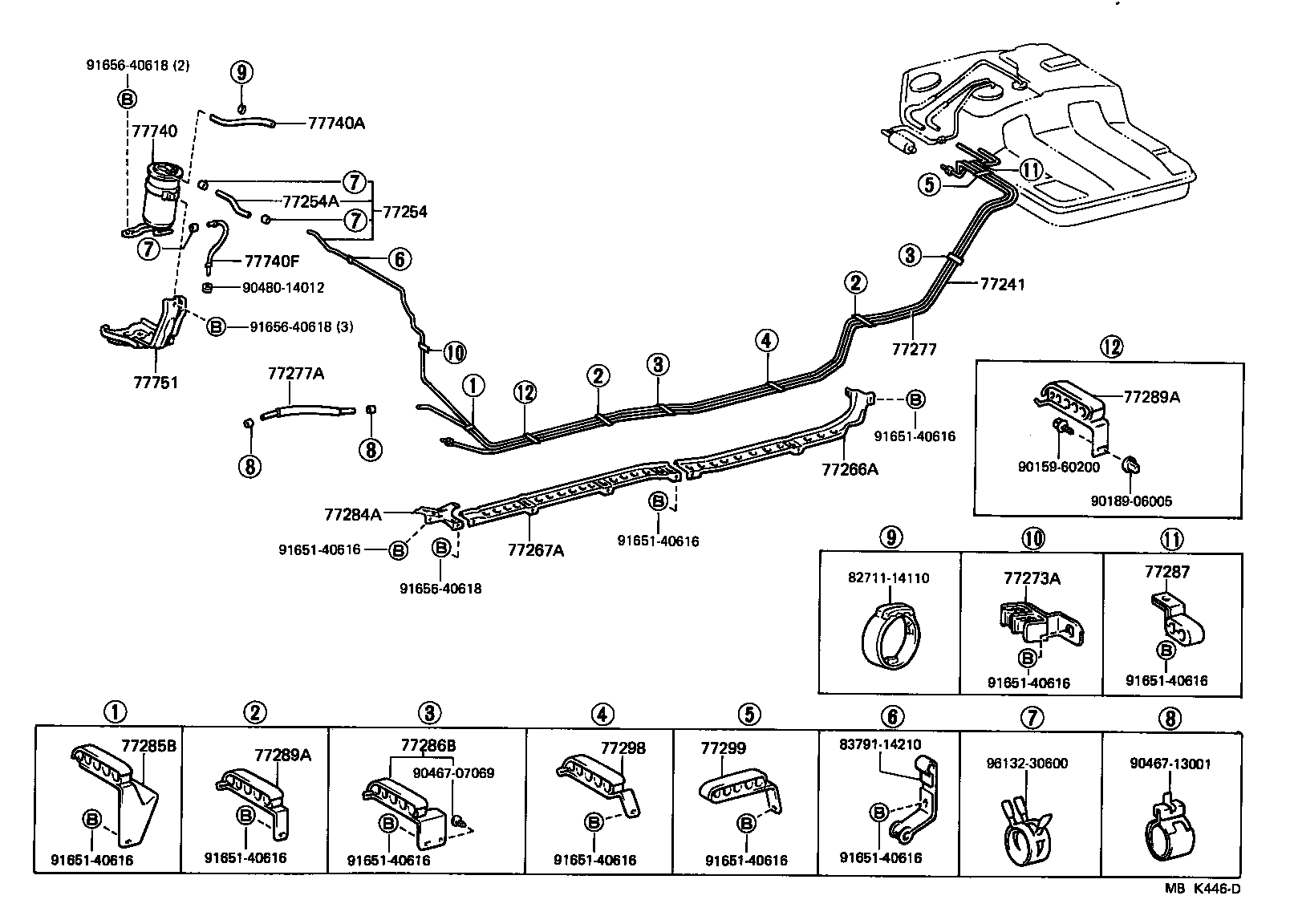

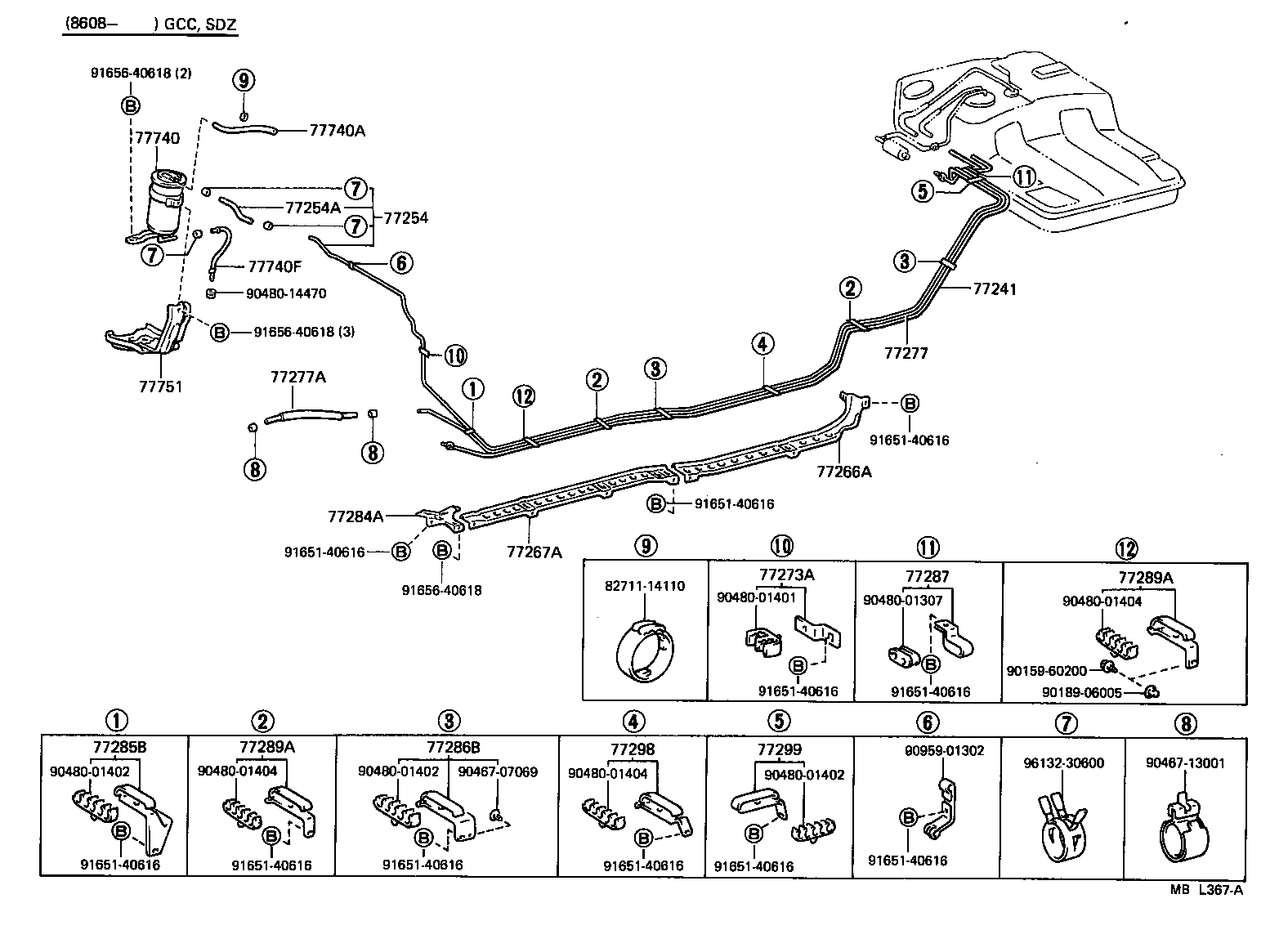

51 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 77012 | Tube Sub-assy, Fuel Tank Breather |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179 | Retainer, Fuel Tank Mounting, Front |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77241 | Tube, Fuel Main, NO.1 |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77273A | Clamp, Fuel Tube W/Grommet, NO.6 |
| 77277 | Tube, Fuel Return, NO.1 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77284A | Protector, Fuel Tube, NO.3 |
| 77285B | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77286B | Clamp, Fuel Tube W/Grommet, NO.2 |
| 77287 | Support, Tank TO Canister Tube, NO.1 |
| 77289A | Clamp, Fuel Tube W/Grommet, NO.3 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77293A | Shield, Fuel Tank Filler Pipe, NO.3 |
| 77298 | Clamp, Fuel Tube W/Grommet, NO.4 |
| 77299 | Clamp, Fuel Tube W/Grommet, NO.5 |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77387 | Ring, Fuel Inlet Box |
| 77611 | Band, Fuel Tank |
| 77613A | Bracket, Fuel Tank Band, NO.1 |
| 77614B | Bracket, Fuel Tank Band, NO.2 |
| 77615 | Bracket, Fuel Tank Band, NO.3 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77652 | Cushion, Fuel Tank, NO.1 |
| 77654 | Cushion, Fuel Tank, NO.2 |
| 77655 | Cushion, Fuel Tank, NO.3 |
| 77656A | Cushion, Fuel Tank, NO.4 |
| 77657A | Cushion, Fuel Tank, NO.5 |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740F | Tube, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
