Toyota Supra

1986-01 → 1988-08 · chassis MA70 · catalogue 291410 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

12 part groups · 2 illustrations

Illustrations

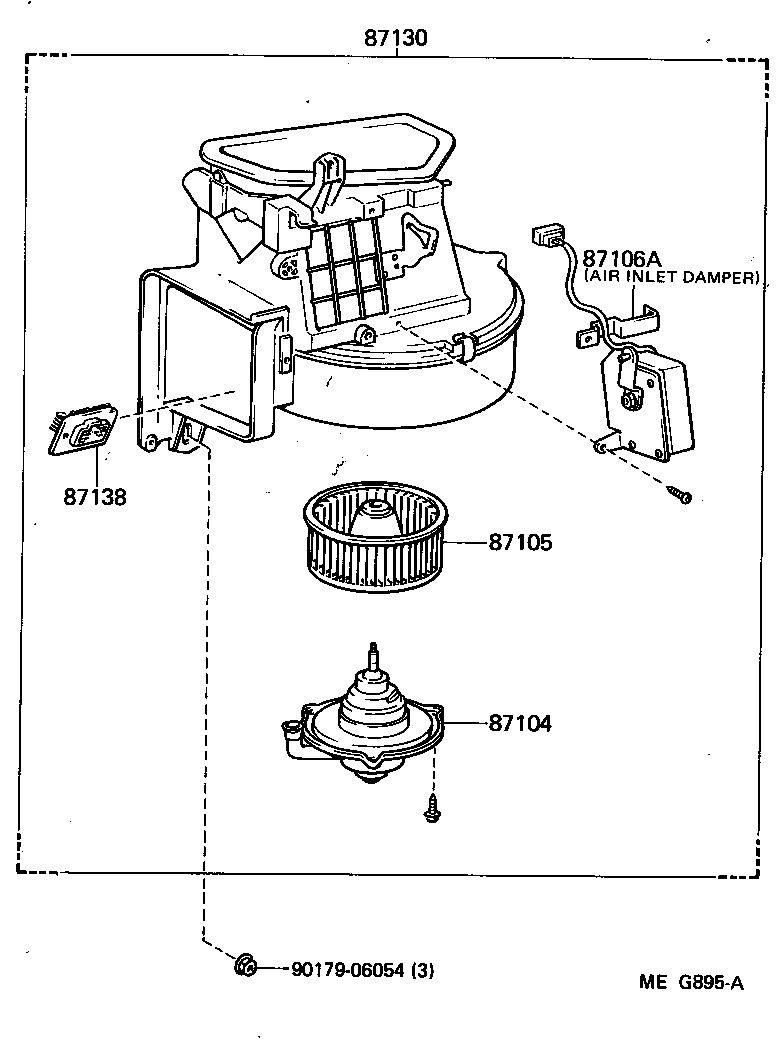

Figure MEH006B MEH006B 1986-01 → — Figure MEG895A MEG895A 1986-01 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87106A Servo Sub-assy, Damper
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87150A Relay, Heater Radiator
87174A Guide, Air Heater
87290A Switch Assy, Heater
88605P Harness Sub-assy, Air Conditioner Wiring
88655B Switch, Water Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
