Toyota Supra
1988-08 → 1993-05 · chassis MA70 · catalogue 291420 · Europe
Discontinued model
Data version 1993-11

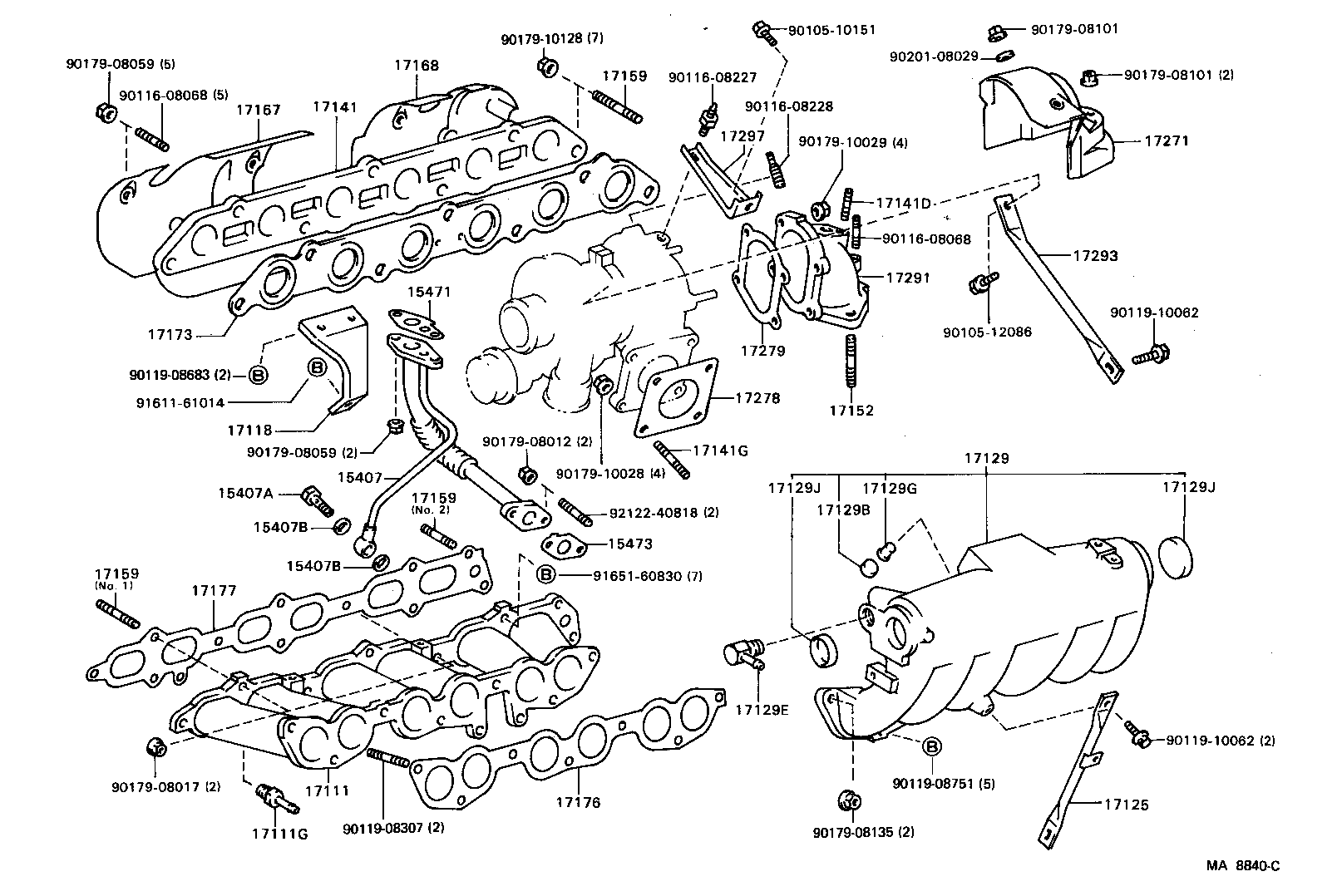

Manifold
43 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04175 | Gasket Kit, Turbocharger |
| 15407 | Pipe Sub-assy, Turbo Oil Inlet |
| 15407A | Bolt, Union(FOR TURBO OIL INLET PIPE) |
| 15407B | Gasket(FOR TURBO OIL INLET PIPE) |
| 15471 | Gasket, Turbo Oil Inlet |
| 15473 | Gasket, Turbo Oil Outlet, NO.2 |
| 17021A | Bolt, Stud(FOR BEARING HOUSING) |
| 17021B | Bolt, Stud |
| 17025A | Bolt, Stud(FOR TURBINE HOUSING) |
| 17061A | Diaphragm Sub-assy |
| 17111 | Manifold, Intake |
| 17111G | Union(FOR INTAKE MANIFOLD WATER) |
| 17118 | Stay, Manifold |
| 17123 | Cover, Surge Tank |
| 17125 | Stay, Surge Tank, NO.1 |
| 17127 | Gasket, Surge Tank Cover |
| 17128 | Gasket, Surge Tank |
| 17129 | Tank, Intake Air Surge |
| 17129B | Plug |
| 17129E | Union, NO.3 |
| 17129G | Tube, Egr Inlet |
| 17129J | Plug, Tight(FOR INTAKE AIR SURGE TANK) |
| 17141 | Manifold, Exhaust |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17141F | Gasket(FOR EXHAUST MANIFOLD PLATE) |
| 17141G | Bolt, Stud(FOR TURBOCHARGER) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17201 | Turbocharger Sub-assy |
| 17271 | Insulator, Turbo, NO.1 |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17291 | Elbow, Turbine Outlet |
| 17293 | Stay, Turbocharger |
| 17294 | Hose, Actuator |
| 17294A | Clip(FOR ACTUATOR HOSE) |
| 17297 | Stay, Turbocharger, NO.2 |
| 17307B | Lever Sub-assy, Intake Air Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
