Toyota Supra

1988-08 → 1993-05 · chassis MA70 · catalogue 291420 · Europe

Discontinued model Data version 1993-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

33 part groups · 2 illustrations

Illustrations

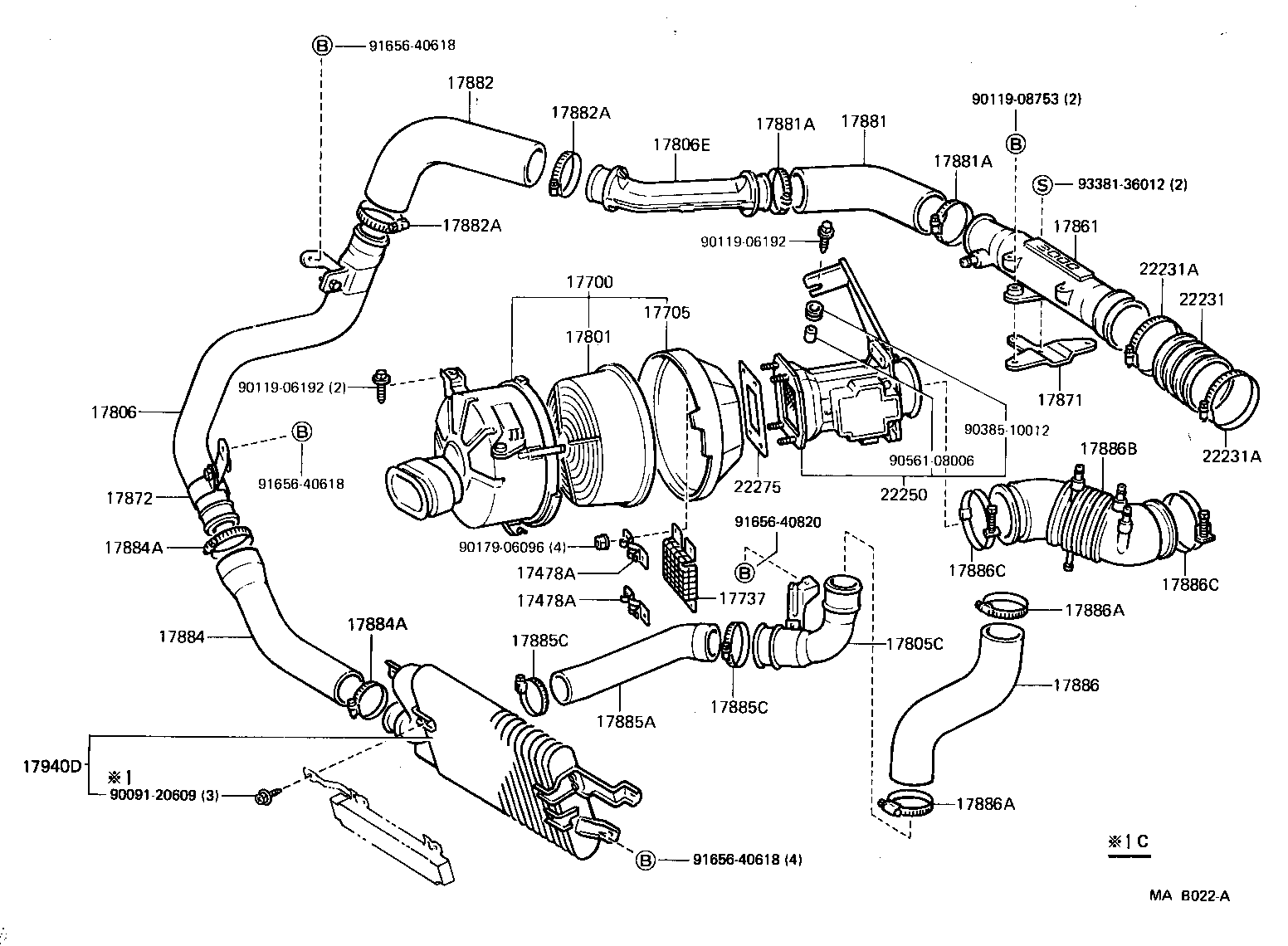

Figure MA8879E MA8879E 1988-08 → — Figure MAB022A MAB022A 1988-08 → —

Part groups

PNCDescription
17478A Plate, Lock
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17737 Cover, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805C Pipe Sub-assy, Air Cleaner, NO.1
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806E Pipe Sub-assy, Air Cleaner, NO.4
17861 Connector, Intake Air
17864 Cover, Intake Air Connector
17865 Gasket, Intake Air Connector Cover
17871 Stay, Air Connector
17872 Bracket, Intake Air Connector
17873 Bracket, Intake Air Connector, NO.2
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17885A Hose, Air Cleaner, NO.5
17885C Clamp(FOR AIR CLEANER HOSE, NO.5)
17886 Hose, Air Cleaner, NO.6
17886A Clamp(FOR AIR CLEANER HOSE, NO.6)
17886B Hose, Air Cleaner, NO.7
17886C Clamp(FOR AIR CLEANER HOSE, NO.7)
17940D Intercooler Assy
22231 Hose, Throttle Body
22231A Clamp OR Clip(FOR THROTTLE BODY HOSE)
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
25619 Tube, Egr Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
