Toyota Supra
1988-08 → 1993-05 · chassis MA70 · catalogue 291420 · Europe
Discontinued model
Data version 1993-11

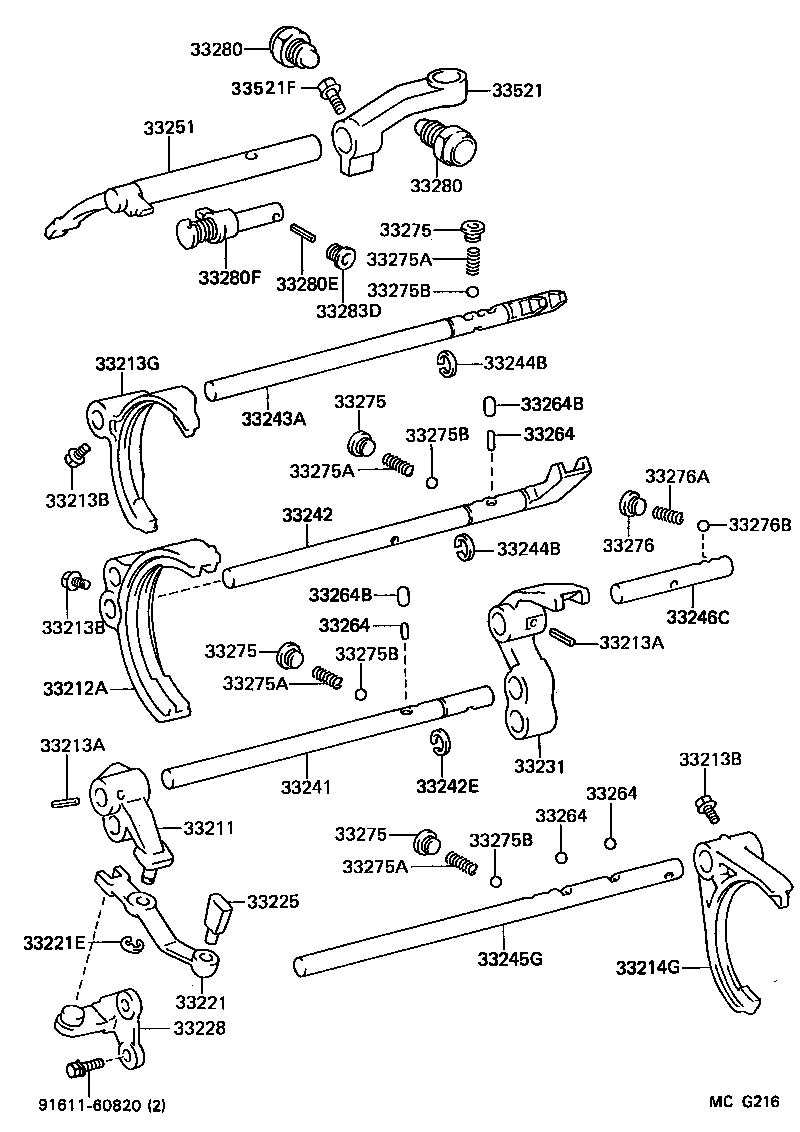

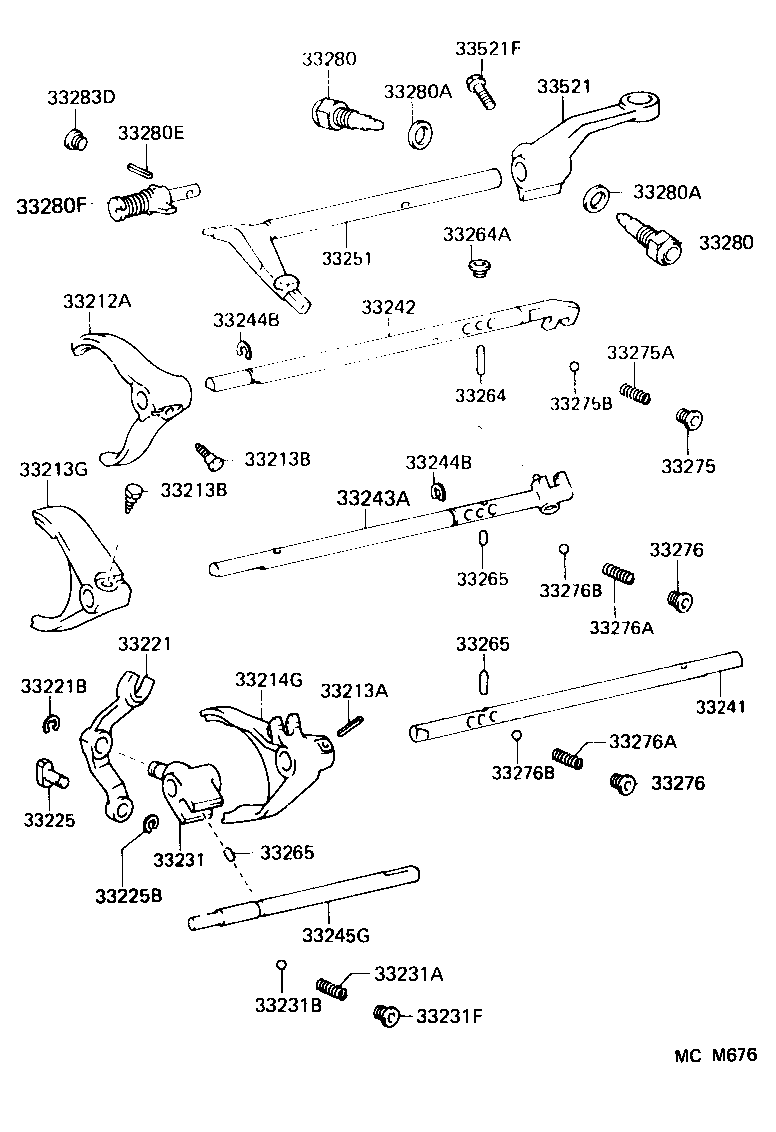

Gear Shift Fork & Lever Shaft (MTM)
45 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33211 | Fork, Reverse Shift |
| 33212A | Fork, Gear Shift, NO.1 |
| 33212B | Plug, W/Head Straight Screw, NO.1 |
| 33213A | Pin, Slotted Spring(FOR SHIFT FORK SET) |
| 33213B | Bolt(FOR SHIFT FORK SET) |
| 33213C | Washer, Lock(FOR SHIFT FORK SET) |
| 33213G | Fork, Gear Shift, NO.2 |
| 33213H | Plug, W/Head Straight Screw, NO.2 |
| 33214G | Fork, Gear Shift, NO.3 |
| 33221 | Arm, Reverse Shift |
| 33221B | Ring, E(FOR REVERSE SHIFT ARM) |
| 33221E | Ring(FOR REVERSE SHIFT ARM END SHAFT) |
| 33225 | Shoe, Shift Arm |
| 33225B | Ring, E(FOR SHIFT ARM SHOE) |
| 33228 | Bracket, Reverse Shift Arm |
| 33231 | Head, Reverse Shift |
| 33231A | Spring, Reverse Shift Restrict |
| 33231B | Ball, Reverse Shift Restrict |
| 33231F | Plug(FOR REVERSE SHIFT HEAD) |
| 33240A | Shaft Assy, Gear Shift Fork, NO.2 |
| 33241 | Shaft, Reverse Shift Fork |
| 33242 | Shaft, Gear Shift Fork, NO.1 |
| 33242E | Ring, Shaft Snap (FOR SHIFT FORK SHAFT) |
| 33243A | Shaft, Gear Shift Fork, NO.2 |
| 33244B | Ring, Shaft Snap (FOR SHIFT FORK SHAFT) |
| 33245G | Shaft, Gear Shift Fork, NO.4 |
| 33246C | Shaft, Gear Shift Fork, NO.5 |
| 33251 | Lever, Shift & Select |
| 33264 | Pin, OR Ball, Shift Interlock, NO.1 |
| 33264A | Plug, Interlock Hole |
| 33264B | Roller, NO.1 (FOR SHIFT INTERLOCK ) |
| 33265 | Pin, Shift Interlock, NO.2 |
| 33275 | Seat, Shift Detent Ball Spring, NO.1 |
| 33275A | Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE) |
| 33275B | Ball, Shaft Detent |
| 33276 | Seat, Shift Detent Ball Spring, NO.2 |
| 33276A | Spring, Compression, NO.2 (FOR SHIFT DETENT BALL) |
| 33276B | Ball, Shift Detent, NO.2 |
| 33280 | Pin Assy, Reverse Restrict |
| 33280A | Gasket, Reverse Restrict Pin |
| 33280E | Pin, Slotted Spring (FOR REVERSE RESTRICT PIN) |
| 33280F | Pin Assy, Reverse Restrict |
| 33283D | Plug (FOR REVERSE RESTRICT PIN) |
| 33521 | Housing, Shift Lever |
| 33521F | Pin OR Bolt (FOR SHIFT LEVER HOUSING) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
