Toyota Supra

1988-08 → 1993-05 · chassis MA70 · catalogue 291420 · Europe

Discontinued model Data version 1993-11

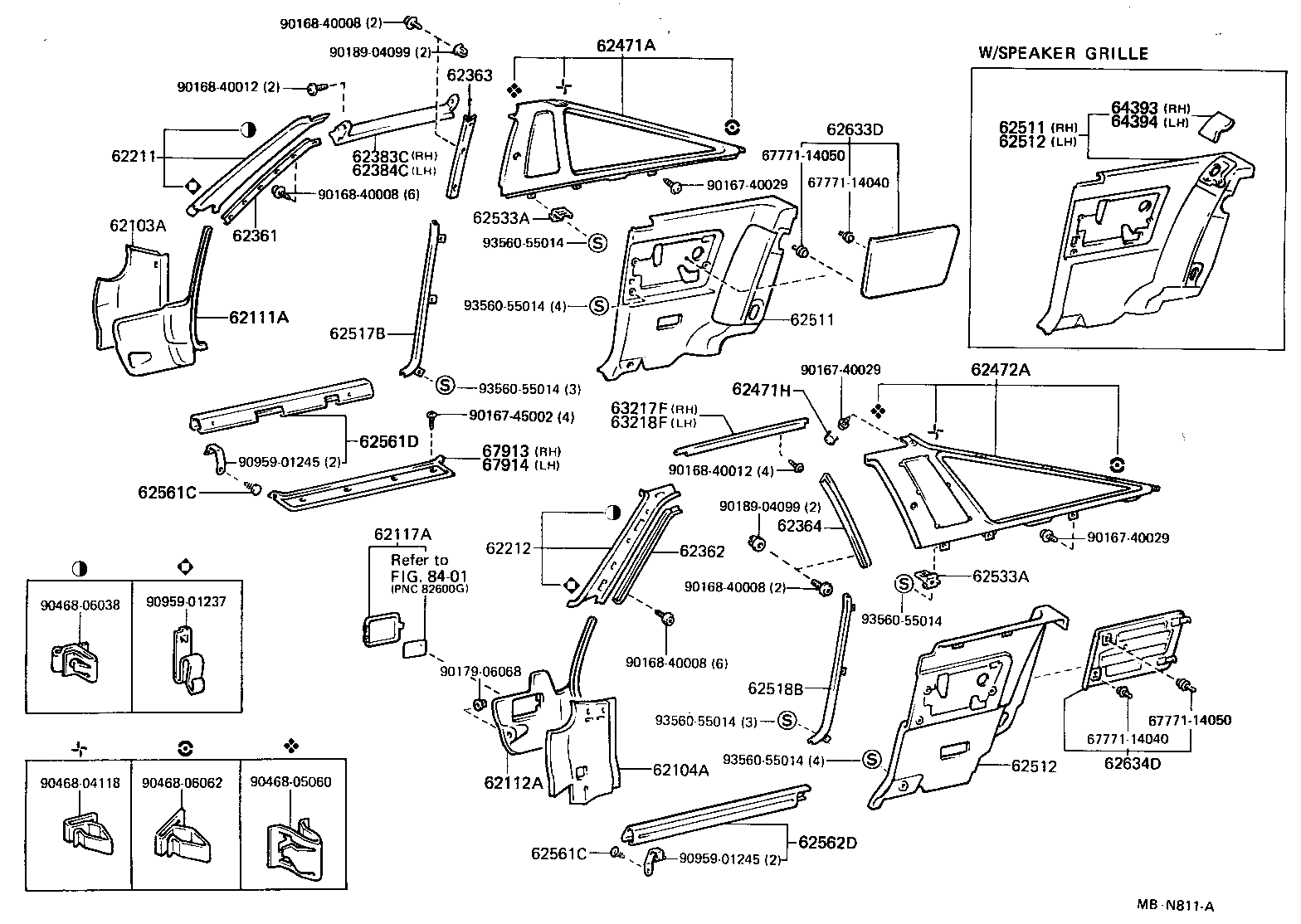

Inside Trim Board & Door Opening Trim Moulding

37 part groups · 2 illustrations

PNC	Description
62103A	Insulator Sub-assy, Cowl Side, RH
62104A	Insulator Sub-assy, Cowl Side, LH
62111A	Trim Sub-assy, Cowl Side, RH
62112A	Trim Sub-assy, Cowl Side, LH
62117A	Cover, Cowl Side Trim Service Hole
62211	Garnish, Front Pillar, RH
62212	Garnish, Front Pillar, LH
62361	Retainer, Roof Side Rail Weatherstrip, Front RH
62362	Retainer, Roof Side Rail Weatherstrip, Front LH
62363	Retainer, Roof Side Rail Weatherstrip, Rear RH
62364	Retainer, Roof Side Rail Weatherstrip, Rear LH
62381A	Weatherstrip, Roof Side Rail, RH
62382A	Weatherstrip, Roof Side Rail, LH
62383C	Weatherstrip, Roof Side Rail, NO.3 RH
62384C	Weatherstrip, Roof Side Rail, NO.3 LH
62431C	Garnish, Roof Side Rail, Front RH
62432C	Garnish, Roof Side Rail, Front LH
62471A	Garnish, Roof Side, Inner RH
62471H	Plug, Hole(FOR ROOF SIDE INNER GARNISH)
62472A	Garnish, Roof Side, Inner LH
62511	Board, Quarter Inside Trim, RH
62512	Board, Quarter Inside Trim, LH
62517B	Base, Quarter Trim, Front RH
62518B	Base, Quarter Trim, Front LH
62533A	Bracket, Quarter Trim Clamp
62561C	Clip (FOR ROCKER PANEL INNER PROTECTOR)
62561D	Protector, Rocker Panel, Inner Front RH
62562D	Protector, Rocker Panel, Inner Front LH
62633D	Cover, Quarter Trim Base, Front RH
62634D	Cover, Quarter Trim Base, Front LH
63217F	Moulding, Removable Roof, RH
63218F	Moulding, Removable Roof, LH
64393	Grille, Rear Speaker, NO.2 RH
64394	Grille, Rear Speaker, NO.2 LH
67869C	Clip, Roof Side Rail Weatherstrip
67913	Plate, Front Door Scuff, RH
67914	Plate, Front Door Scuff, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
