Toyota Supra
1988-08 → 1993-05 · chassis MA70 · catalogue 291420 · Europe
Discontinued model
Data version 1993-11

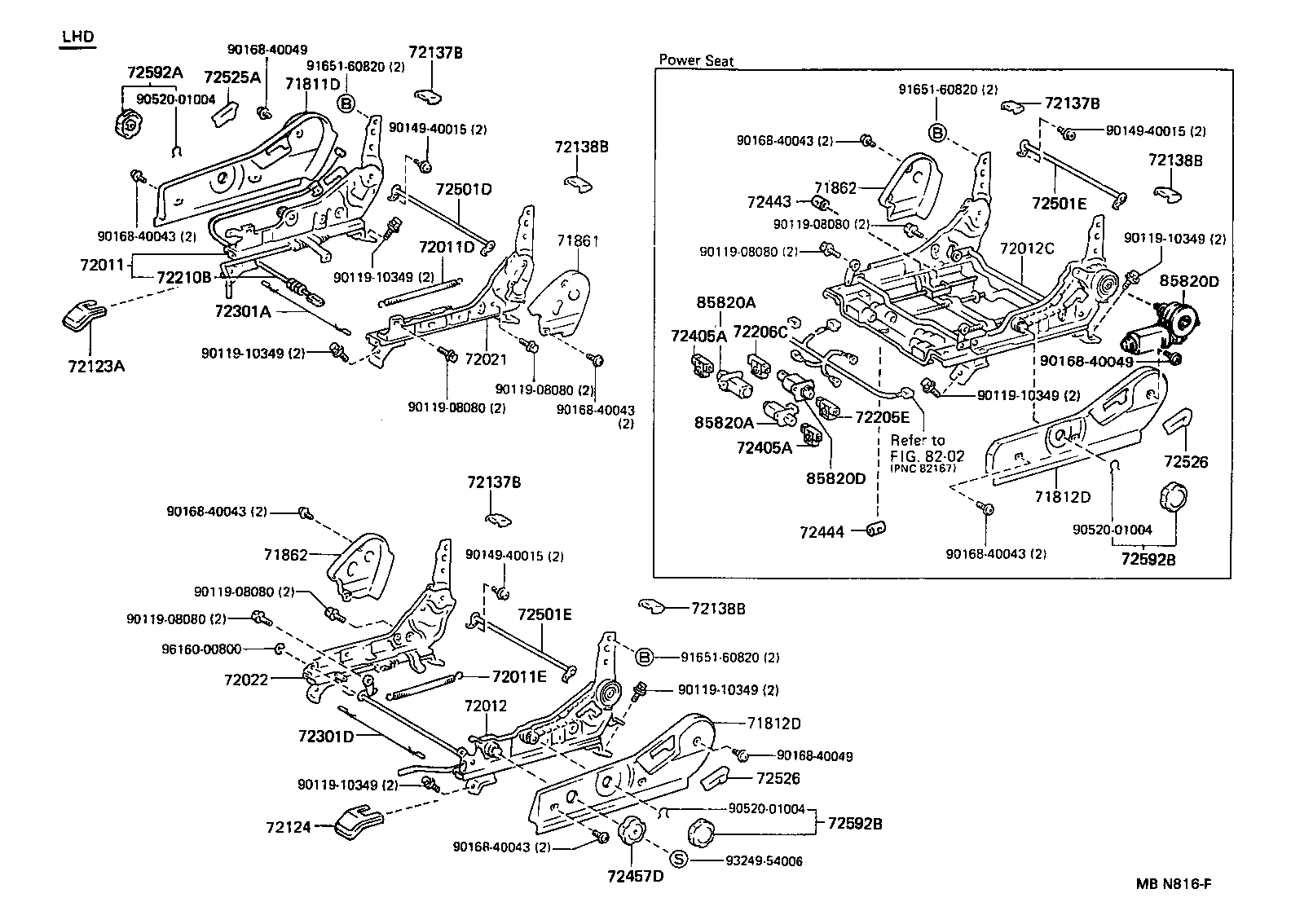

Front Seat & Seat Track
60 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71100S | Seat Assy, Front RH |
| 71158S | Frame, Front Seatback, Upper RH |
| 71159S | Frame, Front Seatback, Upper LH |
| 71200S | Seat Assy, Front LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71561B | Pad, Front Seatback, Upper |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71705C | Screw(FOR FRONT SEATBACK BOARD) |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71813A | Shield, Front Seatback, RH |
| 71814A | Shield, Front Seatback, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71910A | Headrest Assy, Front Seat |
| 71911A | Stay, Front Seat Headrest, RH |
| 71912A | Stay, Front Seat Headrest, LH |
| 71931 | Support, Front Seat Headrest |
| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72011D | Spring, Tension, RH(FOR FRONT SEAT ADJUSTER OUTER) |
| 72011E | Spring, Tension, LH(FOR FRONT SEAT ADJUSTER OUTER) |
| 72012 | Adjuster Sub-assy, Front Seat, Outer LH |
| 72012C | Adjuster Sub-assy, Front Seat, LH |
| 72021 | Adjuster Sub-assy, Front Seat, Inner RH |
| 72022 | Adjuster Sub-assy, Front Seat, Inner LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72137B | Cover, Seat Track, RH |
| 72138B | Cover, Seat Track, LH |
| 72205E | Housing Sub-assy, Power Seat, NO.1 |
| 72206C | Housing Sub-assy, Power Seat, NO.2 |
| 72210B | Cable Assy, Seat Track Control, RH |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 72301D | Wire Sub-assy, Seat Track Equalizing, LH |
| 72405A | Housing Sub-assy, Front Seat Vertical |
| 72443 | Nut, Vertical Travel, NO.1 |
| 72444 | Nut, Vertical Travel, NO.2 |
| 72457D | Knob, Vertical Seat Adjuster, LH |
| 72501D | Pipe Sub-assy, Reclining Connecting, RH |
| 72501E | Pipe Sub-assy, Reclining Connecting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72592A | Knob,Reclining Adjuster, RH |
| 72592B | Knob,Reclining Adjuster, LH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 73172A | Cap, Front Shoulder Belt Hanger |
| 73176 | Hanger, Front Shoulder Belt, RH (FOR FRONT SEAT) |
| 73177 | Hanger, Front Shoulder Belt, LH (FOR FRONT SEAT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
