Toyota Supra
1988-08 → 1993-05 · chassis MA70 · catalogue 291420 · Europe
Discontinued model
Data version 1993-11

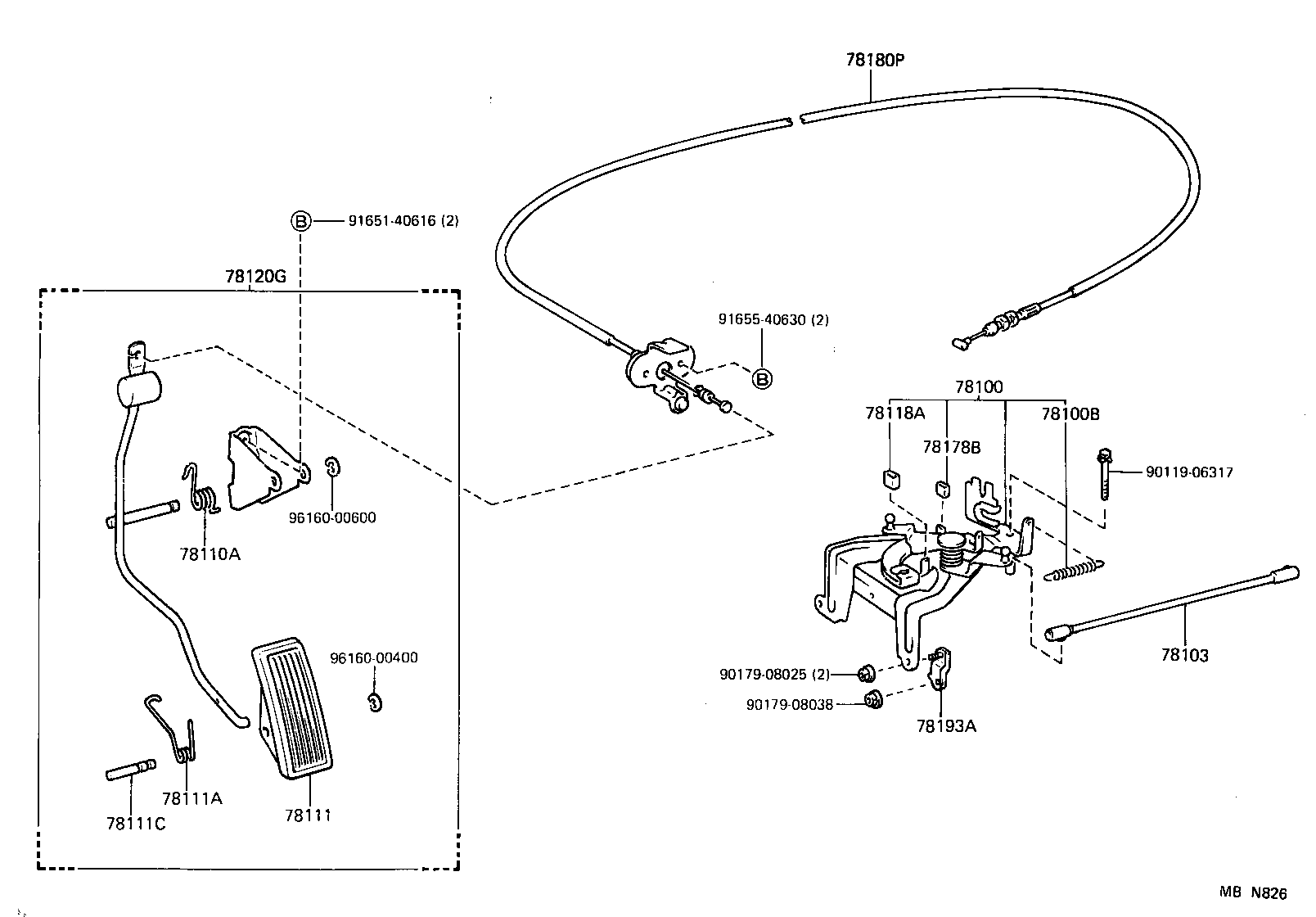

Accelerator Link
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78100 | Link Assy, Accelerator |
| 78100B | Spring (FOR ACCELERATOR LINK) |
| 78103 | Rod Sub-assy, Accelerator Connecting, NO.1 |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78111 | Pedal, Accelerator |
| 78111A | Spring (FOR ACCELERATOR PEDAL) |
| 78111C | Pin (FOR ACCELERATOR PEDAL) |
| 78118A | Stopper, Accelerator Pedal |
| 78120G | Rod Assy, Accelerator Pedal |
| 78178B | Damper, Accel Control NO.4 Rod Bracket |
| 78180P | Cable Assy, Accelerator Control |
| 78193A | Support, Accelerator Control Cable, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
