Toyota Supra

1988-08 → 1993-05 · chassis MA70 · catalogue 291420 · Europe

Discontinued model Data version 1993-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

8 part groups · 2 illustrations

Illustrations

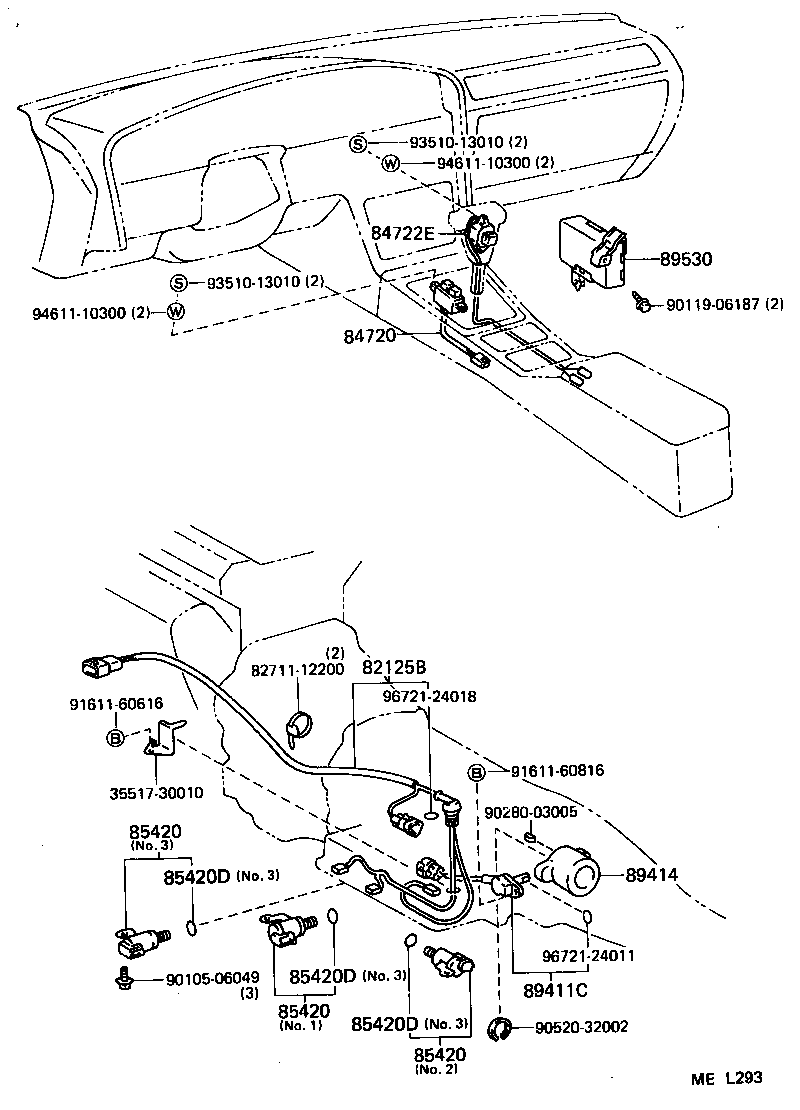

Figure MEL292 MEL292 1988-08 → — Figure MEL293 MEL293 1988-08 → —

Part groups

PNCDescription
82125B Wire, Transmission
84720 Switch Assy, Pattern Select
84722E Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
89530 Computer Assy, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
