Toyota Supra
1988-08 → 1993-05 · chassis MA70 · catalogue 291420 · Europe
Discontinued model
Data version 1993-11

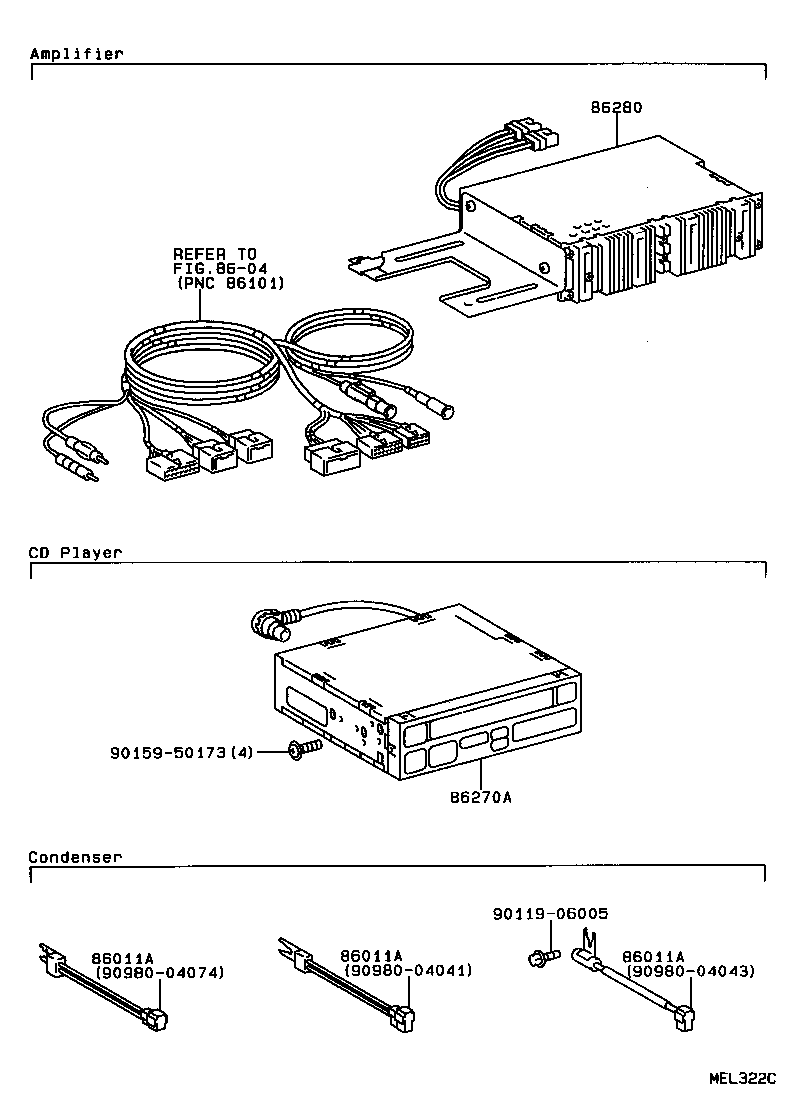

Radio Receiver & Amplifier & Condenser
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86128 | Knob, Radio Receiver |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86270A | Disc Player Assy |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
