Toyota Supra

1988-08 → 1993-05 · chassis MA70 · catalogue 291420 · Europe

Discontinued model Data version 1993-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

10 part groups · 2 illustrations

Illustrations

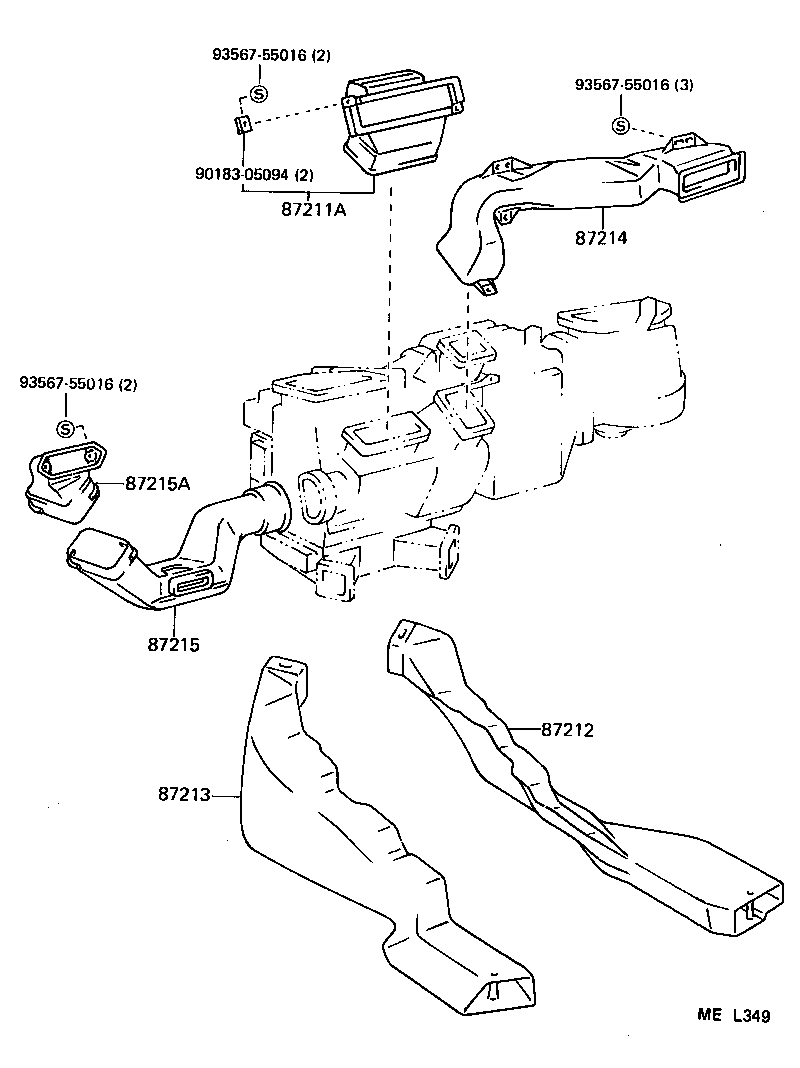

Figure MEL348 MEL348 1988-08 → — Figure MEL349 MEL349 1988-08 → —

Part groups

PNCDescription
55910 Control Assy, Heater OR Boost Ventilator
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
88625C Thermistor, Cooler
88630K Relay Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
