Toyota Supra

1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · Europe

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

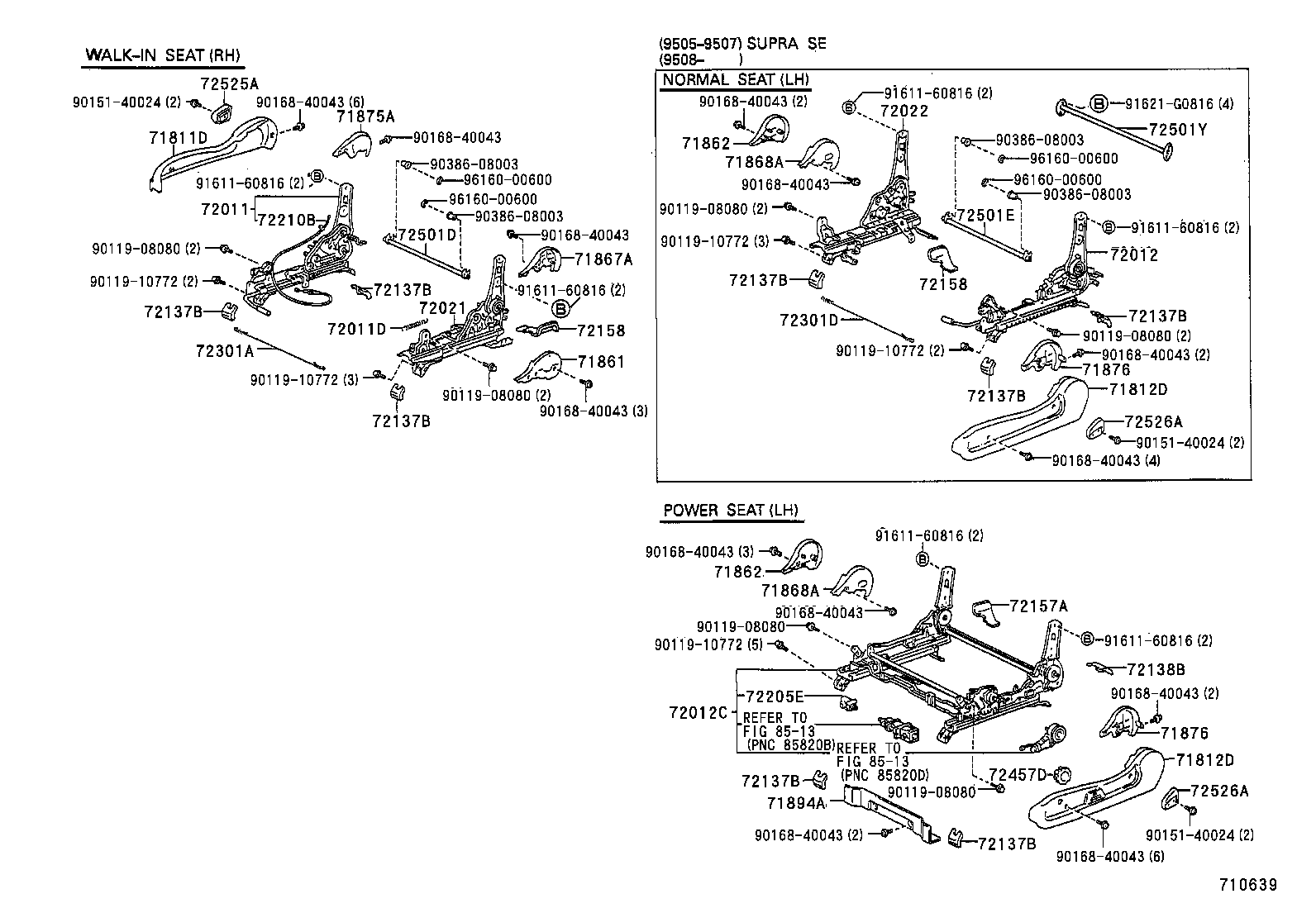

Exploded illustration 710639 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (2 parts) 9161160816 — not listed in this catalogue 9016840043 — not listed in this catalogue 9015140024 — not listed in this catalogue 9016840043 — not listed in this catalogue 91621G0816 — not listed in this catalogue 72022 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH (2 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (2 parts) 72501Y — PIPE SUB-ASSY, RECLINING CONNECTING, LH (3 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (2 parts) 9016840043 — not listed in this catalogue 9038608003 — not listed in this catalogue 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (5 parts) 9616000600 — not listed in this catalogue 71868A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH (5 parts) 9038608003 — not listed in this catalogue 9616000600 — not listed in this catalogue 9616000600 — not listed in this catalogue 9161160816 — not listed in this catalogue 9016840043 — not listed in this catalogue 9038608003 — not listed in this catalogue 9616000600 — not listed in this catalogue 72011 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH (3 parts) 9011908080 — not listed in this catalogue 72501E — PIPE SUB-ASSY, RECLINING CONNECTING, LH (3 parts) 9038608003 — not listed in this catalogue 72210B — CABLE ASSY, SEAT TRACK CONTROL, RH (1 parts) 9161160816 — not listed in this catalogue 72501D — PIPE SUB-ASSY, RECLINING CONNECTING, RH (1 parts) 9016840043 — not listed in this catalogue 9011910772 — not listed in this catalogue 9011908080 — not listed in this catalogue 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (2 parts) 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (2 parts) 72137B — COVER, SEAT TRACK, RH (14 parts) 9011910772 — not listed in this catalogue 72158 — COVER, SEAT TRACK BRACKET, INNER LH (5 parts) 72137B — COVER, SEAT TRACK, RH (14 parts) 9161160816 — not listed in this catalogue 72021 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH (3 parts) 72137B — COVER, SEAT TRACK, RH (14 parts) 72137B — COVER, SEAT TRACK, RH (14 parts) 72301D — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH (2 parts) 72011D — SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) (1 parts) 72158 — COVER, SEAT TRACK BRACKET, INNER LH (5 parts) 9011908080 — not listed in this catalogue 72301A — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH (1 parts) 9011910772 — not listed in this catalogue 9016840043 — not listed in this catalogue 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (2 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (5 parts) 9011910772 — not listed in this catalogue 71812D — SHIELD, FRONT SEAT CUSHION, LH (5 parts) 9011908080 — not listed in this catalogue 72137B — COVER, SEAT TRACK, RH (14 parts) 9016840043 — not listed in this catalogue 72137B — COVER, SEAT TRACK, RH (14 parts) 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (2 parts) 9015140024 — not listed in this catalogue 9016840043 — not listed in this catalogue 9161160816 — not listed in this catalogue 9016840043 — not listed in this catalogue 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (5 parts) 71868A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH (5 parts) 72157A — COVER, SEAT TRACK BRACKET, INNER RH (5 parts) 9016840043 — not listed in this catalogue 9011908080 — not listed in this catalogue 9161160816 — not listed in this catalogue 9011910772 — not listed in this catalogue 72138B — COVER, SEAT TRACK, LH (2 parts) 9016840043 — not listed in this catalogue 72205E — HOUSING SUB-ASSY, POWER SEAT, NO.1 (1 parts) 72012C — ADJUSTER SUB-ASSY, FRONT SEAT, LH (1 parts) 8513 — not listed in this catalogue 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (5 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (5 parts) 8513 — not listed in this catalogue 72457D — KNOB, VERTICAL SEAT ADJUSTER, LH (2 parts) 72137B — COVER, SEAT TRACK, RH (14 parts) 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (2 parts) 9011908080 — not listed in this catalogue 71894A — SHIELD, POWER ADJUSTER, FRONT LH (1 parts) 9016840043 — not listed in this catalogue 9015140024 — not listed in this catalogue 72137B — COVER, SEAT TRACK, RH (14 parts) 9016840043 — not listed in this catalogue
710639 · 42 callouts, 44 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
85 parts on this figure
Part number Description Fitment Price
71811D — Shield, Front Seat Cushion, RH
71811-14100-A0 note Shield, Front Seat Cushion, RH
1993-05 → 1998-08 ended
JZA80 —
71811-14100-C0 note Shield, Front Seat Cushion, RH
1993-05 → 1998-08 ended
JZA80 —
71812D — Shield, Front Seat Cushion, LH
71812-14120-C0 note Shield, Front Seat Cushion, LH
1995-08 → 1996-07 ended
JZA80 —
71812-14120-C0 note Shield, Front Seat Cushion, LH
1996-07 → 1998-08 ended
JZA80 —
71812-14130-A0 note Shield, Front Seat Cushion, LH
1993-05 → 1996-07 ended
JZA80 LB 4FC TWT —
71812-14130-A0 note Shield, Front Seat Cushion, LH
1993-05 → 1998-08 ended
JZA80 6F;JZA80 TWC;JZA80 AET +2 —
71812-14130-C0 note Shield, Front Seat Cushion, LH
1993-05 → 1998-08 ended
JZA80 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-14040-A0 note Shield, Front Seat Cushion, Inner RH
1993-05 → 1998-08 ended
JZA80 —
71861-14040-C0 note Shield, Front Seat Cushion, Inner RH
1993-05 → 1998-08 ended
JZA80 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-14040-C0 note Shield, Front Seat Cushion, Inner LH
1996-07 → 1998-08 ended
JZA80 —
71862-14040-C0 note Shield, Front Seat Cushion, Inner LH
1995-08 → 1996-07 ended
JZA80 —
71862-14050-A0 note Shield, Front Seat Cushion, Inner LH
1993-05 → 1998-08 ended
JZA80 6F;JZA80 TWC;JZA80 AET +2 —
71862-14050-A0 note Shield, Front Seat Cushion, Inner LH
1993-05 → 1996-07 ended
JZA80 LB 4FC TWT —
71862-14050-C0 note Shield, Front Seat Cushion, Inner LH
1993-05 → 1998-08 ended
JZA80 —
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-14010-A0 note Shield, Front Seat Cushion, Inner NO.1 RH
1993-05 → 1998-08 ended
JZA80 —
71867-14010-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
1993-05 → 1998-08 ended
JZA80 —
71868A — Shield, Front Seat Cushion, Inner NO.1 LH
71868-14030-A0 note Shield, Front Seat Cushion, Inner NO.1 LH
1993-05 → 1996-07 ended
JZA80 LB 4FC TWT —
71868-14030-A0 note Shield, Front Seat Cushion, Inner NO.1 LH
1993-05 → 1998-08 ended
JZA80 6F;JZA80 TWC;JZA80 AET +2 —
71868-14030-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
1993-05 → 1998-08 ended
JZA80 —
71868-14040-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
1995-08 → 1996-07 ended
JZA80 —
71868-14040-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
1996-07 → 1998-08 ended
JZA80 —
71875A — Cover, Reclining Adjuster Inside, RH
71875-14030-A0 note Cover, Reclining Adjuster Inside, RH
1993-05 → 1998-08 ended
JZA80 —
71875-14030-C0 note Cover, Reclining Adjuster Inside, RH
1993-05 → 1998-08 ended
JZA80 —
71876 — Cover, Reclining Adjuster Inside, LH
71876-14030-A0 note Cover, Reclining Adjuster Inside, LH
1993-05 → 1996-07 ended
JZA80 LB 4FC TWT —
71876-14030-A0 note Cover, Reclining Adjuster Inside, LH
1993-05 → 1998-08 ended
JZA80 6F;JZA80 TWC;JZA80 AET +2 —
71876-14030-C0 note Cover, Reclining Adjuster Inside, LH
1993-05 → 1998-08 ended
JZA80 —
71876-14040-C0 note Cover, Reclining Adjuster Inside, LH
1996-07 → 1998-08 ended
JZA80 —
71876-14040-C0 note Cover, Reclining Adjuster Inside, LH
1995-08 → 1996-07 ended
JZA80 —
71894A — Shield, Power Adjuster, Front LH
71893-14030 Shield, Power Adjuster, Front LH
1993-05 → 1998-08 ended
JZA80 —
72011 — Adjuster Sub-assy, Front Seat, Outer RH
72011-14060 Adjuster Sub-assy, Front Seat, Outer RH
1993-05 → 1996-07 ended
JZA80 —
72011-14060 Adjuster Sub-assy, Front Seat, Outer RH
1996-07 → 1997-01 ended
JZA80 —
72011-14061 Adjuster Sub-assy, Front Seat, Outer RH
1997-01 → 1998-08 ended
JZA80 —
72011D — Spring, Tension, RH(FOR FRONT SEAT ADJUSTER OUTER)
90507-18014 Spring, Tension, RH(FOR FRONT SEAT ADJUSTER OUTER)
1993-05 → 1996-01 ended
JZA80 —
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72012-14090 Adjuster Sub-assy, Front Seat, Outer LH
1995-08 → 1997-01 ended
JZA80 —
72012-14091 Adjuster Sub-assy, Front Seat, Outer LH
1997-01 → 1998-08 ended
JZA80 —
72012C — Adjuster Sub-assy, Front Seat, LH
72020-14370 Adjuster Sub-assy, Front Seat, LH
1993-05 → 1998-08 ended
JZA80 —
72021 — Adjuster Sub-assy, Front Seat, Inner RH
72021-14030 Adjuster Sub-assy, Front Seat, Inner RH
1993-05 → 1996-07 ended
JZA80 —
72021-14030 Adjuster Sub-assy, Front Seat, Inner RH
1996-07 → 1997-01 ended
JZA80 —
72021-14031 Adjuster Sub-assy, Front Seat, Inner RH
1997-01 → 1998-08 ended
JZA80 —
72022 — Adjuster Sub-assy, Front Seat, Inner LH
72022-14040 Adjuster Sub-assy, Front Seat, Inner LH
1995-08 → 1997-01 ended
JZA80 —
72022-14041 Adjuster Sub-assy, Front Seat, Inner LH
1997-01 → 1998-08 ended
JZA80 —
72137B — Cover, Seat Track, RH
72137-24020-08 note Cover, Seat Track, RH
1993-05 → 1994-01 ended
JZA80 —
72137-24020-A2 note Cover, Seat Track, RH
1994-01 → 1995-08 ended
JZA80 LB 4FC TWT —
72137-24020-A2 note Cover, Seat Track, RH
1994-01 → 1995-08 ended
JZA80 6F;JZA80 TWC;JZA80 AET +2 —
72137-24020-A2 note Cover, Seat Track, RH
1994-01 → 1996-07 ended
JZA80 TWC;JZA80 6F USA;JZA80 +4 —
72137-24020-A2 note Cover, Seat Track, RH
1995-08 → 1996-07 ended
JZA80 —
72137-24020-A2 note Cover, Seat Track, RH
1995-08 → 1996-07 ended
JZA80 USA —
72137-24020-A2 note Cover, Seat Track, RH
1995-08 → 1996-07 ended
JZA80 —
72137-24020-A2 note Cover, Seat Track, RH
1996-07 → 1998-08 ended
JZA80 —
72137-24020-A2 note Cover, Seat Track, RH
1996-07 → 1998-08 ended
JZA80 —
72137-24020-C0 note Cover, Seat Track, RH
1993-05 → 1995-08 ended
JZA80 —
72137-24020-C0 note Cover, Seat Track, RH
1996-07 → 1998-08 ended
JZA80 (4FC,6F) USA —
72137-24020-C0 note Cover, Seat Track, RH
1995-08 → 1996-07 ended
JZA80 —
72137-24020-C0 note Cover, Seat Track, RH
1995-08 → 1998-08 ended
JZA80 —
72137-24020-C0 note Cover, Seat Track, RH
1993-05 → 1995-08 ended
JZA80 6F;JZA80 TWC;JZA80 AET +2 —
72138B — Cover, Seat Track, LH
72138-14020-A0 note Cover, Seat Track, LH
1993-05 → 1998-08 ended
JZA80 —
72138-14020-C0 note Cover, Seat Track, LH
1993-05 → 1998-08 ended
JZA80 —
72157A — Cover, Seat Track Bracket, Inner RH
72157-24030-08 note Cover, Seat Track Bracket, Inner RH
1993-05 → 1994-01 ended
JZA80 —
72157-24030-A2 note Cover, Seat Track Bracket, Inner RH
1994-01 → 1996-07 ended
JZA80 —
72157-24030-A2 note Cover, Seat Track Bracket, Inner RH
1994-01 → 1996-07 ended
JZA80 USA —
72157-24030-A2 note Cover, Seat Track Bracket, Inner RH
1996-07 → 1998-08 ended
JZA80 —
72157-24030-C0 note Cover, Seat Track Bracket, Inner RH
1993-05 → 1998-08 ended
JZA80 —
72158 — Cover, Seat Track Bracket, Inner LH
72158-14010-A0 note Cover, Seat Track Bracket, Inner LH
1993-05 → 1996-07 ended
JZA80 LB 4FC TWT —
72158-14010-A0 note Cover, Seat Track Bracket, Inner LH
1993-05 → 1998-08 ended
JZA80 6F;JZA80 TWC;JZA80 AET +2 —
72158-14010-C0 note Cover, Seat Track Bracket, Inner LH
1993-05 → 1998-08 ended
JZA80 —
72158-24020-C0 note Cover, Seat Track Bracket, Inner LH
1995-08 → 1996-07 ended
JZA80 —
72158-24020-C0 note Cover, Seat Track Bracket, Inner LH
1996-07 → 1998-08 ended
JZA80 —
72205E — Housing Sub-assy, Power Seat, NO.1
72205-14010 Housing Sub-assy, Power Seat, NO.1
1993-05 → 1998-08 ended
JZA80 —
72210B — Cable Assy, Seat Track Control, RH
72210-14130 Cable Assy, Seat Track Control, RH
1993-05 → 1998-08 ended
JZA80 —
72301A — Wire Sub-assy, Seat Track Equalizing, RH
72301-14080 Wire Sub-assy, Seat Track Equalizing, RH
1993-05 → 1998-08 ended
JZA80 —
72301D — Wire Sub-assy, Seat Track Equalizing, LH
72301-14080 Wire Sub-assy, Seat Track Equalizing, LH
1995-08 → 1996-07 ended
JZA80 —
72301-14080 Wire Sub-assy, Seat Track Equalizing, LH
1996-07 → 1998-08 ended
JZA80 —
72457D — Knob, Vertical Seat Adjuster, LH
72457-16010-22 note Knob, Vertical Seat Adjuster, LH
1993-05 → 1998-08 ended
JZA80 —
72457-16010-A0 note Knob, Vertical Seat Adjuster, LH
1993-05 → 1998-08 ended
JZA80 —
72501D — Pipe Sub-assy, Reclining Connecting, RH
72501-14010 Pipe Sub-assy, Reclining Connecting, RH
1993-05 → 1998-08 ended
JZA80 —
72501E — Pipe Sub-assy, Reclining Connecting, LH
72501-14010 note Pipe Sub-assy, Reclining Connecting, LH
1995-05 → 1995-07 ended
JZA80 LB TWC —
72501-14010 Pipe Sub-assy, Reclining Connecting, LH
1995-08 → 1996-07 ended
JZA80 —
72501-14010 Pipe Sub-assy, Reclining Connecting, LH
1996-07 → 1998-08 ended
JZA80 —
72501Y — Pipe Sub-assy, Reclining Connecting, LH
72501-14020 note Pipe Sub-assy, Reclining Connecting, LH
1995-05 → 1995-07 ended
JZA80 LB TWC —
72501-14020 Pipe Sub-assy, Reclining Connecting, LH
1995-08 → 1996-07 ended
JZA80 —
72501-14020 Pipe Sub-assy, Reclining Connecting, LH
1996-07 → 1998-08 ended
JZA80 —
72525A — Handle, Reclining Adjuster Release, RH
72525-14020-A0 note Handle, Reclining Adjuster Release, RH
1993-05 → 1998-08 ended
JZA80 —
72525-14020-C0 note Handle, Reclining Adjuster Release, RH
1993-05 → 1998-08 ended
JZA80 —
72526A — Handle, Reclining Adjuster Release, LH
72526-14020-A0 note Handle, Reclining Adjuster Release, LH
1993-05 → 1998-08 ended
JZA80 —
72526-14020-C0 note Handle, Reclining Adjuster Release, LH
1993-05 → 1998-08 ended
JZA80 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
