Toyota Supra

1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · Europe

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

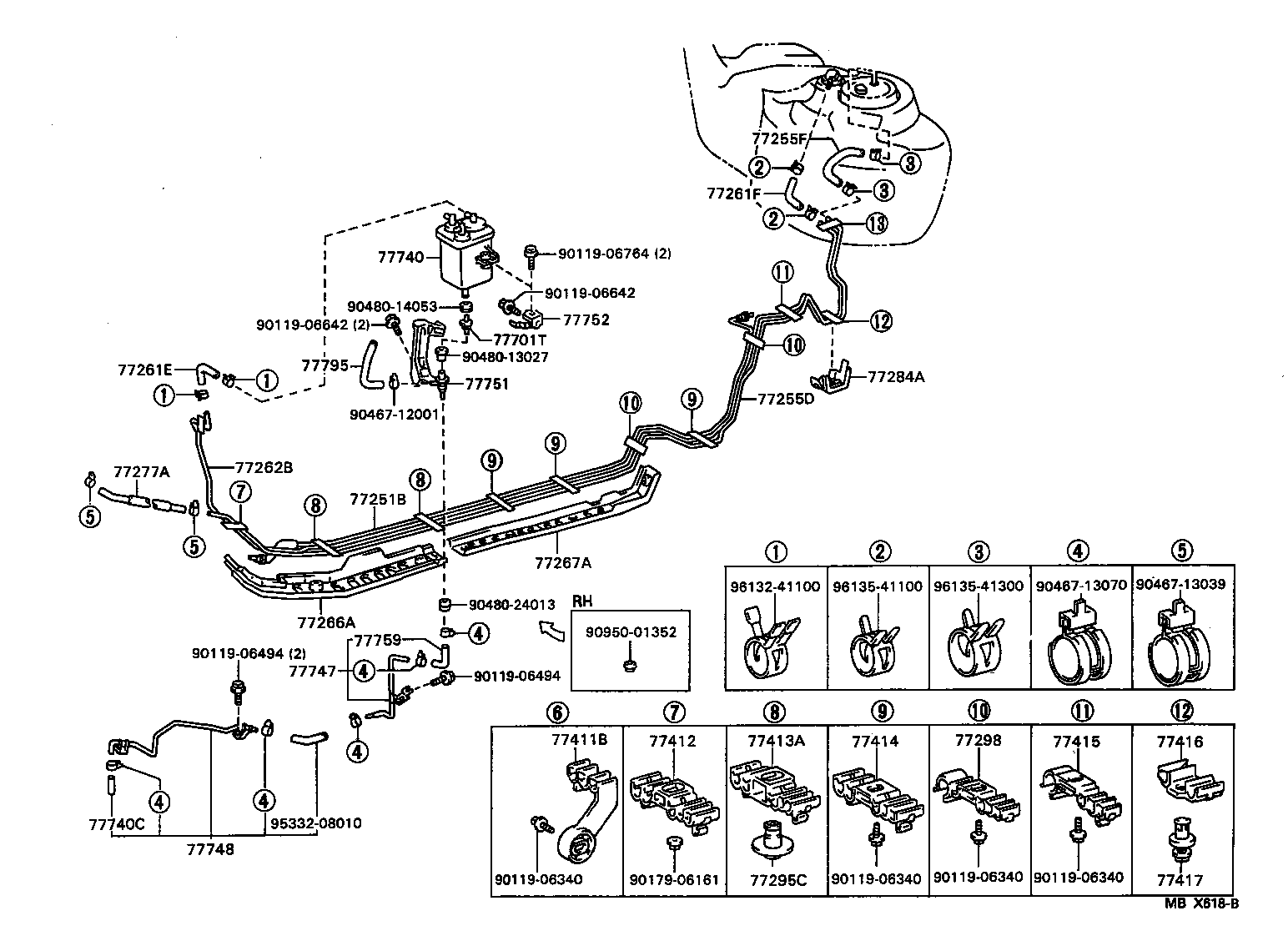

Exploded illustration MBX618B 77255F — HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) (1 parts) 77261F — HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) (1 parts) 9011906764 — not listed in this catalogue 77740 — CANISTER ASSY, CHARCOAL (5 parts) 9011906642 — not listed in this catalogue 9048014053 — not listed in this catalogue 77752 — BRACKET, CHARCOAL CANISTER SUPPORT (2 parts) 9011906642 — not listed in this catalogue 77701T — VALVE, CHECK (FOR MAIN FUEL TANK) (2 parts) 9048013027 — not listed in this catalogue 77795 — HOSE, CHARCOAL CANISTER OUTLET, NO.2 (2 parts) 77261E — HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) (1 parts) 77284A — PROTECTOR, FUEL TUBE, NO.3 (1 parts) 77751 — BRACKET, CHARCOAL CANISTER BASE (2 parts) 77255D — TUBE, FUEL RETURN (1 parts) 9046712001 — not listed in this catalogue 77262B — TUBE, FUEL TANK TO CANISTER, NO.2 (1 parts) 77277A — HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) (2 parts) 77251B — TUBE, FUEL MAIN (1 parts) 77267A — PROTECTOR, FUEL TUBE, NO.2 (1 parts) 9046713039 — not listed in this catalogue 9613541100 — not listed in this catalogue 9046713070 — not listed in this catalogue 9613541300 — not listed in this catalogue 9613241100 — not listed in this catalogue 9048024013 — not listed in this catalogue 77266A — PROTECTOR, FUEL TUBE, NO.1 (1 parts) 9095001352 — not listed in this catalogue 77759 — HOSE, CHARCOAL CANISTER (2 parts) 9011906494 — not listed in this catalogue 77747 — PIPE, CHARCOAL CANISTER, NO.1 (2 parts) 9011906494 — not listed in this catalogue 77411B — SUPPORT, FUEL TUBE GROMMET, NO.1 (1 parts) 77298 — CLAMP, FUEL TUBE W/GROMMET, NO.4 (1 parts) 77412 — SUPPORT, FUEL TUBE GROMMET, NO.2 (1 parts) 77413A — SUPPORT, FUEL TUBE GROMMET, NO.3 (1 parts) 77414 — SUPPORT, FUEL TUBE GROMMET, NO.4 (1 parts) 77415 — SUPPORT, FUEL TUBE GROMMET, NO.5 (1 parts) 77416 — SUPPORT, FUEL TUBE GROMMET, NO.6 (1 parts) 9533208010 — not listed in this catalogue 77740C — HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) (2 parts) 77748 — PIPE, CHARCOAL CANISTER, NO.2 (2 parts) 9011906340 — not listed in this catalogue 9011906340 — not listed in this catalogue 9011906340 — not listed in this catalogue 9011906340 — not listed in this catalogue 9017906161 — not listed in this catalogue 77295C — GROMMET, FUEL TUBE (1 parts) 77417 — SUPPORT, FUEL TUBE GROMMET, NO.7 (1 parts)
MBX618B · 28 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
41 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-14410 Tube, Fuel Main
1993-05 → 1998-08 ended
JZA80 —
77255D — Tube, Fuel Return
77255-14410 Tube, Fuel Return
1993-05 → 1998-08 ended
JZA80 —
77255F — Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77259-14050 Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
1993-05 → 1998-08 ended
JZA80 —
77261E — Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020 note Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
1993-05 → 1998-08 ended
JZA80 —
77261F — Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020 note Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
1993-05 → 1998-08 ended
JZA80 —
77262B — Tube, Fuel Tank TO Canister, NO.2
77262-14060 Tube, Fuel Tank TO Canister, NO.2
1993-05 → 1998-08 ended
JZA80 —
77266A — Protector, Fuel Tube, NO.1
77266-14050 Protector, Fuel Tube, NO.1
1993-05 → 1998-08 ended
JZA80 —
77267A — Protector, Fuel Tube, NO.2
77267-14030 Protector, Fuel Tube, NO.2
1993-05 → 1998-08 ended
JZA80 —
77277A — Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
23271-46150 Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1993-05 → 1997-09 ended
JZA80 —
23271-46150 Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1997-09 → 1998-08 ended
JZA80 TWT —
77284A — Protector, Fuel Tube, NO.3
77284-14020 Protector, Fuel Tube, NO.3
1993-05 → 1998-08 ended
JZA80 —
77295C — Grommet, Fuel Tube
77295-22090 Grommet, Fuel Tube
1993-05 → 1998-08 ended
JZA80 —
77298 — Clamp, Fuel Tube W/Grommet, NO.4
77298-14030 Clamp, Fuel Tube W/Grommet, NO.4
1993-05 → 1998-08 ended
JZA80 —
77411B — Support, Fuel Tube Grommet, NO.1
77411-14010 Support, Fuel Tube Grommet, NO.1
1993-05 → 1998-08 ended
JZA80 —
77412 — Support, Fuel Tube Grommet, NO.2
77412-14010 Support, Fuel Tube Grommet, NO.2
1993-05 → 1998-08 ended
JZA80 —
77413A — Support, Fuel Tube Grommet, NO.3
77413-14010 Support, Fuel Tube Grommet, NO.3
1993-05 → 1998-08 ended
JZA80 —
77414 — Support, Fuel Tube Grommet, NO.4
77414-14010 Support, Fuel Tube Grommet, NO.4
1993-05 → 1998-08 ended
JZA80 —
77415 — Support, Fuel Tube Grommet, NO.5
77415-14010 Support, Fuel Tube Grommet, NO.5
1993-05 → 1998-08 ended
JZA80 —
77416 — Support, Fuel Tube Grommet, NO.6
77416-14010 Support, Fuel Tube Grommet, NO.6
1993-05 → 1998-08 ended
JZA80 —
77417 — Support, Fuel Tube Grommet, NO.7
77417-14010 Support, Fuel Tube Grommet, NO.7
1993-05 → 1998-08 ended
JZA80 —
77701T — Valve, Check (FOR MAIN FUEL TANK)
90917-10079 Valve, Check (FOR MAIN FUEL TANK)
1993-05 → 1997-09 ended
JZA80 —
90917-10079 Valve, Check (FOR MAIN FUEL TANK)
1997-09 → 1998-08 ended
JZA80 TWT —
77740 — Canister Assy, Charcoal
77740-14450 Canister Assy, Charcoal
1993-05 → 1997-09 ended
JZA80 TWC —
77740-14470 Canister Assy, Charcoal
1993-05 → 1993-12 ended
JZA80 TWT —
77740-14471 Canister Assy, Charcoal
1993-12 → 1996-07 ended
JZA80 TWT —
77740-14471 Canister Assy, Charcoal
1996-07 → 1998-08 ended
JZA80 TWT —
77740-14480 Canister Assy, Charcoal
1997-09 → 1998-08 ended
JZA80 TWC —
77740C — Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
90445-15064 note Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
1993-05 → 1997-09 ended
JZA80 —
90445-15064 note Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
1997-09 → 1998-08 ended
JZA80 TWT —
77747 — Pipe, Charcoal Canister, NO.1
77747-24010 Pipe, Charcoal Canister, NO.1
1993-05 → 1997-09 ended
JZA80 —
77747-24010 Pipe, Charcoal Canister, NO.1
1997-09 → 1998-08 ended
JZA80 TWT —
77748 — Pipe, Charcoal Canister, NO.2
77748-24010 Pipe, Charcoal Canister, NO.2
1993-05 → 1997-09 ended
JZA80 —
77748-24010 Pipe, Charcoal Canister, NO.2
1997-09 → 1998-08 ended
JZA80 TWT —
77751 — Bracket, Charcoal Canister Base
77751-14180 Bracket, Charcoal Canister Base
1993-05 → 1997-09 ended
JZA80 —
77751-14180 Bracket, Charcoal Canister Base
1997-09 → 1998-08 ended
JZA80 TWT —
77752 — Bracket, Charcoal Canister Support
77752-14050 Bracket, Charcoal Canister Support
1993-05 → 1997-09 ended
JZA80 —
77752-14050 Bracket, Charcoal Canister Support
1997-09 → 1998-08 ended
JZA80 TWT —
77759 — Hose, Charcoal Canister
77759-24010 Hose, Charcoal Canister
1993-05 → 1997-09 ended
JZA80 —
77759-24010 Hose, Charcoal Canister
1997-09 → 1998-08 ended
JZA80 TWT —
77795 — Hose, Charcoal Canister Outlet, NO.2
77795-14010 Hose, Charcoal Canister Outlet, NO.2
1993-05 → 1997-09 ended
JZA80 —
77795-14010 Hose, Charcoal Canister Outlet, NO.2
1997-09 → 1998-08 ended
JZA80 TWT —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
