Toyota Supra

1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · Europe

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

23 part groups · 2 illustrations

Illustrations

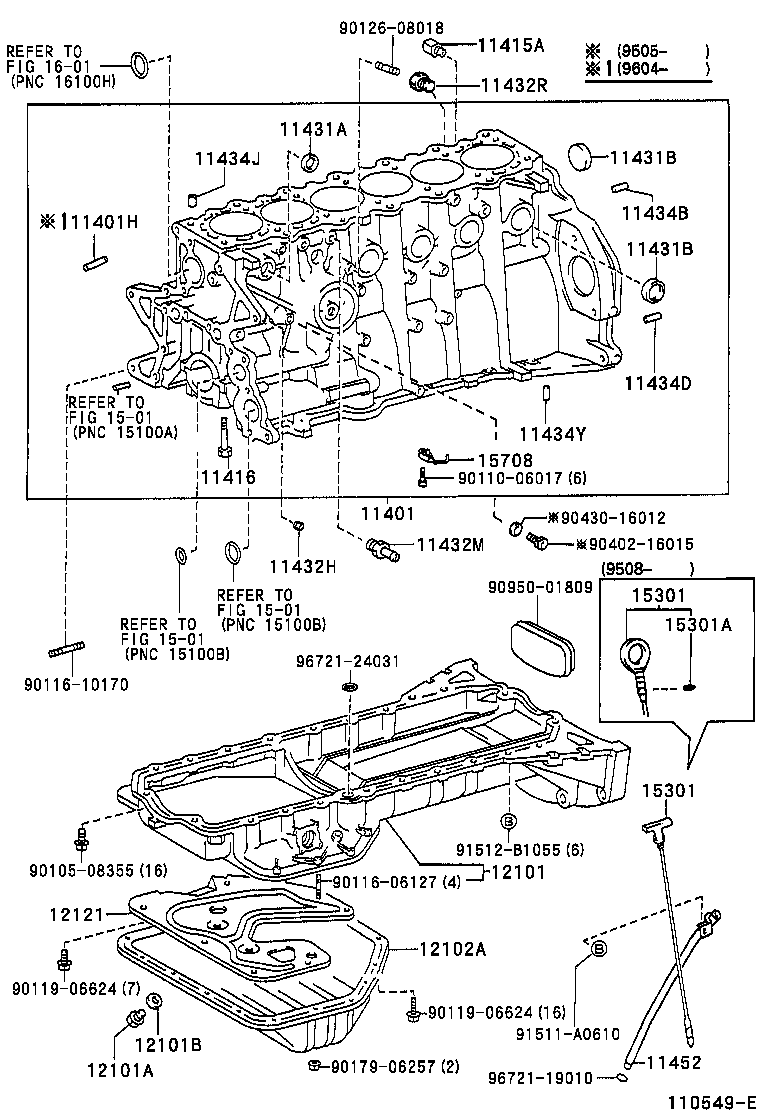

Figure 110555A 110555A 1993-05 → — Figure 110549E 110549E 1993-05 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11401H Union(FOR CYLINDER BLOCK LLC DRAIN)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11432C Plug, W/Head Taper Screw, NO.3
11432H Plug, W/Head Taper Screw, NO.5
11432M Union(FOR CYLINDER BLOCK)
11432R Plug, W/Head Straight Screw, NO.1(FOR CYLINDER BLOCK)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434Y Pin, Straight(FOR OIL PAN)
11452 Guide, Oil Level Gage
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
12121 Plate, Oil Pan Baffle, NO.1
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15708 Nozzle Sub-assy, Oil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
