Toyota Supra

1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · Europe

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

11 part groups · 3 illustrations

Illustrations

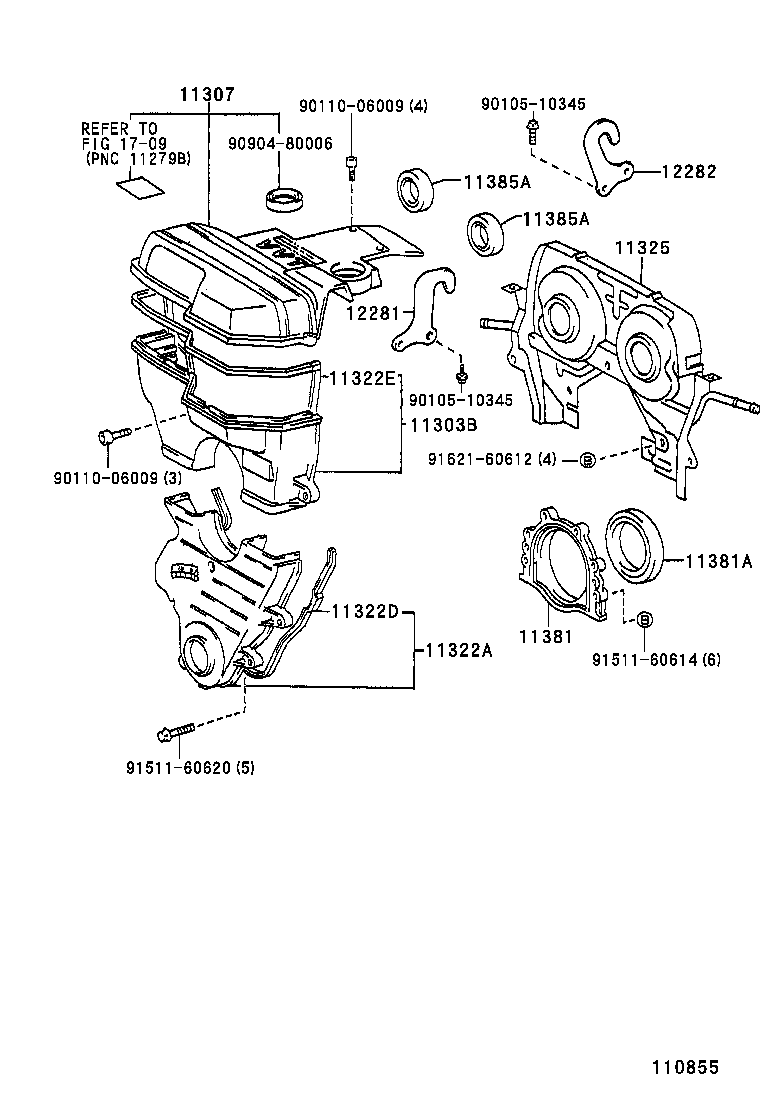

Figure MAG583B MAG583B 1993-05 → 1997-09 Figure 110855 110855 1997-09 → — Figure 117572 117572 1993-05 → —

Part groups

PNCDescription
11303B Cover Sub-assy, Timing Belt, NO.2
11307 Cover, Sub-assy, Timing Belt, NO.3
11322A Cover, Timing Belt, NO.1
11322D Gasket, Timing Belt Cover, NO.1
11322E Gasket, Timing Belt Cover, NO.2
11325 Cover, Timing Belt, NO.4
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11385A Seal, Oil(FOR CAMSHAFT)
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
