Toyota Supra

1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · Europe

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

17 part groups · 2 illustrations

Illustrations

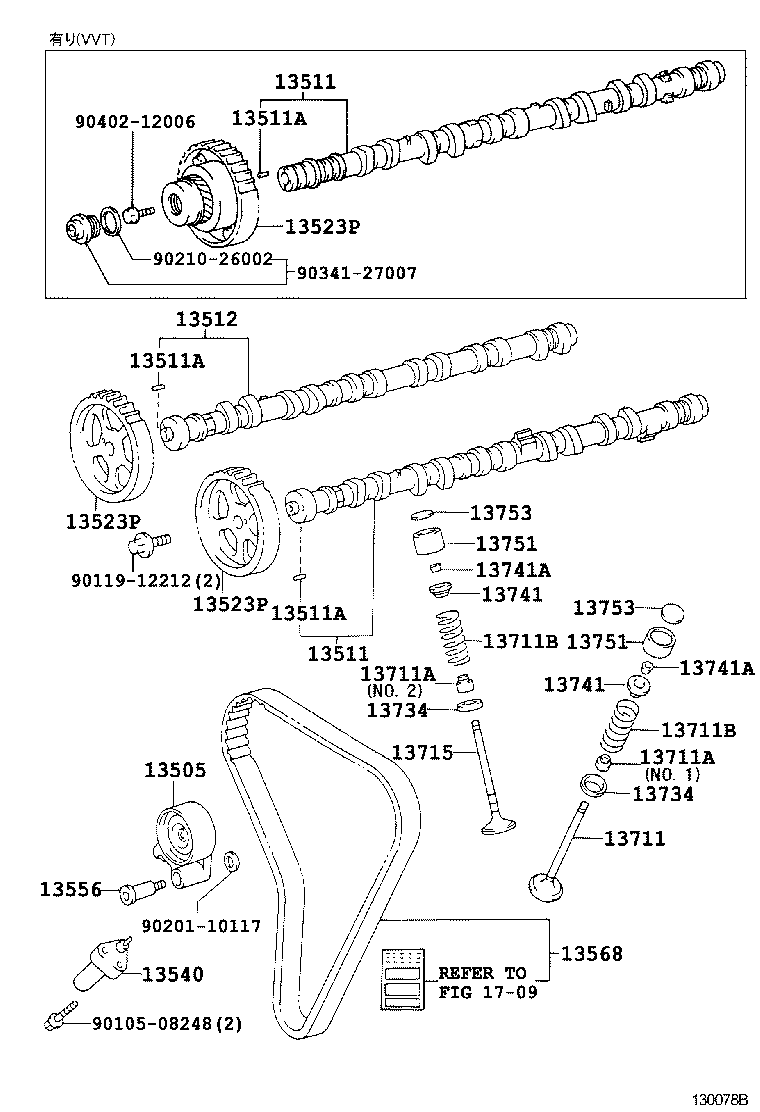

Figure MAF173A MAF173A 1993-05 → 1997-09 Figure 130078B 130078B 1997-09 → —

Part groups

PNCDescription
13505 Idler Sub-assy, Timing Belt, NO.1
13511 Camshaft
13511A Pin, Straight(FOR CAMSHAFT KNOCK)
13512 Camshaft, NO.2
13523P Pulley, Camshaft Timing
13540 Tensioner Assy, Chain, NO.1
13556 Shaft, Timing Belt Idler
13568 Belt, Timing
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13753 Shim, Valve Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
