Toyota Supra
1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · Europe
Discontinued model
Data version 1999-02

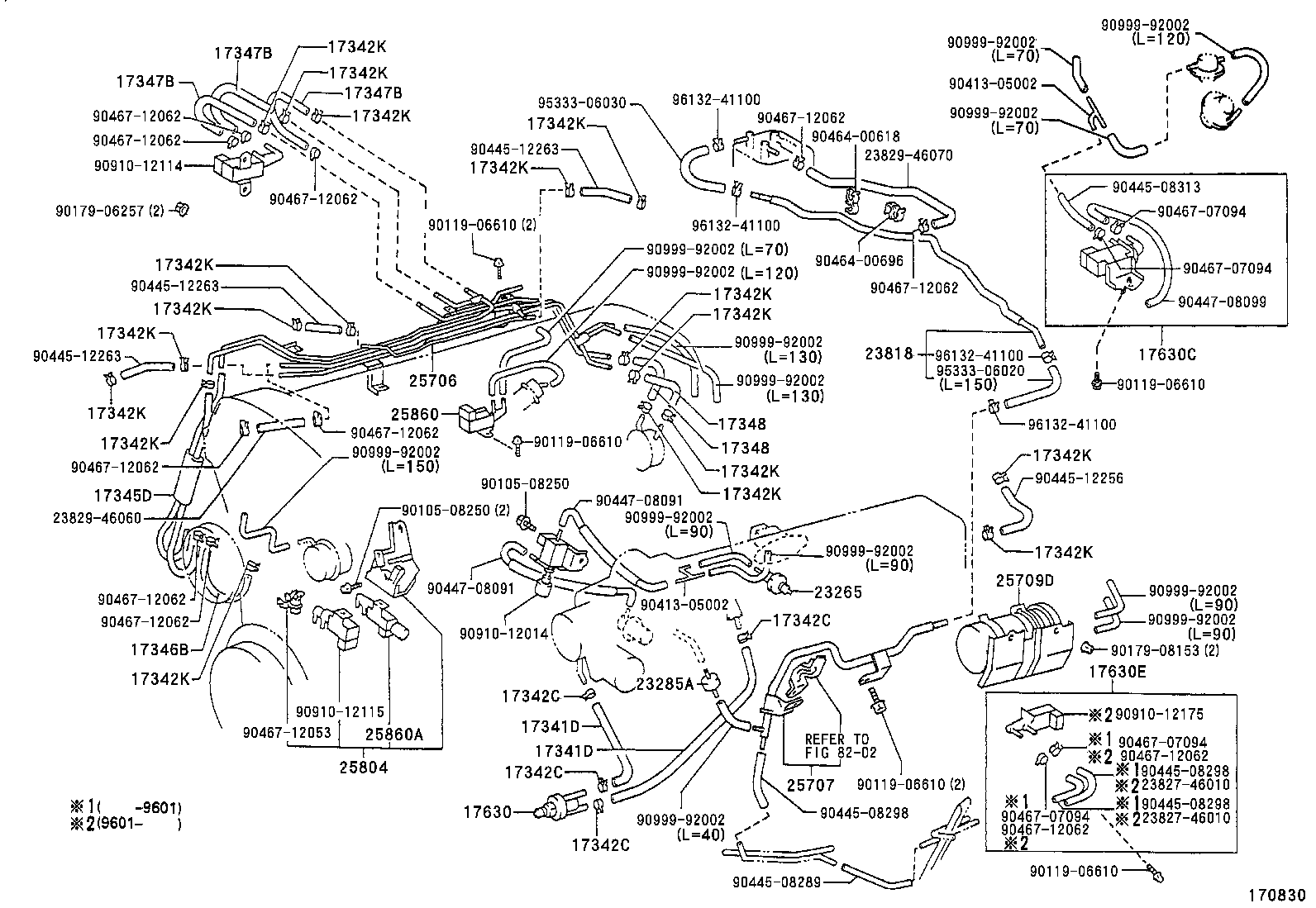

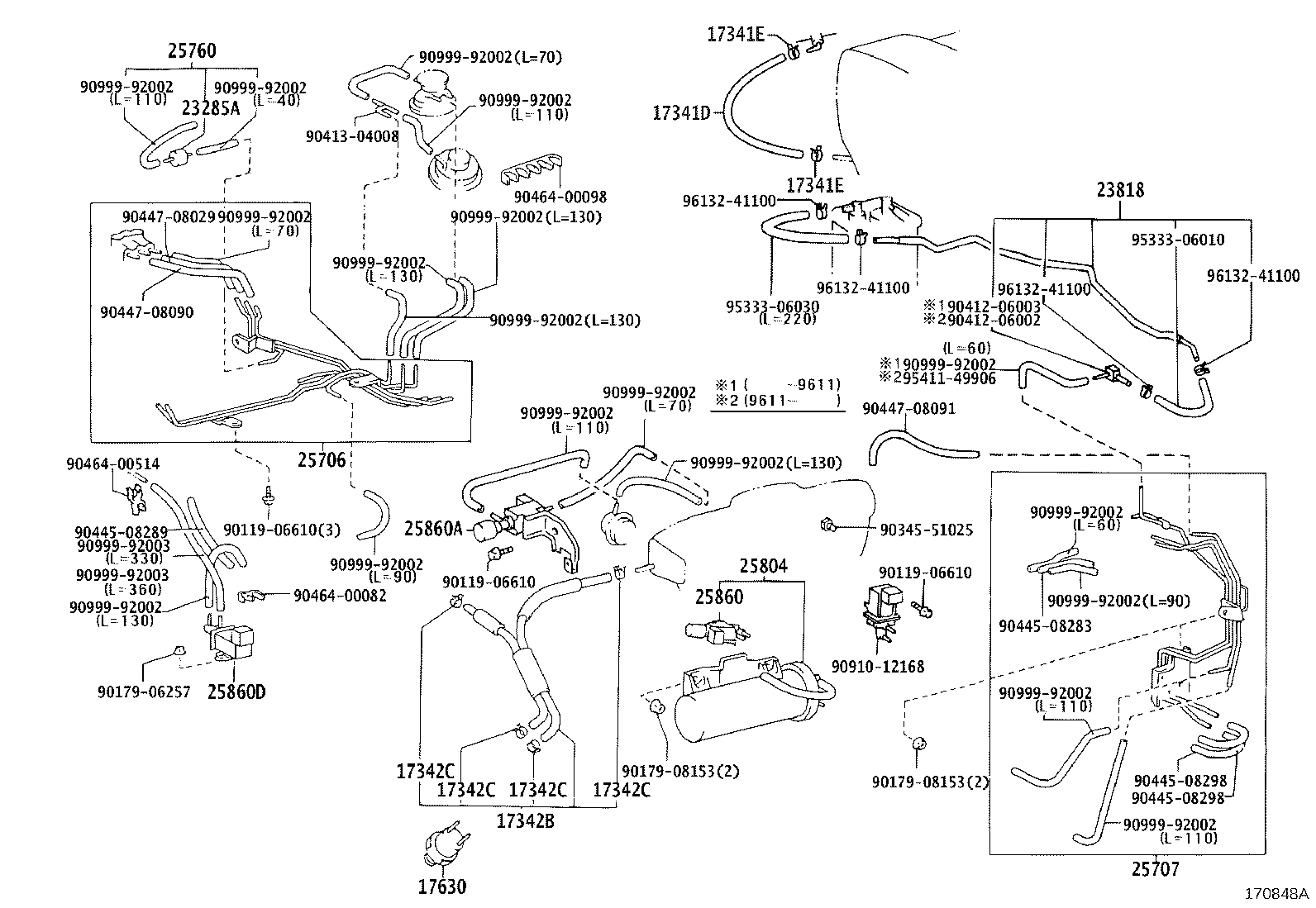

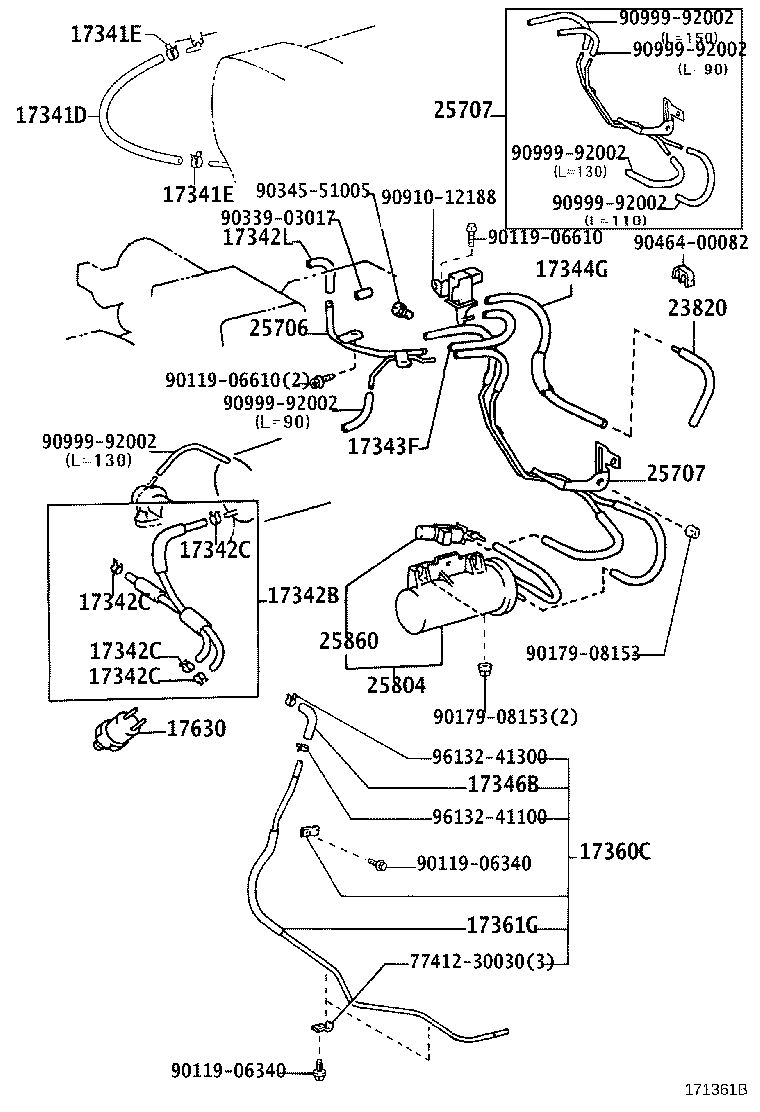

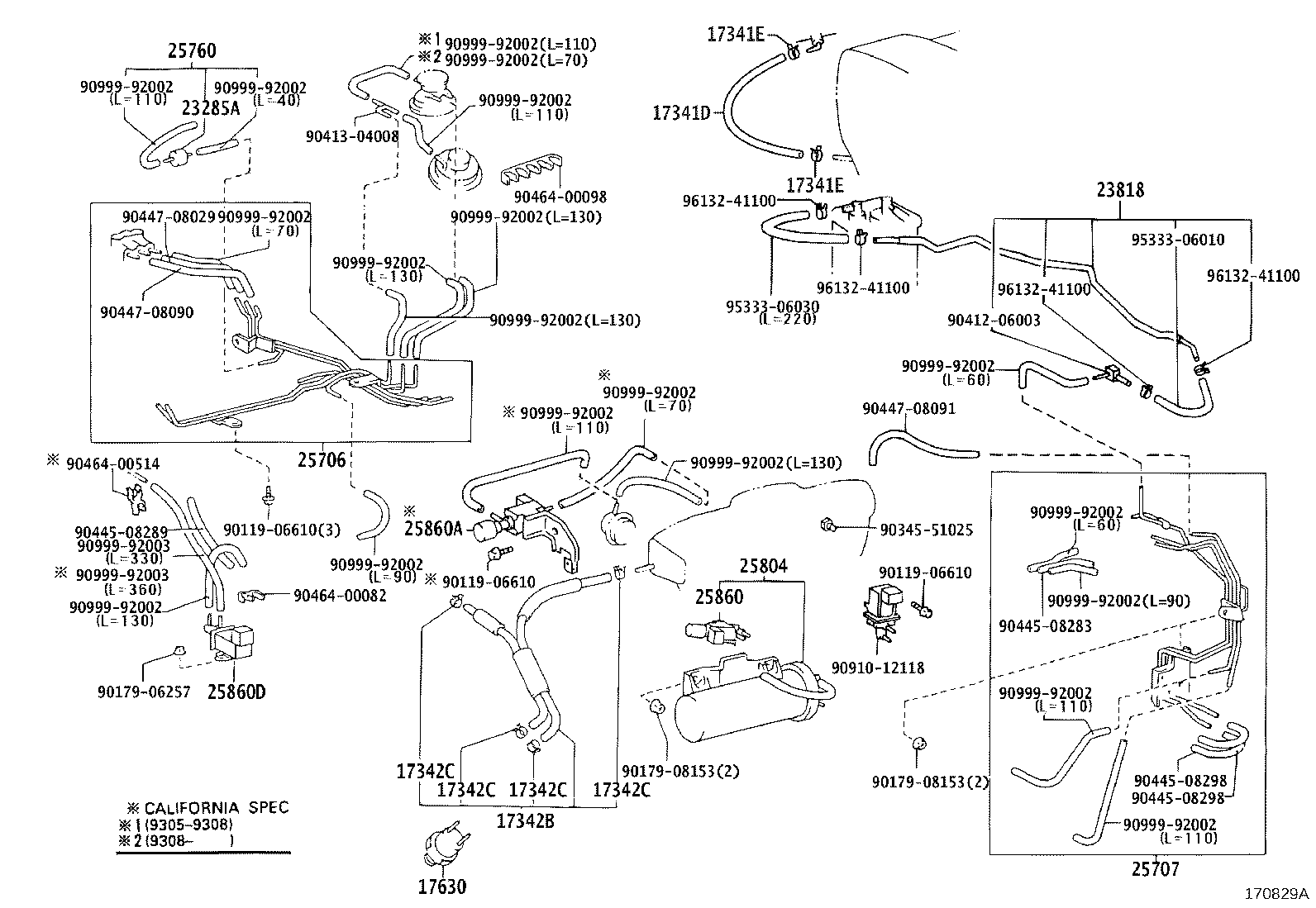

Vacuum Piping
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341D | Hose, NO.1(FOR IDLE-UP) |
| 17341E | Clip, NO.1(FOR IDLE-UP HOSE) |
| 17342B | Hose, NO.2(FOR IDLE-UP) |
| 17342C | Clip, NO.2(FOR IDLE-UP HOSE) |
| 17342K | Clip(FOR VACUUM HOSE) |
| 17342L | Hose, Air, NO.2 |
| 17343F | Hose, Air, NO.3 |
| 17344G | Hose, Air, NO.4 |
| 17345D | Hose, Air, NO.5 |
| 17346B | Hose, Air, NO.6 |
| 17347B | Hose, Air, NO.7 |
| 17348 | Hose, Air, NO.8 |
| 17360C | Pipe Assy, Air |
| 17361G | Tube, Air(FOR IDLE-UP) |
| 17630 | Valve Assy, Air Control |
| 17630C | Valve Assy, Air Control |
| 17630E | Valve Assy, Air Control |
| 23265 | Filter, Gas, NO.1 |
| 23285A | Valve, Check, NO.1 |
| 23818 | Pipe, Fuel Vapor Feed |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25707 | Pipe Sub-assy, Vacuum Transmitting, NO.2 |
| 25709D | Tank Sub-assy, Pressure Surge |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25804 | Valve Set, Vacuum Control |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860A | Valve, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
