Toyota Supra

1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · Europe

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

27 part groups · 2 illustrations

Illustrations

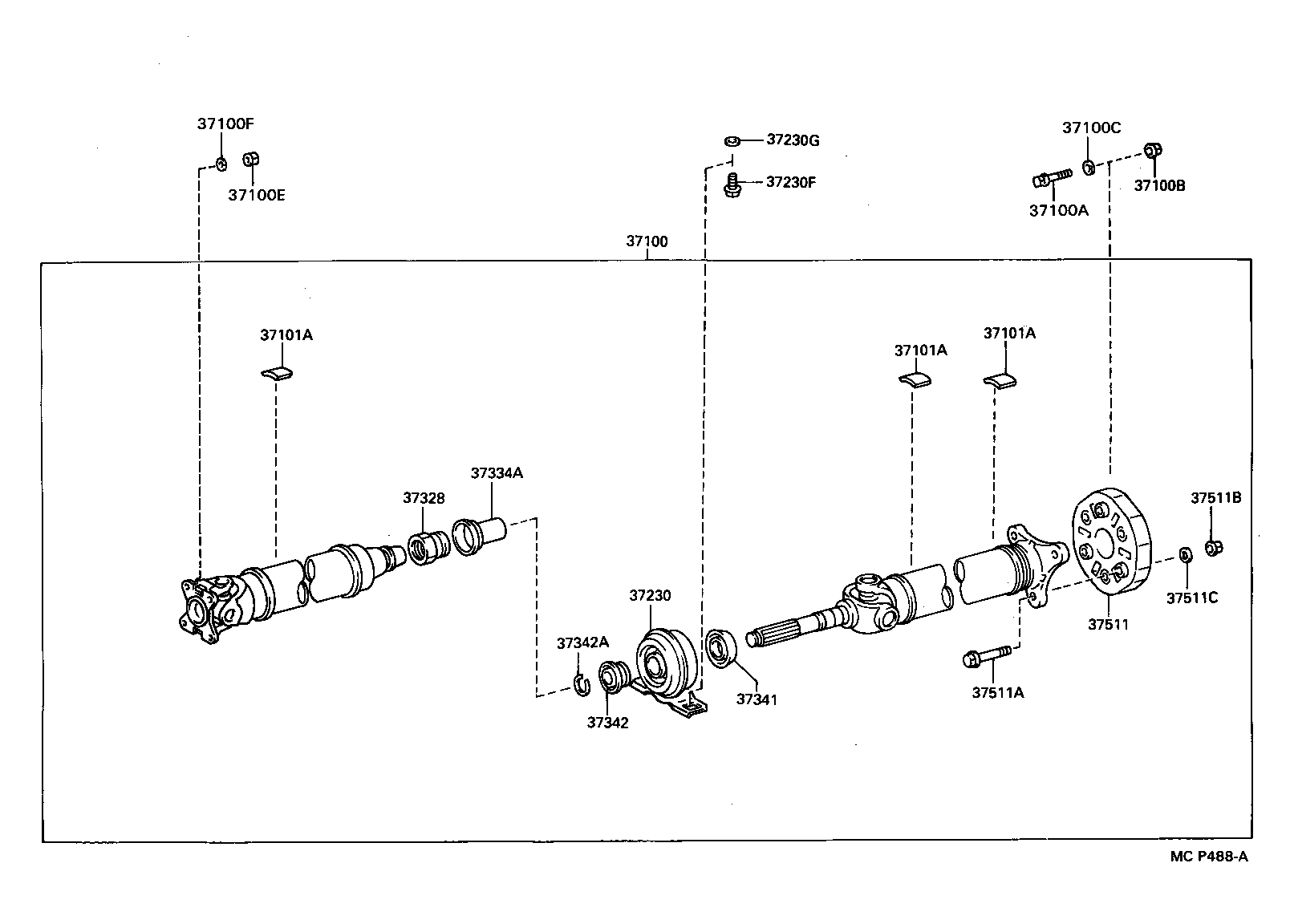

Figure MCP487A MCP487A 1993-05 → — Figure MCP488A MCP488A 1993-05 → —

Part groups

PNCDescription
37100 Shaft Assy, Propeller W/Center Bearing
37100A Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100B Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100C Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100E Nut, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100F Washer, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110A Bolt (FOR PROPELLER SHAFT)
37110D Nut (FOR PROPELLER SHAFT)
37110E Washer (FOR PROPELLER SHAFT)
37120A Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120B Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230 Bearing Assy, Center Support, NO.1
37230E Washer, NO.1 (FOR CENTER SUPPORT BEARING)
37230F Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
37230G Washer, NO.2 (FOR CENTER SUPPORT BEARING)
37304 Flange Sub-assy, Universal Joint
37328 Nut, Propeller Shaft Adjusting
37331 Cover, Sliding Shaft Dust
37334A Boot, Sliding Shaft
37341 Deflector, Propeller Shaft Dust, NO.1
37342 Deflector, Propeller Shaft Dust, NO.2
37342A Ring, Snap (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2)
37511 Coupling, Flexible
37511A Bolt (FOR FLEXIBLE COUPLING)
37511B Nut (FOR FLEXIBLE COUPLING)
37511C Washer, Plate (FOR FLEXIBLE COUPLING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
