Toyota Supra
1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · Europe
Discontinued model
Data version 1999-02

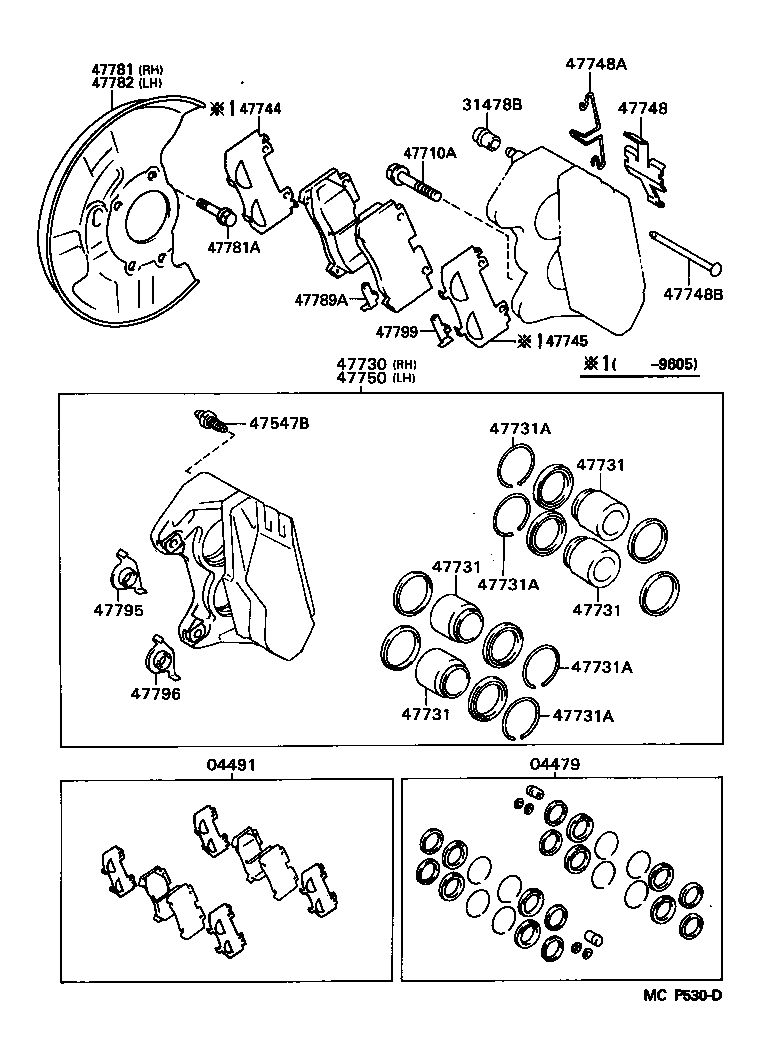

Front Disc Brake Caliper & Dust Cover
39 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04465 | Pad Kit, Disc Brake, Front |
| 04479 | Cylinder Kit, Disc Brake, Front |
| 04491 | Pad Kit, Disc Brake, Front |
| 04945 | Shim Kit, Anti Squeal, Front |
| 04947 | Fitting Kit, Disc Brake, Front |
| 31478B | Cap, Bleeder Plug(FOR FRONT DISC BRAKE) |
| 47547B | Plug, Bleeder(FOR FRONT DISC BRAKE) |
| 47710A | Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER) |
| 47713C | Collar(FOR FRONT DISC BRAKE CYLINDER) |
| 47715A | Pin, Front Disc Brake Cylinder Slide |
| 47715B | Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE) |
| 47716 | Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE) |
| 47717 | Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE) |
| 47718A | Plate, Pad Support, NO.3(FOR FRONT DISC BRAKE) |
| 47719A | Plate, Pad Support, NO.4(FOR FRONT DISC BRAKE) |
| 47721 | Mounting, Front Disc Brake Cylinder, RH |
| 47722 | Mounting, Front Disc Brake Cylinder, LH |
| 47730 | Cylinder Assy, Front Disc Brake, RH |
| 47731 | Piston, Front Disc Brake |
| 47731A | Ring, Set(FOR FRONT DISC BRAKE PISTON) |
| 47743 | Spring, Anti-rattle, NO.2(FOR FRONT DISC BRAKE) |
| 47744 | Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE) |
| 47744A | Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE) |
| 47745 | Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE) |
| 47745A | Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE) |
| 47748 | Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE) |
| 47748A | Clip(FOR FRONT DISC BRAKE ANTI-RATTLE) |
| 47748B | Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE) |
| 47750 | Cylinder Assy, Disc Brake, LH |
| 47769 | Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE) |
| 47775 | Boot, Bush Dust(FOR FRONT DISC BRAKE) |
| 47779 | Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE) |
| 47781 | Cover, Disc Brake Dust, Front RH |
| 47781A | Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) |
| 47782 | Cover, Disc Brake Dust, Front LH |
| 47789A | Spacer, Front Disc Brake Pad, NO.1 |
| 47795 | Plate, Front Disc Brake Caliper, NO.1 |
| 47796 | Plate, Front Disc Brake Caliper, NO.2 |
| 47799 | Spacer, Disc Brake Pad, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
