Toyota Supra
1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · Europe
Discontinued model
Data version 1999-02

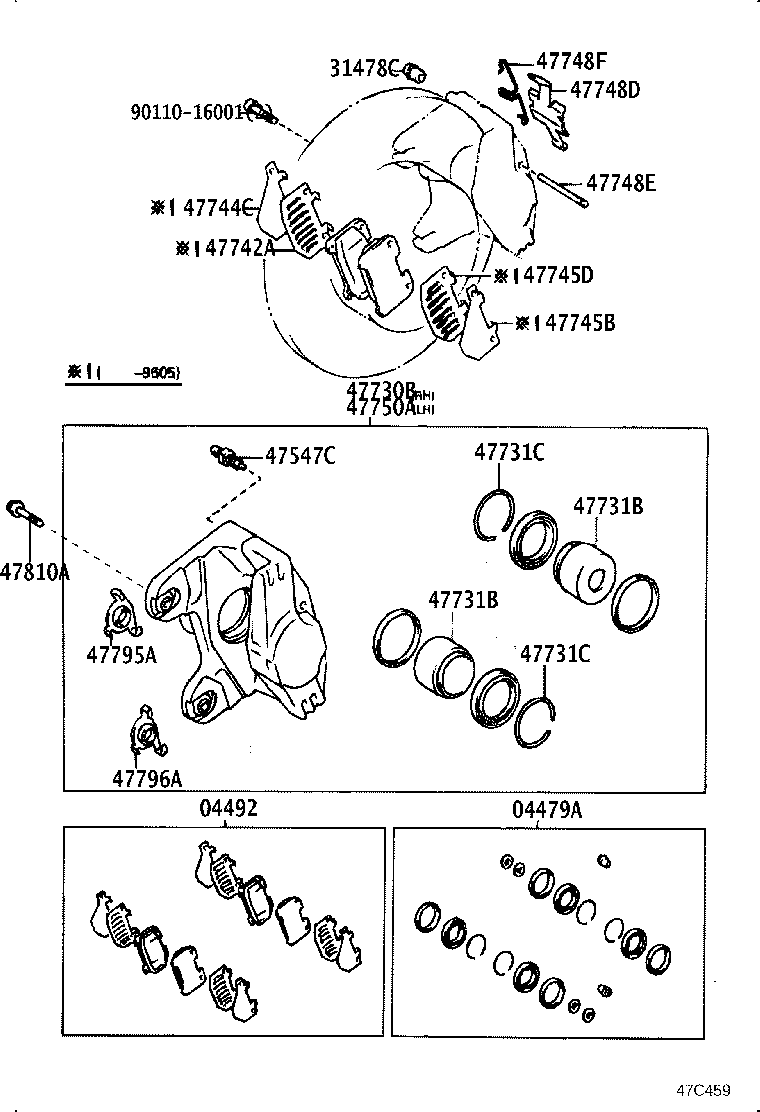

Rear Disc Brake Caliper & Dust Cover
32 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04466 | Pad Kit, Disc Brake, Rear |
| 04479A | Cylinder Kit, Disc Brake, Rear |
| 04492 | Pad Kit, Disc Brake, Rear |
| 04946 | Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) |
| 04948 | Fitting Kit, Disc Brake, Rear |
| 31478C | Cap, Bleeder Plug(FOR REAR DISC BRAKE) |
| 47547C | Plug, Bleeder(FOR REAR DISC BRAKE) |
| 47715C | Pin, Cylinder Slide(FOR REAR DISC BRAKE) |
| 47716A | Plate, Pad Support, NO.1(FOR REAR DISC BRAKE) |
| 47717A | Plate, Pad Support, NO.2(FOR REAR DISC BRAKE) |
| 47718B | Plate, Pad Support, NO.3(FOR REAR DISK BRAKE) |
| 47719B | Plate, Pad Support, NO.4(FOR REAR DISK BRAKE) |
| 47721C | Mounting, Rear Disc Brake Cylinder, RH |
| 47721D | Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING) |
| 47722A | Mounting, Rear Disc Brake Cylinder, LH |
| 47730B | Cylinder Assy, Rear Disc Brake, RH |
| 47731B | Piston, Rear Disc Brake |
| 47731C | Ring, Set(FOR REAR DISC BRAKE PISTON) |
| 47742A | Shim, Anti-squeal, NO.3(FOR REAR DISC BRAKE) |
| 47743C | Spring, Anti-squeal(FOR REAR DISC BRAKE) |
| 47744C | Shim, Anti-squeal, NO.1(FOR REAR DISC BRAKE) |
| 47745B | Shim, Anti-squeal, NO.2(FOR REAR DISC BRAKE) |
| 47745D | Shim, Anti-squeal, NO.4(FOR REAR DISC BRAKE) |
| 47748D | Spring, Anti-rattle, NO.1(FOR REAR DISC BRAKE) |
| 47748E | Pin, W/Hole(FOR REAR DISC BRAKE) |
| 47748F | Clip(FOR REAR DISC BRAKE) |
| 47750A | Cylinder Assy, Disc Brake, Rear LH |
| 47769A | Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE) |
| 47775D | Boot, Bush Dust(FOR REAR DISC BRAKE) |
| 47795A | Plate, Rear Disc Brake Caliper, NO.1 |
| 47796A | Plate, Rear Disc Brake Caliper, NO.2 |
| 47810A | Bolt, Hexagon(FOR REAR CALIPER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
