Toyota Supra
1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · Europe
Discontinued model
Data version 1999-02

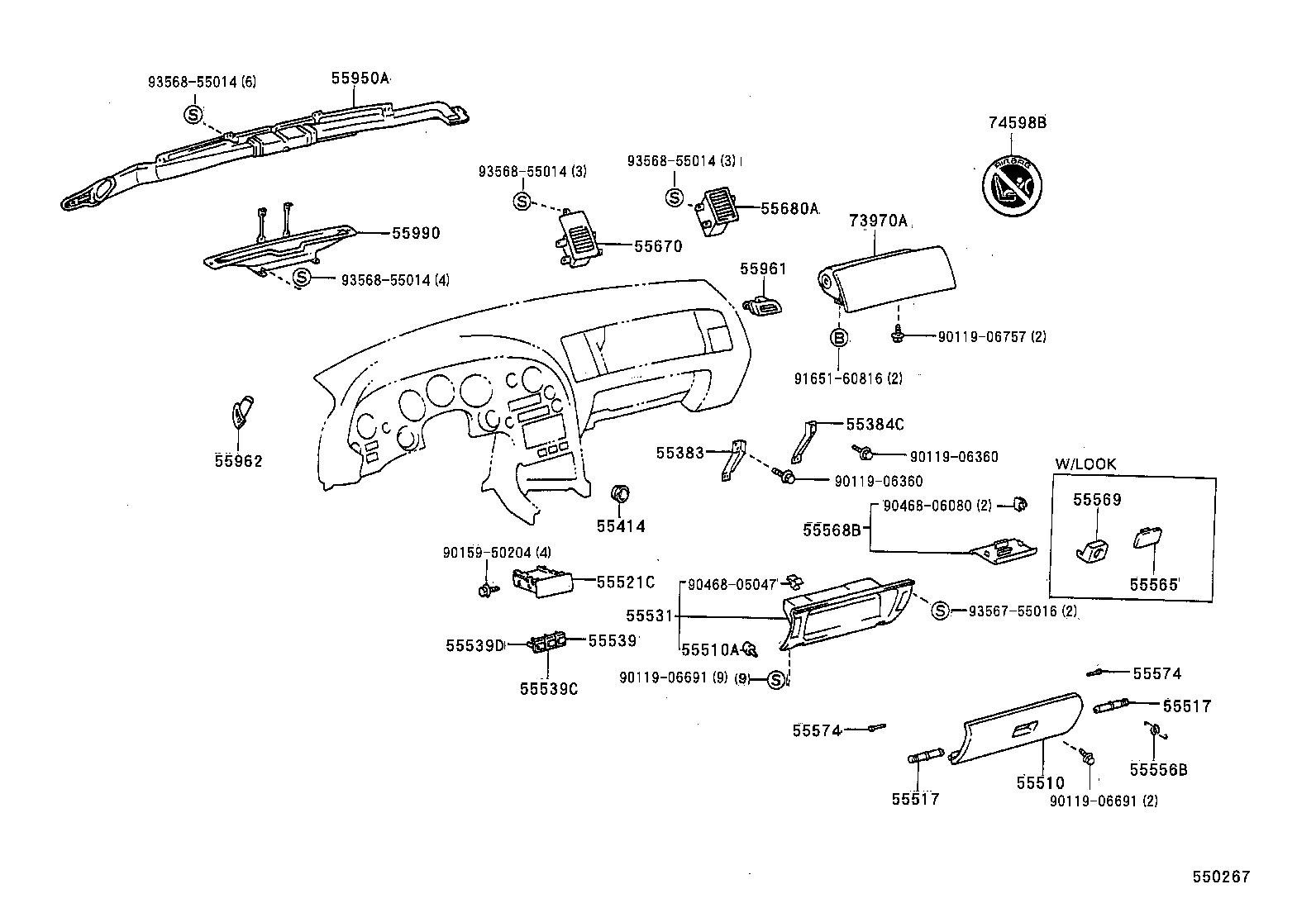

Instrument Panel & Glove Compartment
40 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55046A | Panel Sub-assy, Instrument Panel Finish, Lower LH |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55383 | Bracket, Finish Panel Mounting, NO.3 |
| 55384C | Bracket, Finish Panel Mounting, NO.4 |
| 55385B | Bracket, Finish Panel Mounting, NO.5 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55414 | Bezel, Cigar Lighter Hole |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55510 | Door Assy, Glove Compartment |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55517 | Stopper, Glove Compartment Door Arm |
| 55521C | Cover, Stereo Opening |
| 55531 | Panel, Glove Compartment |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55556B | Spring, Glove Compartment Door Check |
| 55565 | Handle, Glove Compartment Door Lock |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 55950A | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55990 | Nozzle Assy, Center Defroster |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 74598B | Label, Passenger Airbag Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
