Toyota Supra
1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · Europe
Discontinued model
Data version 1999-02

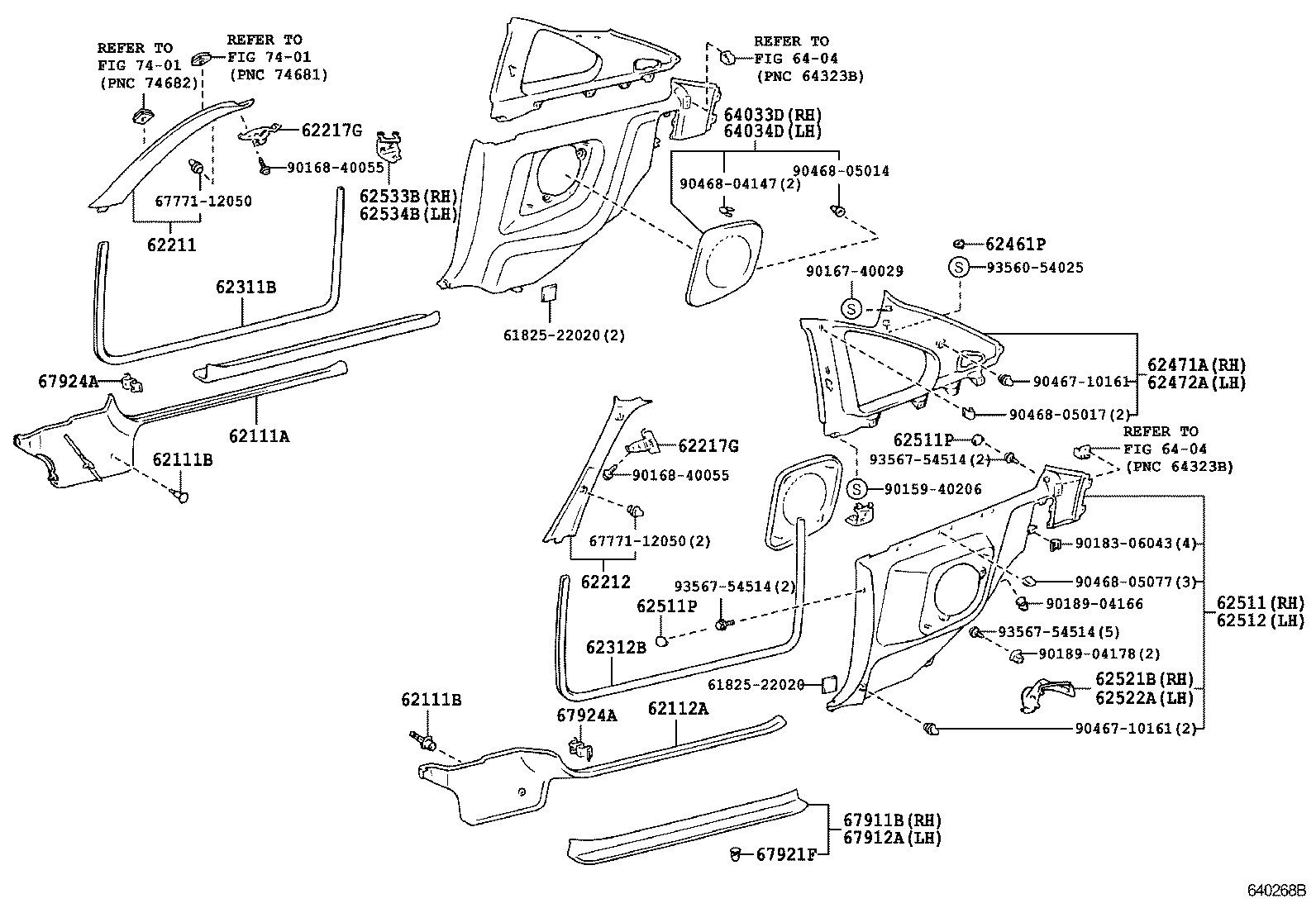

Inside Trim Board & Door Opening Trim Moulding
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61194A | Bracket, Cowl Side Trim, RH |
| 61195A | Bracket, Cowl Side Trim, LH |
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62381B | Weatherstrip, Roof Side Rail, RH |
| 62382B | Weatherstrip, Roof Side Rail, LH |
| 62461P | Plug, Hole (FOR ROOF SIDE INNER GARNISH) |
| 62471A | Garnish, Roof Side, Inner RH |
| 62472A | Garnish, Roof Side, Inner LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511P | Plug, Quarter Trim Board |
| 62512 | Board, Quarter Inside Trim, LH |
| 62521B | Cover, Quarter Trim, RH |
| 62522A | Cover, Quarter Trim, LH |
| 62533B | Bracket, Quarter Trim, RH |
| 62534B | Bracket, Quarter Trim, LH |
| 64033D | Grille Sub-assy, Rear Speaker, RH |
| 64034D | Grille Sub-assy, Rear Speaker, LH |
| 67869C | Clip, Roof Side Rail Weatherstrip |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67921F | Retainer, Front Door Scuff Plate |
| 67924A | Clamp, Door Scuff Plate, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
