Toyota Supra

1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · Europe

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Traction Control

11 part groups · 2 illustrations

Illustrations

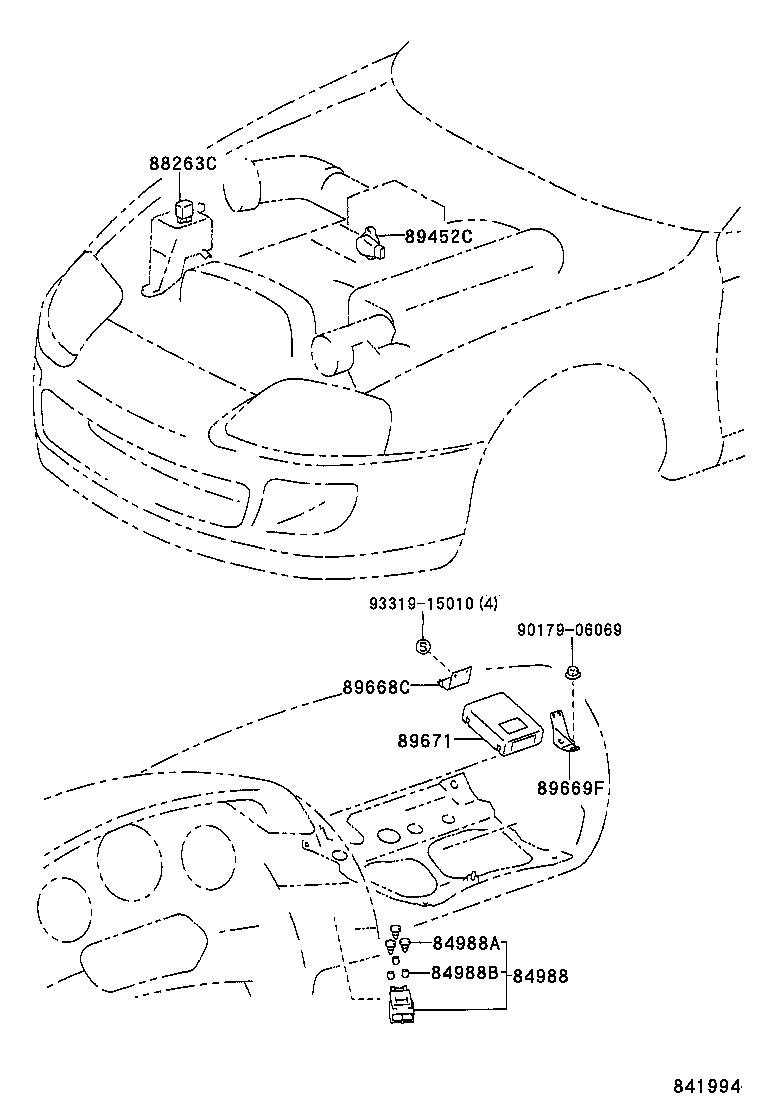

Figure MEW343A MEW343A 1993-05 → 1996-01 Figure 841994 841994 1996-01 → —

Part groups

PNCDescription
84988 Switch, Traction Control
84988A Bulb, Traction Control Switch
84988B Cap, Traction Control Swich Bulb
88263C Relay, Slip Control
88263D Relay, Traction Control
89452C Sensor, Throttle Position
89631 Computer, Traction Control
89634 Bracket, Traction Control Computer
89668C Bracket, Slip Control Computer, NO.2
89669F Bracket, Slip Control Computer, NO.3
89671 Computer, Throttle Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
