Toyota Supra
1993-05 → 1998-08 · chassis JZA80 · catalogue 291430 · Europe
Discontinued model
Data version 1999-02
Heating & Air Conditioning - Control & Air Duct
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

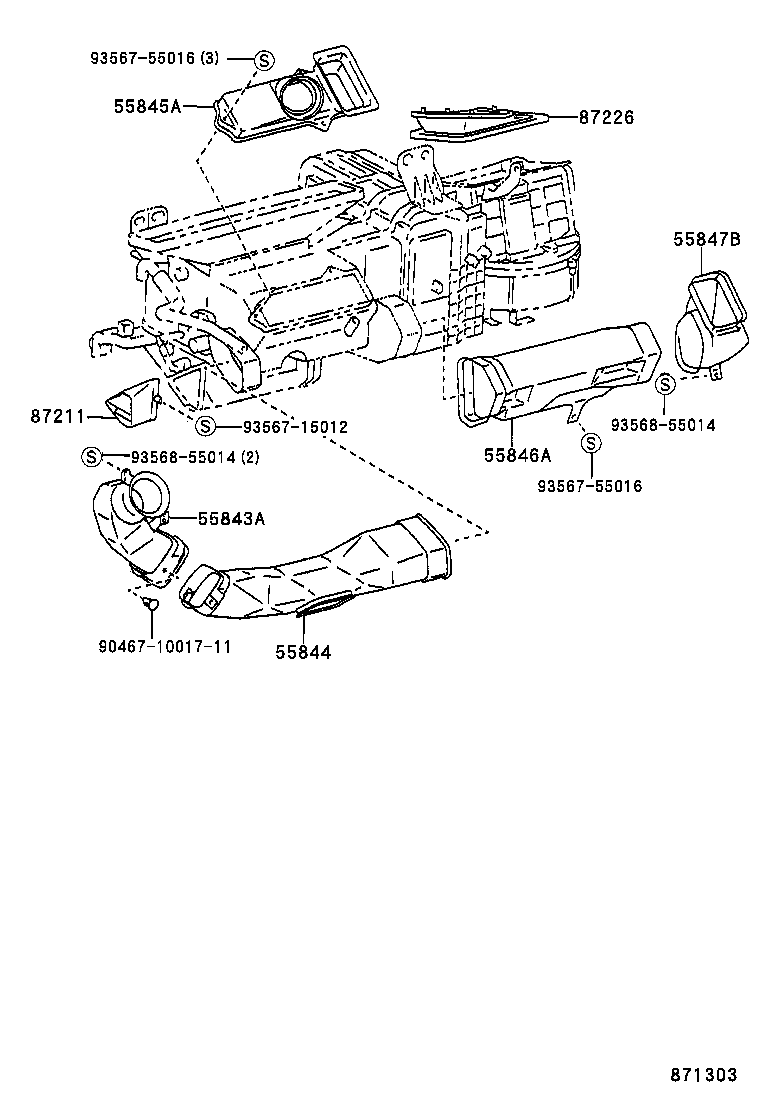

| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55846A | Duct, Heater TO Register, NO.4 |
| 55847B | Duct, Heater TO Register, NO.5 |
| 55900 | Control Assy, Air Conditioner |
| 55900B | Bulb, Air Conditioner Control |
| 55905A | Knob, Heater Control |
| 87211 | Duct, Air, NO.1 |
| 87226 | Adapter, Air Duct |

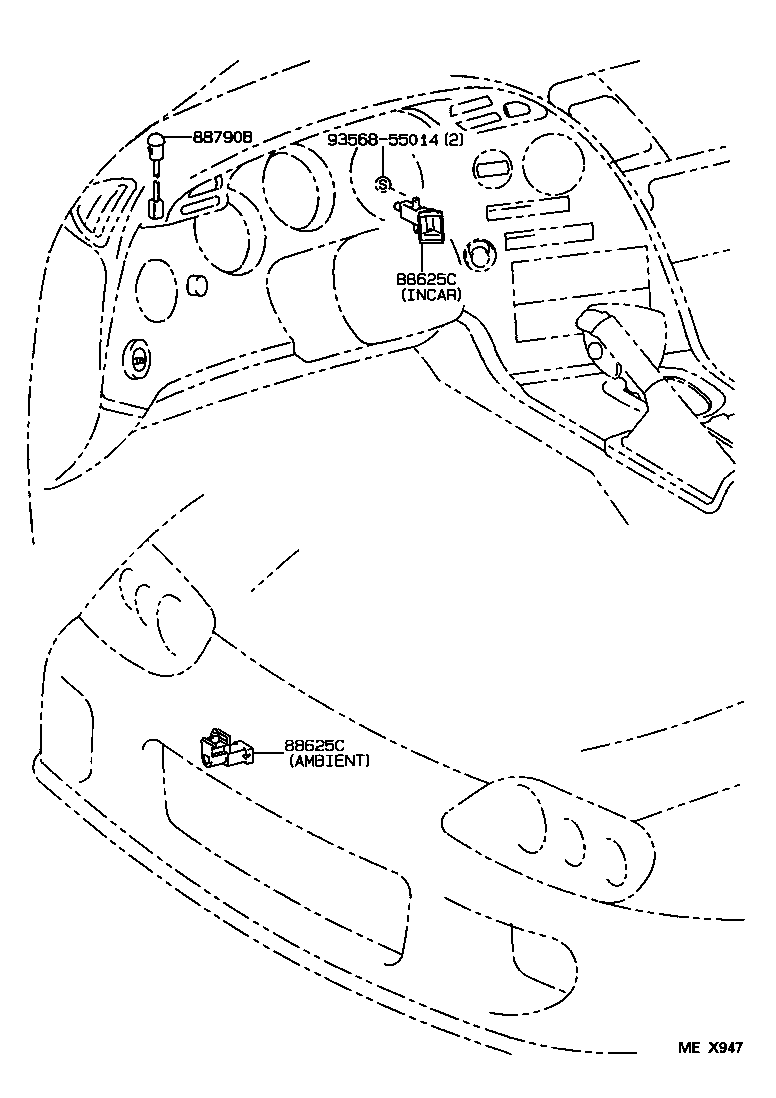

| 88625C | Thermistor, Cooler |
| 88790B | Thermistor Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
