Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · Europe

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

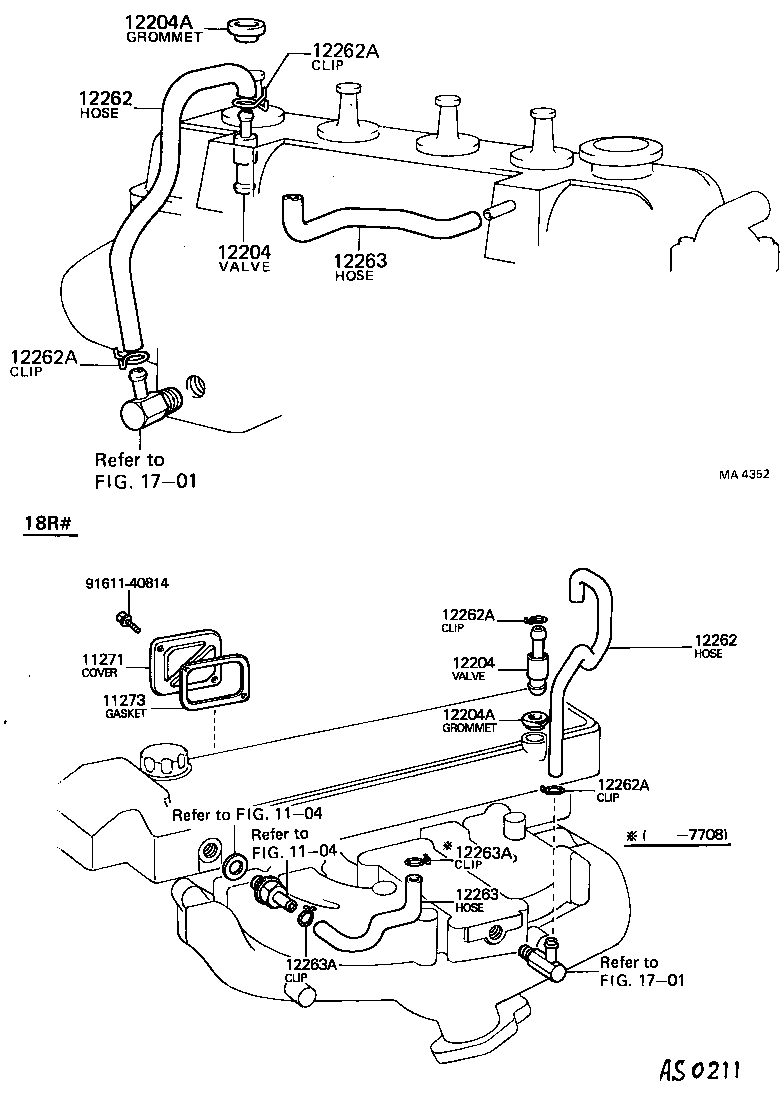

Exploded illustration AS0211 12204A — GROMMET(FOR VENTILATION SYSTEM) (4 parts) 12262A — CLIP(FOR VENTILATION HOSE NO.2) (4 parts) 12262 — HOSE, VENTILATION, NO.2 (4 parts) 12204 — VALVE SUB-ASSY, VENTILATION (6 parts) 12263 — HOSE, VENTILATION, NO.3 (4 parts) 12262A — CLIP(FOR VENTILATION HOSE NO.2) (4 parts) 1701 — not listed in this catalogue 9161140814 — not listed in this catalogue 12262A — CLIP(FOR VENTILATION HOSE NO.2) (4 parts) 12262 — HOSE, VENTILATION, NO.2 (4 parts) 11271 — COVER, CYLINDER BLOCK SIDE (1 parts) 12204 — VALVE SUB-ASSY, VENTILATION (6 parts) 11273 — GASKET, CYLINDER BLOCK SIDE COVER (1 parts) 12204A — GROMMET(FOR VENTILATION SYSTEM) (4 parts) 12262A — CLIP(FOR VENTILATION HOSE NO.2) (4 parts) 1104 — not listed in this catalogue 1104 — not listed in this catalogue 12263A — CLIP(FOR VENTILATION HOSE) (5 parts) 12263 — HOSE, VENTILATION, NO.3 (4 parts) 12263A — CLIP(FOR VENTILATION HOSE) (5 parts) 1701 — not listed in this catalogue
AS0211 · 16 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
29 parts on this figure
Part number Description Fitment Price
11271 — Cover, Cylinder Block Side
11271-33010 Cover, Cylinder Block Side
1976-12 → 1980-08 ended
18R# RX3# —
11273 — Gasket, Cylinder Block Side Cover
11273-33010 Gasket, Cylinder Block Side Cover
1976-12 → 1980-08 ended
18R# RX3# —
12204 — Valve Sub-assy, Ventilation
12204-15020 Valve Sub-assy, Ventilation
1979-08 → 1980-08 ended
18R# RX3# —
12204-15020 Valve Sub-assy, Ventilation
1979-08 → 1980-08 ended
3T TX30 —
12204-31020 Valve Sub-assy, Ventilation
1976-12 → 1978-03 ended
4M MX3# —
12204-34010 Valve Sub-assy, Ventilation
1976-12 → 1979-08 ended
18R# RX3# —
12204-41010 Valve Sub-assy, Ventilation
1978-03 → 1979-08 ended
4M MX3# —
12204-45010 Valve Sub-assy, Ventilation
1979-08 → 1980-08 ended
4M MX3# —
12204A — Grommet(FOR VENTILATION SYSTEM)
90480-18180 Grommet(FOR VENTILATION SYSTEM)
1976-12 → 1978-03 ended
18R# RX3# —
90480-18180 Grommet(FOR VENTILATION SYSTEM)
1978-03 → 1980-08 ended
4M MX3# —
90480-18180 Grommet(FOR VENTILATION SYSTEM)
1978-03 → 1980-08 ended
18R# RX3# —
90480-18180 Grommet(FOR VENTILATION SYSTEM)
1978-03 → 1980-08 ended
3T TX30 —
12262 — Hose, Ventilation, NO.2
12261-25012 Hose, Ventilation, NO.2
1980-01 → 1980-08 ended
3T TX30 —
12261-34070 Hose, Ventilation, NO.2
1976-12 → 1979-08 ended
18R# RX3# —
12261-34080 Hose, Ventilation, NO.2
1979-08 → 1980-08 ended
18R# RX3# —
12261-45010 Hose, Ventilation, NO.2
1976-12 → 1978-03 ended
4M MX3# —
12262A — Clip(FOR VENTILATION HOSE NO.2)
90467-16010 note Clip(FOR VENTILATION HOSE NO.2)
1976-12 → 1977-04 ended
4M MX3# —
90467-16010 note Clip(FOR VENTILATION HOSE NO.2)
1976-12 → 1980-08 ended
18R# RX3# —
90467-16010 note Clip(FOR VENTILATION HOSE NO.2)
1976-12 → 1980-08 ended
3T TX30 —
90467-16035 note Clip(FOR VENTILATION HOSE NO.2)
1977-04 → 1978-03 ended
4M MX3# —
12263 — Hose, Ventilation, NO.3
12262-25010 Hose, Ventilation, NO.3
1980-01 → 1980-08 ended
3T TX30 —
12262-34020 Hose, Ventilation, NO.3
1976-12 → 1980-08 ended
18R# RX3# —
12262-41060 Hose, Ventilation, NO.3
1978-03 → 1980-08 ended
4M MX3# —
90910-05104 Hose, Ventilation, NO.3
1976-12 → 1978-03 ended
4M MX3# —
12263A — Clip(FOR VENTILATION HOSE)
90467-19122 note Clip(FOR VENTILATION HOSE)
1977-04 → 1978-03 ended
4M MX3# —
90467-20002 note Clip(FOR VENTILATION HOSE)
1978-03 → 1980-08 ended
4M MX3# —
90467-20020 note Clip(FOR VENTILATION HOSE)
1976-12 → 1977-04 ended
4M MX3# —
90467-20020 note Clip(FOR VENTILATION HOSE)
1976-12 → 1977-08 ended
18R# RX3# —
90467-20020 note Clip(FOR VENTILATION HOSE)
1977-08 → 1980-08 ended
18R# RX3# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
